L25H
017637de-7e38-424f-9556-f57e8a8718e7
Description
Get the job done better and faster with the L20H, bringing you quality as standard and excellent stability. Operate from the comfort of the Volvo Care Cab, offering all-around visibility for efficient and productive work.
Features And Benefits
- 2019 EquipmentWatch Highest Retained Value Award
- Comfortable cab
- Excellent hydraulics
- Easy-to-use controls
- Outstanding serviceability

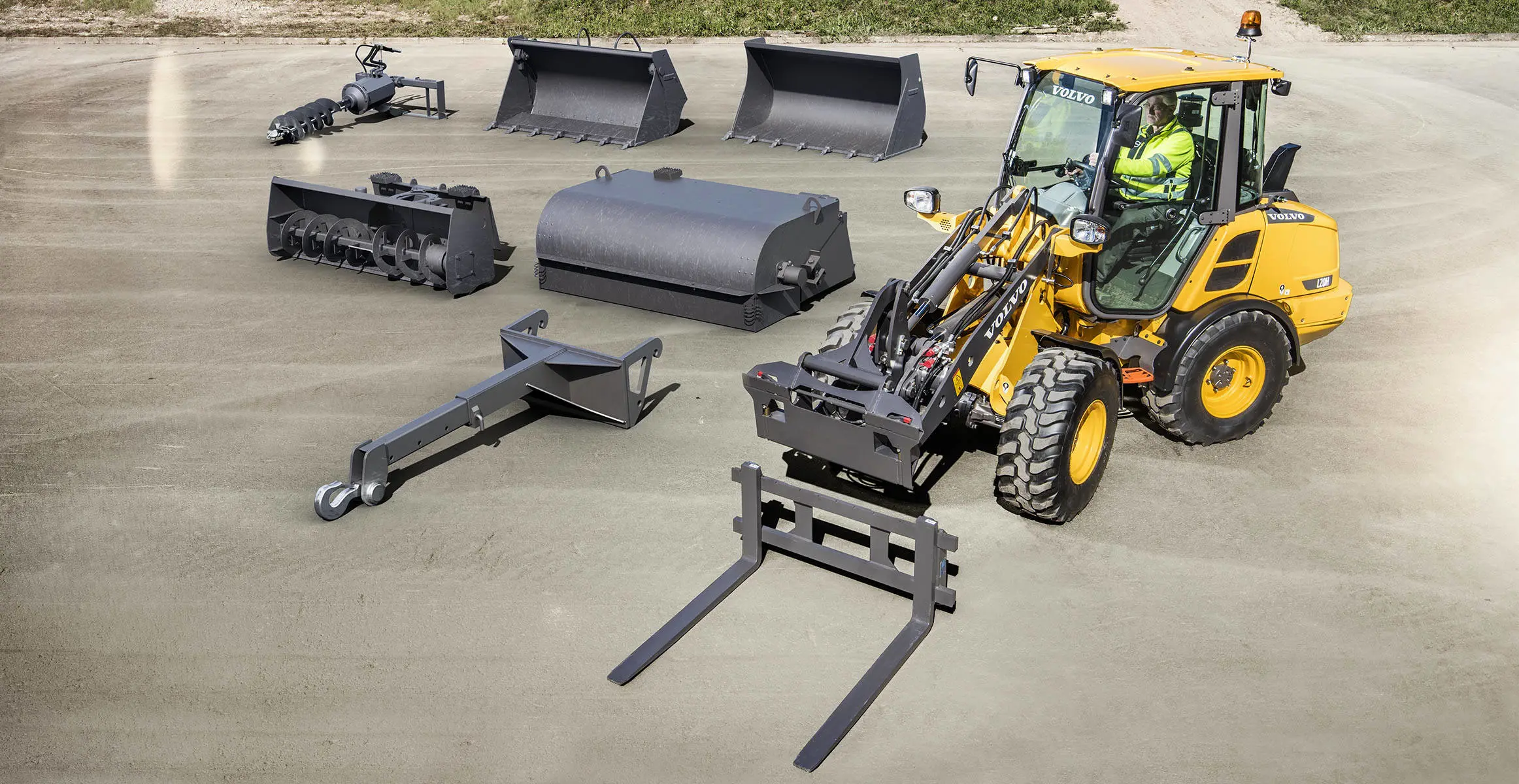

- Wide range of attachments
- Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)

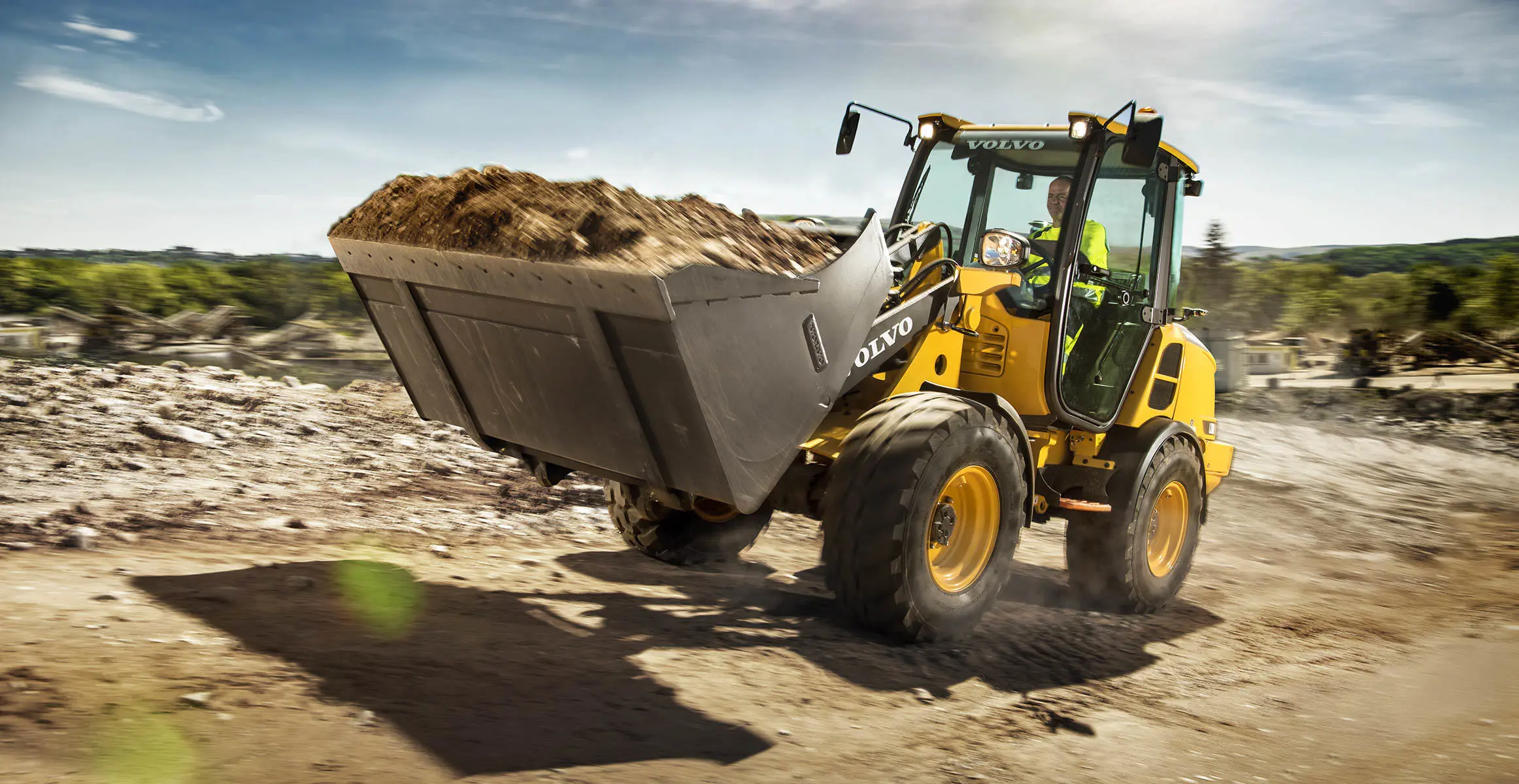

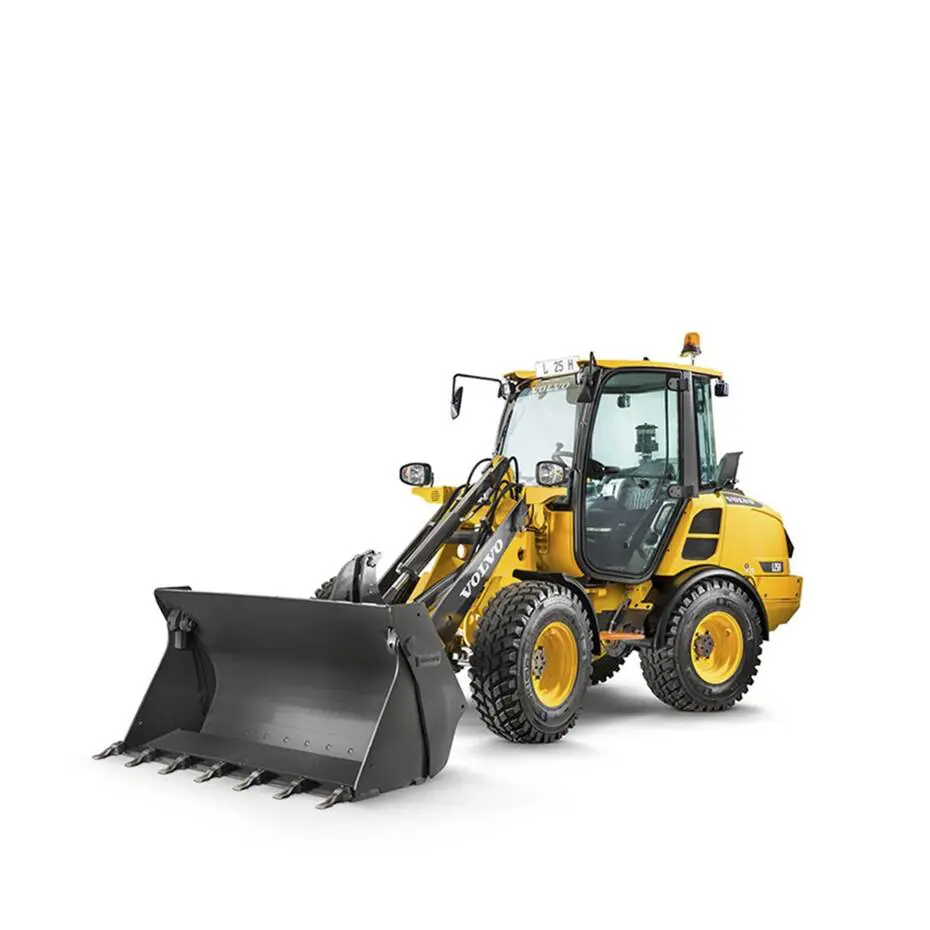

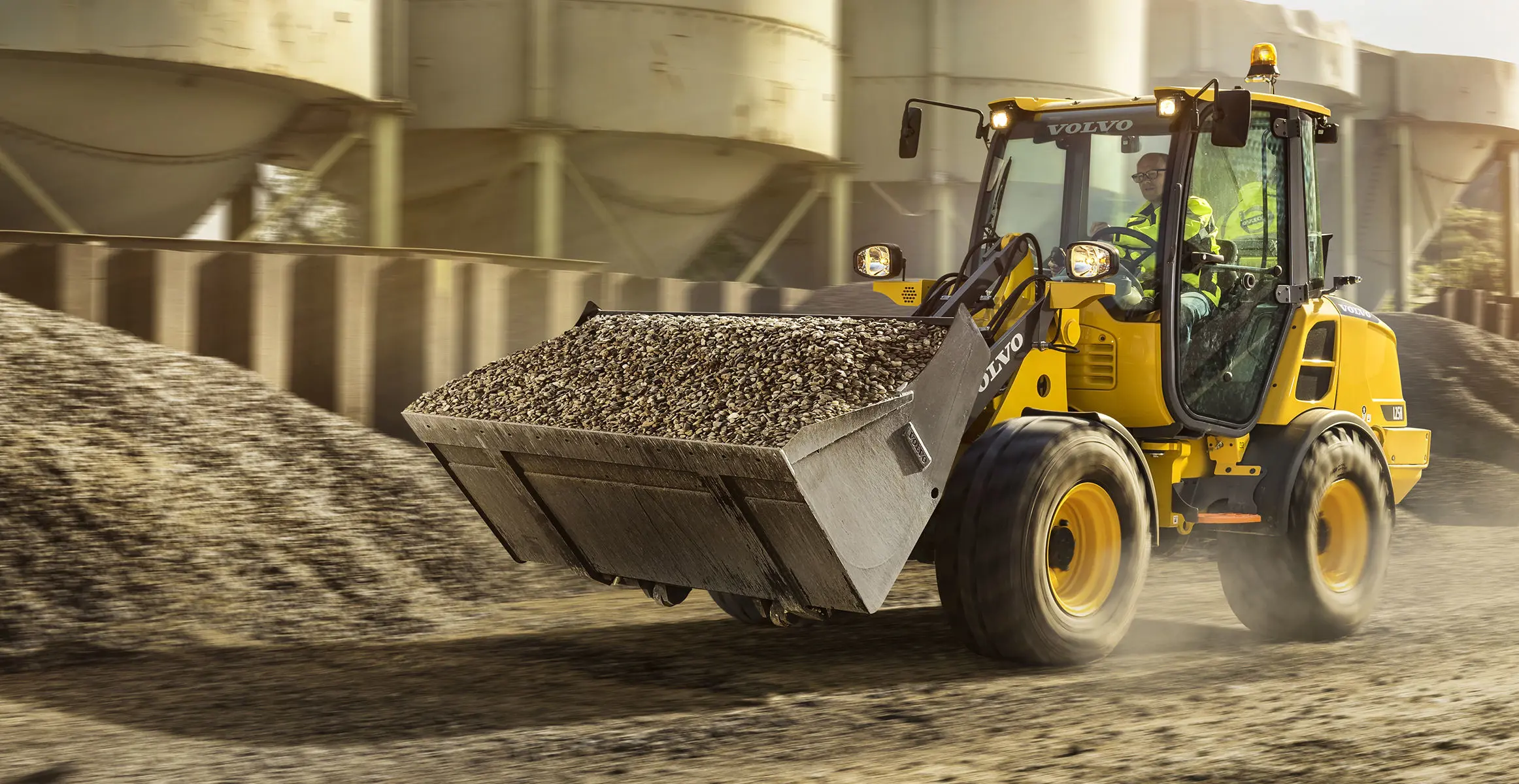

Images
Brochures
Video
Driveline
Engine Manufacturer Volvo
Engine Model D2.6M
Emissions Technology Cooled Exhaust Gas Recirculation
After Treatment System Diesel Oxidation Catalyst
Aspiration Turbo
Displacement 160 Inches³ (2.62 ltr)
Rated Speed 2400 rpm
Engine Output - Gross 64.4 hp (48 kW)
Engine Output - Net 63.4 hp (47.3 kW)
Torque 166 lbf / ft (225 Nm)
Transmission Type Hydrostatic
Tire Size - Standard 335 / 80 R18
Hydrostatic System Braking Yes
Hydrostatic Brake - Actuation All Wheels
Service Brake - Type Disc
Dimensions
Wheelbase 6 ft 9 in (2050 mm)
Length With Bucket On Ground 16 ft 7 in (5059 mm)
Height - Over Cab 8 ft 2 in (2485 mm)
Ground Clearance 11 inches (290 mm)
Width Over Tires - Std 5 ft 9 in (1740 mm)
Bucket Type GP w/Edge
Bucket Width 5 ft 11 in (1800 mm)
Full Lift Dump Height 8 ft 2 in (2480 mm)
Full Lift Reach 2 ft 3 in (680 mm)
Loader - Geometry Parallel
Dump Angle - At Dump 45 °
Dump Angle - Maximum 45 °
Height - Pivot Pin 10 ft 4 in (3140 mm)
Height - Maximum 13 ft 5 in (4100 mm)
Turn Radius Over Bucket - Std. 13 ft 9 in (4190 mm)
Capacities
Fuel Tank 15.8 gallons (US) (60 ltr)
Heaped Capactiy 1.1 yd³ (0.85 m³)
Bucket Capacity - Smallest 1 yd³ (0.8 m³)
Largest Bucket Capacity 1.6 yd³ (1.2 m³)
Performance
Straight Tipping Load 8378 lbs (3800 kg)
Full Turn Tipping Load 7496 lbs (3400 kg)
Bucket Breakout 8318 lbf (37 kN)
Ride Control System Optional
Weights
Bucket Capacity 1-1.6 yd³ (0.8-1.2 m³)
Operating Weight 10847 lbs (4920 kg)
