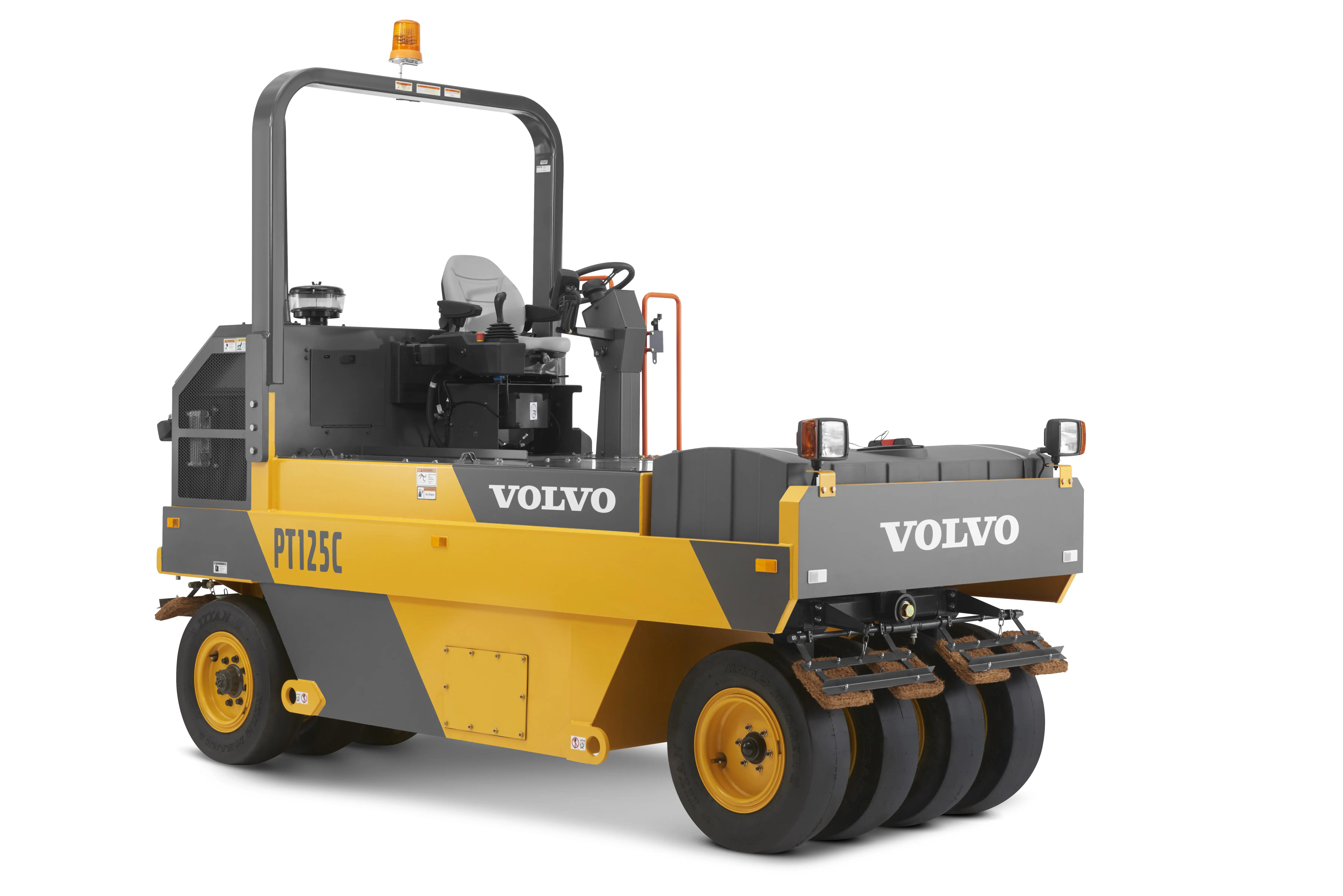

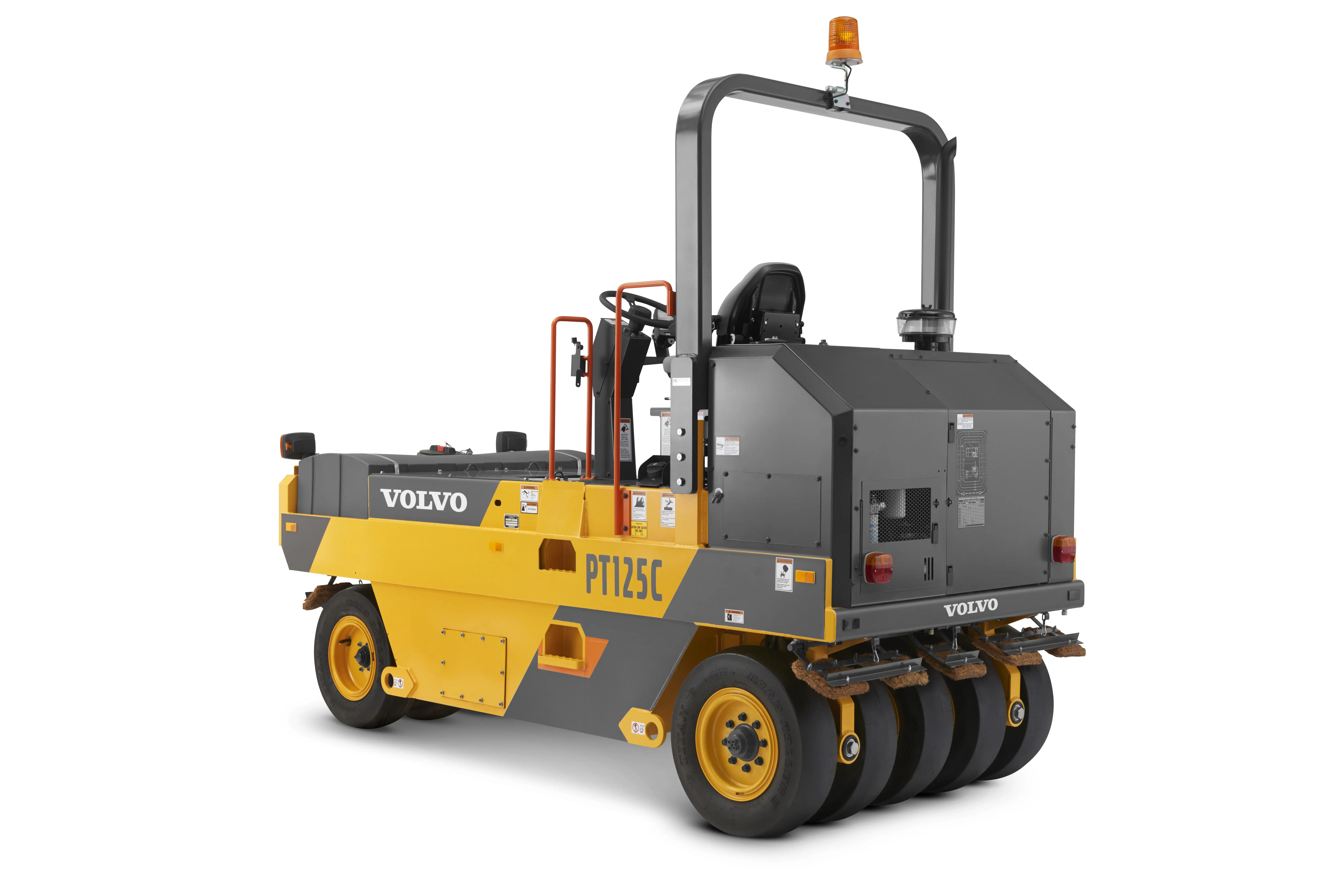

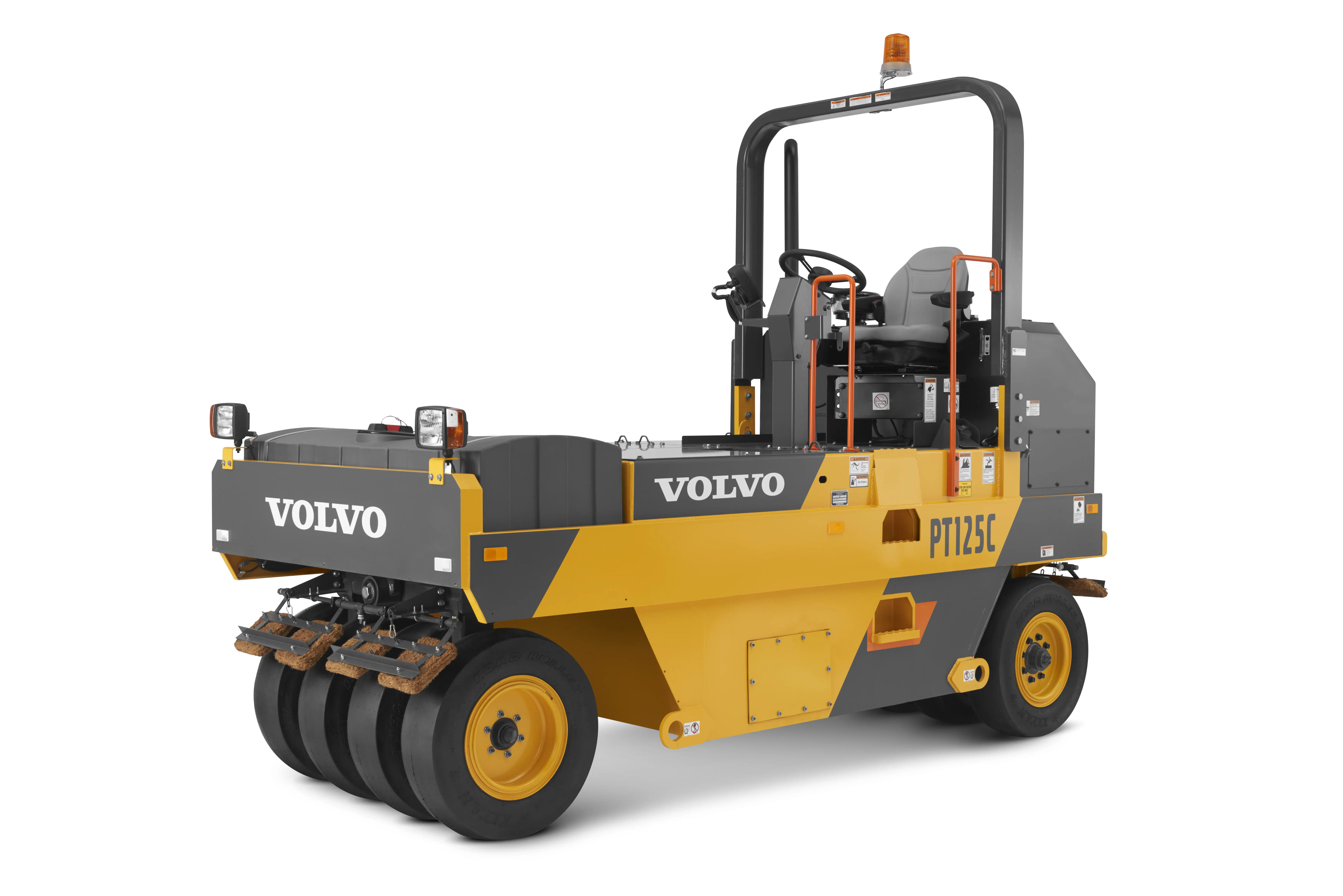

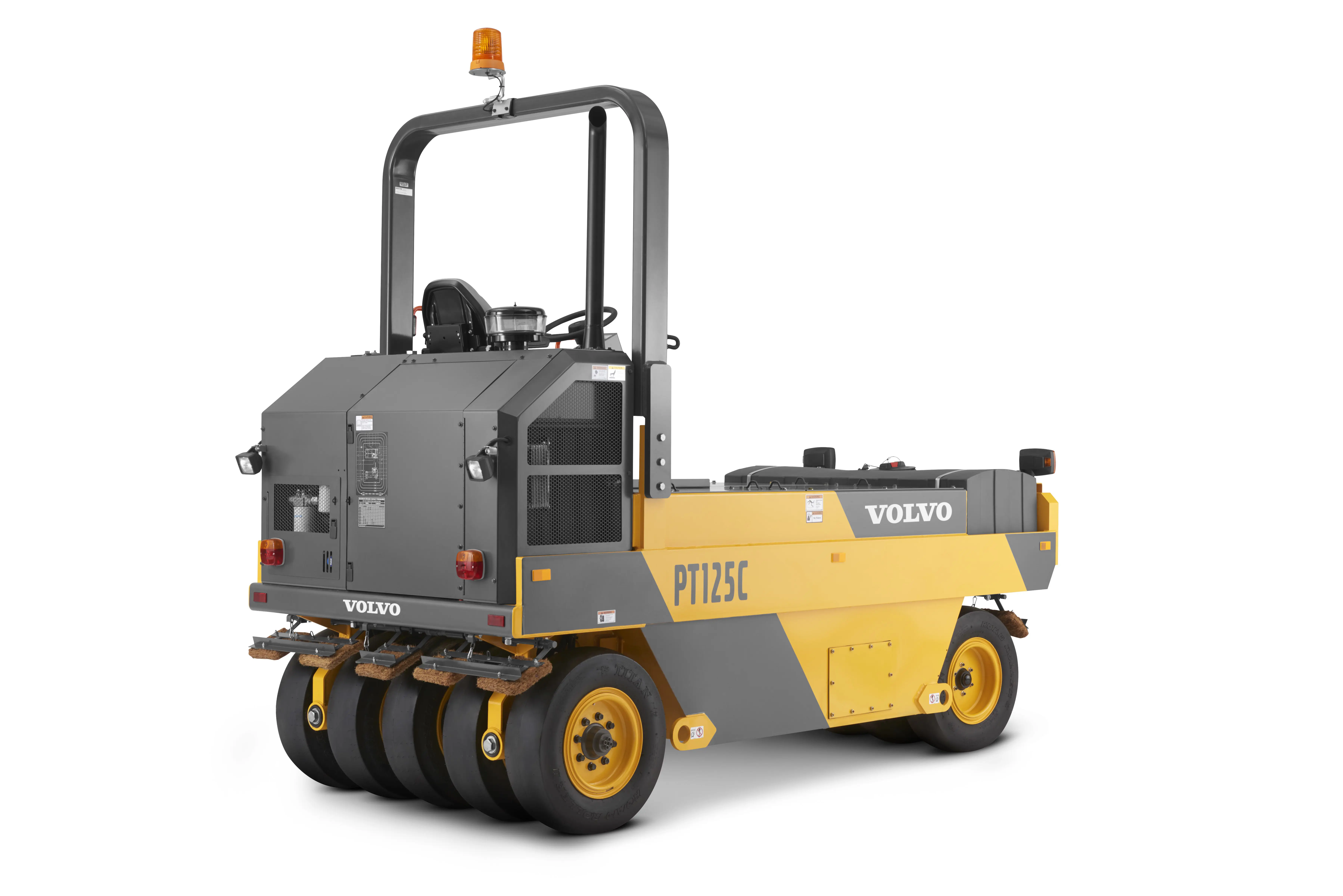

PT125C
018c46b9-9e24-4efc-afee-c2ed94b80d0f
READY TO ROLL
Description
Take on tough terrain in the PT125C asphalt roller from Volvo. Combining versatility with uptime-enhancing features, the robust roller ensures high quality compaction that lasts. And, with a comfortably productive work environment, fuel efficient engine and simple serviceability, you can get ready to roll right away.
Features And Benefits
- Industry-leading tire-wetting system
- Complete a variety of tasks with the roller’s ballast capacity, adjusting tire pressure and heavy-duty tires.
- Intelligently-designed hydrostatic transmission
- Oscillating front tires overlap with rear drive tires for uniform surface coverage, compaction and sealing.
Images
Brochures
Video
DRIVELINE
Engine Manufacturer Volvo
Engine Model D3.3H
Displacement 201 Inches³ (3.3 ltr)
Rated Speed 2200 rpm
Engine Output 74.3 hp (55.4 kW)
Transmission Type Hydrostatic
Tire Size 7.5 - 15
Number Of Tires 4 + 5
DIMENSIONS
Overall Length 152.8 inches (3880 mm)
Height - ROPS 118.8 inches (3018 mm)
Overall Width 72.1 inches (1831 mm)
Wheelbase 115.8 inches (2942 mm)
Ground Clearance 10.7 inches (273 mm)
Rolling Width 68.2 inches (1732 mm)
Turning Radius - Inside 167 inches (4242 mm)
Turning Radius - Outside 260.5 inches (6617 mm)
Capacities
Fuel Tank 27 gallons (US) (102.2 ltr)
Performance
Drive Configuration Rear
Travel Speed 1 12.2 mph (19.6 kph)
Weights
Operating Weight 9826 lbs (4457 kg)
Maximum Weight 25000 lbs (11340 kg)
