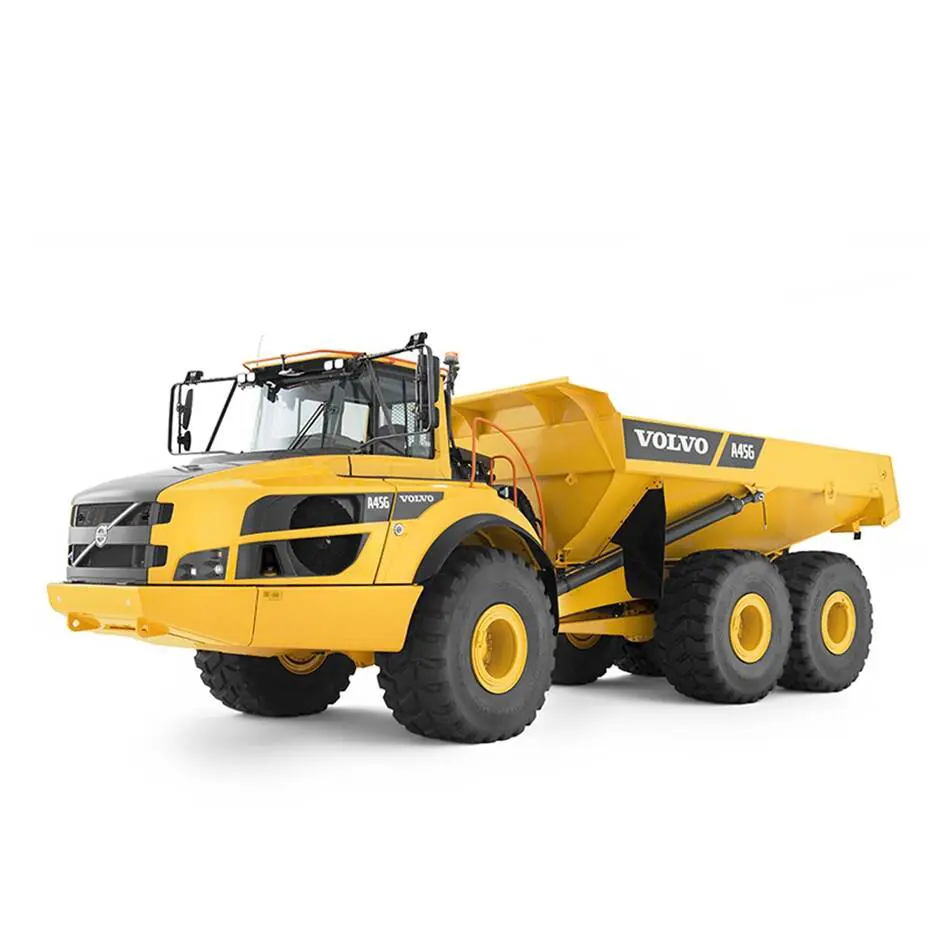

A45G
17b828d0-3aa8-4294-9f94-10cc10322a66
Get up and go
Description
Always available to work, the bigger, more durable and superior A45G articulated hauler from Volvo CE provides endless production and unbeatable reliability thanks to its robust design, easy service access and outstanding Volvo dealer network. Smash your productivity targets and increase your profitability with the Volvo A45G.
Features And Benefits
- Fuel Efficiency Guaranteed
- Lifetime Frame & Structure Guarantee (Frame, Articulation/Oscillation Joint)
- Industry-leading service access
- Volvo Dynamic Drive
- Operational data: CareTrack, MATRIS & Optional On Board Weighing System
- Prioritized operator control, comfort & safety
Images
Video
Driveline
Engine Manufacturer Volvo
Engine Model D16J
Number Of Cylinders 6
After Treatment System 3 Selective Catalytic Reduction
Displacement 982 Inches³ (16.1 ltr)
Rated Speed 1800 rpm
Engine Output - Net 475 hp (354 kW)
Engine Output - Gross 479 hp (357 kW)
Torque 1882 lbf / ft (2551 Nm)
Drive Configuration 6 x 6
Final Drive Planetary
Transmission Type Powershift
Traction Control Yes
Front Differential Locking
Second Axle Differential Locking
Third Axle Differential Locking
Centre Transfer Differential Locking
Tire Size - Standard 29.5 R25
Tire Type - Standard Radial
Front Suspension - Type 3 Point
Front Suspension Rubber Bushing / Shock Absorber
Rear Suspension - Type 3 Point Bogie Beam
Rear Suspension 3 Point
Service Brake - Type Wet Multi Disc
Dimensions
Length - Overall 36 ft 11 in (11263 mm)
Height - Over Cab 11 ft 10 in (3599 mm)
Height - Max 11 ft 10 in (3599 mm)
Ground Clearance 22 inches (553 mm)
Width Over Tires 11 ft 2 in (3403 mm)
Width - Transport 11 ft 3 in (3430 mm)
Width - Operating 11 ft 3 in (3430 mm)
Wheelbase 18 ft (5488 mm)
Length - Body 19 ft 2 in (5844 mm)
Loading Height 10 ft 6 in (3200 mm)
Full Dump Height 23 ft 10 in (7265 mm)
Hoist - Type Twin, 1-Stage
Dump Angle 70 °
Approach Angle 24.3 °
Articulation Angle 45 ± °
Turning Radius - Outside 29 ft 5 in (8957 mm)
Turning Radius - Inside 14 ft 2 in (4327 mm)
Capacities
Fuel Tank 126.8 gallons (US) (480 ltr)
Heaped Capacity 32.8 yd³ (25.1 m³)
Performance
Cycle Time - Raise 12 s
Unladen Axle Load - Front 36376 lbs (16500 kg)
Unladen Axle Load - Centre 16093.5 lbs (7300 kg)
Unladen Axle Load - Rear 16093.5 lbs (7300 kg)
Unladen Axle Load - Centre + Rear 32187 lbs (14600 kg)
Laden Axle Load - Front 46077 lbs (20900 kg)
Laden Axle Load - Centre 56438.5 lbs (25600 kg)
Laden Axle Load - Rear 56438.5 lbs (25600 kg)
Laden Axle Load - Centre + Rear 112877 lbs (51200 kg)
Front - Unladen 16.4 PSI (113 kPa)
Rear - Unladen 6.8 PSI (47 kPa)
Front - Laden 20.6 PSI (142 kPa)
Rear - Laden 25.2 PSI (174 kPa)
Speed - Forward Maximum 35.4 mph (57 kph)
Speed - Reverse Maximum 11.2 mph (18 kph)
Weights
Net Weight 68564 lbs (31100 kg)
Payload 90389 lbs (41000 kg)
Gross Weight 158953 lbs (72100 kg)
