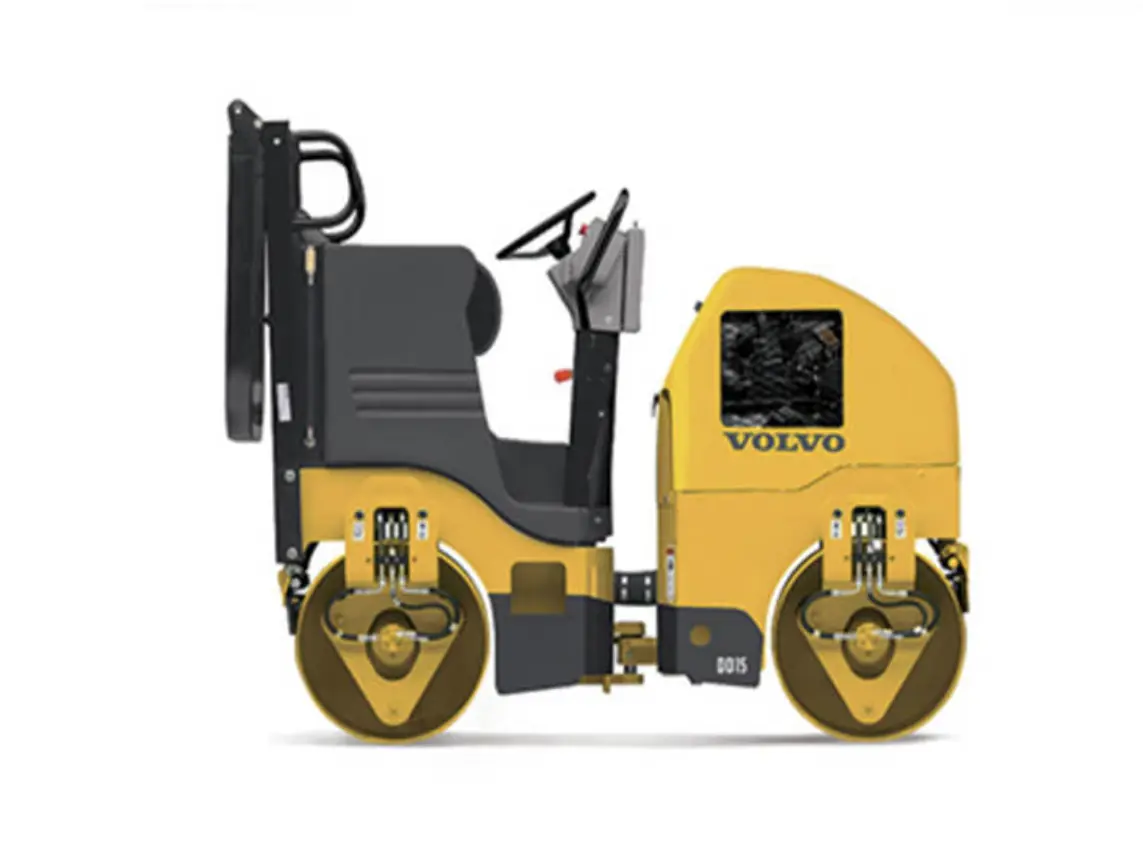

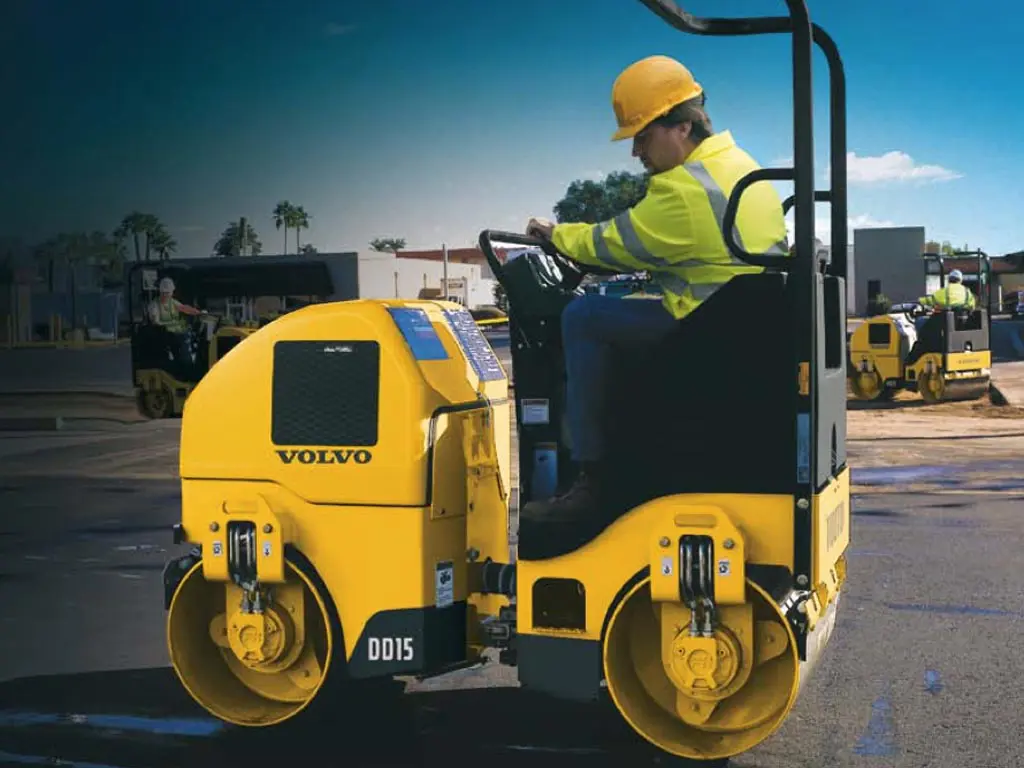

DD15
19596119-0091-4f05-a38b-24f2dbf71e3a
DOUBLE UP
Description
The DD15 double drum compactor performs like a much larger machine - delivering high-frequency vibration to give you better speed and productivity in hot mix asphalt (HMA), soil sub-base, aggregate base and numerous other applications.
Features And Benefits
- Machined drum surface has chamfered edges to produce a professional quality finish
- Industry-leading rust-proof water system
- Easy-access engine compartment
- Isolated vibratory drums minimize vibration feedback
Images
Brochures
Video
Driveline
Engine Manufacturer Kubota
Engine Model D 722 B
Rated Speed 3000 rpm
Engine Output 16.4 hp (12.2 kW)
Transmission Hydrostatic
Dimensions
Overall Length 80.1 inches (2035 mm)
Height - With ROPS 88.2 inches (2240 mm)
Overall Width 40.1 inches (1018 mm)
Wheelbase 55.1 inches (1400 mm)
Drum Width - Front 35.4 inches (900 mm)
Drum Width - Rear 35.4 inches (900 mm)
Rolling Width 35.4 inches (900 mm)
Drum Diameter - Front 22 inches (560 mm)
Drum Diameter - Rear 22 inches (560 mm)
Drum Shell Thickness 0.47 inches (12 mm)
Turning Radius - Outside 108 inches (2740 mm)
Capacities
Fuel Tank 7.8 gallons (US) (29.5 ltr)
Tank Capacity For Drum 52 gallons (US) (197 ltr)
Performance
Static Linear Drum Load - Front 44.5 lb/in (7.97 kg/cm)
Static Linear Drum Load - Rear 50.7 lb/in (9.04 kg/cm)
Drive To Drums Both
Travel Speed 1 3.9 mph (6.3 kph)
Max. Travel Speed 3.9 mph (6.3 kph)
Number Of Frequency/Amplitude Settings 1
Frequency - Stage 1 - Front 66.7 Hz
Amplitude Stage 1 - Front 0.015 inches (0.37 mm)
Centrifugal Force 1 - Front 3500 lbf (15.6 kN)
Max Amplitude 0.015 inches (0.37 mm)
Min Amplitude 0.015 inches (0.37 mm)
Max Frequency 66.7 Hz
Min Frequency 66.7 Hz
Max Centrifugal Force 3500 lbf (15.6 kN)
Min Centrifugal Force 3500 lbf (15.6 kN)
Weights
Operating Weight 3372 lbs (1529 kg)
Weight - Front 1577 lbs (715 kg)
Weight - Rear 1795 lbs (814 kg)
