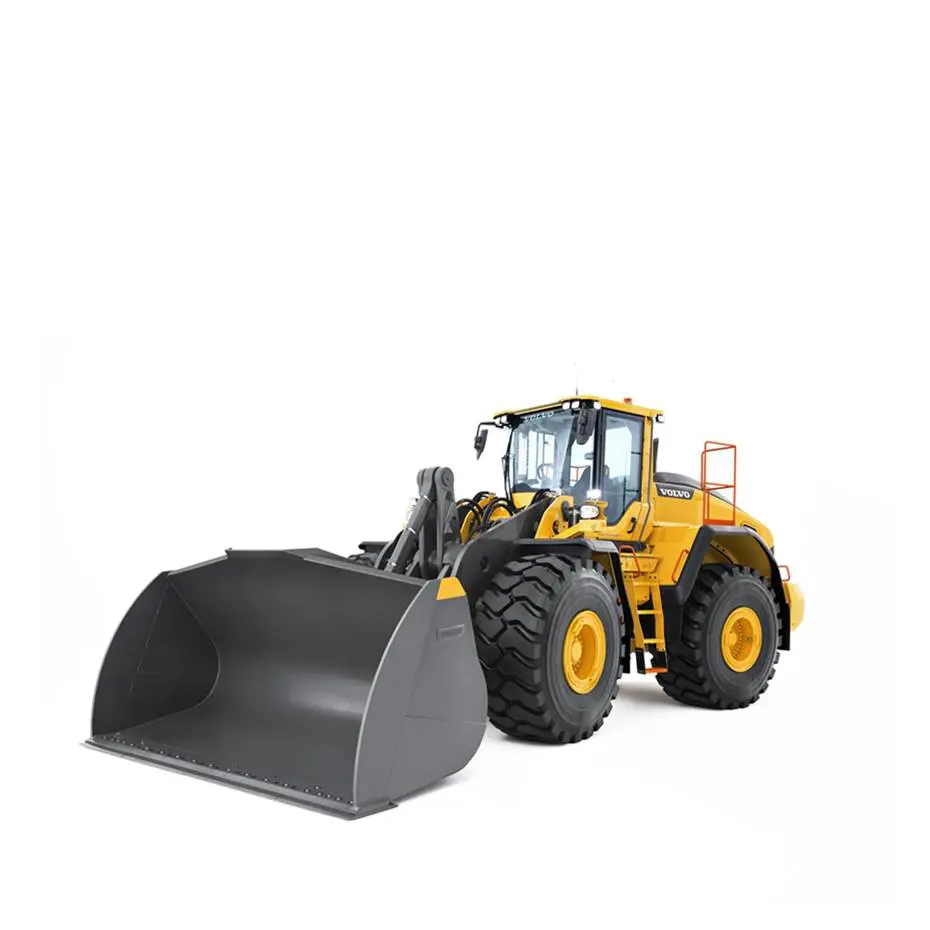

L220H
1af420cb-d2d8-47f4-bd1e-8419a555f3a4
Description
The new H-series L220 is more efficient, more productive and more intelligent than the former G-series. Achieve up to 15% greater fuel efficiency, thanks to a powerful engine, second generation OptiShift and new dry P-Brake. To boost productivity by up to 10%, the L220H has also been upgraded with a new transmission, new converter and revised gear ratio.
Features And Benefits
- Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
- Comfortable cab
- Excellent hydraulics
- Easy-to-use controls

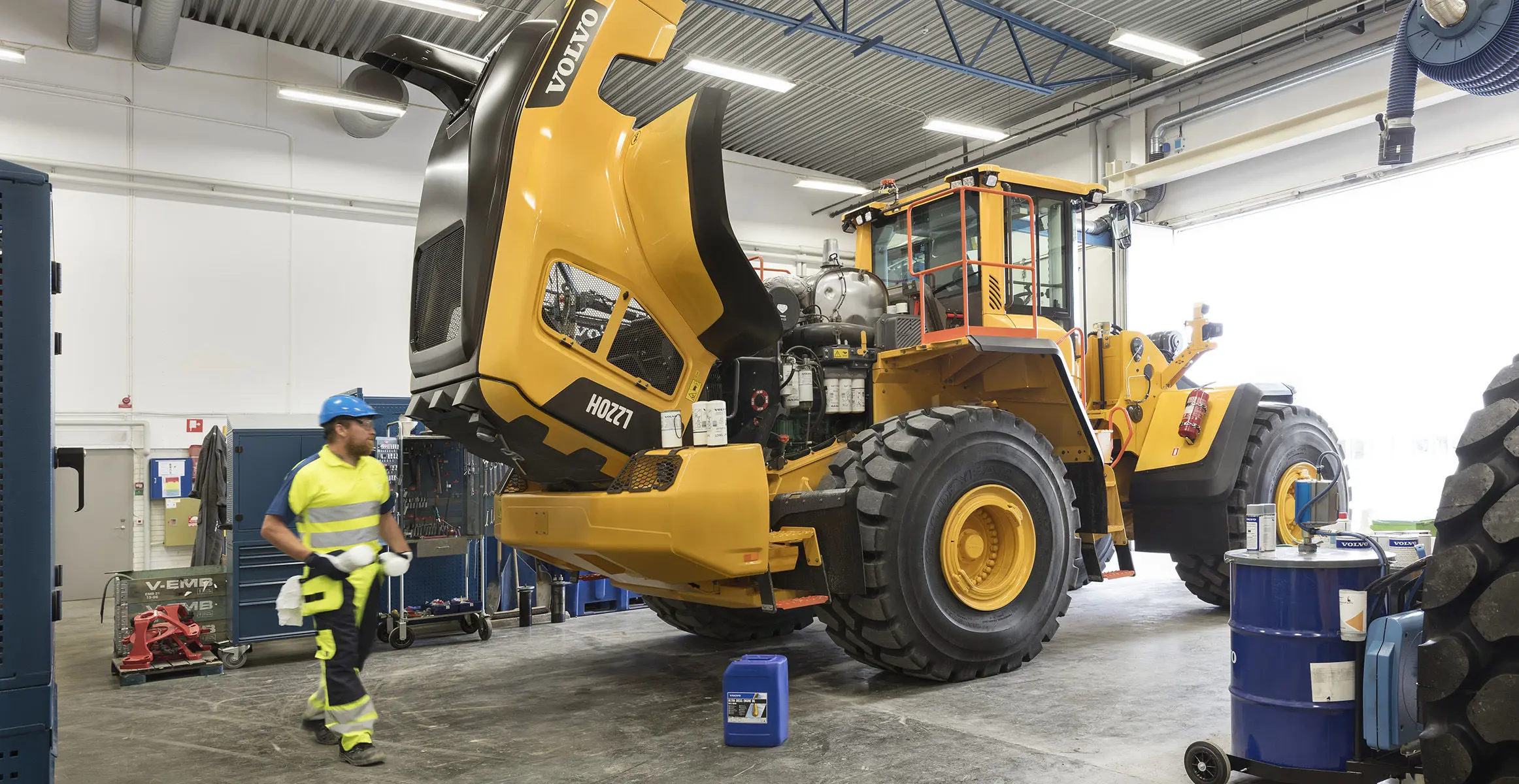

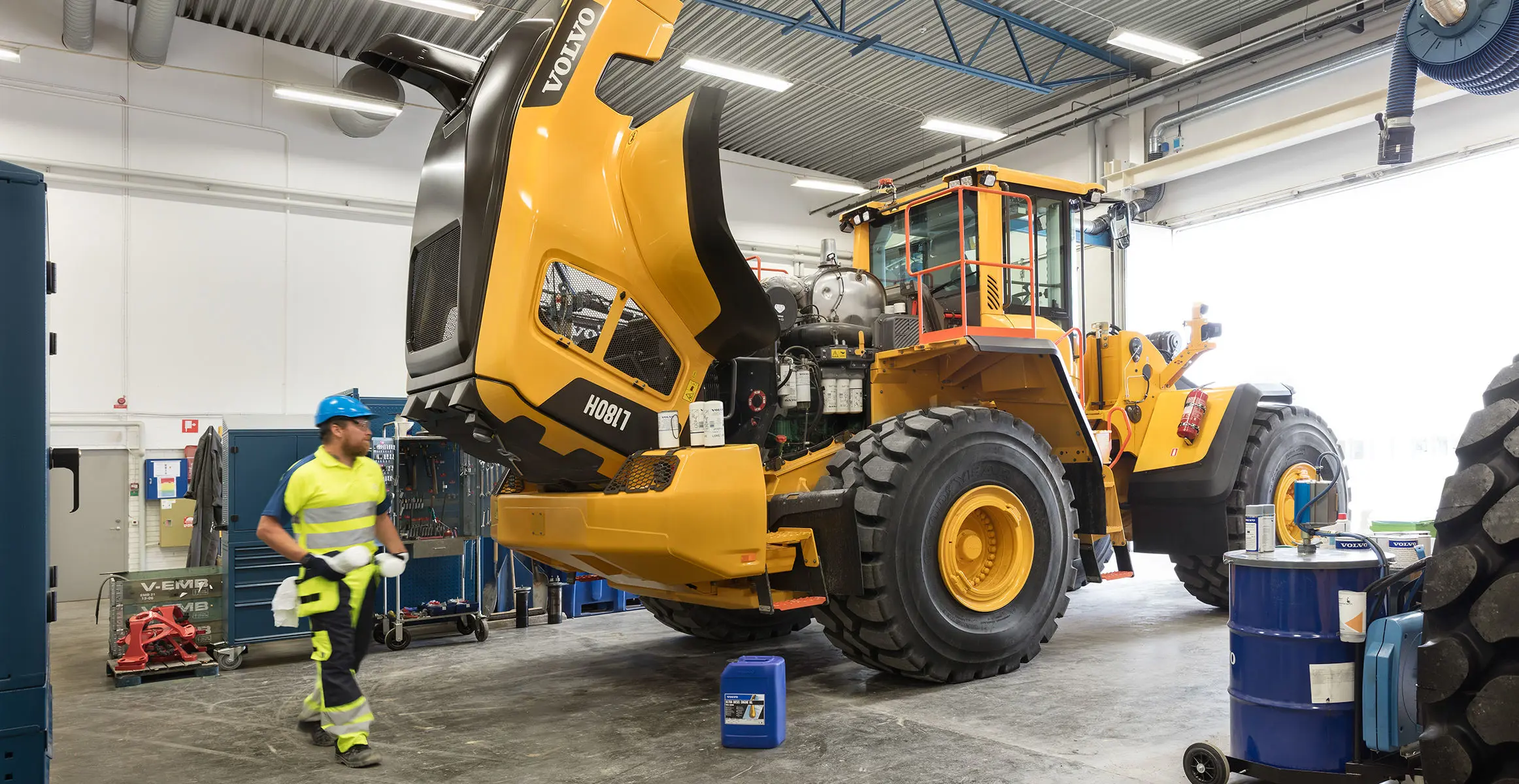

- Outstanding serviceability
Images
Brochures
Video
Driveline
Engine Manufacturer Volvo
Engine Model D13J
Emissions Technology Cooled Exhaust Gas Recirculation
After Treatment System Diesel Particulate Filter
Aspiration Var. Geometry Turbo - Charge Air Cooled
Displacement 781 Inches³ (12.8 ltr)
Rated Speed 1300 rpm
Engine Output - Net 375 hp (280 kW)
Torque 1679 lbf / ft (2276 Nm)
Transmission Type Powershift
Tire - Manufacturer Michelin
Tire Size - Standard 29.5 R25
Service Brake - Type Wet Disc
Dimensions
Wheelbase 12 ft 2 in (3700 mm)
Length With Bucket On Ground 30 ft 9 in (9380 mm)
Height - Over Cab 12 ft 3 in (3730 mm)
Ground Clearance 21 inches (530 mm)
Width Over Tires - Std 10 ft 4 in (3150 mm)
Bucket Type Rehandling w/Edge
Bucket Width 11 ft 1 in (3400 mm)
Full Lift Dump Height 10 ft 1 in (3080 mm)
Full Lift Reach 4 ft 10 in (1480 mm)
Loader - Geometry Torque Parallel
Dump Angle - At Dump 45 °
Dump Angle - Maximum 48 °
Height - Pivot Pin 15 ft 3 in (4660 mm)
Height - Maximum 20 ft 11 in (6370 mm)
Turn Radius Over Bucket - Std. 25 ft 7.5 in (7810 mm)
Capacities
Fuel Tank 96.7 gallons (US) (366 ltr)
Heaped Capactiy 8.2 yd³ (6.3 m³)
Bucket Capacity - Smallest 5.9 yd³ (4.5 m³)
Largest Bucket Capacity 10.7 yd³ (8.2 m³)
Performance
Straight Tipping Load 55030 lbs (24960 kg)
Full Turn Tipping Load 48060 lbs (21800 kg)
Breakout - Bucket 48330 lbf (21922 kgf)
Bucket Breakout 48330 lbf (215 kN)
Ride Control System Optional
Oscillation - Rear Axle 30 °
Load Sensing Yes
Weights
Bucket Capacity 5.9-10.7 yd³ (4.5-8.2 m³)
Operating Weight 70850 lbs (32130 kg)
