EC480EHR
26332007-5ea5-44ab-98ae-a84ee4db4268
Description
HIGH-LEVEL RELIABILITY

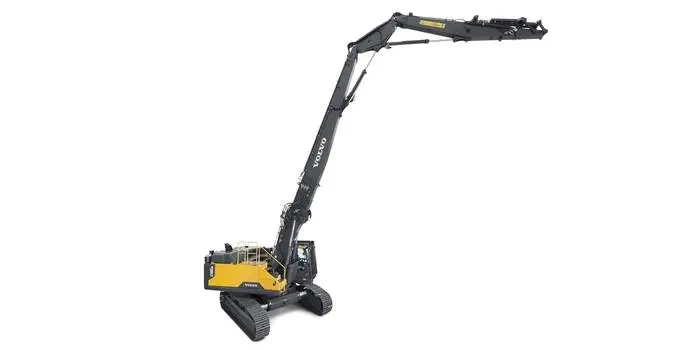

The EC480EHR high reach demolition equipment from Volvo is equipped with the latest innovations to increase your productivity. These machines are designed to make your working day worth more, and a robust structure, heavy tool weight and outstanding hydraulics ensure a strong performance in even the toughest of demolition projects.
Features And Benefits

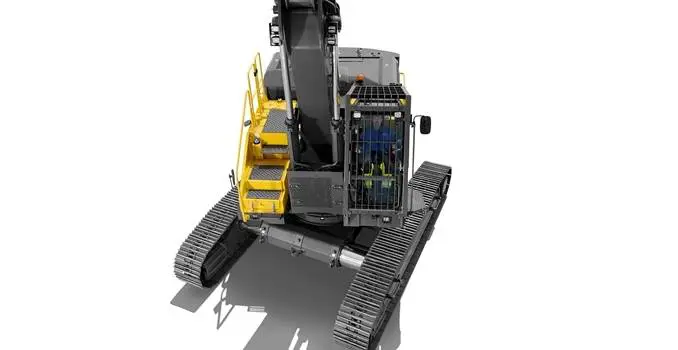

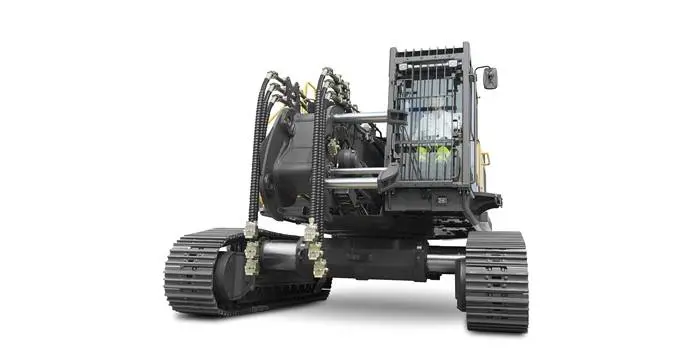

- FALLING OBJECT GUARD (FOG)
- Volvo high reach excavators are built to ensure maximum safety in all demolition applications. A sturdy frame and cab offer ultimate protection against the falling debris that is common in demolition projects, and a wide, clear view of the jobsite provides excellent visibility for enhanced safety.
- TOOL WEIGHT AND PIN HEIGHT
- The EC380EHR and EC480EHR are equipped with the latest innovations to increase your productivity. These machines are designed to make your working day worth more, and a robust structure, heavy tool weight and outstanding hydraulics ensure a strong performance in even the toughest of demolition projects.

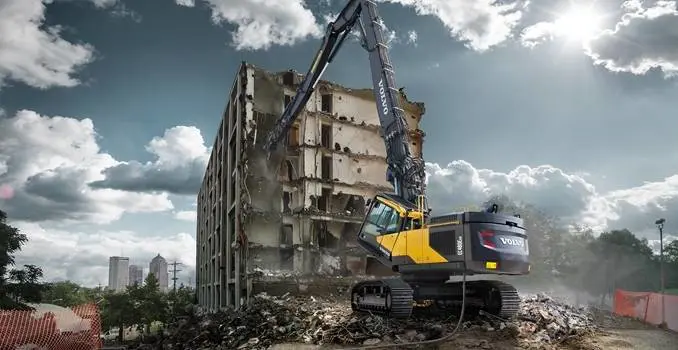

- PURPOSE BUILT FOR DEMOLITION
- Volvo CE is dedicated to producing the ultimate in heavy-duty demolition machinery. Purpose-built to suit the needs of this demanding task, these high reach excavators are equipped with robust components and a powerful engine to ensure you can keep working shift after shift.

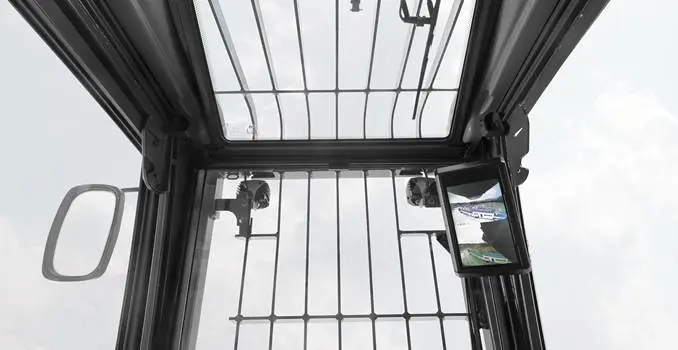

- HIGH VISIBILITY CAB
- These high reach excavators are equipped with a Volvo cab that has been designed to offer industryleading levels of comfort. A high visibility cab and carefully placed cameras ensure operators have a clear view of the jobsite at all times, for the ultimate safe, productive working environment.

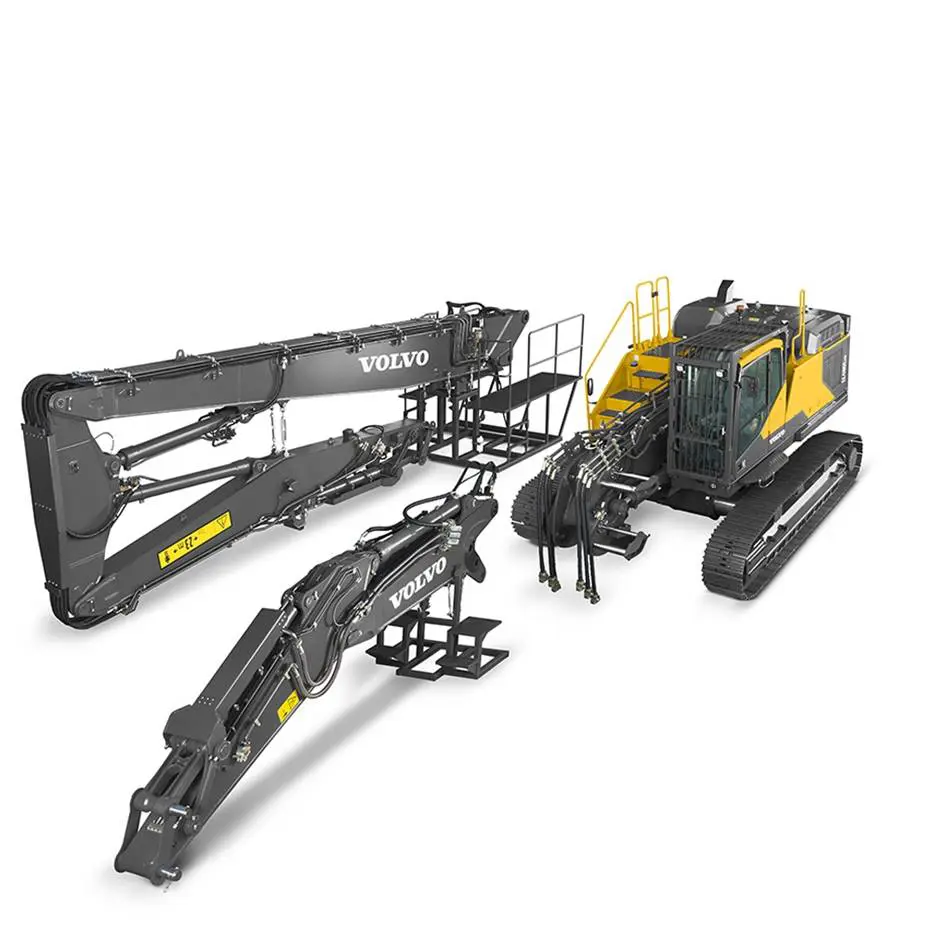

- VOLVO PATENTED MODULAR BOOM SYSTEM
- These Volvo high reach excavators are a versatile addition to your demolition fleet. Compatible with a wide range of Volvo attachments and built to work both a variety of boom types, these machines are the ideal partner for all demolition projects.
Images
Brochures
Video
Description
Display And Instruments Color monitor & diagnostics
Telematics Available Yes
Cab Tilt 30 °
Driveline
Engine Manufacturer Volvo
Engine Model D13J
Displacement 781 Inches³ (12.8 ltr)
Engine Output - Net 380 hp (283 kW)
Transmission Motor Type 2 Variable displacement motors

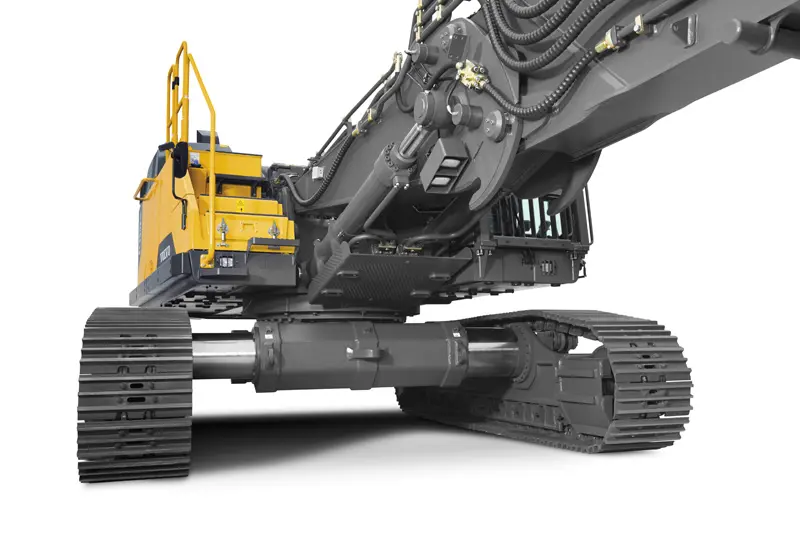

Variable Undercarriage Availability Yes
Track Shoe Width 2 ft 4 in (700 mm)
Slew Brake Type Wet multi disc
Dimensions
Transport Length - Straight Boom 41 ft 9 in (12735 mm)
Transport Length - Triple Articulated 39 ft 11 in (12160 mm)
Transport Length - Demolition Boom 65 ft 9 in (20045 mm)
Transport Height - Over Straight Boom 12 ft (3670 mm)
Transport Height - Over Triple Articulated Boom 12 ft 8 in (3860 mm)
Transport Height - Over Demolition Boom 10 ft 2 in (3095 mm)
Overall Width 9 ft 10 in (2990 mm)
Max Machine Width 13 ft 9 in (4180 mm)
Tailswing Radius 12 ft 9 in (3880 mm)
Max Reach - Straight Boom - Standard 42 ft 1 in (12815 mm)
Max Reach 42 ft 1 in (12815 mm)
Max Height 45 ft 7 in (13905 mm)
Max Reach 39 ft 8 in (12095 mm)
Max Height 36 ft 1 in (10990 mm)
Max Reach Demolition Boom Standard 52 ft 9 in (16090 mm)
Max Reach 52 ft 9 in (16090 mm)
Max Height 92 ft 4 in (28140 mm)
Safe Working Angle 15 °
Reference Boom For Lift 24 ft 7 in (7500 mm)
Reference Dipper For Lift 11 ft (3350 mm)
Max Lift At Max Reach 20470 lbs (9310 kg)
Capacities
Fuel Tank 180 gallons (US) (680 ltr)
Alternator Output 80 A
Performance
Slew Speed 9.3 rpm
Number Of Main Pumps 2
Main Pumps - Maximum Flow 198 gallons (US) / min (752 lt/min)
Weights
Operating Weight 147920 lbs (67085 kg)
Max Tool Weight For Demolition Boom 7716 lbs (3500 kg)
Standard Attachment Type Crusher
