PTR240
2764630e-e36d-447a-ab61-c7c520ad3672
HIGH-PERFORMANCE COMPACTION
Description

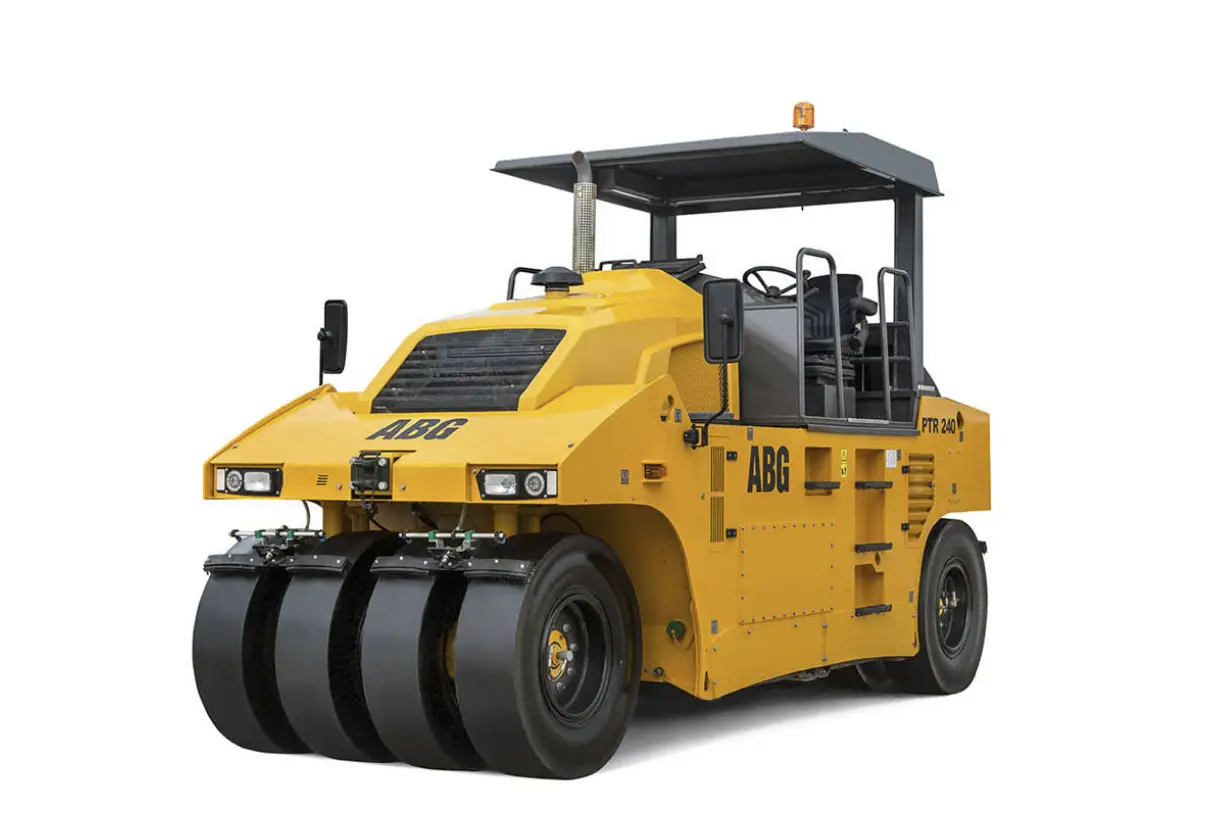

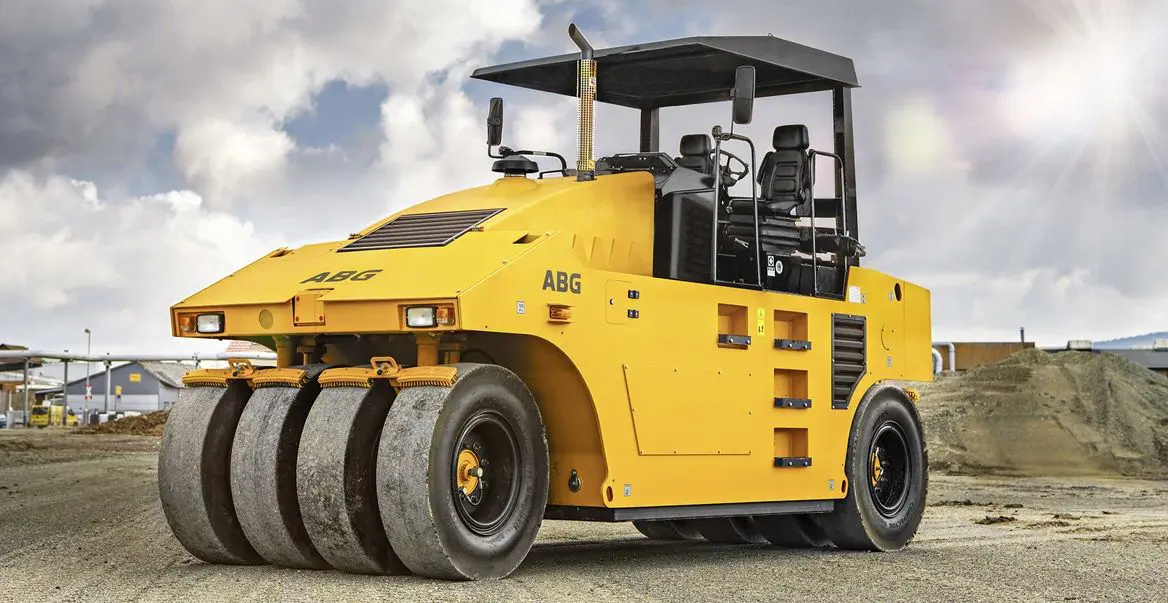

Experience high-performance compaction in all terrain with the PTR240. Designed for roadway construction and resurfacing applications, the eight-wheeled pneumatic tire roller utilizes kneading action for the compaction of hot and warm mix asphalt. For chip seal applications, the pneumatic tires press the aggregate into the binder without fracturing. Enjoy ease of operation and high efficiency thanks to the PTR240, built to finish the job on time and under budget.
Features And Benefits
- Max operating weight can be adjusted from 9 to 24 tons with sealed compartments using water, sand, or steel ballast
- Fuel-efficient Tier 4 Final engine with a 3-speed Powershift™ transmission
- Central tire inflation system adjusted from the operator platform
- Pressurized, rust proof water system features
Images
Brochures
Video
DRIVELINE
Engine Manufacturer Deutz
Engine Model TCD 3.6 L4
Number Of Cylinders 4
Exhaust Gas Recirculation Yes
Diesel Oxidation Catalyst Yes
Diesel Particulate Filter Yes
Selective Catalytic Reduction No
Displacement 220 Inches³ (3.6 ltr)
Rated Speed 2200 rpm
Engine Output 99.8 hp (74.4 kW)
Transmission Type Powershift
Tire Size 11 - 20
Number Of Tires 4 + 4
DIMENSIONS
Overall Length 198 inches (5030 mm)
Height - ROPS 123.2 inches (3130 mm)
Overall Width 82.7 inches (2100 mm)
Wheelbase 148.8 inches (3780 mm)
Rolling Width 82.7 inches (2100 mm)
Turning Radius - Inside 239 inches (6071 mm)
Turning Radius - Outside 344 inches (8738 mm)
Capacities
Fuel Tank 66 gallons (US) (250 ltr)
Performance
Ballast Type Water / Sand / Steel
Drive Configuration Rear
Travel Speed 1 11.8 mph (19 kph)
Weights
Operating Weight 21385 lbs (9700 kg)
Ballast Weight 31525 lbs (14300 kg)
Maximum Weight 52910 lbs (24000 kg)
