EW160E
2d5a9f1f-7cc6-470c-8c1b-f2111e8bfe8f
OPERATE WITH CONTROL AND COMFORT
Description
OPERATE WITH CONTROL AND COMFORT

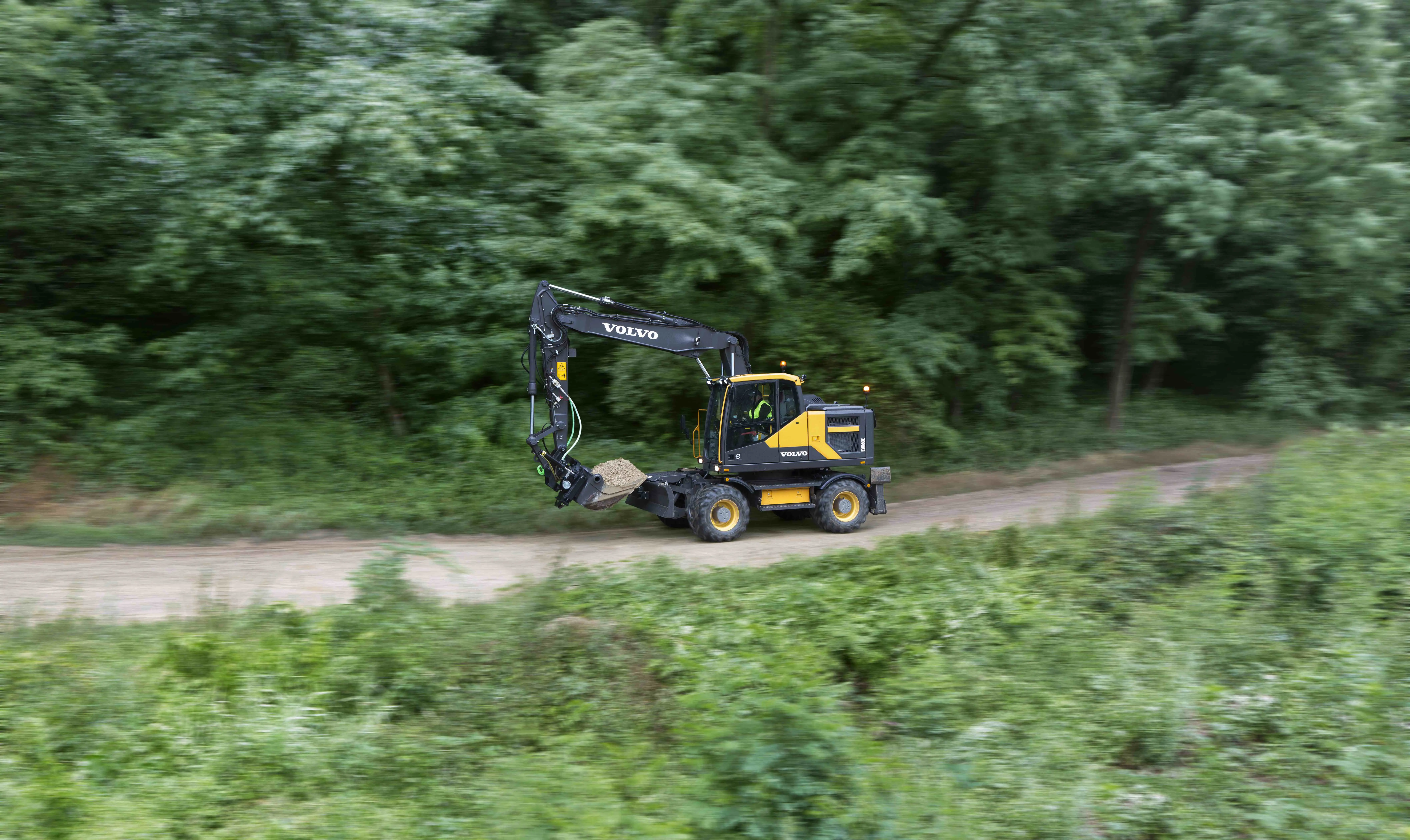

Built with our customers for our customers, the new Volvo EW160E is the most advanced multi-tool carrier in the industry. Made in Germany, Volvo's wheel excavator boasts a 40 year heritage and have continuously developed into highly versatile and high quality machines.
Features And Benefits

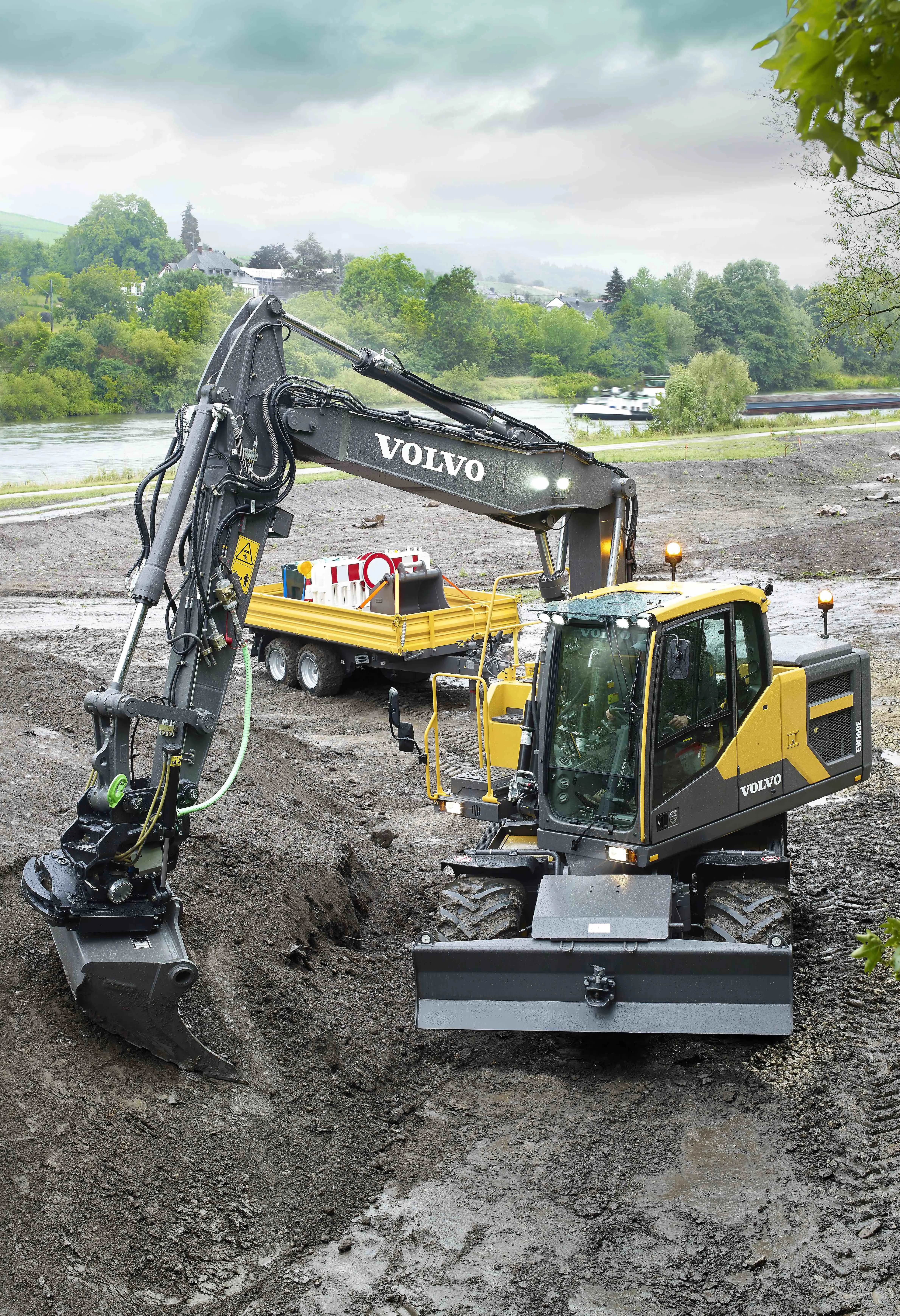

- TRAILER HITCH
- For maximum versatility and productivity, take all your tools to the jobsite in one trip.
- CAB
- Volvo's industry-leading cab provides excellent visibility that is crucial for operator comfort, control and safety on your jobsite.
- BOOM SUSPENSION SYSTEM
- The Boom Suspension System improves operator comfort and allows for faster travel over bumpy roads or rough terrain.

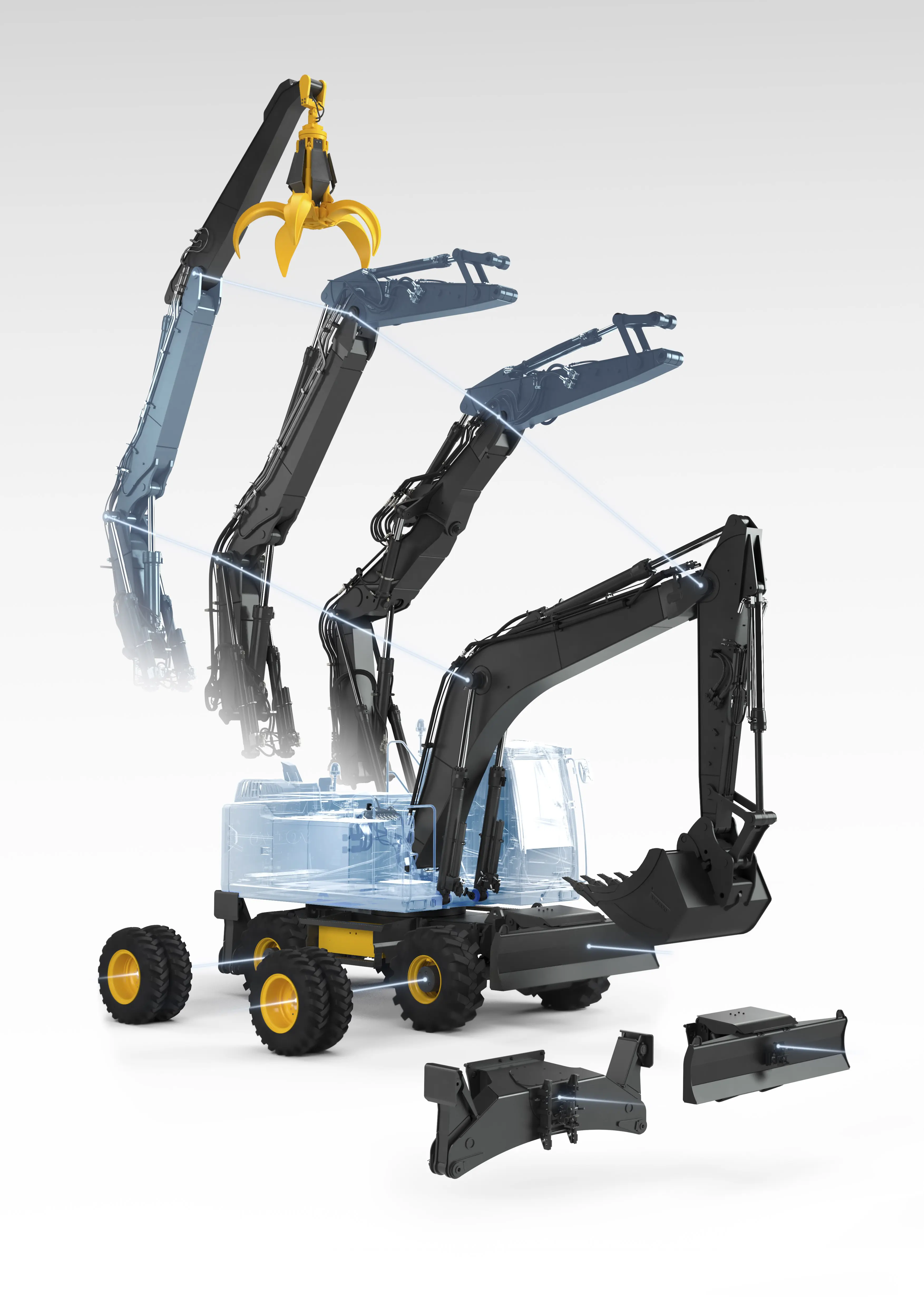

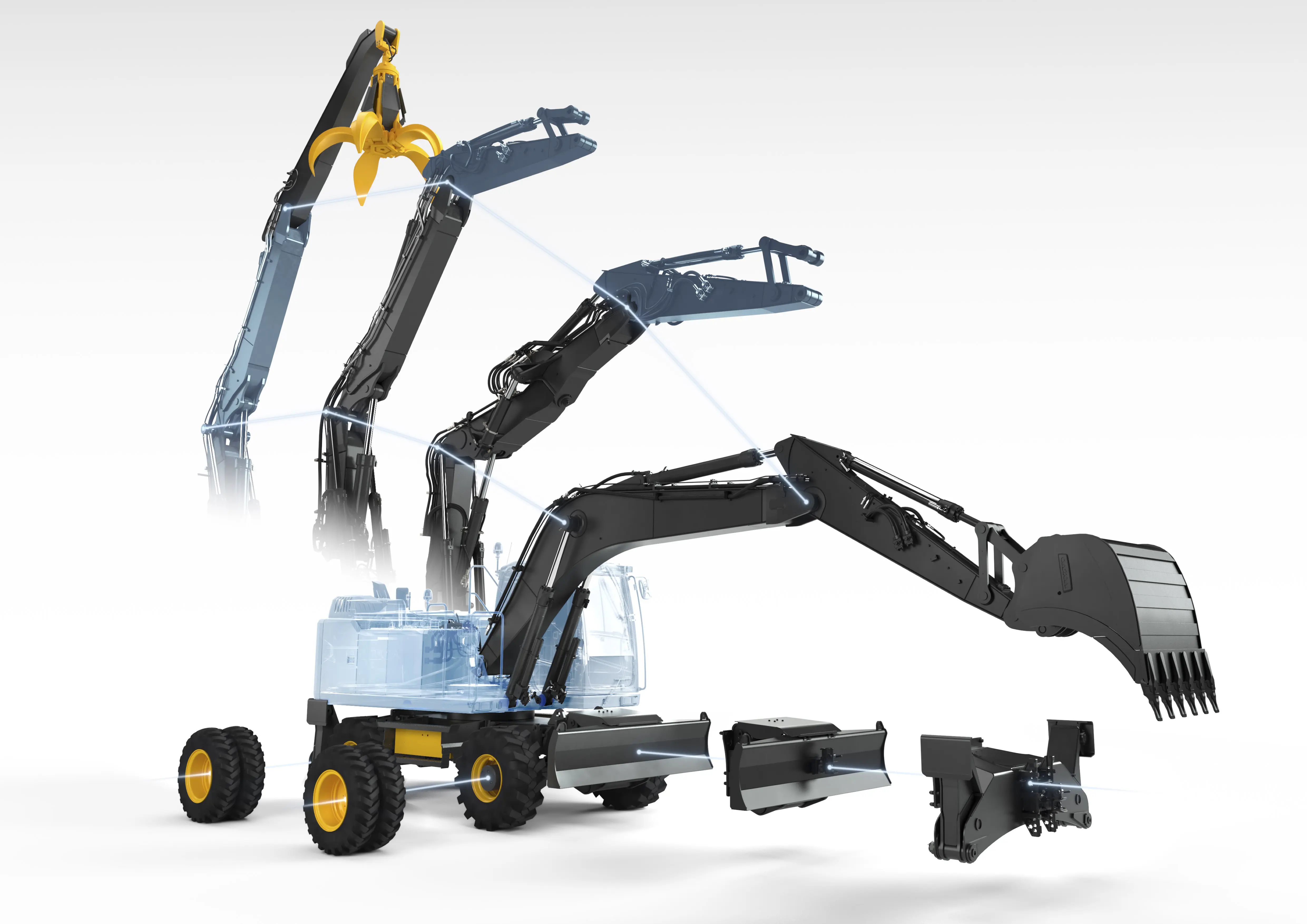

- LEXIBLE CONFIGURATIONS
- Depending on your market and application, make the EW160E wheel excavator perfect for your jobsite with a range of flexible configurations.
- ENGINE
- Volvo's wheeled excavators with Tier 4 Final engines are powerful and fuel efficient.
- HYDRAULIC ELEVATED CAB

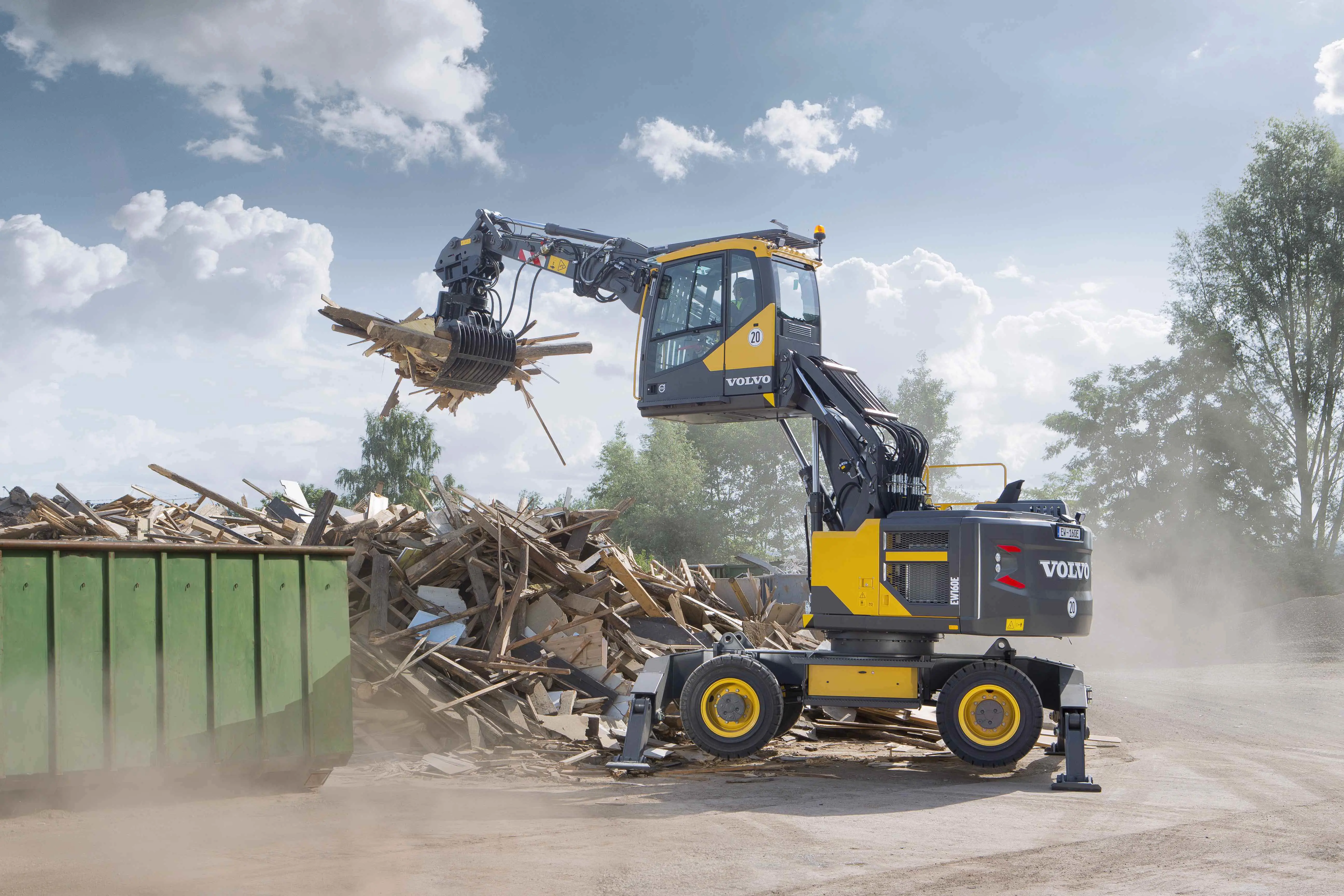

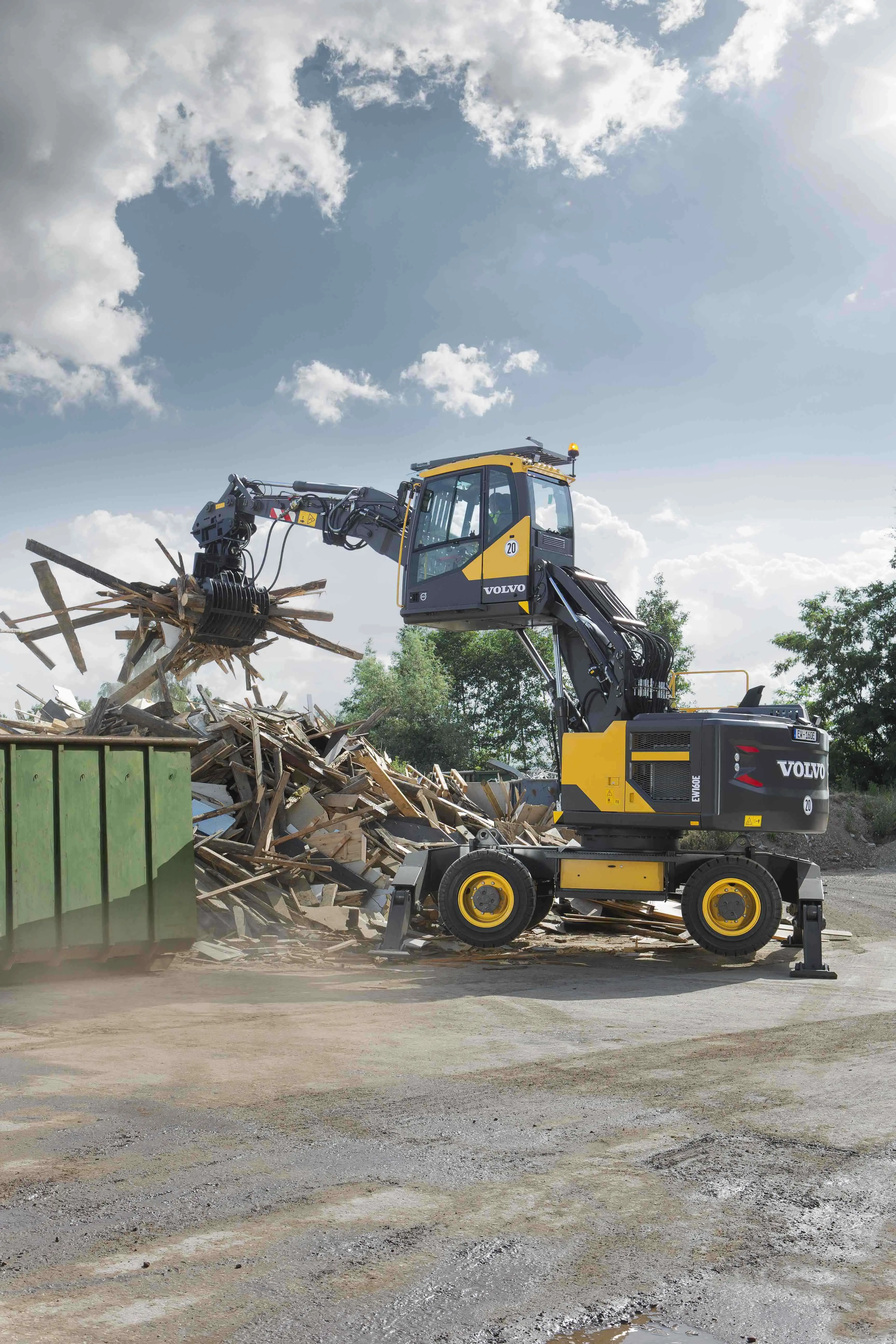

- The hydraulically elevated Volvo Care Cab lifts the operator by five meters above the ground at eye level for increased visibility.
Images
Telematics
Telematics Available Yes
Driveline
Engine Manufacturer Volvo
Engine Model D6J
Displacement 348 Inches³ (5.7 ltr)
Rated Speed 1900 rpm
Engine Output - Net 150 hp (112 kW)
Engine Output - Gross 154 hp (115 kW)

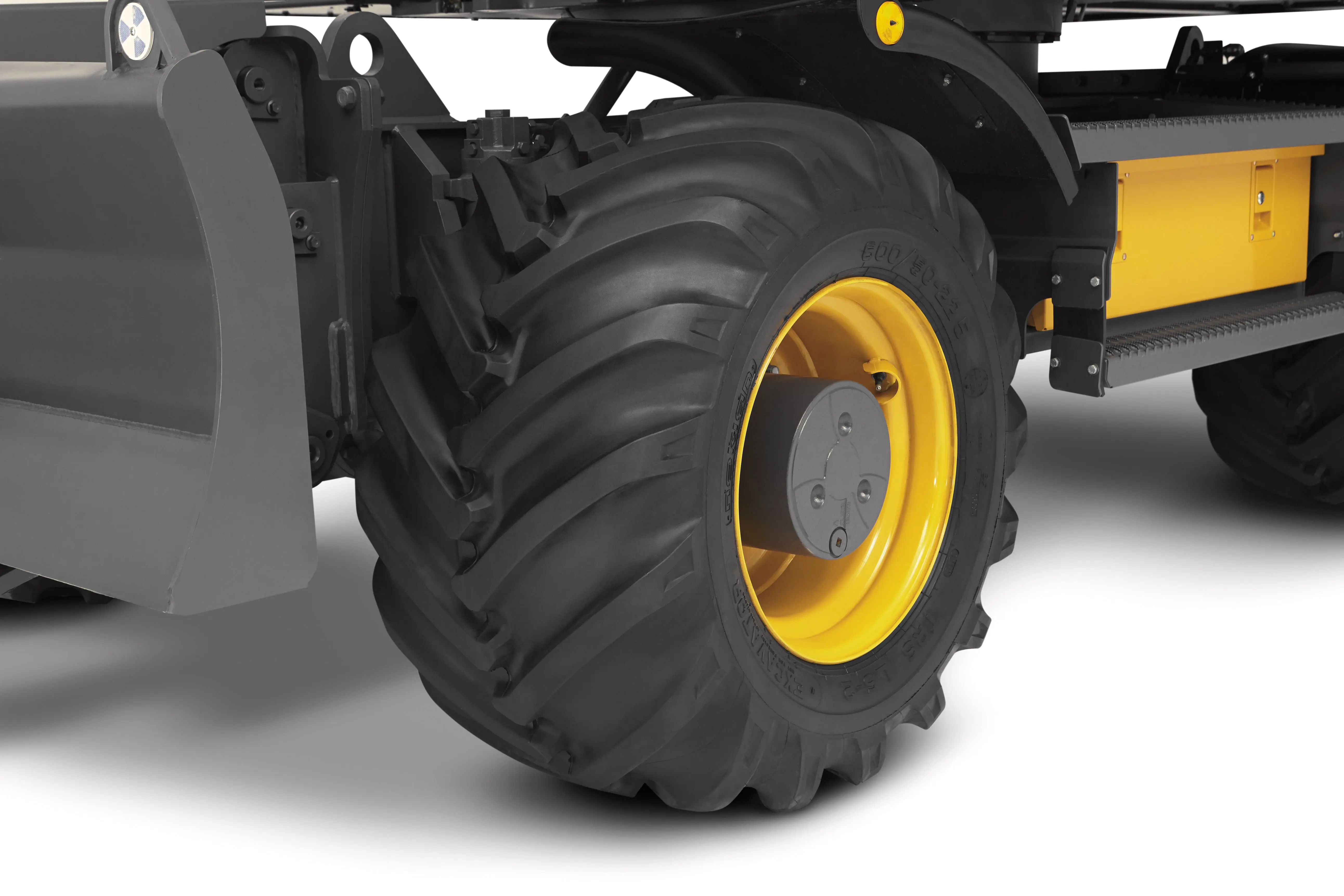

Standard Number Of Tires 8
Tire Size - Standard 10.00-20
Dimensions
Transport Height Over Boom 10 ft (3040 mm)
Overall Width 8 ft 4 in (2540 mm)
Overall Width Stabilizers Down 13 ft 1 in (3980 mm)
Wheelbase 8 ft 6 in (2600 mm)
Ground Level Reach 28 ft 11 in (8810 mm)
Maximum Dig Height - Mono Boom 29 ft 10 in (9100 mm)
Dump Clearance Height - Mono Boom 20 ft 2 in (6150 mm)
Dig Depth - Mono Boom 18 ft 4 in (5580 mm)
Ground Level Reach 29 ft 5 in (8960 mm)
Max Dig Height 32 ft 10 in (10000 mm)
Dump Clearance Height 23 ft (7000 mm)
Dig Depth 18 ft 3 in (5570 mm)
Capacities
Fuel Tank 66 gallons (US) (250 ltr)
Performance
Swing Speed 9 rpm
Bucket Breakout - Mono Boom 28326 lbf (126 kN)
Dipper Tearout - Boost, Mono Boom 19334 lbf (86 kN)
Total Flow - Main Pumps 72.6 gallons (US) / min (275 lt/min)
Weights
Operating Weight 38030 lbs (17250 kg)
