L30
329d72b1-1281-43a9-995d-1ecd124cb4df
Description

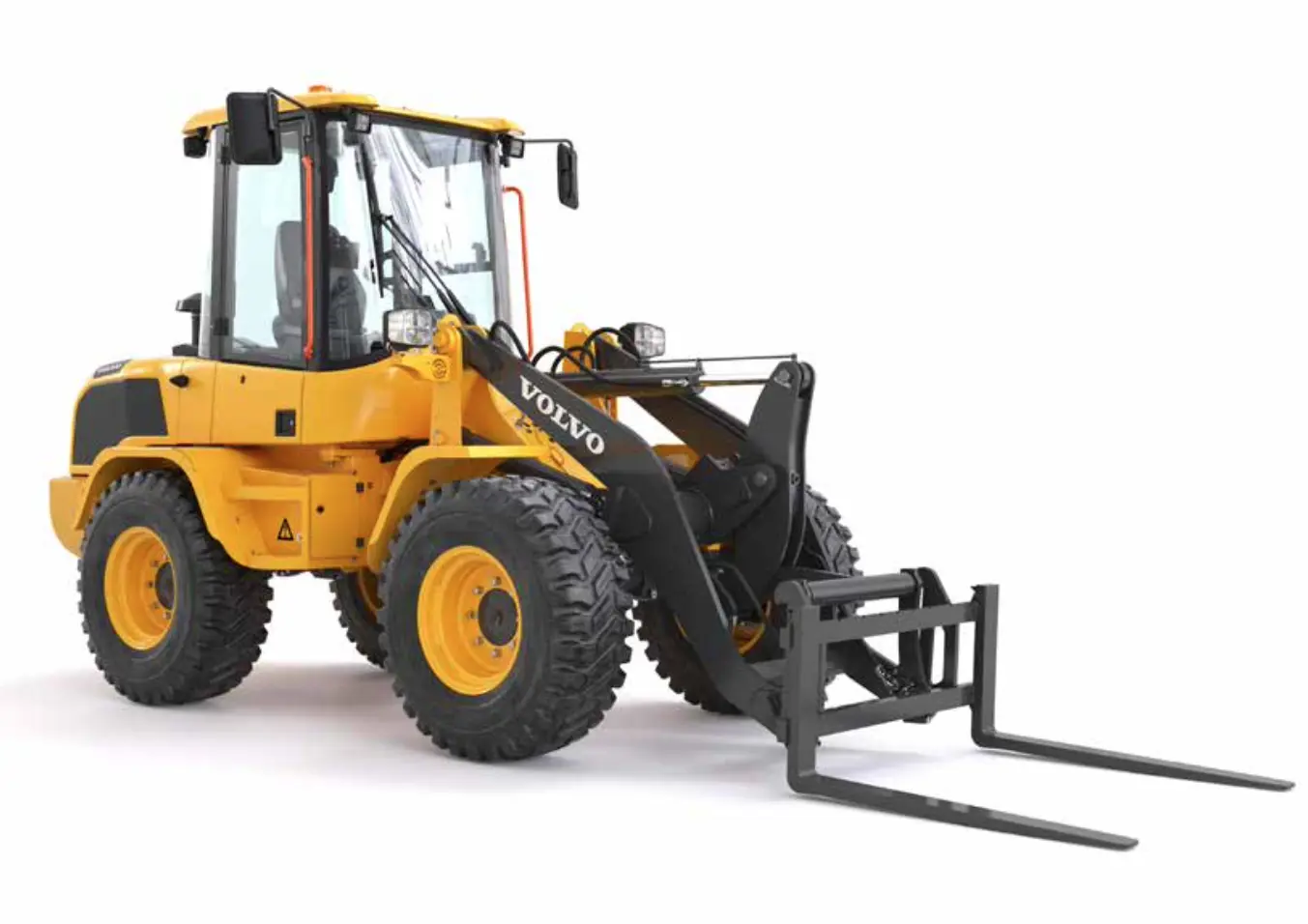

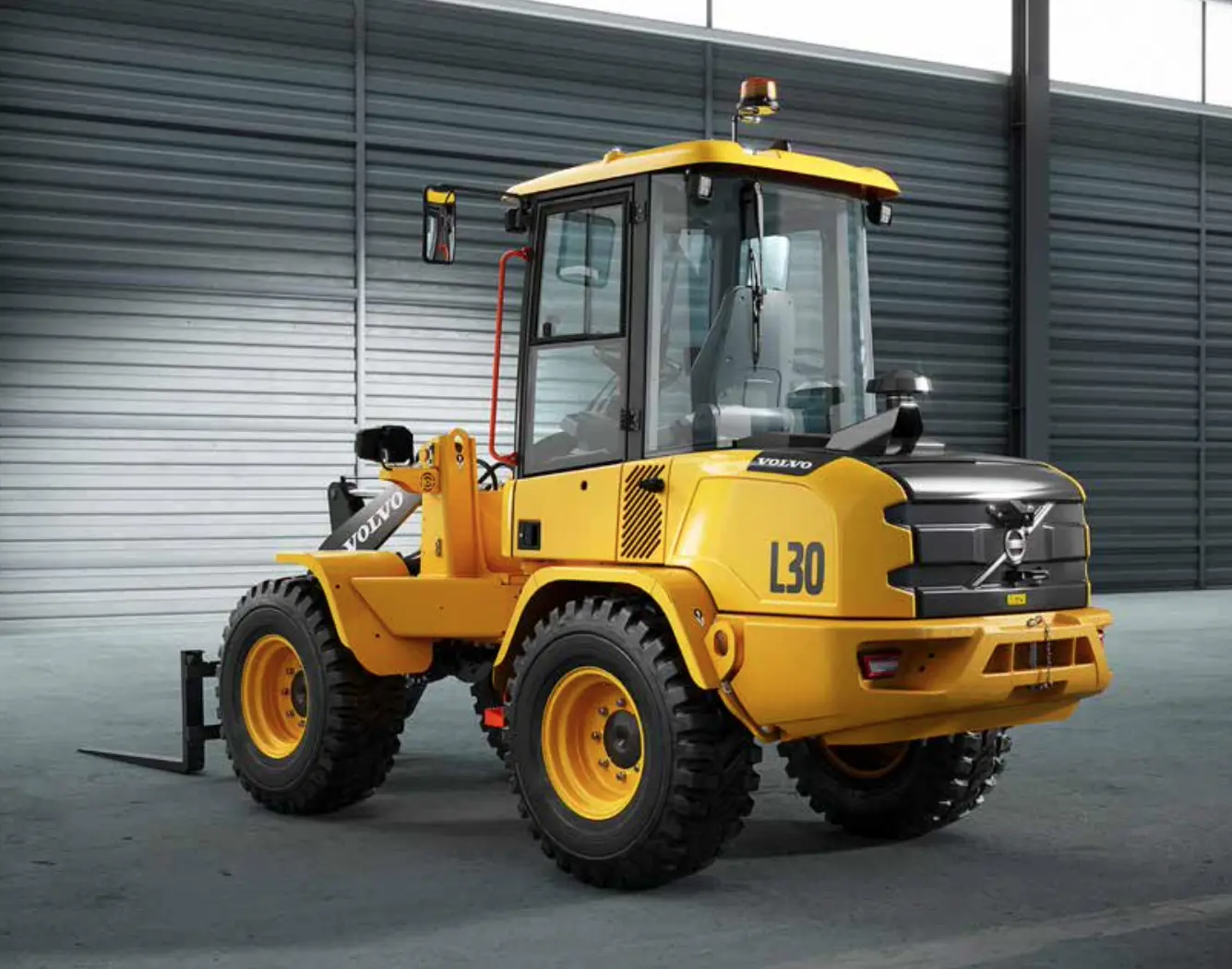

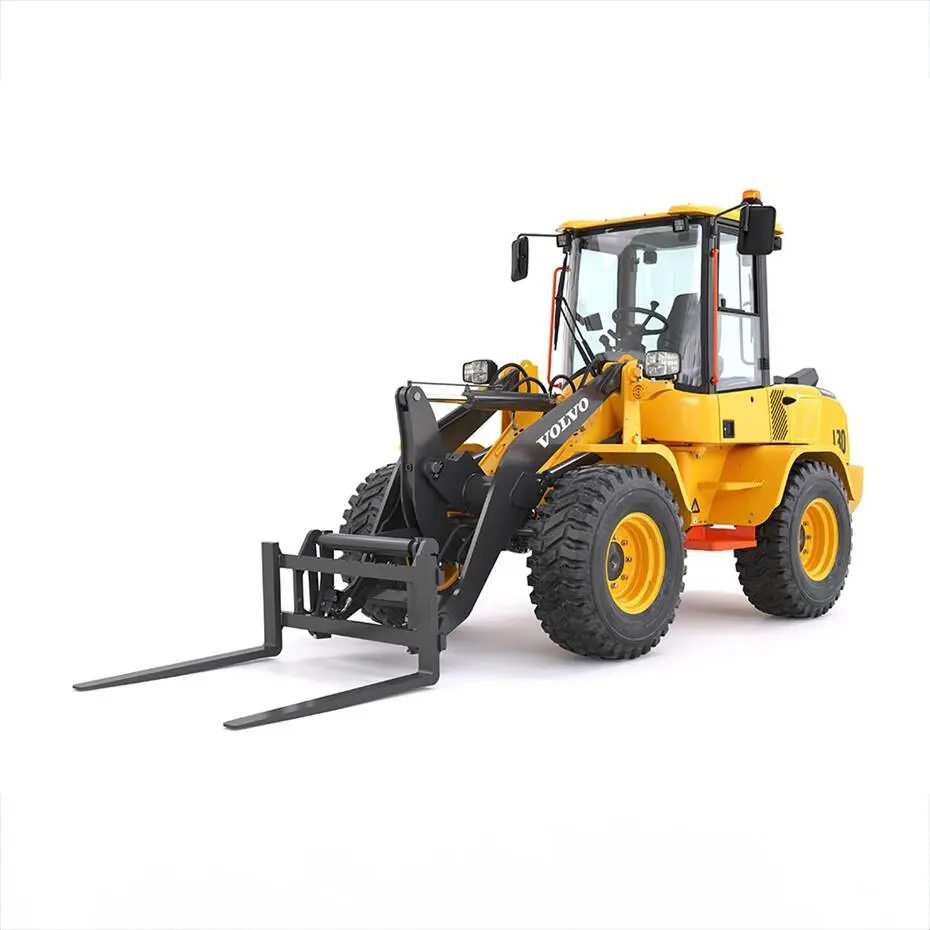

The versatile L30 operates reliably in tight spaces and uneven terrains. This compact wheel loader boasts fast simultaneous linkage movements and steering, as well as exceptional tractive, breakout and lifting forces, commonly found on larger machines. And the operator experience is second to none, with easy cab access, best-in-class visibility, intuitive controls and exclusive options. It all adds up to productive and more efficient loading cycles.
Features And Benefits
Images
Brochures
Video
Driveline
Engine Manufacturer Volvo
Engine Model D3.3H
Emissions Technology Cooled Exhaust Gas Recirculation
After Treatment System Diesel Particulate Filter
Displacement 203 Inches³ (3.3 ltr)
Rated Speed 2720 rpm
Engine Output - Gross 74 hp (55.4 kW)
Torque 195 lbf / ft (265 Nm)
Transmission Type Hydrostatic
Traction Control No
Tire Size - Standard 405 / 70 R18
Hydrostatic System Braking Yes
Hydrostatic Brake - Actuation All Wheels
Service Brake - Type Disc
Dimensions
Wheelbase 7 ft 1 in (2150 mm)
Length With Bucket On Ground 14 ft 9 in (4485 mm)
Height - Over Cab 9 ft 1 in (2775 mm)
Ground Clearance 20 inches (500 mm)
Width Over Tires - Std 6 ft (1835 mm)
Bucket Type GP w/Teeth
Bucket Width 6 ft 3 in (1900 mm)
Full Lift Dump Height 8 ft 5 in (2570 mm)
Full Lift Reach 2 ft 2 in (665 mm)
Loader - Geometry Z-Bar
Dump Angle - At Dump 45 °
Dump Angle - Maximum 45 °
Height - Pivot Pin 10 ft 8 in (3255 mm)
Height - Maximum 13 ft 10 in (4205 mm)
Turn Radius Over Bucket - Std. 28 ft 7 in (8705 mm)
Capacities
Fuel Tank 22.2 gallons (US) (84 ltr)
Heaped Capactiy 1.3 yd³ (1 m³)
Bucket Capacity - Smallest 1.2 yd³ (0.9 m³)
Largest Bucket Capacity 2 yd³ (1.5 m³)
Performance
Straight Tipping Load 10362 lbs (4700 kg)
Full Turn Tipping Load 9259 lbs (4200 kg)
Bucket Breakout 14613 lbf (65 kN)
Ride Control System Optional
Load Sensing Yes
Weights
Bucket Capacity 1.2-2 yd³ (0.9-1.5 m³)
Operating Weight 12646 lbs (5736 kg)
