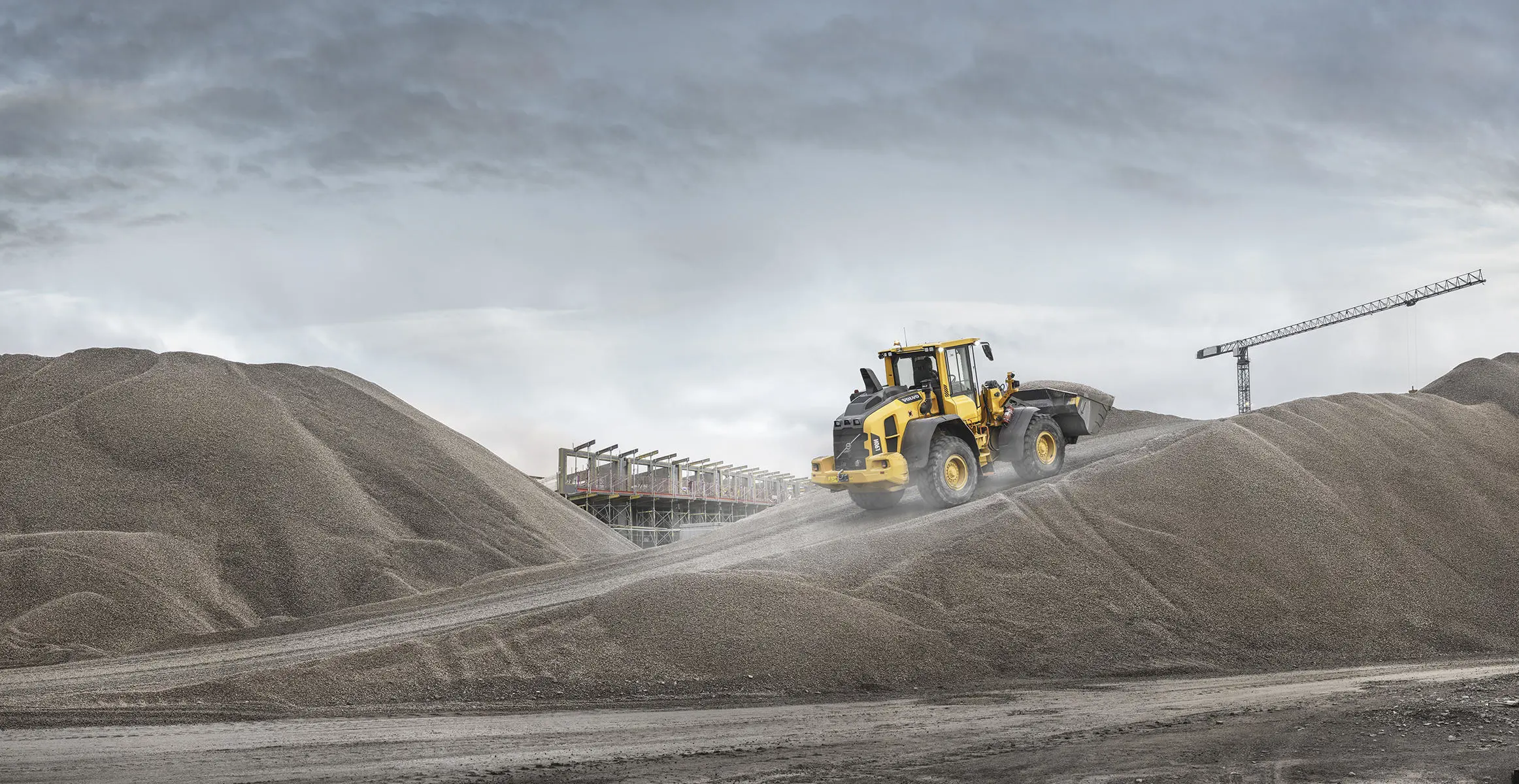

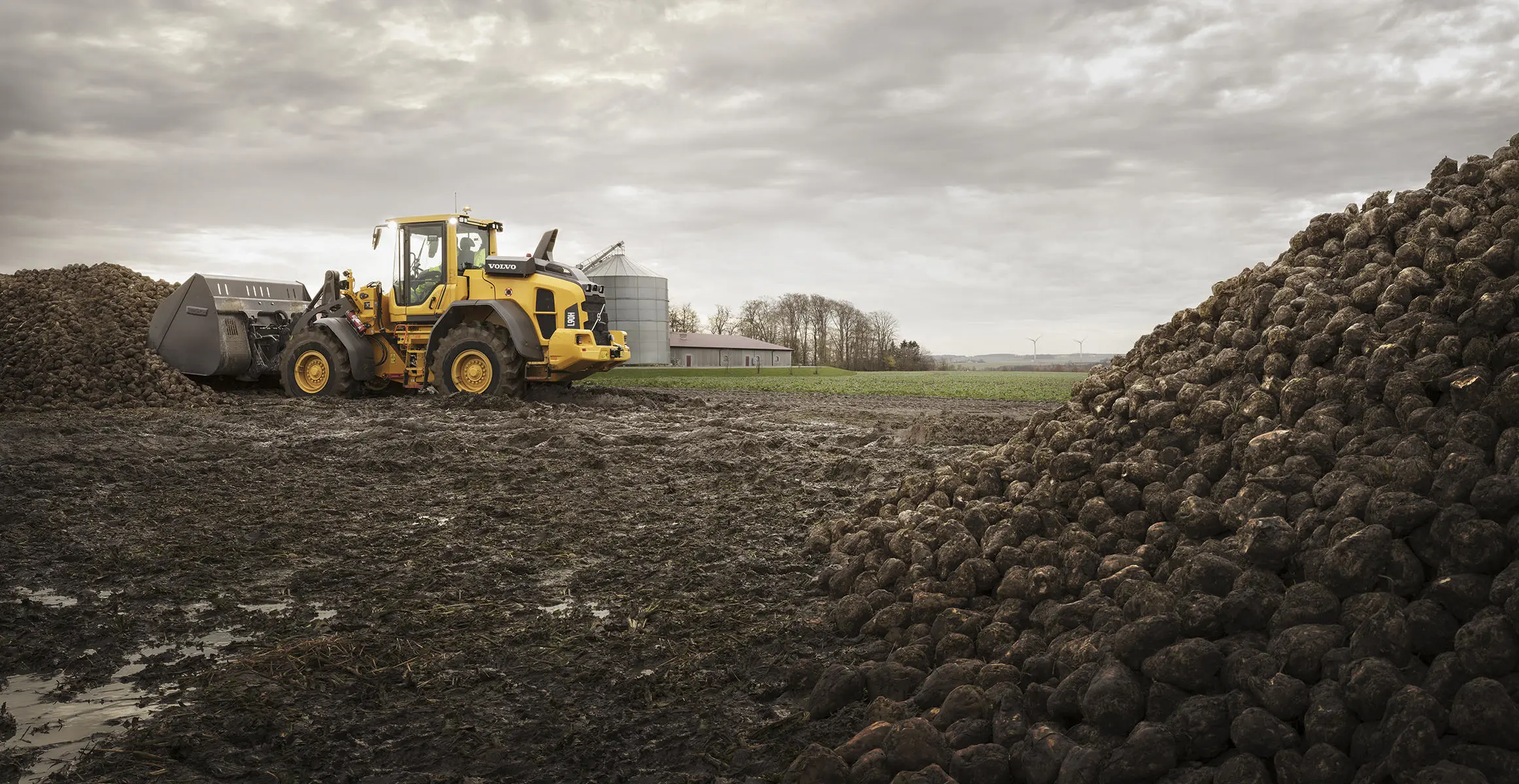

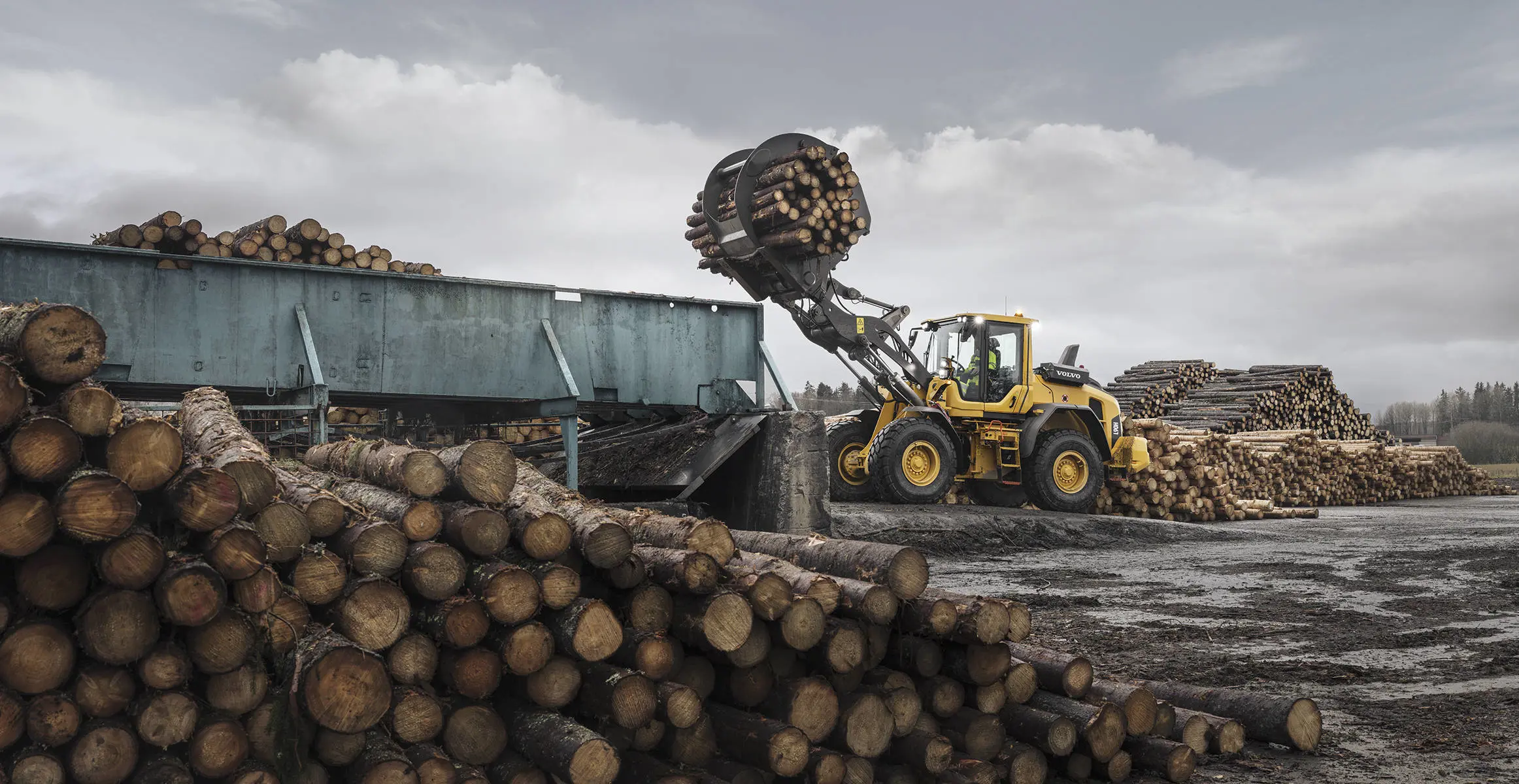

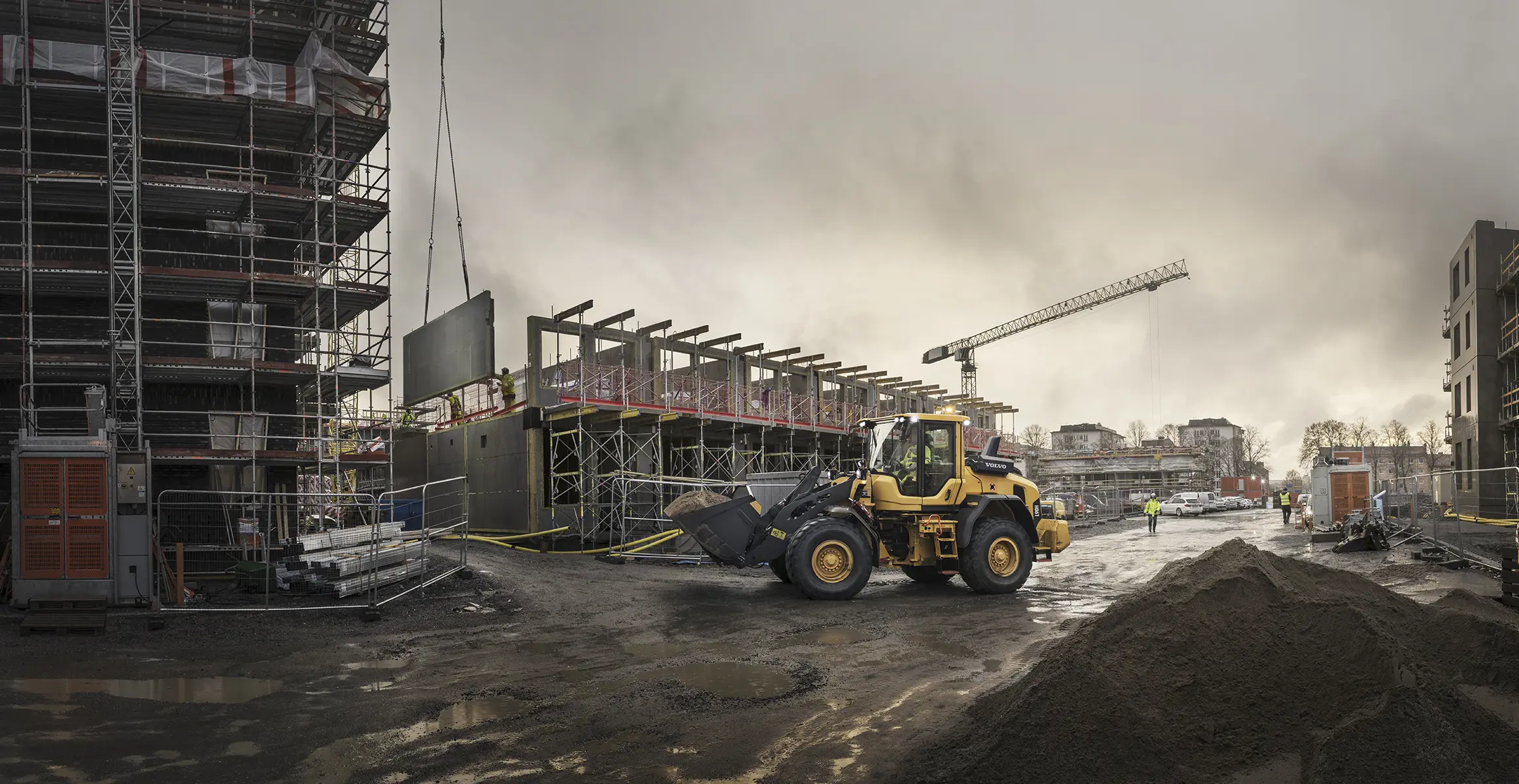

L90H
4111bd27-69cb-469b-961c-6ab4e004f8e1
Description
Drive productivity up and operating costs down with the updated L90H, packed with innovative features. Offering 3% more tipping load and 75 mm (3 in) greater lifting height, the L90H is versatile and fast, with an increased top speed of 50km/h (31 mph) - facilitated by the optional lock-up function. And with up to 20% greater fuel efficiency, the upgraded L90H is fully loaded to do more, while using less.
Features And Benefits
- Wide range of attachments

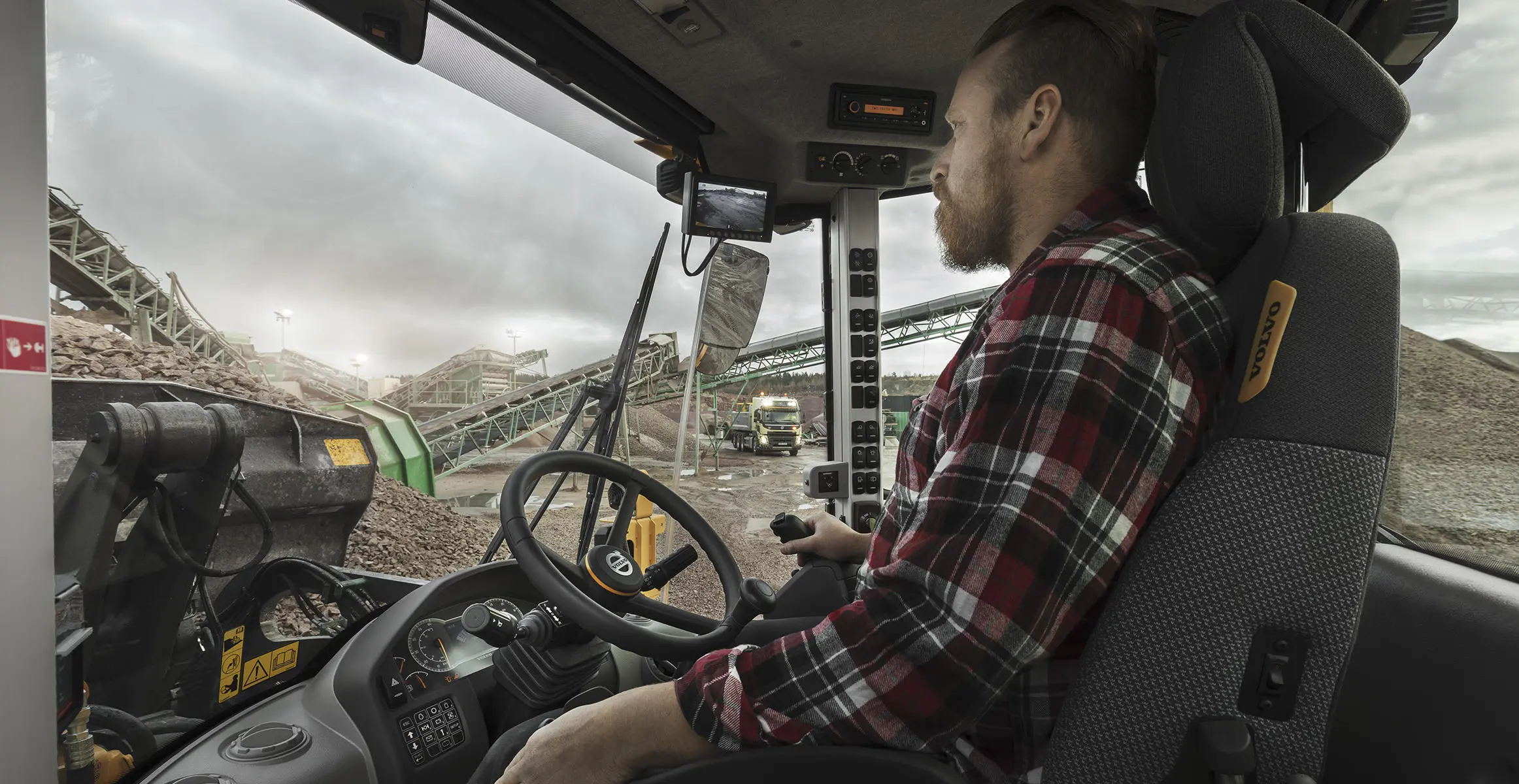

- Comfortable cab
- Excellent hydraulics
- Easy-to-use controls
- Outstanding serviceability
- Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
- 2018 EquipmentWatch Highest Retained Value Award
Images
Brochures
Video
Driveline
Engine Manufacturer Volvo
Engine Model D6J
Emissions Technology Cooled Exhaust Gas Recirculation
After Treatment System Selective Catalytic Reduction
Aspiration Turbo - Charge Air Cooled
Displacement 348 Inches³ (5.7 ltr)
Rated Speed 1400 rpm
Engine Output - Gross 184 hp (137 kW)
Engine Output - Net 184 hp (137 kW)
Torque 689 lbf / ft (934 Nm)
Transmission Type Powershift
Traction Control Yes
Tire - Manufacturer Michelin
Tire Size - Standard 20.5 R25
Tyre - Model XHA 2
Service Brake - Type Wet Disc
Dimensions
Wheelbase 10 ft (3050 mm)
Length With Bucket On Ground 24 ft 10 in (7560 mm)
Height - Over Cab 10 ft 9 in (3280 mm)
Ground Clearance 18 inches (450 mm)
Width Over Tires - Std 8 ft 2 in (2490 mm)
Bucket Type GP w/Edge
Bucket Width 9 ft (2750 mm)
Full Lift Dump Height 9 ft 7 in (2920 mm)
Full Lift Reach 3 ft 2 in (970 mm)
Loader - Geometry Torque Parallel
Dump Angle - At Dump 45 °
Dump Angle - Maximum 45 °
Height - Pivot Pin 13 ft 3 in (4040 mm)
Height - Maximum 17 ft 7 in (5360 mm)
Turn Radius Over Bucket - Std. 19 ft 9 in (6020 mm)
Capacities
Fuel Tank 58.6 gallons (US) (222 ltr)
Heaped Capactiy 3.5 yd³ (2.7 m³)
Bucket Capacity - Smallest 3.5 yd³ (2.7 m³)
Largest Bucket Capacity 3.7 yd³ (2.8 m³)
Performance
Straight Tipping Load 26390 lbs (11970 kg)
Full Turn Tipping Load 22590 lbs (10240 kg)
Breakout - Bucket 31510 lbf (14293 kgf)
Bucket Breakout 31510 lbf (140.1 kN)
Ride Control System Yes
Oscillation - Rear Axle 26 °
Load Sensing Yes
Weights
Bucket Capacity 3.5-3.7 yd³ (2.7-2.8 m³)
Operating Weight 33810 lbs (15330 kg)
