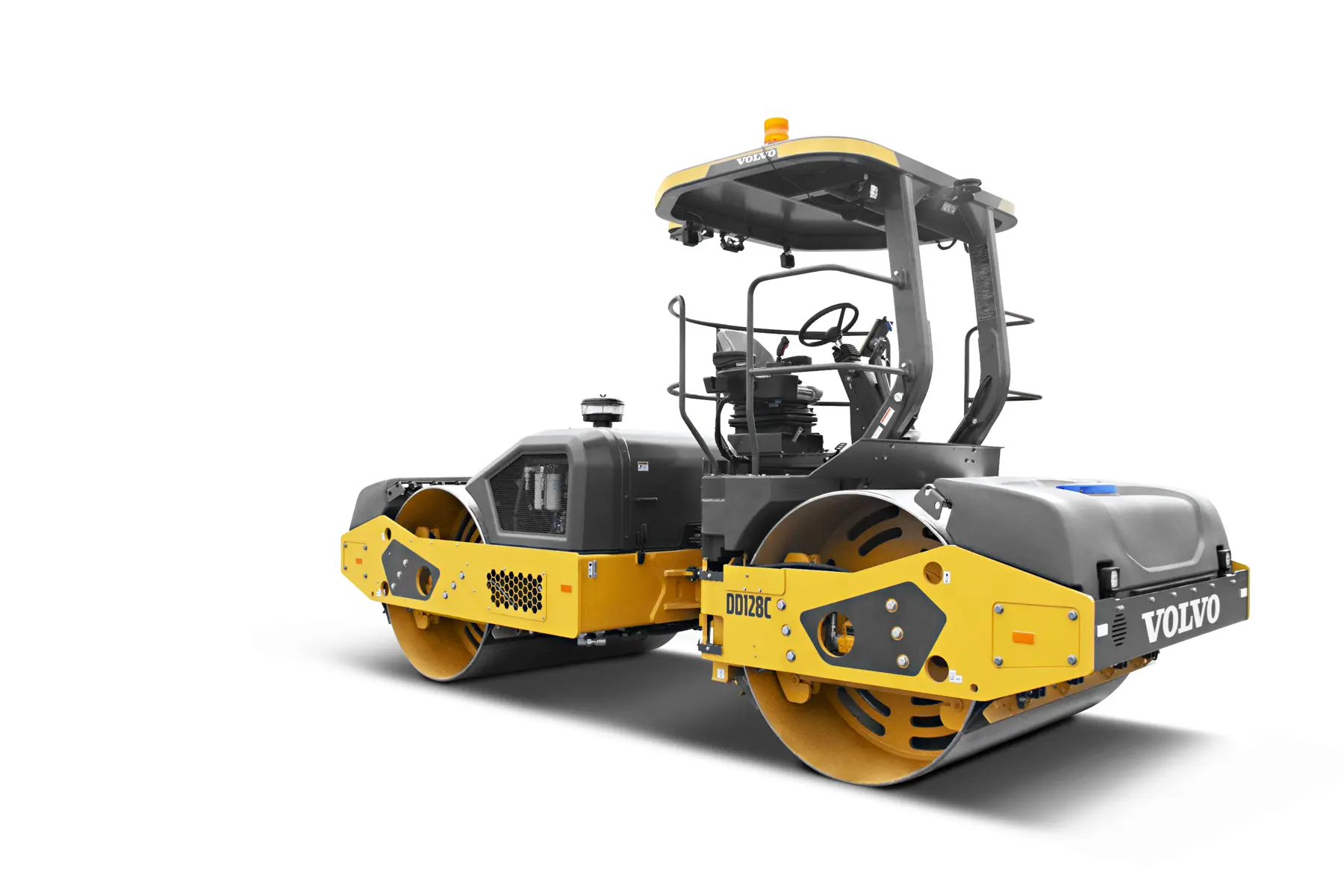

DD128C
44a759e3-df5e-4e23-9f8c-2027d128af18
THE HIGHEST FREQUENCY IN THE COMPACTION INDUSTRY
Description
Features And Benefits
Images
Brochures
Video
DRIVELINE
Engine Manufacturer Volvo
Engine Model D4
Rated Speed 2000 rpm
Engine Output 148 hp (110 kW)
Transmission Hydrostatic
DIMENSIONS
Overall Length 235.2 inches (5973 mm)
Height - With ROPS 125.1 inches (3177 mm)
Overall Width 87.3 inches (2218 mm)
Wheelbase 140 inches (3550 mm)
Drum Width - Front 79 inches (2000 mm)
Drum Width - Rear 79 inches (2000 mm)
Rolling Width 79 inches (2000 mm)
Drum Diameter - Front 55 inches (1400 mm)
Drum Diameter - Rear 55 inches (1400 mm)
Drum Shell Thickness 0.79 inches (20 mm)
Turning Radius - Inside 149 inches (3772 mm)
Capacities
Fuel Tank 52.8 gallons (US) (199.8 ltr)
DEF Tank 5.28 gallons (US) (20 ltr)
Tank Capacity For Drum 338 gallons (US) (1280 ltr)
Performance
Drive To Drums Both
Travel Speed 1 5.5 mph (8.8 kph)
Travel Speed 2 7.8 mph (12.6 kph)
Max. Travel Speed 7.8 mph (12.6 kph)
Number Of Frequency/Amplitude Settings 8
Frequency - Stage 1 - Front 80 Hz
Frequency - Stage 2 - Front 70 Hz
Frequency - Stage 1 - Rear 80 Hz
Frequency - Stage 2 - Rear 70 Hz
Amplitude Stage 1 - Front 0.003 inches (0.08 mm)
Amplitude Stage 2 - Front 0.007 inches (0.19 mm)
Amplitude Stage 1 - Rear 0.003 inches (0.08 mm)
Amplitude Stage 2 - Rear 0.007 inches (0.19 mm)
Centrifugal Force 1 - Front 11680 lbf (51.9 kN)
Centrifugal Force 2 - Front 20210 lbf (89.8 kN)
Centrifugal Force 3 - Front 31420 lbf (139.7 kN)
Centrifugal Force 4 - Front 29930 lbf (133.1 kN)
Centrifugal Force 5 - Front 32780 lbf (145.8 kN)
Centrifugal Force 6 - Front 37710 lbf (167.6 kN)
Centrifugal Force 7 - Front 40760 lbf (181.2 kN)
Centrifugal Force 8 - Front 41790 lbf (185.8 kN)
Centrifugal Force 1 - Rear 11680 lbf (51.9 kN)
Centrifugal Force 2 - Rear 20210 lbf (89.8 kN)
Centrifugal Force 3 - Rear 31420 lbf (139.7 kN)
Centrifugal Force 4 - Rear 29930 lbf (133.1 kN)
Centrifugal Force 5 - Rear 32780 lbf (145.8 kN)
Centrifugal Force 6 - Rear 37710 lbf (167.6 kN)
Centrifugal Force 7 - Rear 40760 lbf (181.2 kN)
Centrifugal Force 8 - Rear 41790 lbf (185.8 kN)
Max Amplitude 0.03 inches (0.76 mm)
Min Amplitude 0.003 inches (0.08 mm)
Max Frequency 80 Hz
Min Frequency 50 Hz
Max Centrifugal Force 41790 lbf (185.7 kN)
Min Centrifugal Force 11680 lbf (51.9 kN)
Weights
Operating Weight 27700 lbs (12565 kg)
Weight - Front 14735 lbs (6684 kg)
Weight - Rear 12965 lbs (5881 kg)
