BIGGER STRONGER FASTER
Description

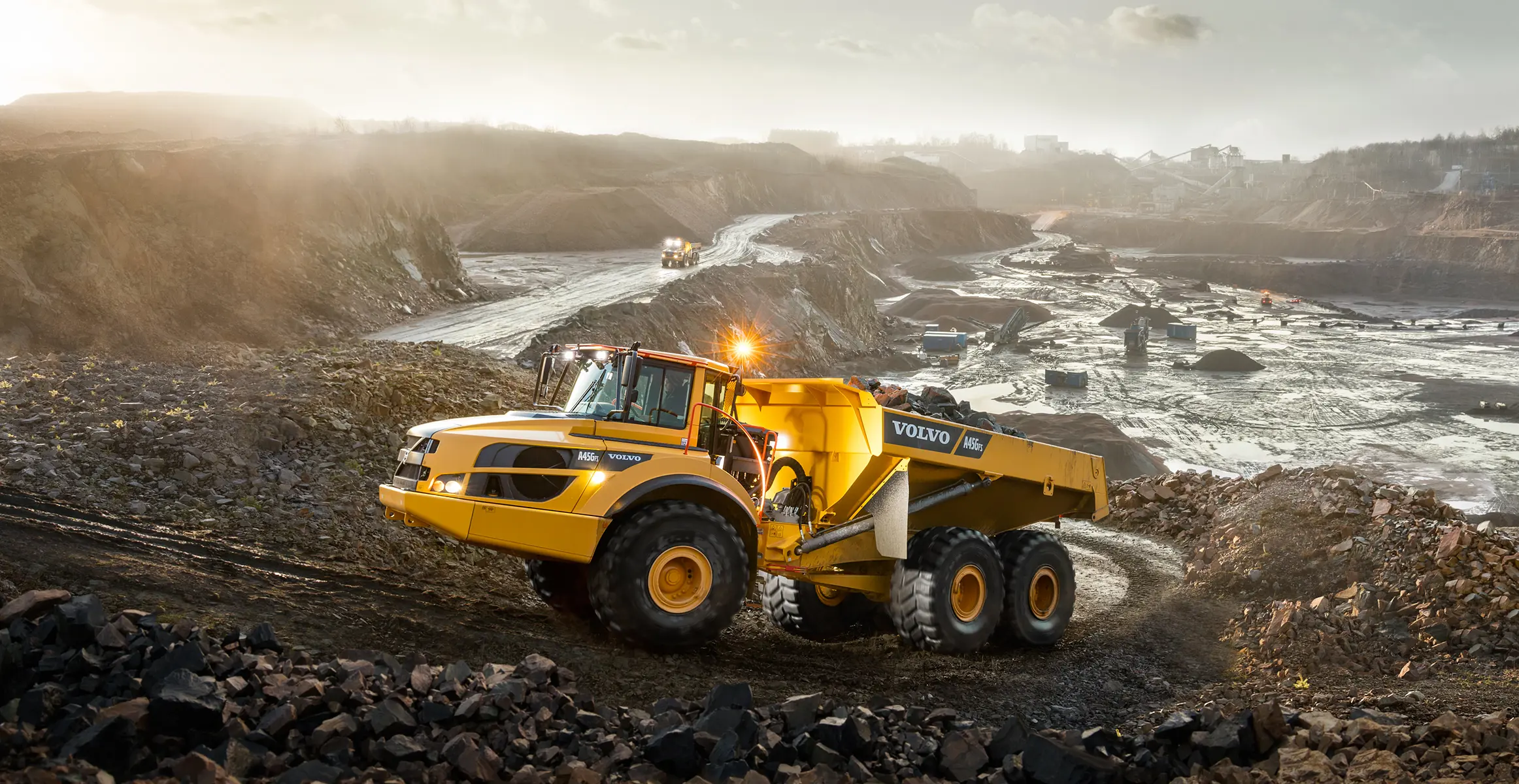

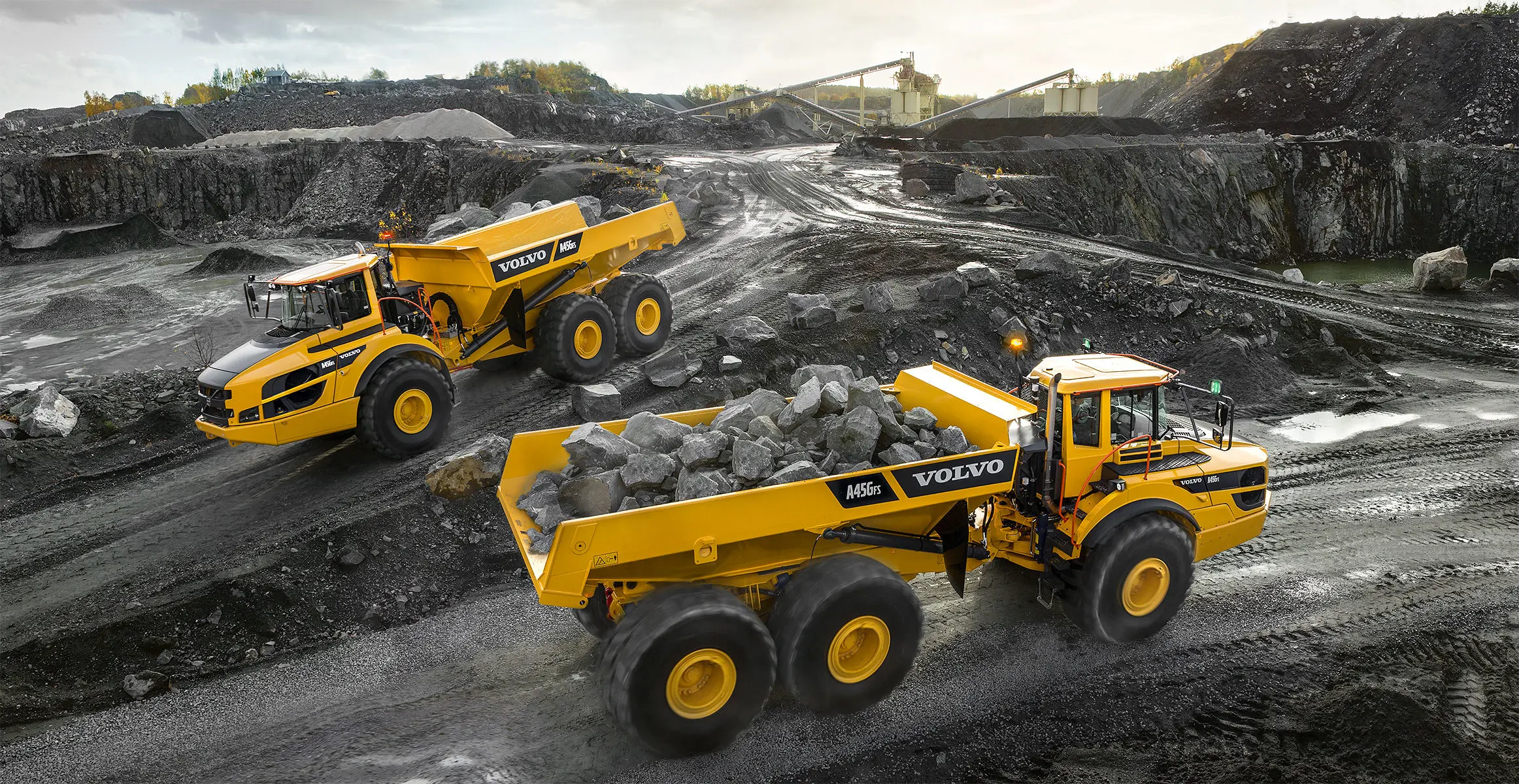

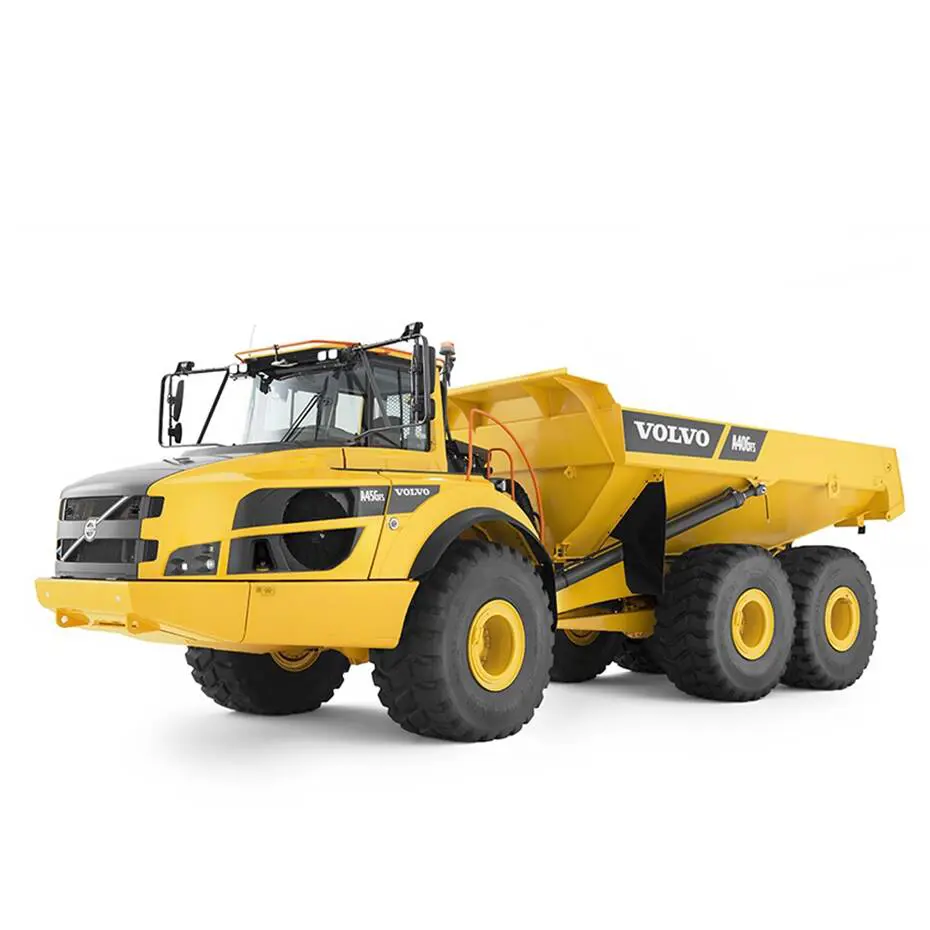

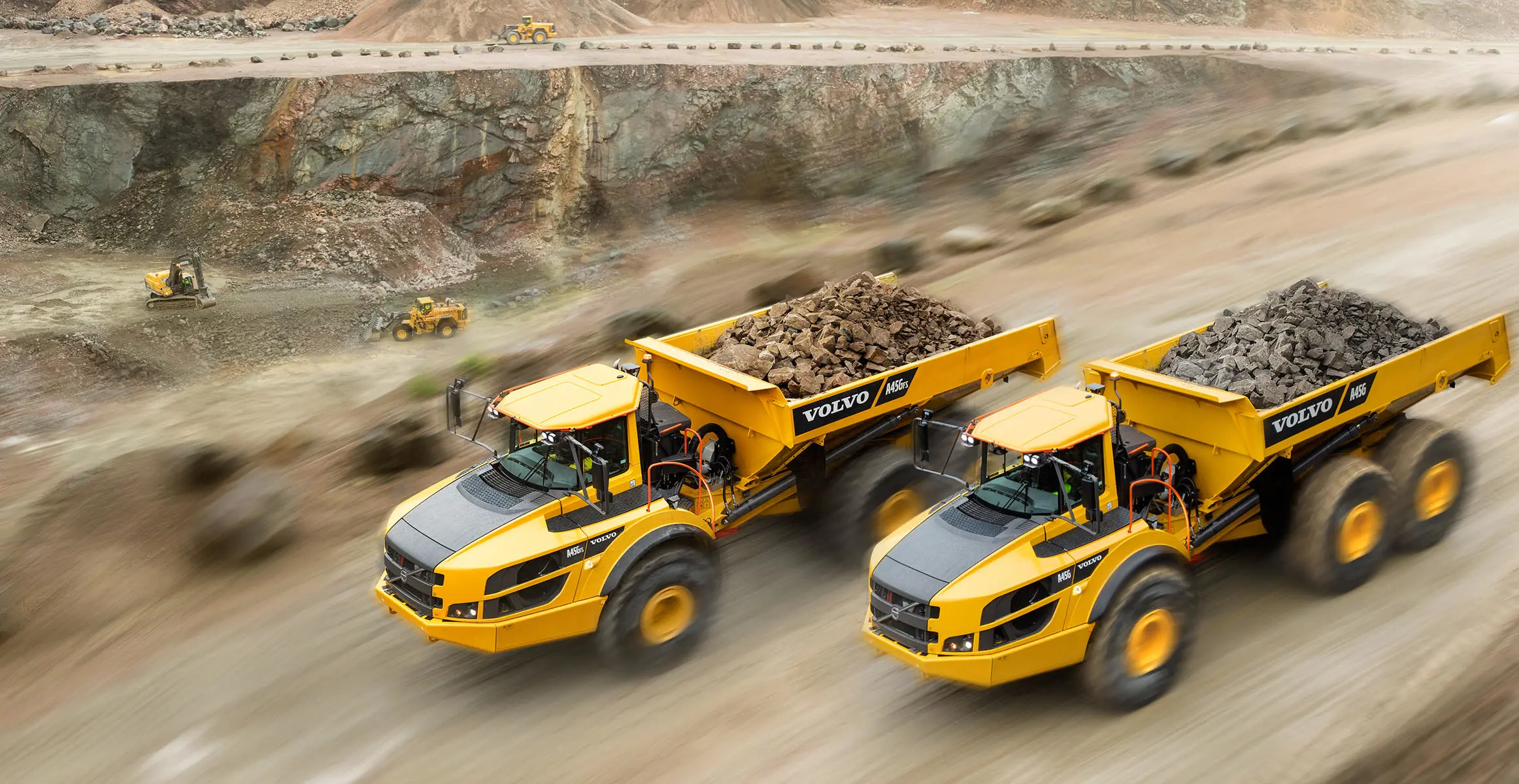

Get ready to work with the Volvo A45G Full Suspension articulated hauler. Designed for heavy-hauling in severe off-road operations, the machine offers continuous productivity, proven Volvo technology and impressive comfort, contributing to sustainable operations. Hauling is easier and more efficient.
Features And Benefits
- Fuel Efficiency Guaranteed
- Lifetime Frame & Structure Guarantee (Frame, Articulation/Oscillation Joint)
- Industry-leading service access
- Volvo Dynamic Drive
- Operational data: CareTrack, MATRIS & Optional On Board Weighing System
- Prioritized operator control, comfort & safety
Images
Video
Driveline
Engine Manufacturer Volvo
Engine Model D16J
Number Of Cylinders 6
After Treatment System 3 Selective Catalytic Reduction
Displacement 982 Inches³ (16.1 ltr)
Rated Speed 1800 rpm
Engine Output - Net 475 hp (354 kW)
Engine Output - Gross 479 hp (357 kW)
Torque 1882 lbf / ft (2551 Nm)
Drive Configuration 6 x 6
Final Drive Planetary
Transmission Type Powershift
Traction Control Yes
Front Differential Locking
Second Axle Differential Locking
Third Axle Differential Locking
Centre Transfer Differential Locking
Tire Size - Standard 29.5 R25
Tire Type - Standard Radial
Front Suspension - Type 3 Point
Front Suspension Hydraulic Cylinders
Rear Suspension - Type 3 Point
Rear Suspension Hydraulic Cylinders
Service Brake - Type Wet Multi Disc
Dimensions
Length - Overall 36 ft 11 in (11263 mm)
Height - Over Cab 11 ft 10 in (3599 mm)
Height - Max 11 ft 10 in (3599 mm)
Ground Clearance 22 inches (553 mm)
Width Over Tires 11 ft 2 in (3403 mm)
Width - Transport 11 ft 2 in (3430 mm)
Width - Operating 11 ft 3 in (3430 mm)
Wheelbase 18 ft (5488 mm)
Length - Body 19 ft 2 in (5844 mm)
Loading Height 10 ft 6 in (3200 mm)
Full Dump Height 23 ft 10 in (7265 mm)
Hoist - Type Twin, 1-Stage
Dump Angle 70 °
Approach Angle 25 °
Articulation Angle 45 ± °
Turning Radius - Outside 29 ft 5 in (8957 mm)
Turning Radius - Inside 14 ft 2 in (4327 mm)
Capacities
Fuel Tank 126.8 gallons (US) (480 ltr)
Heaped Capacity 32.85 yd³ (25.1 m³)
Performance
Cycle Time - Raise 12 s
Unladen Axle Load - Front 37479 lbs (17000 kg)
Unladen Axle Load - Centre 16424.5 lbs (7450 kg)
Unladen Axle Load - Rear 16424.5 lbs (7450 kg)
Unladen Axle Load - Centre + Rear 32849 lbs (14900 kg)
Laden Axle Load - Front 46628 lbs (21150 kg)
Laden Axle Load - Centre 57044.5 lbs (25875 kg)
Laden Axle Load - Rear 57044.5 lbs (25875 kg)
Laden Axle Load - Centre + Rear 114089 lbs (51750 kg)
Front - Unladen 16.5 PSI (114 kPa)
Rear - Unladen 7 PSI (48 kPa)
Front - Laden 20.7 PSI (143 kPa)
Rear - Laden 25.2 PSI (174 kPa)
Speed - Forward Maximum 35.4 mph (57 kph)
Speed - Reverse Maximum 11.2 mph (18 kph)
Weights
Net Weight 70327 lbs (31900 kg)
Payload 90389 lbs (41000 kg)
Gross Weight 160717 lbs (72900 kg)
