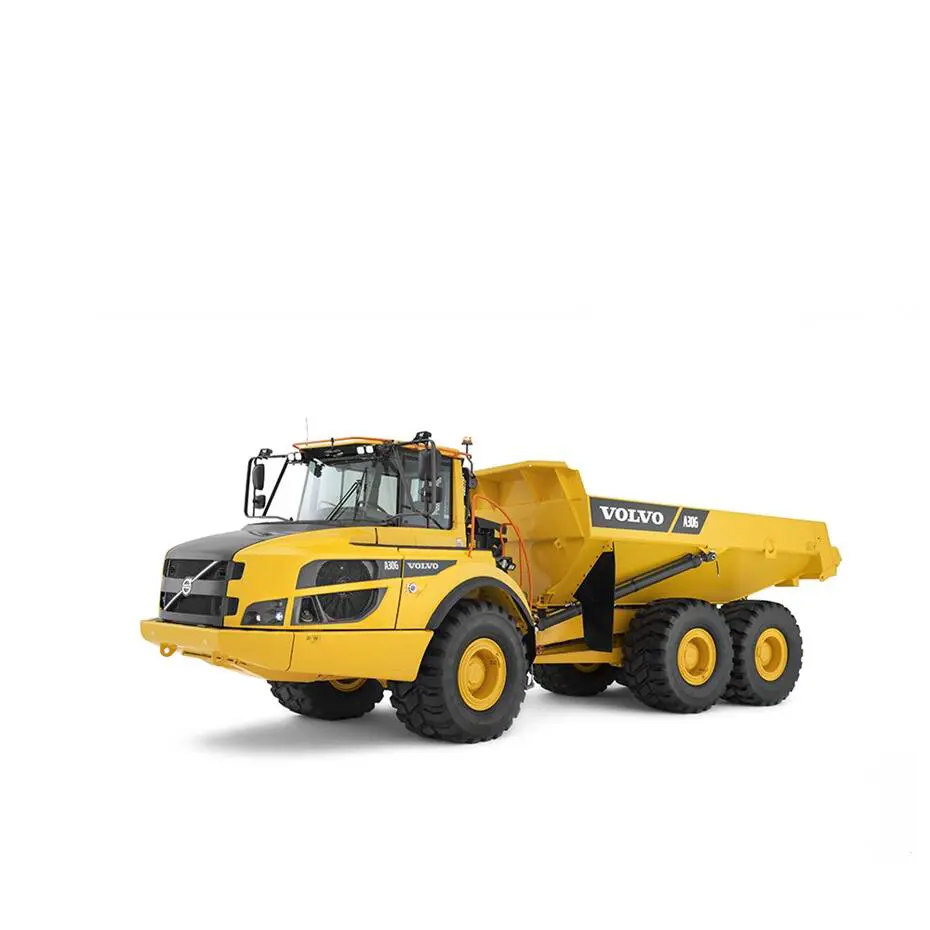

A30G
4907737e-f3ab-4660-970b-118c35d23822
UNRIVALED HAULER
Description
Designed for any application and featuring advanced technology, off-road hauling performance is enhanced when every wheel is firmly on the ground. The Volvo A30G articulated truck is stable and smooth, giving you full control at every corner.
Features And Benefits
- Fuel Efficiency Guaranteed
- Lifetime Frame & Structure Guarantee (Frame, Articulation/Oscillation Joint)
- Industry-leading service access
- Volvo Dynamic Drive
- Operational data: CareTrack, MATRIS & Optional On Board Weighing System

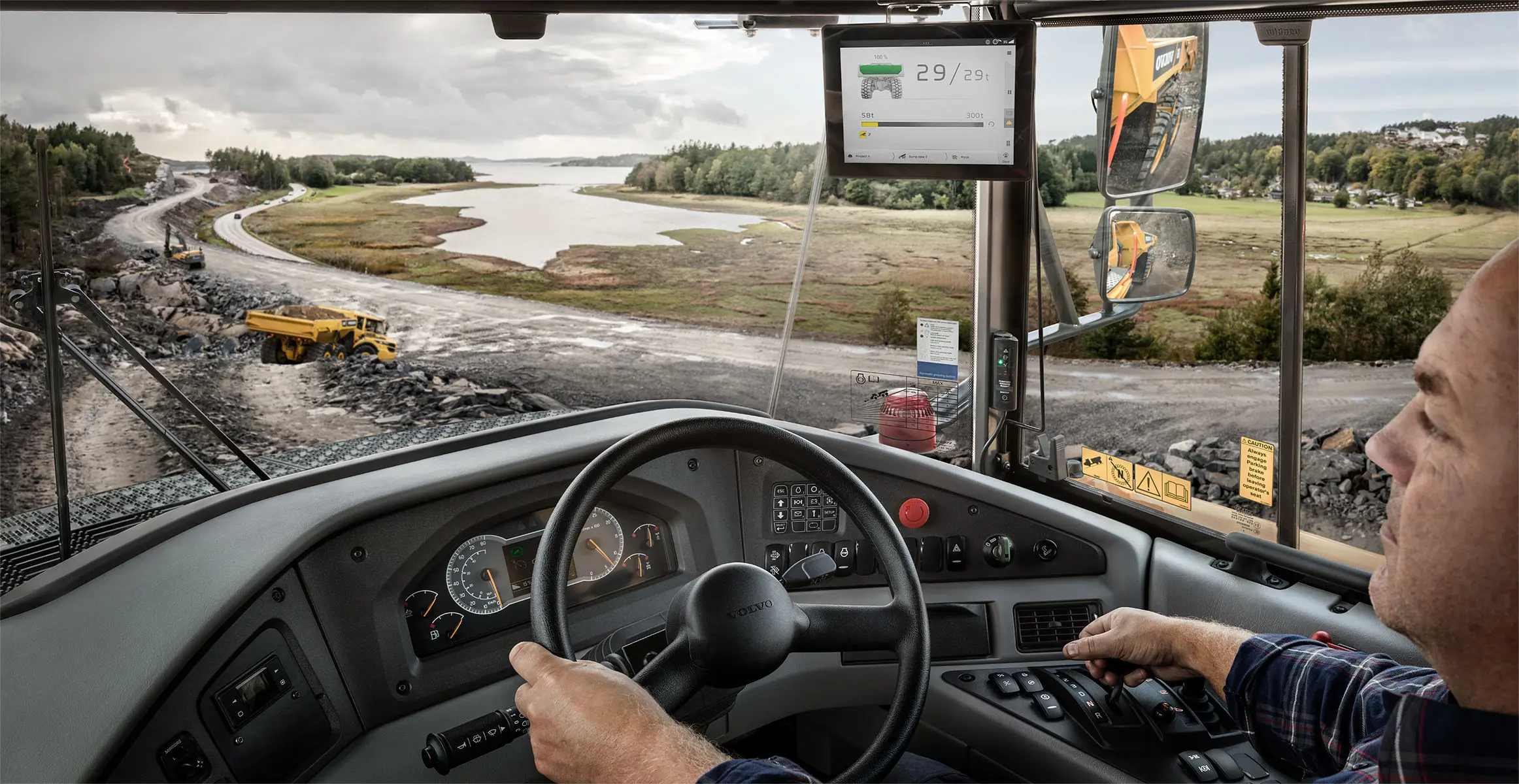

- Prioritized operator control, comfort & safety
Images
Video
Driveline
Engine Manufacturer Volvo
Engine Model D11M
Number Of Cylinders 6
After Treatment System 3 Selective Catalytic Reduction
Displacement 659 Inches³ (10.8 ltr)
Rated Speed 2000 rpm
Engine Output - Net 355 hp (265 kW)
Engine Output - Gross 355 hp (265 kW)
Torque 1497 lbf / ft (2030 Nm)
Drive Configuration 6 x 6
Final Drive Planetary
Transmission Type Powershift
Traction Control Yes
Front Differential Locking
Second Axle Differential Locking
Third Axle Differential Locking
Centre Transfer Differential Locking
Tire Size - Standard 750 / 65 R25
Tire Type - Standard Radial
Front Suspension - Type 3 Point
Front Suspension Gas-Hydraulic Strut
Rear Suspension - Type 3 Point Bogie Beam
Rear Suspension 3 Point
Service Brake - Type Wet Multi Disc
Dimensions
Length - Overall 33 ft 9 in (10296 mm)
Height - Over Cab 11 ft 1 in (3366 mm)
Height - Max 11 ft 1 in (3366 mm)
Ground Clearance 18 inches (466 mm)
Width Over Tires 9 ft 8 in (2954 mm)
Width - Transport 9 ft 8 in (2954 mm)
Width - Operating 9 ft 8 in (2954 mm)
Wheelbase 16 ft 5 in (5010 mm)
Length - Body 17 ft 8 in (5384 mm)
Loading Height 9 ft 5 in (2866 mm)
Full Dump Height 21 ft 6 in (6562 mm)
Hoist - Type Twin, 1-Stage
Dump Angle 70 °
Approach Angle 23.2 °
Articulation Angle 45 ± °
Turning Radius - Outside 26 ft 7 in (8109 mm)
Turning Radius - Inside 13 ft 3 in (4048 mm)
Capacities
Fuel Tank 100.4 gallons (US) (380 ltr)
Heaped Capacity 23.3 yd³ (17.8 m³)
Performance
Cycle Time - Raise 12 s
Unladen Axle Load - Front 28440 lbs (12900 kg)
Unladen Axle Load - Centre 11794.5 lbs (5350 kg)
Unladen Axle Load - Rear 11794.5 lbs (5350 kg)
Unladen Axle Load - Centre + Rear 23589 lbs (10700 kg)
Laden Axle Load - Front 35613 lbs (15600 kg)
Laden Axle Load - Centre 40675.5 lbs (18450 kg)
Laden Axle Load - Rear 40675.5 lbs (18450 kg)
Laden Axle Load - Centre + Rear 81351 lbs (36900 kg)
Front - Unladen 15.7 PSI (108 kPa)
Rear - Unladen 6.2 PSI (43 kPa)
Front - Laden 18.9 PSI (130 kPa)
Rear - Laden 22 PSI (152 kPa)
Speed - Forward Maximum 32.7 mph (52.7 kph)
Speed - Reverse Maximum 8.5 mph (13.7 kph)
Weights
Net Weight 52029 lbs (23600 kg)
Payload 63934 lbs (29000 kg)
Gross Weight 115963 lbs (52600 kg)
