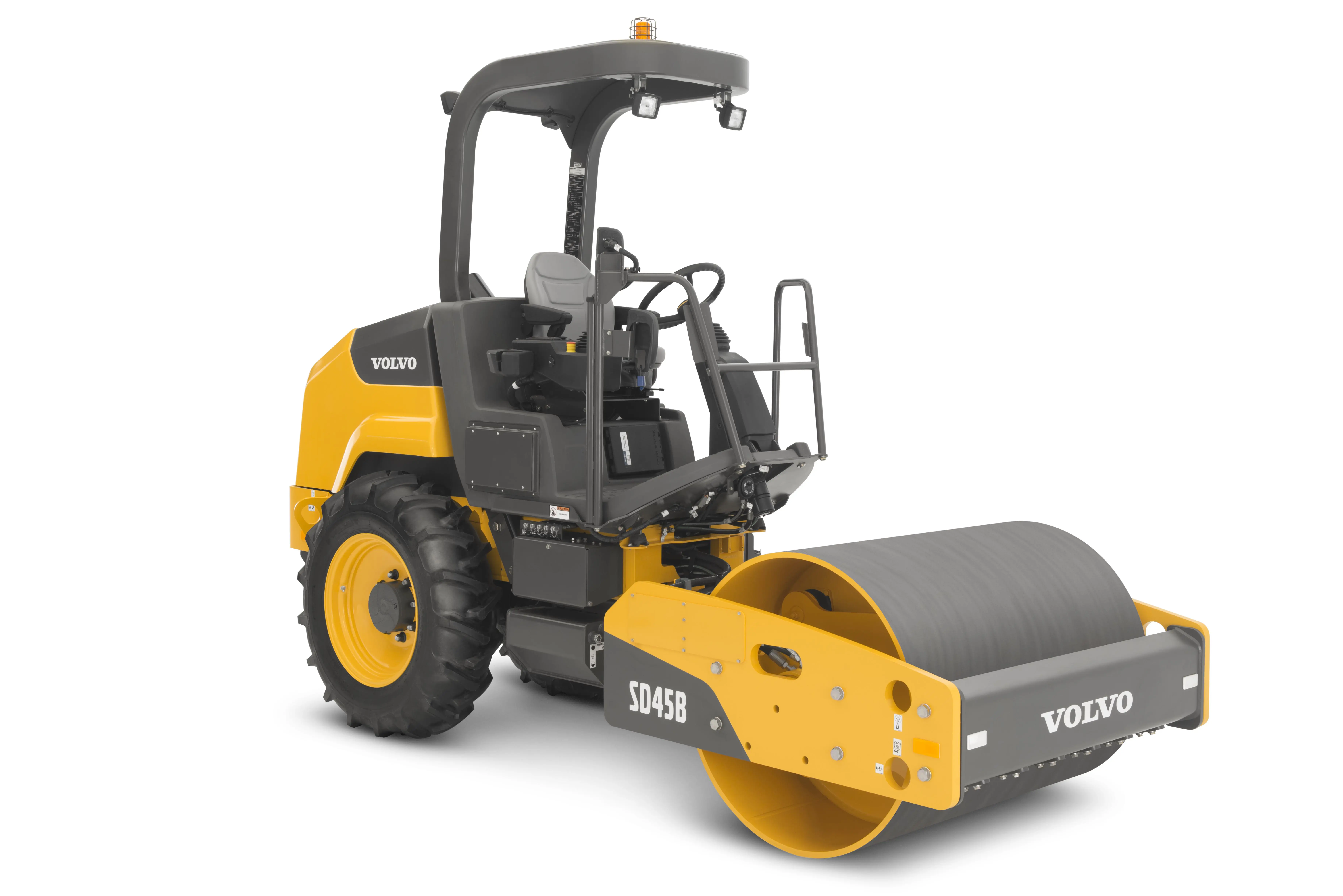

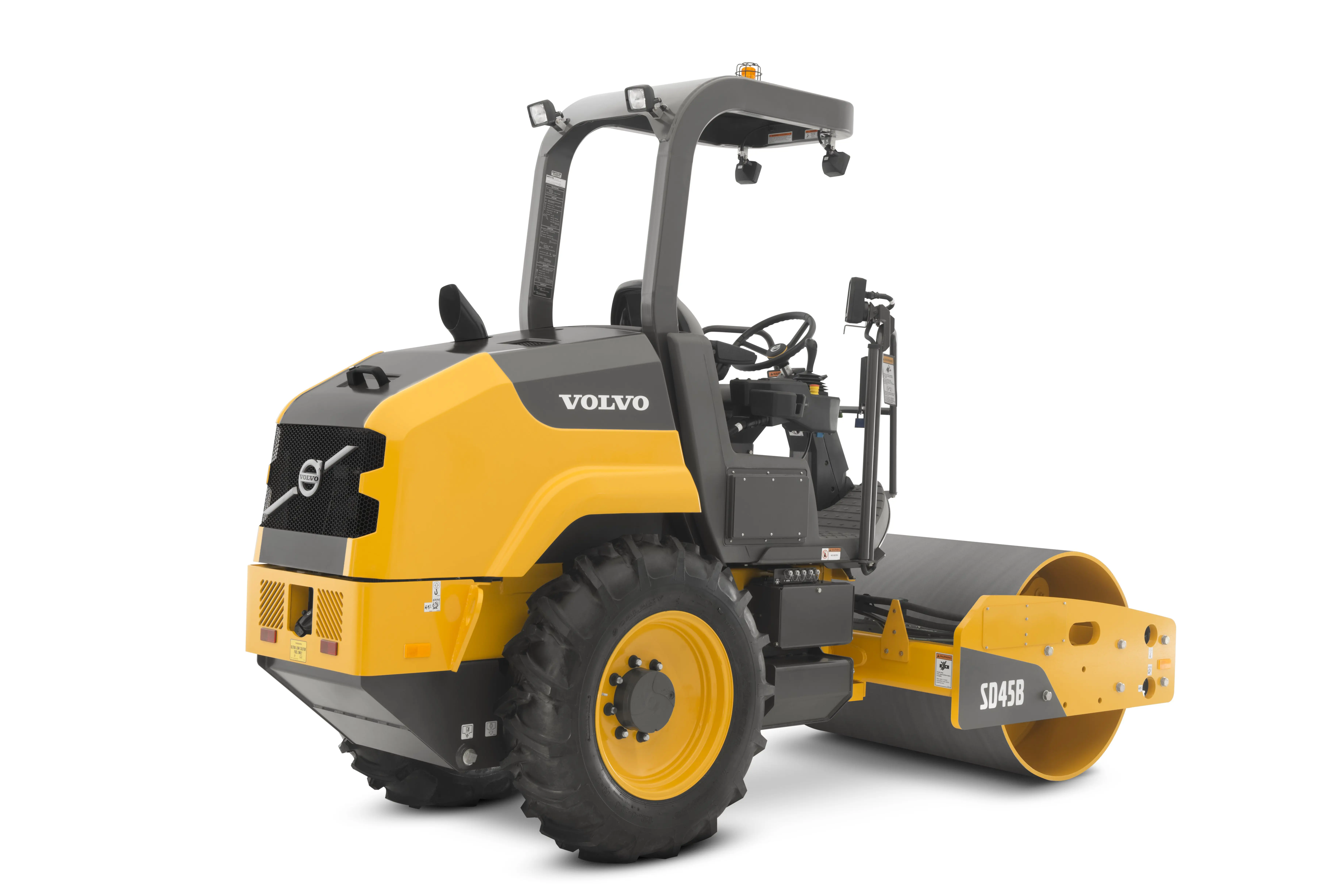

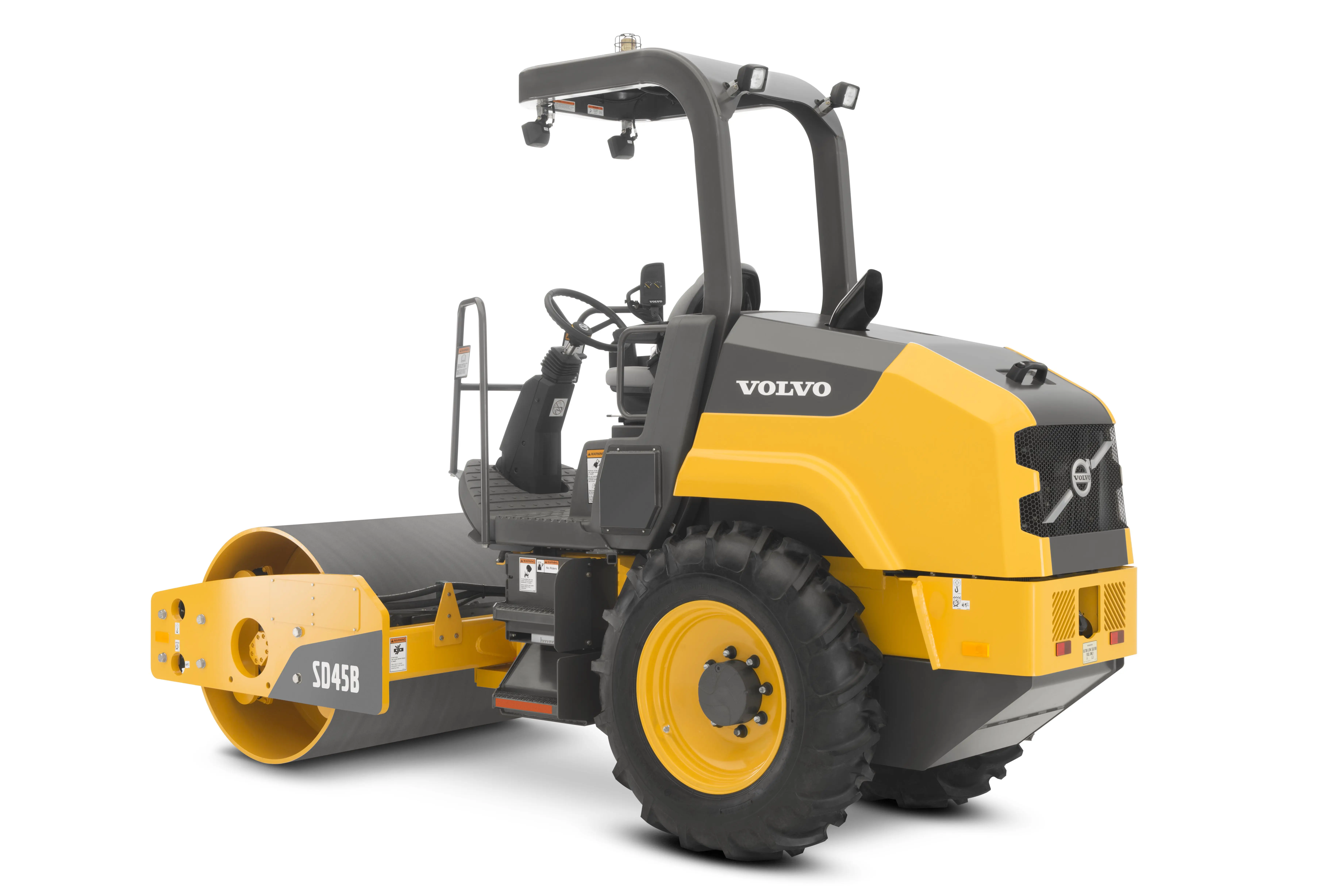

SD45B
4f5c7ce1-8d4c-4820-974d-e091d7f49520
QUALITY COMPACTION IN ACTION
Description

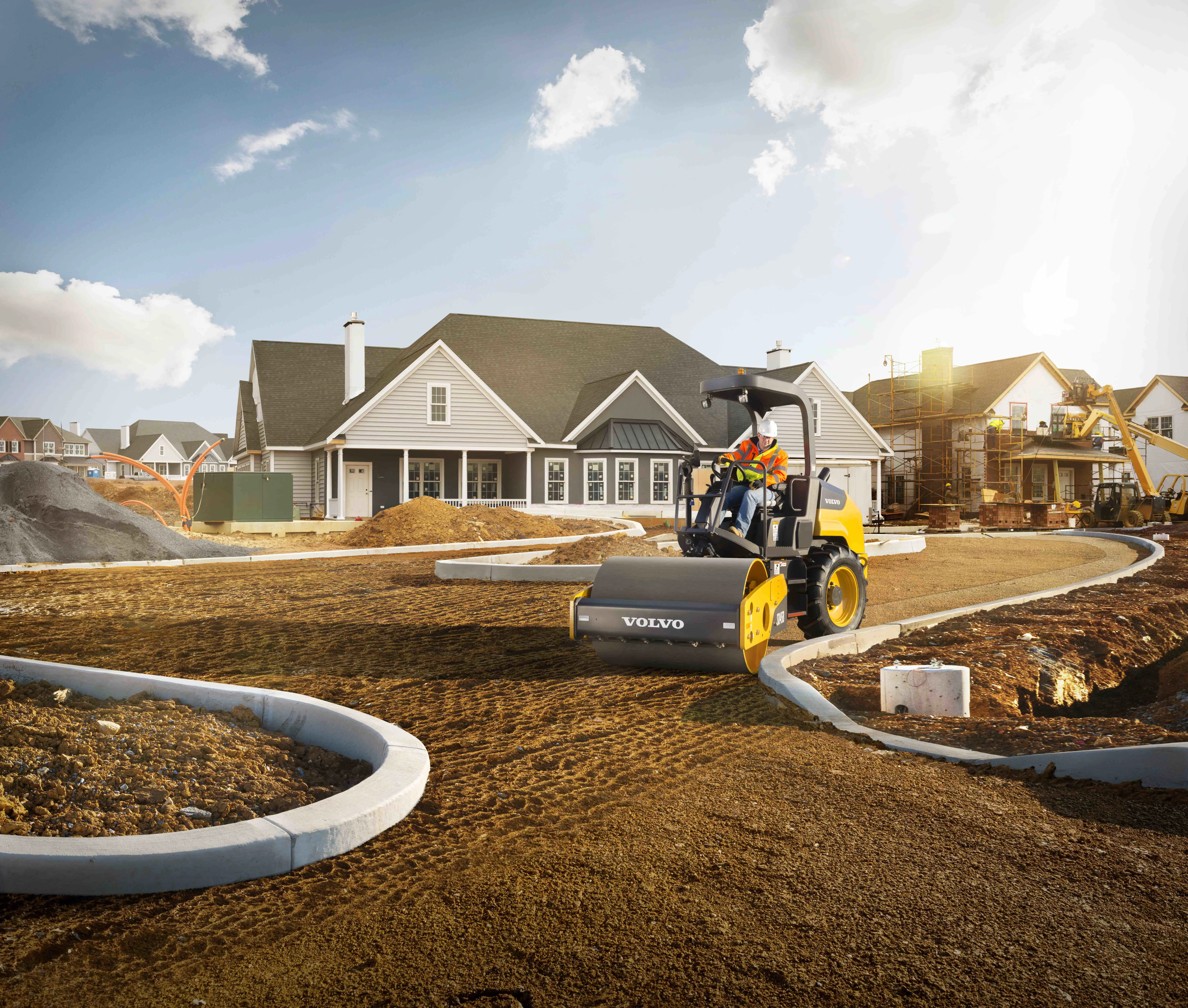

Maximize return on your investment with the Volvo SD45B single drum compactor, designed to boost profitability and ensure low total cost of ownership. The powerful single drum compactor is the complete package, providing superior compaction performance and unrivaled versatility. Designed to compact in confined areas, the SD45B is the best partner for commercial and residential site development, utility installations, driveways and landscaping jobs.
Features And Benefits
- High centrifugal force, high amplitude and drum weight to get target material density in fewer passes.

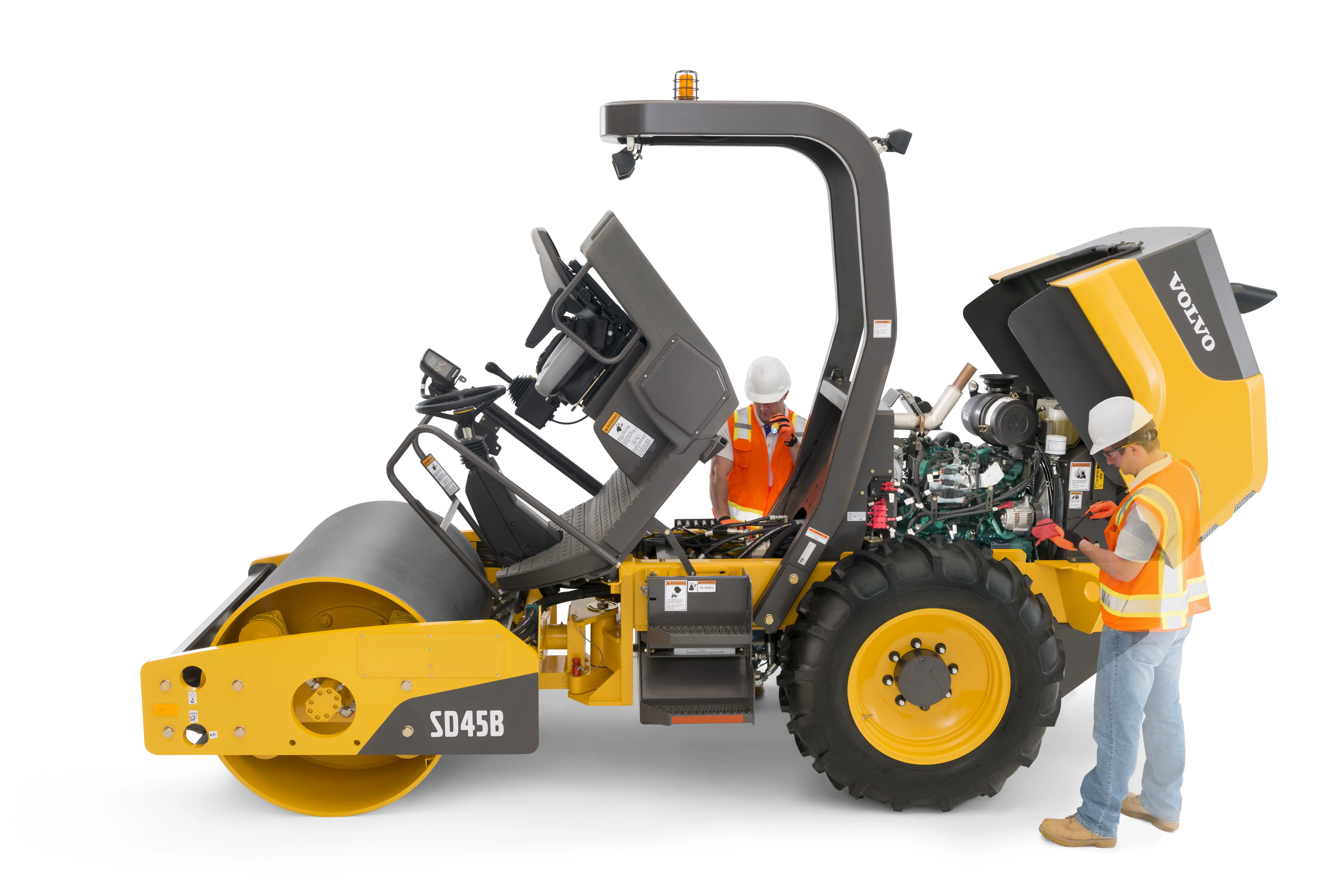

- Hinged engine hood and tilt able operator’s platform for swift ground-level access.
- Volvo’s standard full-time traction system, coupled with the NoSPIN® differential provides excellent performance.
- Convert the drum from smooth to padfoot in less than an hour.
Images
Brochures
Video
Telematics
Telematics Available No
Driveline
Engine Manufacturer Volvo
Engine Model D3.3H
Aspiration Turbocharged
Exhaust Gas Recirculation Yes
Rated Speed 2200 rpm
Engine Rated Output 74 hp (55 kW)
Transmission Hydrostatic
Tire Size 12.4 - 28
Dimensions
Overall Length 164.6 inches (4181 mm)
Height - With ROPS 111.4 inches (2830 mm)
Overall Width 61 inches (1550 mm)
Wheelbase 94.5 inches (2400 mm)
Ground Clearance 11.9 inches (302 mm)
Drum Width 54 inches (1372 mm)
Rolling Width 54 inches (1372 mm)
Drum Diameter 39.4 inches (1001 mm)
Drum Shell Thickness 0.8 inches (20 mm)
Steering Angle 41 ± °
Turning Radius - Inside 101.1 inches (2569 mm)
Capacities
Fuel Tank 26.8 gallons (US) (101.3 ltr)
Hydraulic Tank 25.4 gallons (US) (96.1 ltr)
Performance
Drive To Drum / Wheel Yes / Yes
Travel Speed 1 5.7 mph (9.1 kph)
Frequency - Stage 2 30.8 Hz
Amplitude - Stage 1 0.078 inches (1.99 mm)
Amplitude - Stage 2 0.078 inches (1.99 mm)
Centrifugal Force - 1 21000 lbf (93 kN)
Centrifugal Force - 2 16800 lbf (75 kN)
Max. Travel Speed 5.7 mph (9.1 kph)
System Voltage 12 V
Number Of Batteries 1
Battery Voltage 12 V
Battery Capacity 750 cca
Alternator Output 90 A
Weights
Operating Weight 10910 lbs (4948 kg)
Weight - Front 5400 lbs (2449 kg)
Weight - Rear 5510 lbs (2497 kg)
