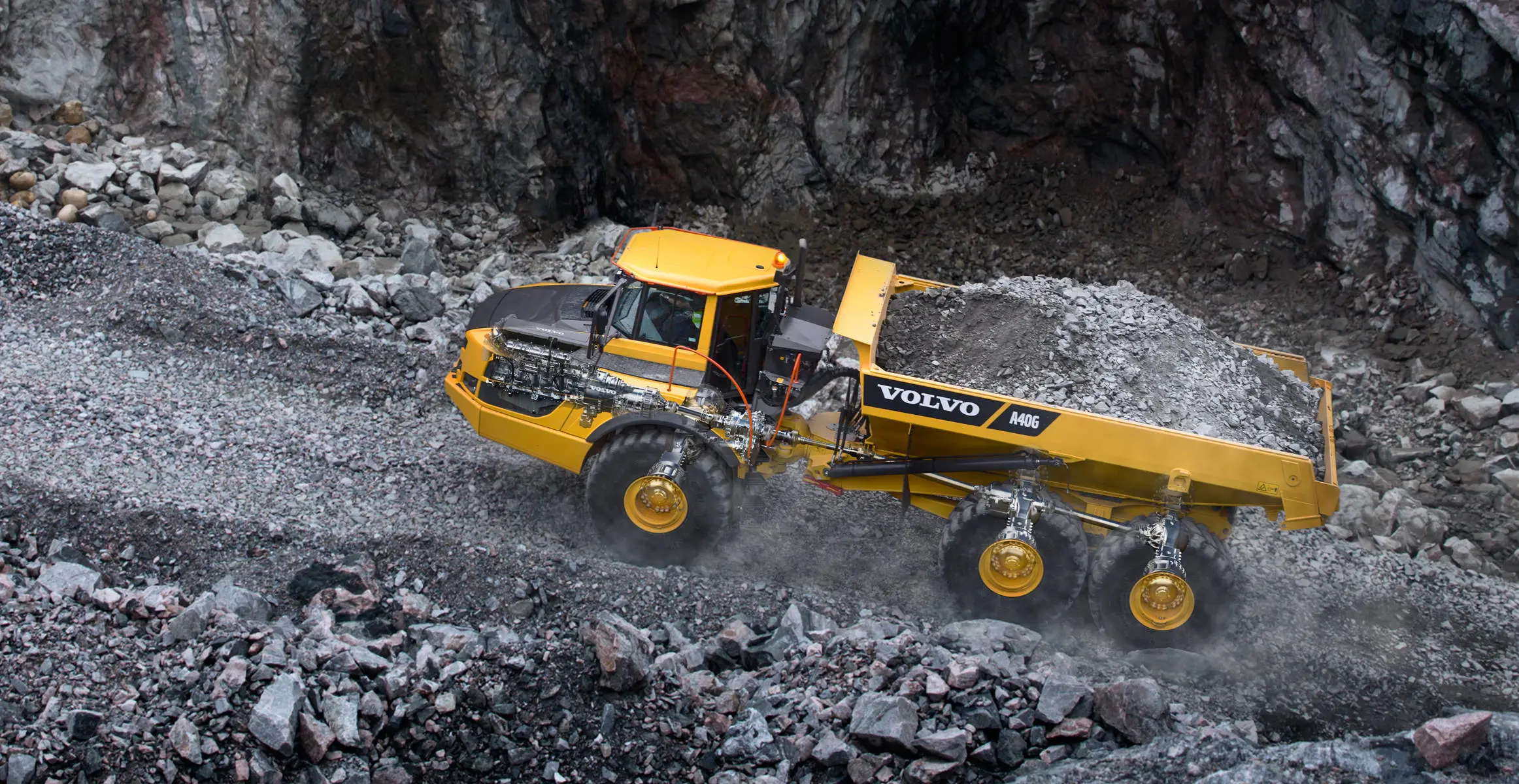

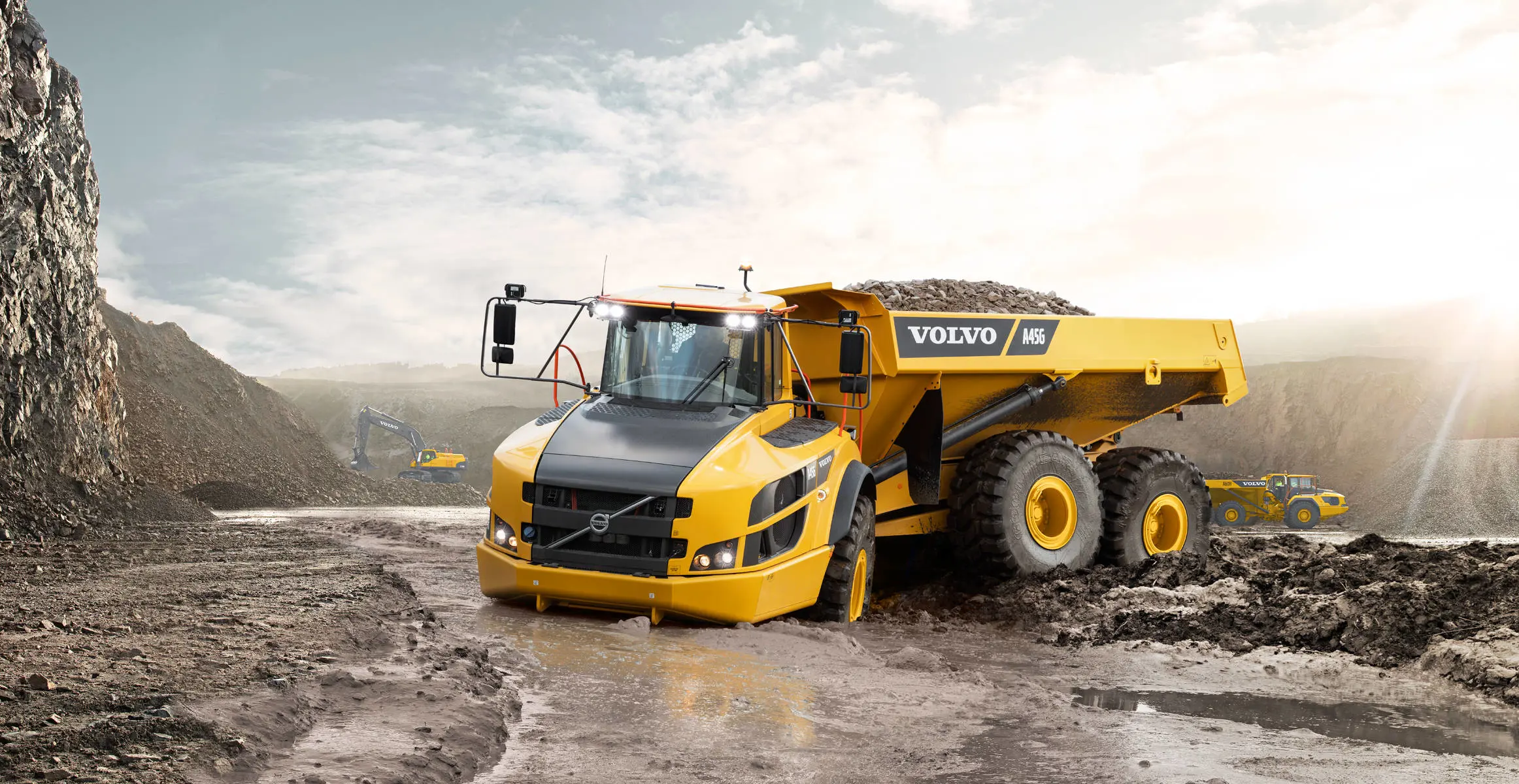

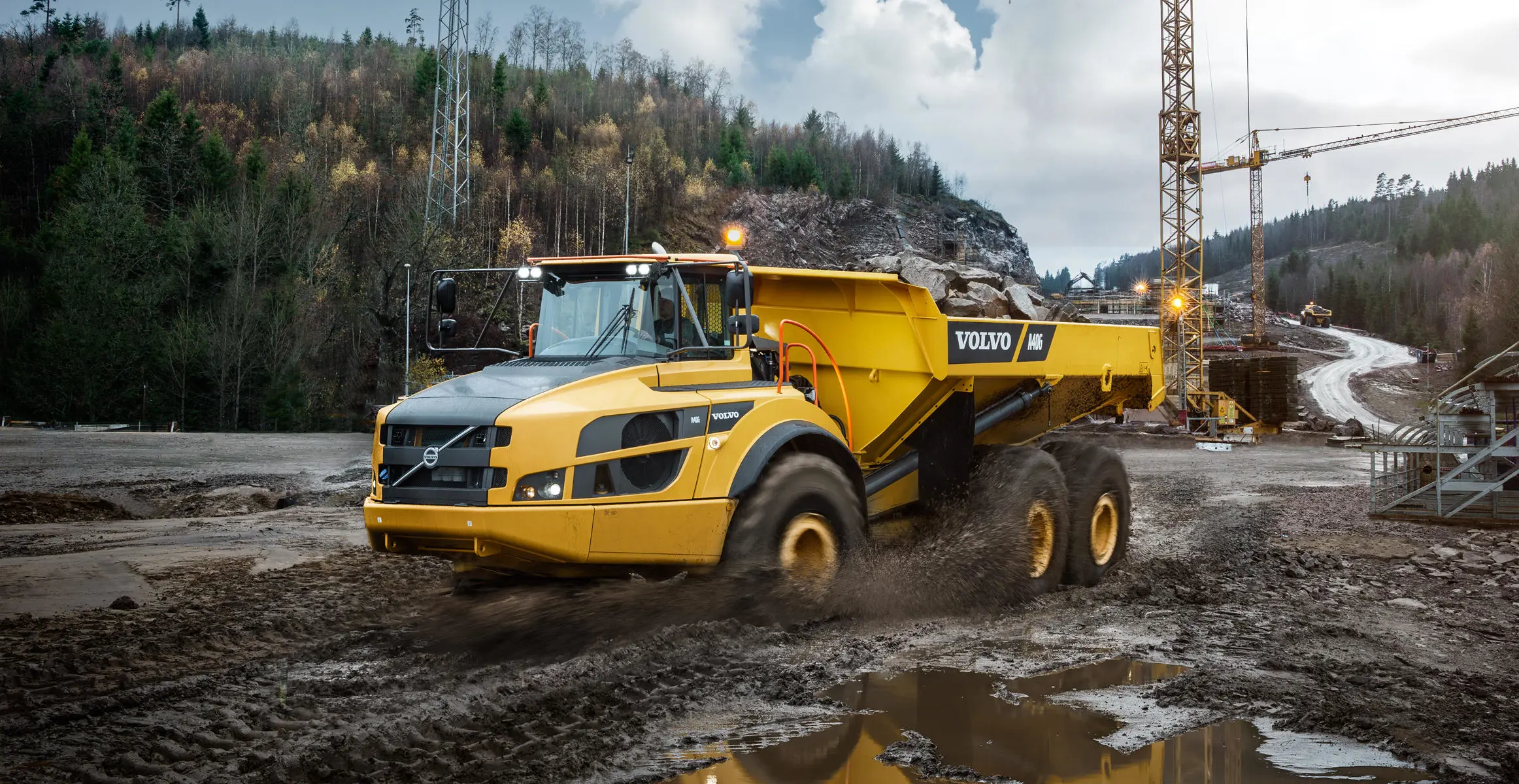

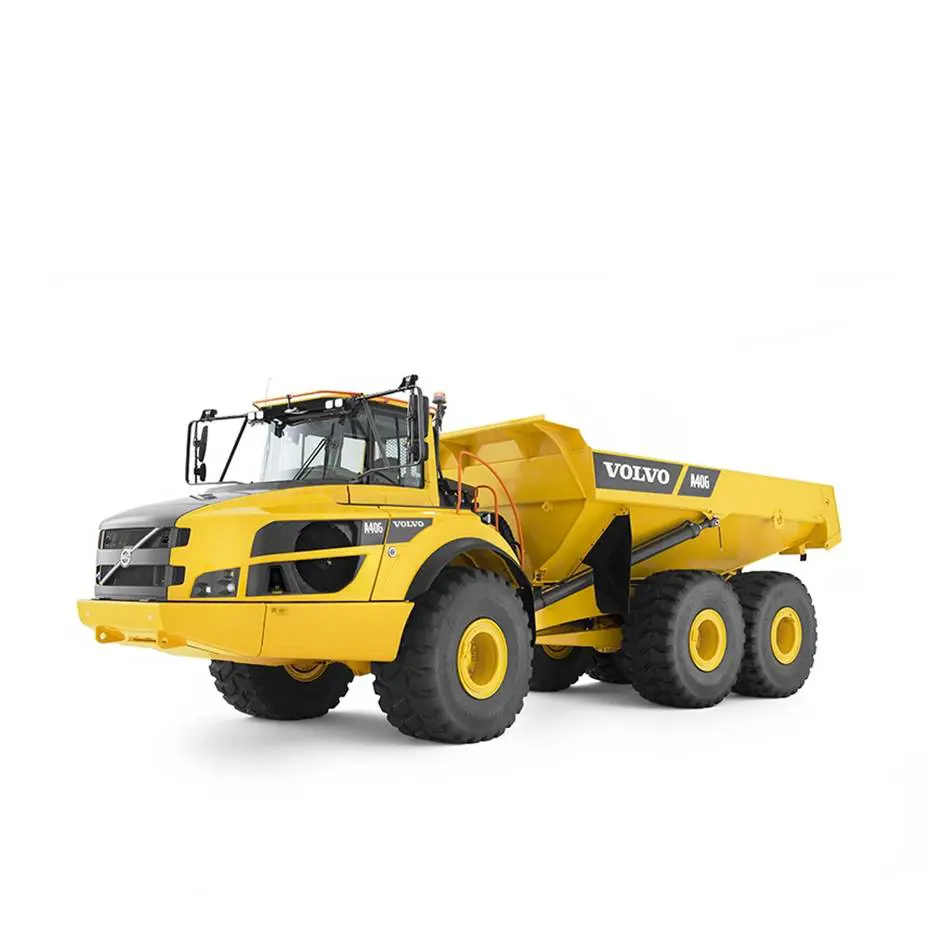

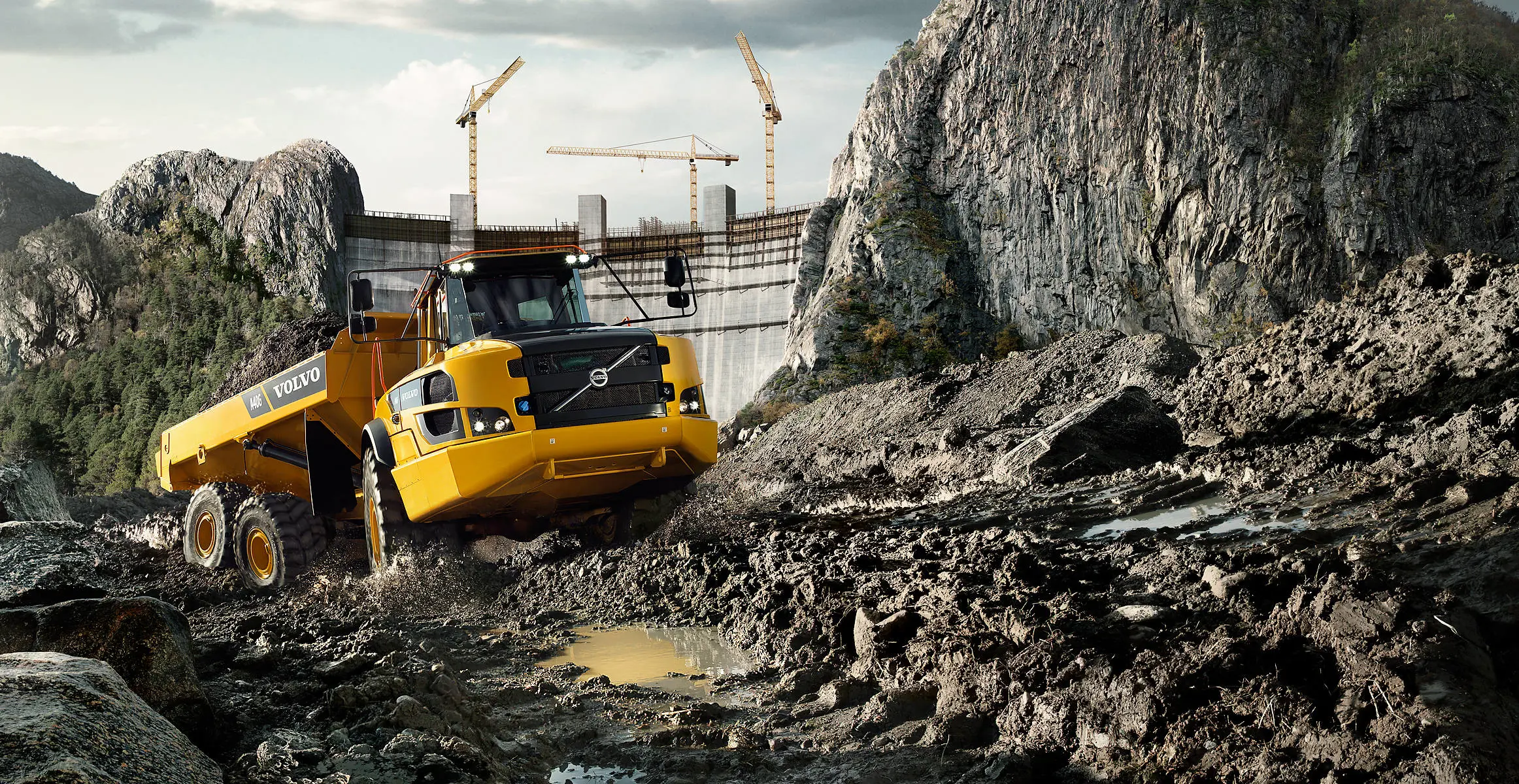

A40G
4f881cfa-fdbd-4a9d-9850-ec16e761d71b
PUSHING POWER
Description
With innovative features including Volvo's telematics system, revolutionary On Board Weighing technology and diagnostic tools, the A40G articulated truck offers machine owners, operators and service technicians access to a wealth of data that will improve productivity and save money.
Features And Benefits
- Fuel Efficiency Guaranteed
- Lifetime Frame & Structure Guarantee (Frame, Articulation/Oscillation Joint)
- Industry-leading service access
- Volvo Dynamic Drive
- Operational data: CareTrack, MATRIS & Optional On Board Weighing System

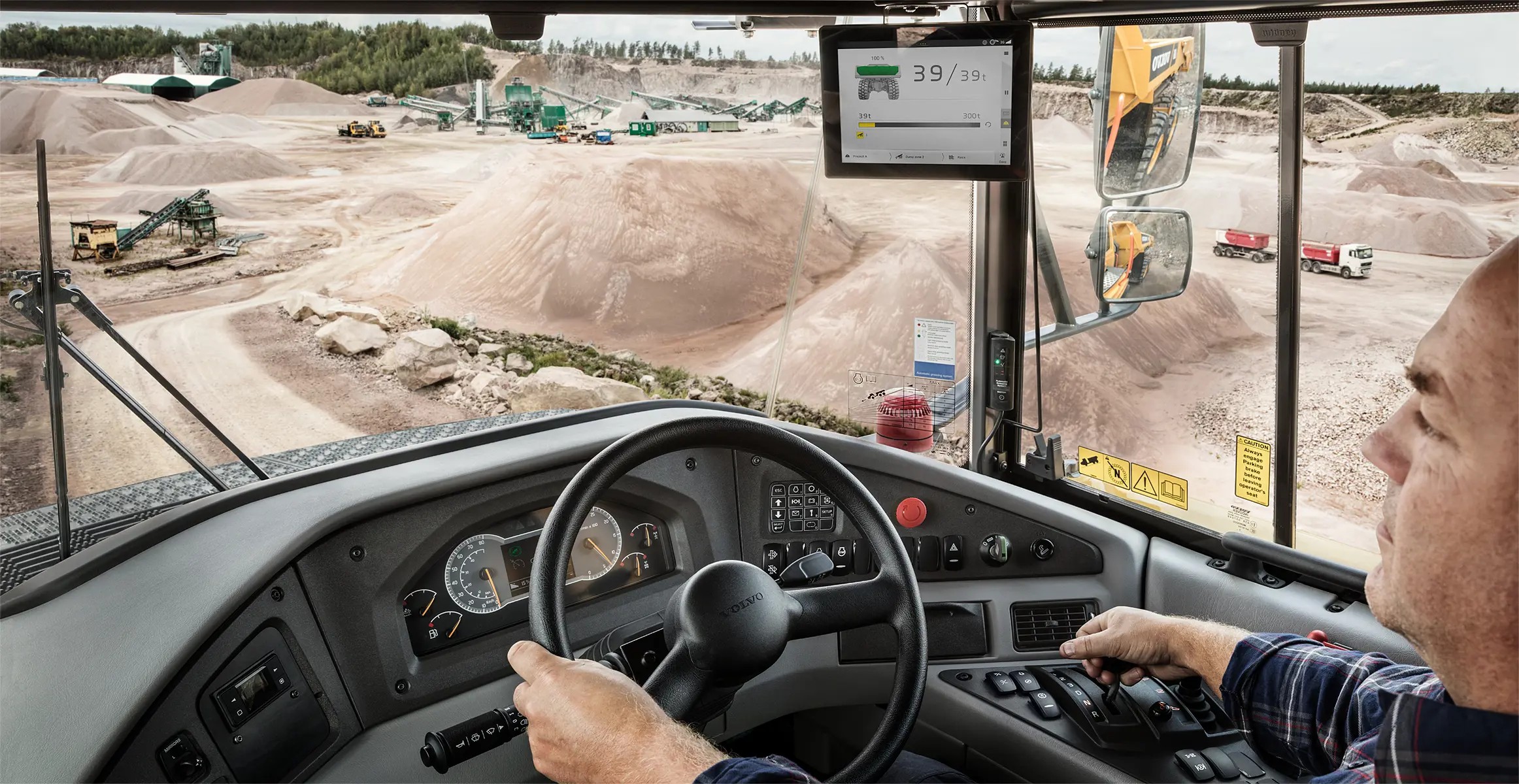

- Prioritized operator control, comfort & safety
Images
Video
Driveline
Engine Manufacturer Volvo
Engine Model D13J
Number Of Cylinders 6
After Treatment System 3 Selective Catalytic Reduction
Displacement 781 Inches³ (12.8 ltr)
Rated Speed 1900 rpm
Engine Output - Net 465 hp (347 kW)
Engine Output - Gross 469 hp (350 kW)
Torque 1862 lbf / ft (2525 Nm)
Drive Configuration 6 x 6
Final Drive Planetary
Transmission Type Powershift
Traction Control Yes
Front Differential Locking
Second Axle Differential Locking
Third Axle Differential Locking
Centre Transfer Differential Locking
Tire Size - Standard 29.5 R25
Tire Type - Standard Radial
Front Suspension - Type 3 Point
Front Suspension Rubber Bushing / Shock Absorber
Rear Suspension - Type 3 Point Bogie Beam
Rear Suspension 3 Point
Service Brake - Type Wet Multi Disc
Dimensions
Length - Overall 36 ft 11 in (11263 mm)
Height - Over Cab 11 ft 10 in (3599 mm)
Height - Max 11 ft 10 in (3599 mm)
Ground Clearance 22 inches (553 mm)
Width Over Tires 11 ft 2 in (3403 mm)
Width - Transport 11 ft 3 in (3430 mm)
Width - Operating 11 ft 3 in (3430 mm)
Wheelbase 18 ft (5488 mm)
Length - Body 19 ft 2 in (5844 mm)
Loading Height 10 ft 3 in (3132 mm)
Full Dump Height 23 ft 10 in (7265 mm)
Hoist - Type Twin, 1-Stage
Dump Angle 70 °
Approach Angle 24.3 °
Articulation Angle 45 ± °
Turning Radius - Outside 29 ft 5 in (8957 mm)
Turning Radius - Inside 14 ft 2 in (4327 mm)
Capacities
Fuel Tank 126.8 gallons (US) (480 ltr)
Heaped Capacity 31.4 yd³ (24 m³)
Performance
Cycle Time - Raise 12 s
Unladen Axle Load - Front 35494 lbs (16100 kg)
Unladen Axle Load - Centre 16093.5 lbs (7300 kg)
Unladen Axle Load - Rear 16093.5 lbs (7300 kg)
Unladen Axle Load - Centre + Rear 32187 lbs (14600 kg)
Laden Axle Load - Front 45084 lbs (20450 kg)
Laden Axle Load - Centre 54289 lbs (24625 kg)
Laden Axle Load - Rear 54289 lbs (24625 kg)
Laden Axle Load - Centre + Rear 108578 lbs (49250 kg)
Front - Unladen 16.1 PSI (111 kPa)
Rear - Unladen 6.8 PSI (47 kPa)
Front - Laden 20.2 PSI (139 kPa)
Rear - Laden 24.2 PSI (167 kPa)
Speed - Forward Maximum 35.4 mph (57 kph)
Speed - Reverse Maximum 11.2 mph (18 kph)
Weights
Net Weight 67682 lbs (30700 kg)
Payload 85980 lbs (39000 kg)
Gross Weight 153662 lbs (69700 kg)
