Construction Division

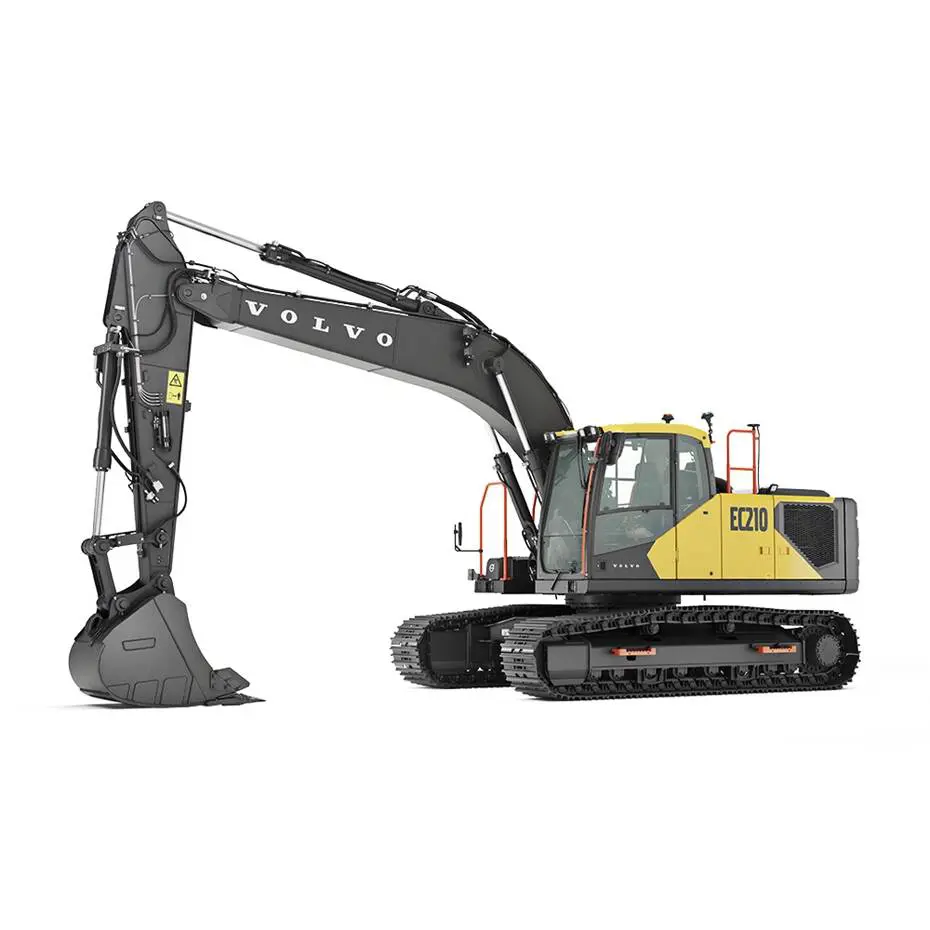

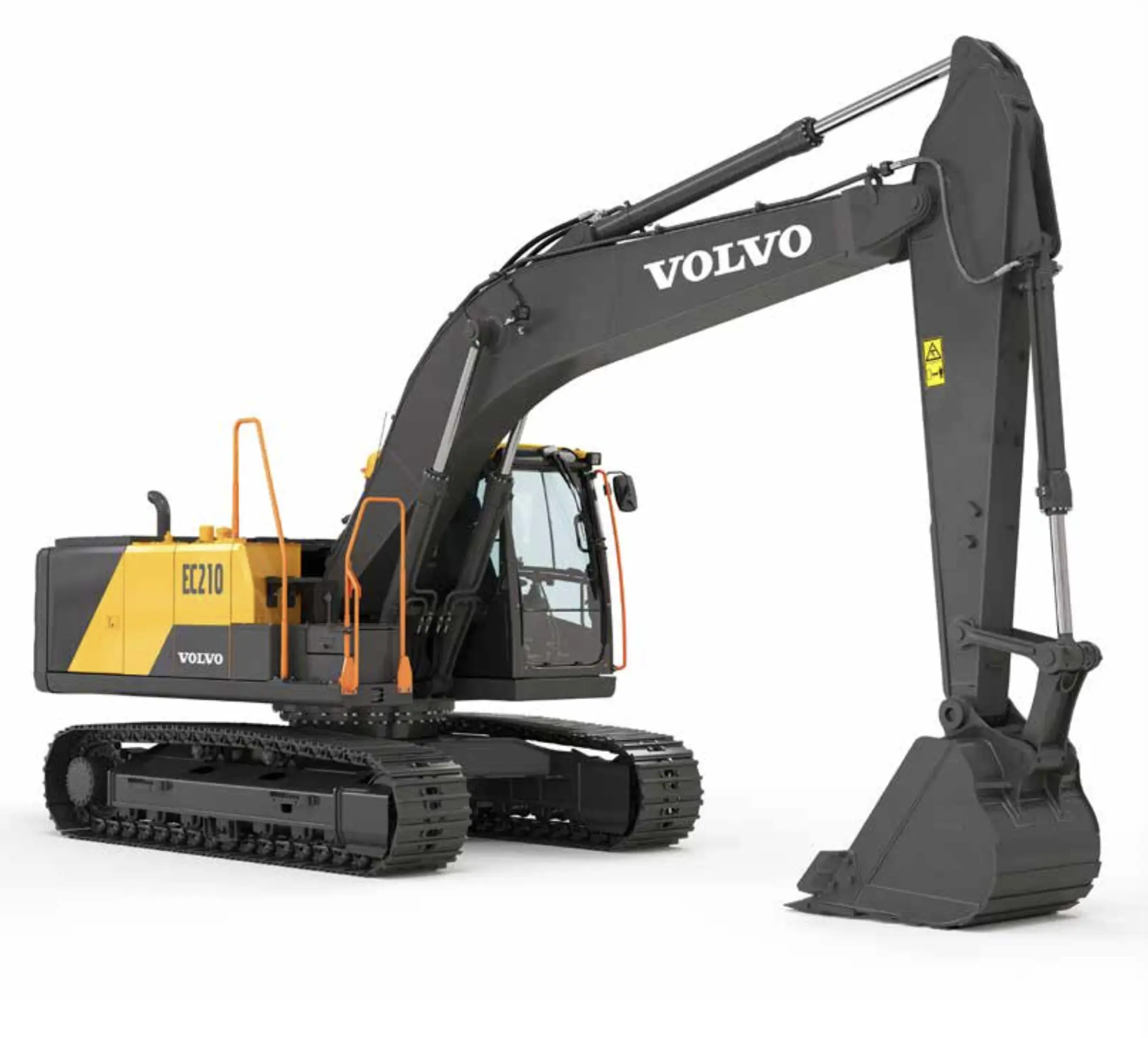

EC210
51f9f0a6-bcf9-44e3-bc90-db3c7df1de25
Description
Volvo EC210 is a lighter machine that will be your perfect partner in agricultural applications and supporting work. But it is also popular to use for building, road work or utilities. With improved fuel efficiency and longer service intervals, EC210 will lower the Total Cost of Ownership while still being able to punch above its weight in performance.
Features And Benefits
- Human identifying alarm separate from other obstacles
- Engine pump optimisation with engine speeds as low as 1,600 pm
- Personalised settings for greater comfort
- Dig Assist with On-Board Weighing
Images
Brochures
Video
Description
Standard Arm Length 9 ft 6 in (2900 mm)
Driveline
Engine Manufacturer Volvo
Engine Model D4J
Displacement 246 Inches³ (4 ltr)
Rated Speed 2000 rpm
Engine Output - Net 153 hp (114 kW)
Engine Output - Gross 154 hp (115 kW)
Number Of Track Rollers - Each Side 8
Track Shoe Width 24 inches (600 mm)
Dimensions
Bucket Capacity 0.63-1.88 yd³ (0.48-1.44 m³)
Bucket Weight 1373-2391 lbs (623-1085 kg)
Transport Length Mono Boom 31 ft 10 in (9715 mm)
Max Transport Height 10 ft 3 in (3120 mm)
Max Machine Width 10 ft 6 in (3190 mm)
Track Length On Ground 12 ft (3660 mm)
Zero Tailswing No
Variable Undercarriage Availability No
Ground Level Reach 32 ft 3 in (9835 mm)
Dig Height 31 ft (9445 mm)
Dump Height - Mono Boom 21 ft 6 in (6555 mm)
Dig Depth 22 ft 5 in (6825 mm)
Capacities
Fuel Tank 78 gallons (US) (295 ltr)
Performance
Ground Bearing Pressure 6.8 PSI (46.8 kPa)
Arm Tearout 24730 lbf (110 kN)
Bucket Breakout 33500 lbf (149 kN)
Number Of Main Pumps 2
Main Pump - Flow 106 gallons (US) / min (400 lt/min)
Weights
Operating Weight 48830 lbs (22150 kg)
