Construction Division
DD30B
558c1648-1a63-4912-8f7f-884419be1040
MAINTAIN YOUR PRODUCTIVITY
Description

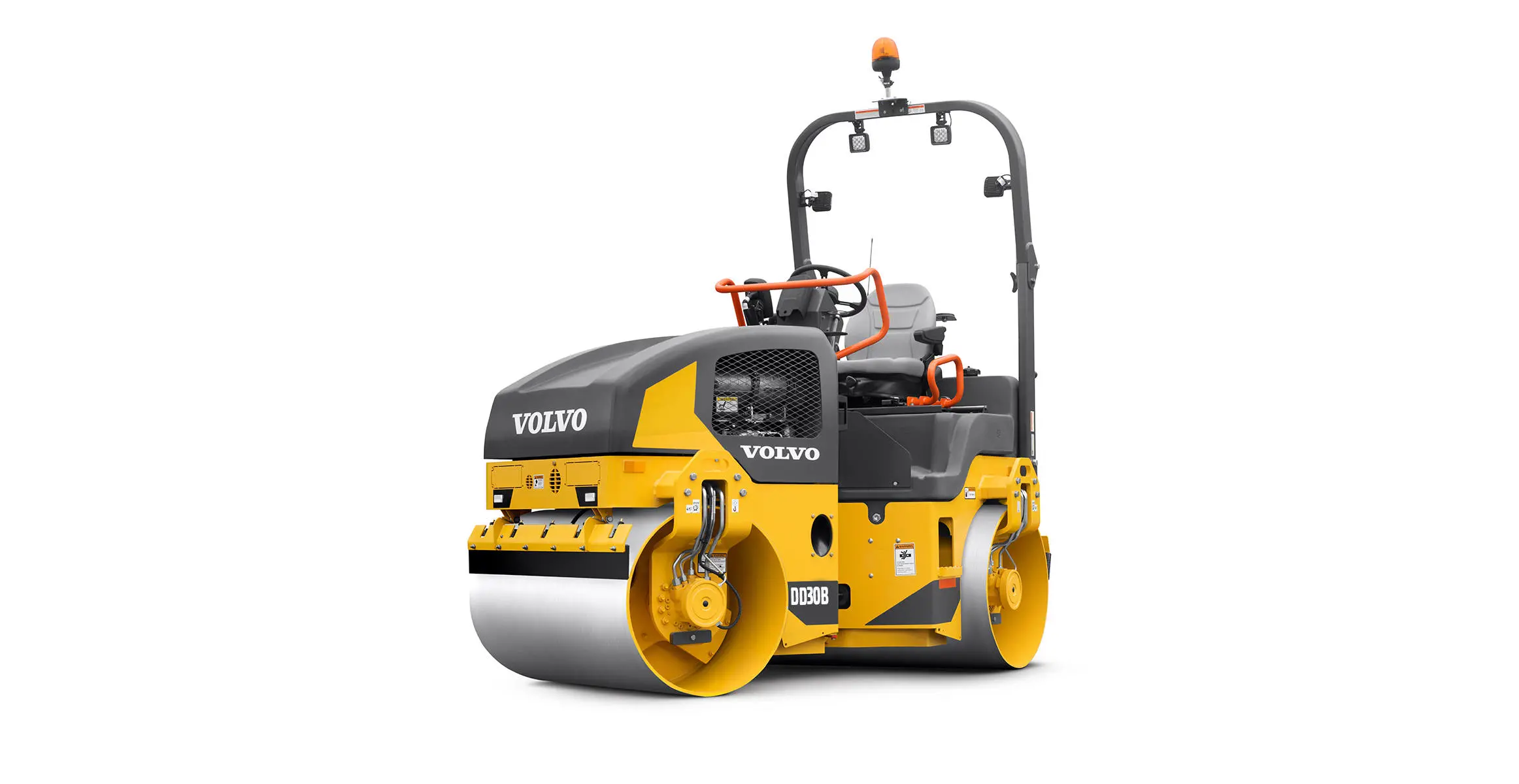

Introducing the DD30B asphalt roller from Volvo, a highly efficient machine designed to increase performance and reduce fuel consumption on small scale compaction projects. Featuring the new Volvo engine, this machine meets the Tier 4 Final emissions regulations. Experience high performance machine and enhanced productivity with Volvo.
Features And Benefits
Images
Brochures
Video
Driveline
Engine Manufacturer Kubota
Engine Model D 1803 - CR-TE4B
Rated Speed 2700 rpm
Engine Output 49.6 hp (37 kW)
Transmission Hydrostatic
Dimensions
Overall Length 101 inches (2566 mm)
Height - With ROPS 105.5 inches (2679 mm)
Height - Without ROPS 77.8 inches (1975 mm)
Overall Width 53.7 inches (1363 mm)
Wheelbase 67.9 inches (1725 mm)
Drum Width - Front 49.2 inches (1250 mm)
Drum Width - Rear 49.2 inches (1250 mm)
Rolling Width 49.2 inches (1250 mm)
Drum Diameter - Front 29 inches (736 mm)
Drum Diameter - Rear 29 inches (736 mm)
Drum Shell Thickness 0.55 inches (14 mm)
Turning Radius - Inside 102 inches (2592 mm)
Capacities
Fuel Tank 17.4 gallons (US) (66 ltr)
Tank Capacity For Drum 79 gallons (US) (299 ltr)
Performance
Drive To Drums Both
Travel Speed 1 6.4 mph (10.2 kph)
Max. Travel Speed 6.4 mph (10.2 kph)
Number Of Frequency/Amplitude Settings 1
Frequency - Stage 1 - Front 66.7 Hz
Frequency - Stage 1 - Rear 66.7 Hz
Amplitude Stage 1 - Front 0.015 inches (0.38 mm)
Amplitude Stage 1 - Rear 0.015 inches (0.38 mm)
Centrifugal Force 1 - Front 7500 lbf (33 kN)
Centrifugal Force 1 - Rear 7500 lbf (33 kN)
Max Amplitude 0.015 inches (0.38 mm)
Min Amplitude 0.015 inches (0.38 mm)
Max Frequency 66.7 Hz
Min Frequency 66.7 Hz
Max Centrifugal Force 7500 lbf (33 kN)
Min Centrifugal Force 7500 lbf (33 kN)
Weights
Operating Weight 6839 lbs (3102 kg)
Weight - Front 3110 lbs (1411 kg)
Weight - Rear 3729 lbs (1695 kg)
