Description
Display And Instruments Monitor & diagnostics
Air Conditioning Climate control
Longest Dipper 16 ft 5 in (5000 mm)
Reference Dipper 16 ft 5 in (5000 mm)
Driveline
Engine Manufacturer Volvo
Engine Model D 6J
Displacement 348 Inches³ (5.7 ltr)
Engine Output - Net 167 hp (126 kW)
Engine Output - Gross 173 hp (129 kW)
Number Of Motor Speeds Infinitely variable
Standard Number Of Tires 8
Slew Brake Type Wet multi disc
Slew Brake Actuation Spring applied-hydraulic release
Service Brake Type Multi Wet Disc
Service Brake Actuation Dual Circuit
Service Brake Location Axle
Parking Brake Type Wet multi disc
Dimensions
Max Transport Length - Straight Boom 31 ft 3 in (9527 mm)
Max. Transport Height - Straight Boom 10 ft 9 in (3274 mm)
Overall Width 8 ft 10 in (2700 mm)
Overall Width - Maximum 9 ft 8 in (2950 mm)
Tailswing Radius 8 ft 7 in (2624 mm)

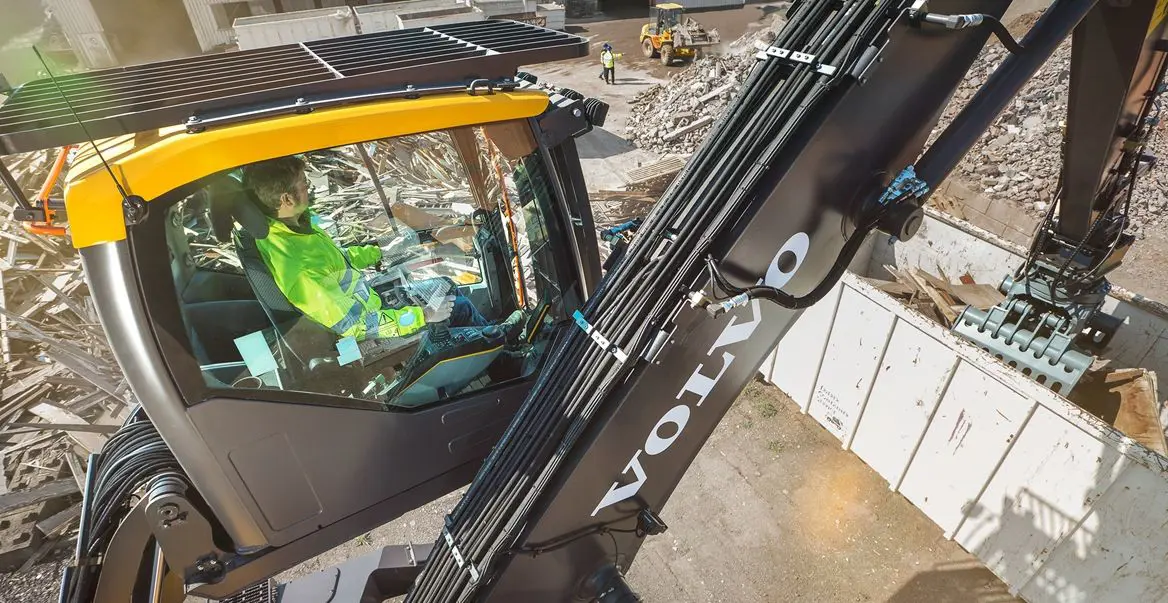

Cab Riser Hydraulic
Overall Width Stabilizers Down 14 ft (4257 mm)
Max Reach - Straight Boom - Standard 36 ft 8 in (11200 mm)
Max Height - Straight Boom - Attachment Pivot 41 ft 4 in (12600 mm)
Max Depth - Straight Boom - Attachment Pivot 10 ft 6 in (3200 mm)
Reach With Boom In Vertical Position 10 ft 10 in (3300 mm)
Straight Boom Height At Max Reach 10 ft (3000 mm)
Max Lift At Max Reach-Straight 5100 lbs (2300 kg)
Oscillation Front Axle
Capacities
Fuel Tank Capacity 77 gallons (US) (290 ltr)
Voltage 24 V
Performance
Main Pumps Maximum Flow 99 gallons (US) / min (375 lt/min)
Weights
Operating Weight 57320 lbs (26000 kg)

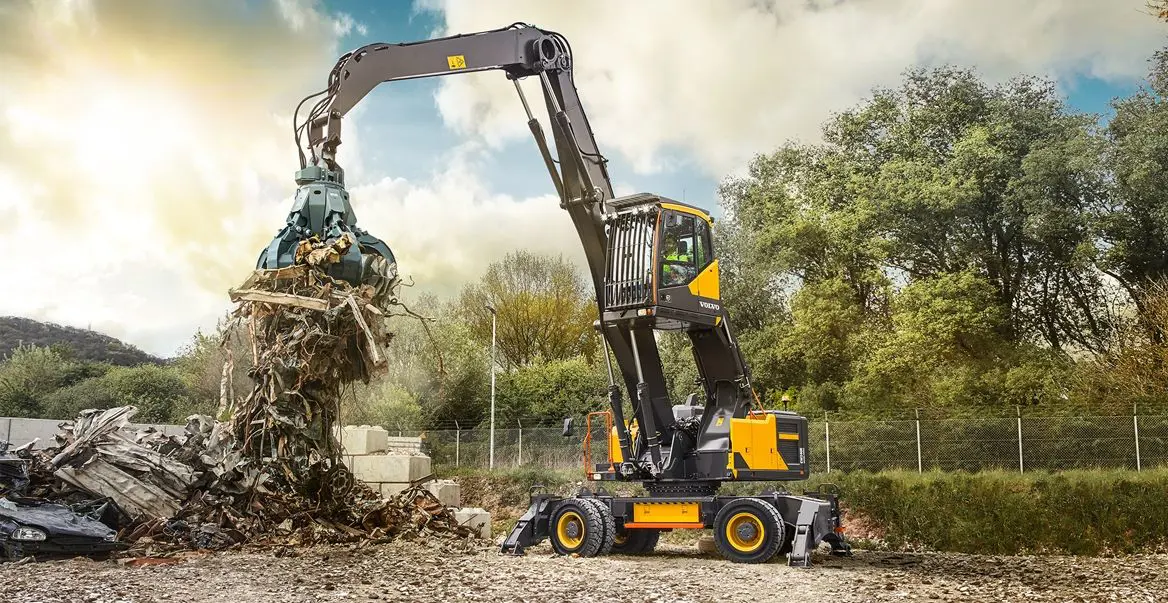

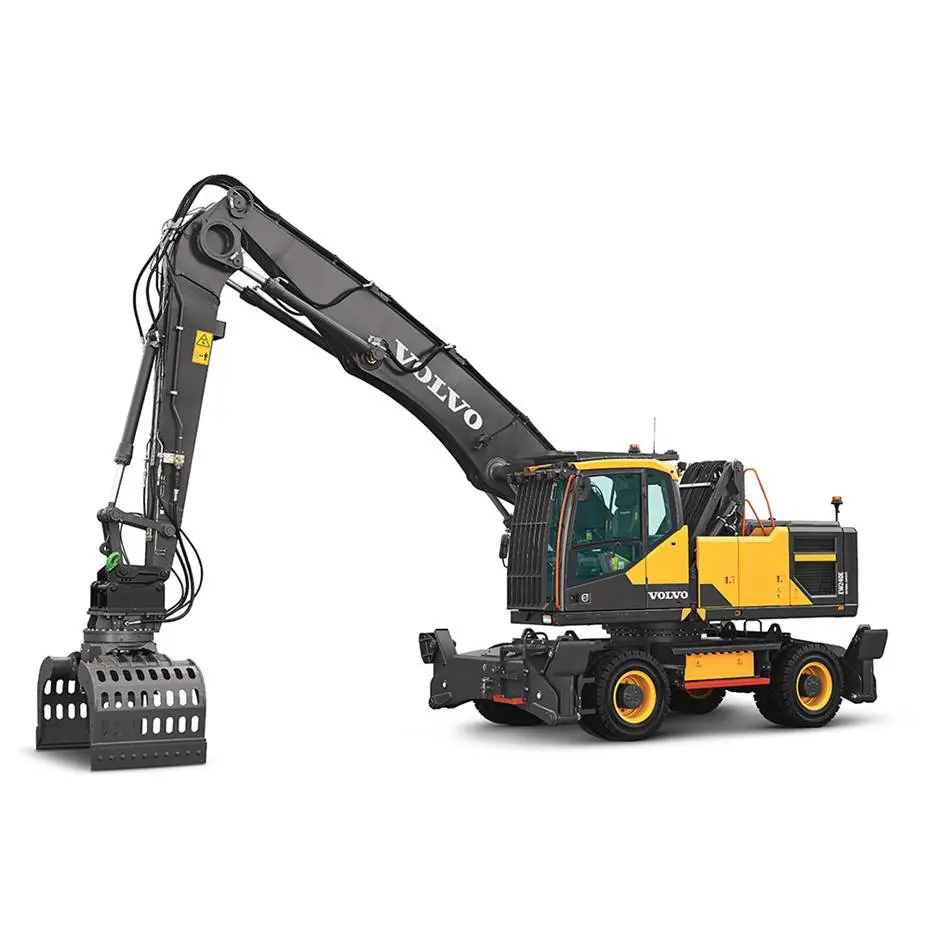

Standard Attachment Type Orange peel grapple
