A STRONG PERFORMANCE
Description
A STRONG PERFORMANCE

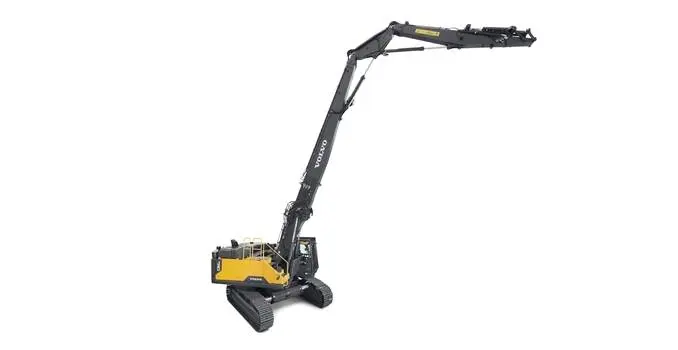

Volvo is dedicated to producing the ultimate in heavy-duty demolition machinery. Purpose-built to suit the needs of this demanding task, the EC380EHR high reach demolition equipment from Volvo is equipped with robust components and a powerful engine to ensure you can keep working shift after shift. Ensuring a strong performance in even the toughest of demolition projects, this machine is the ideal partner.
Features And Benefits

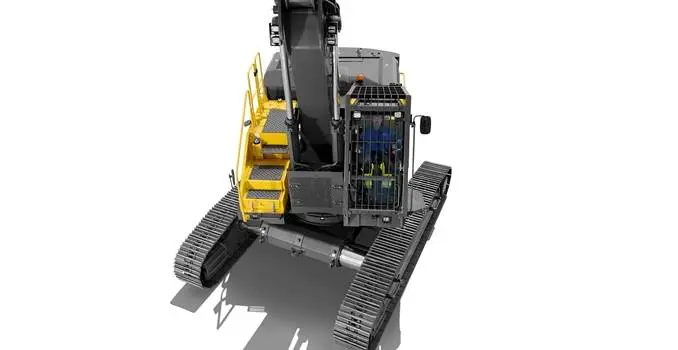

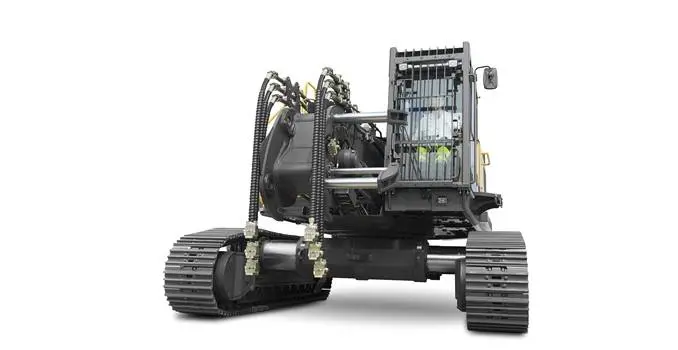

- FALLING OBJECT GUARD (FOG)
- Volvo high reach excavators are built to ensure maximum safety in all demolition applications. A sturdy frame and cab offer ultimate protection against the falling debris that is common in demolition projects, and a wide, clear view of the jobsite provides excellent visibility for enhanced safety.
- TOOL WEIGHT AND PIN HEIGHT
- The EC380EHR and EC480EHR are equipped with the latest innovations to increase your productivity. These machines are designed to make your working day worth more, and a robust structure, heavy tool weight and outstanding hydraulics ensure a strong performance in even the toughest of demolition projects.

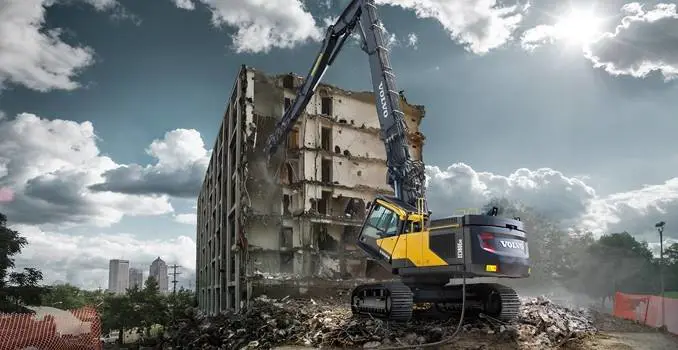

- PURPOSE BUILT FOR DEMOLITION
- Volvo CE is dedicated to producing the ultimate in heavy-duty demolition machinery. Purpose-built to suit the needs of this demanding task, these high reach excavators are equipped with robust components and a powerful engine to ensure you can keep working shift after shift.

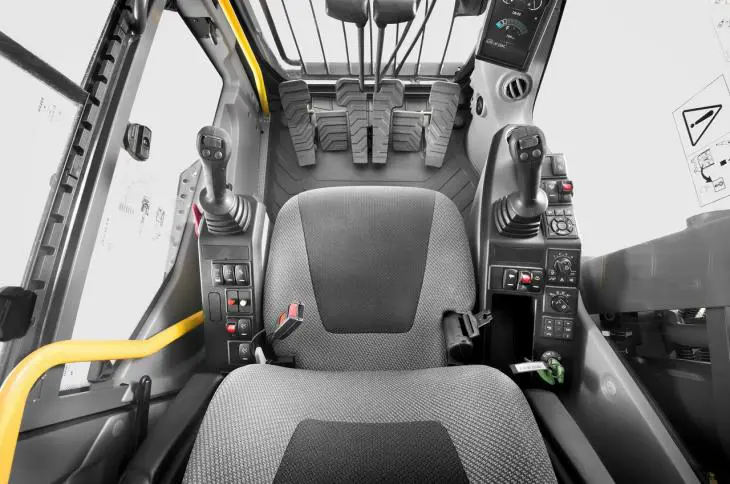

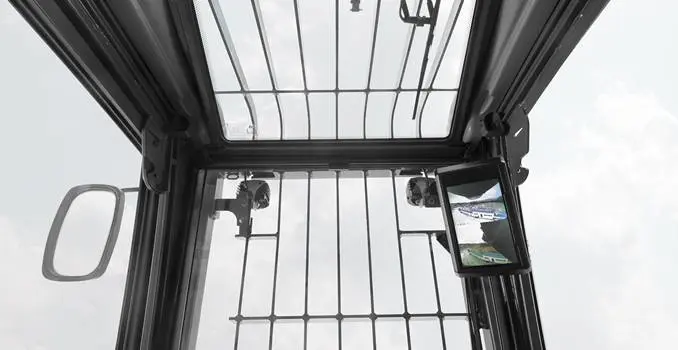

- HIGH VISIBILITY CAB
- These high reach excavators are equipped with a Volvo cab that has been designed to offer industryleading levels of comfort. A high visibility cab and carefully placed cameras ensure operators have a clear view of the jobsite at all times, for the ultimate safe, productive working environment.

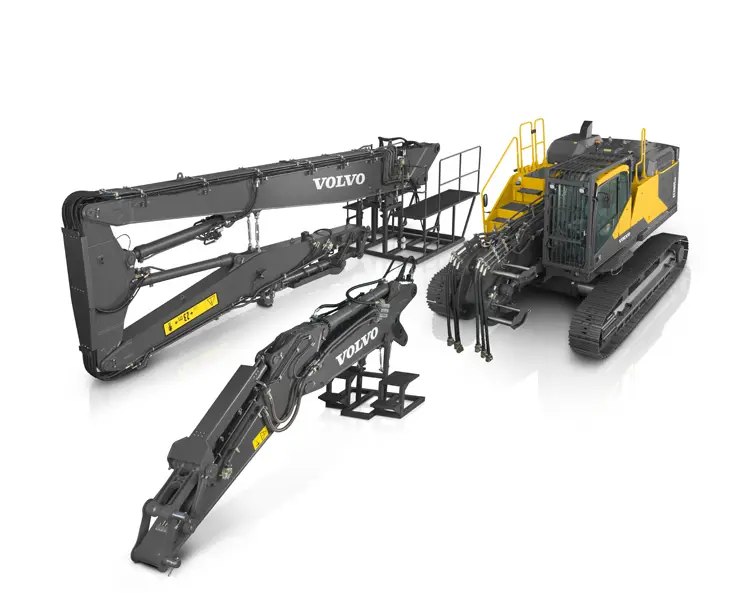

- VOLVO PATENTED MODULAR BOOM SYSTEM
- These Volvo high reach excavators are a versatile addition to your demolition fleet. Compatible with a wide range of Volvo attachments and built to work both a variety of boom types, these machines are the ideal partner for all demolition projects.
Images
Brochures
Video
Description
Display And Instruments Color monitor & diagnostics
Telematics Available Yes
Cab Tilt 30 °
Driveline
Engine Manufacturer Volvo
Engine Model D13J
Displacement 781 Inches³ (12.8 ltr)
Engine Output - Net 307 hp (229 kW)
Transmission Motor Type 2 Variable displacement motors
Variable Undercarriage Availability Yes
Track Shoe Width 2 ft 4 in (700 mm)
Slew Brake Type Wet multi disc
Dimensions
Transport Length - Straight Boom 37 ft 11 in (11555 mm)
Transport Length - Triple Articulated 36 ft 11 in (11250 mm)
Transport Length - Demolition Boom 54 ft 2 in (16515 mm)
Transport Height - Over Straight Boom 13 ft (3960 mm)
Transport Height - Over Triple Articulated Boom 11 ft 10 in (3605 mm)
Transport Height - Over Demolition Boom 10 ft 2 in (3110 mm)
Overall Width 9 ft 10 in (2990 mm)
Max Machine Width 13 ft 9 in (4180 mm)
Tailswing Radius 11 ft 10 in (3600 mm)
Max Reach - Straight Boom - Standard 38 ft 10 in (11825 mm)
Max Reach 38 ft 10 in (11825 mm)
Max Height 44 ft 3 in (13495 mm)
Max Reach 37 ft (11285 mm)
Max Height 37 ft 6 in (11420 mm)
Max Reach Demolition Boom Standard 47 ft 6 in (14490 mm)
Max Reach 47 ft 6 in (14490 mm)
Max Height 75 ft 8 in (23060 mm)
Safe Working Angle 20 °
Reference Boom For Lift 22 ft 4 in (6800 mm)
Reference Dipper For Lift 10 ft 6 in (3200 mm)
Max Lift At Max Reach 17510 lbs (7940 kg)
Capacities
Fuel Tank 164 gallons (US) (620 ltr)
Alternator Output 80 A
Performance
Slew Speed 10.2 rpm
Number Of Main Pumps 2
Main Pumps - Maximum Flow 158 gallons (US) / min (600 lt/min)
Weights
Operating Weight 118520 lbs (53750 kg)
Max Tool Weight For Demolition Boom 6614 lbs (3000 kg)
Standard Attachment Type Crusher
