Construction Division

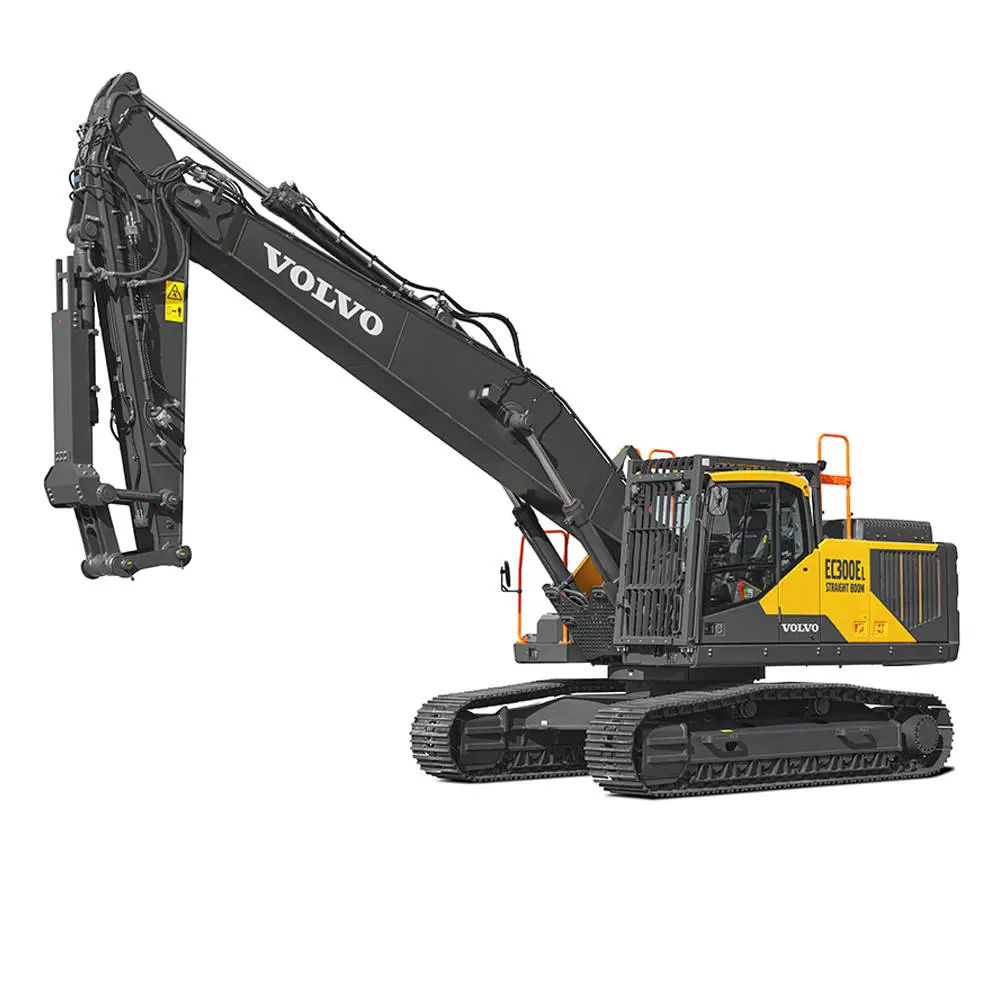

EC300E Straight Boom
5c8aba45-7530-41cc-bee1-970ef2130b54
Description
Specialist tasks require specialist equipment, which
is why Volvo offer a range of tailor-made machinery, specially adapted to meet the unique requirements of the segment you are working in. Two such machines are the EC300E Straight Boom and EC380E Straight Boom – configured to deliver the highest levels of performance and safety in demolition applications, all while retaining the quality and comfort you would expect from their standard counterparts
Features And Benefits
- Standard LED lights on the cab, platform, counterweight and boom
- Reversible functionality enables self cleaning, reducing maintenance requirements and machine downtime
- Frame-mounted Falling Object Guards
- The unique Volvo dust suppression system with on-board pump and nozzles reduce the need for separate dust suppression system.
Images
Brochures
Video
Description
Telematics Available Yes
Driveline
Engine Manufacturer Volvo
Engine Model D8M
Displacement 470 Inches³ (7.7 ltr)
Engine Output - Net 252 hp (188 kW)
Variable Undercarriage Availability No
Track Shoe Width 2 ft (600 mm)
Dimensions
Transport Length - Straight Boom 37 ft 2 in (11340 mm)
Transport Height - Over Straight Boom 9 ft 8 in (2954 mm)
Overall Width 10 ft 1 in (3086 mm)
Max Machine Width 10 ft 6 in (3190 mm)
Tailswing Radius 10 ft 3 in (3120 mm)
Max Reach 38 ft 5 in (11716 mm)
Max Height 43 ft (13117 mm)
Capacities
Fuel Tank 124.7 gallons (US) (472 ltr)
Performance
Slew Speed 11 rpm
Number Of Main Pumps 2
Main Pumps - Maximum Flow 145.8 gallons (US) / min (552 lt/min)
Weights
Operating Weight 75519 lbs (34327 kg)
Standard Attachment Type Bucket
