Construction Division
L50H
5d7b5105-ebeb-445b-b4fe-47ebc8ea171f
Description

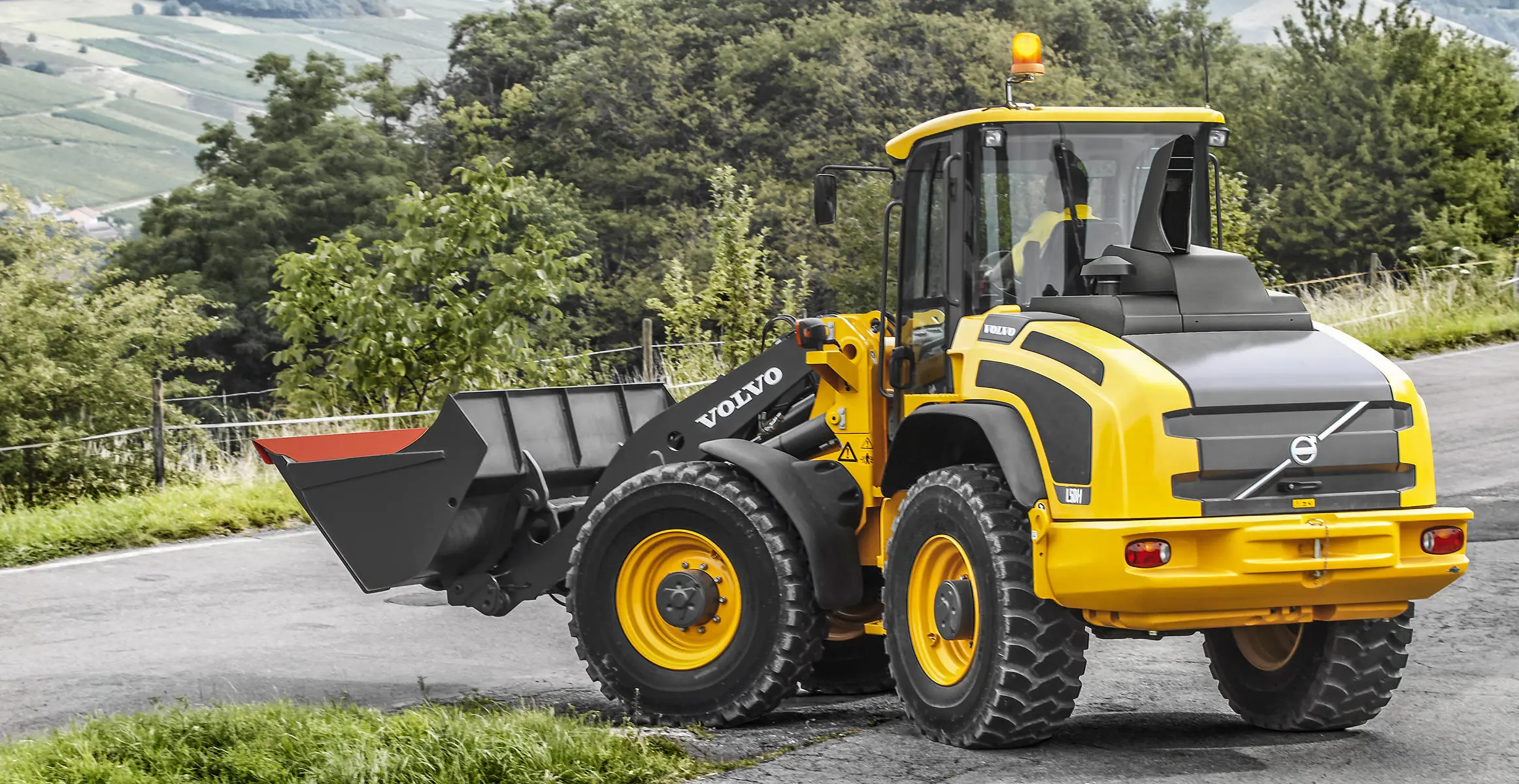

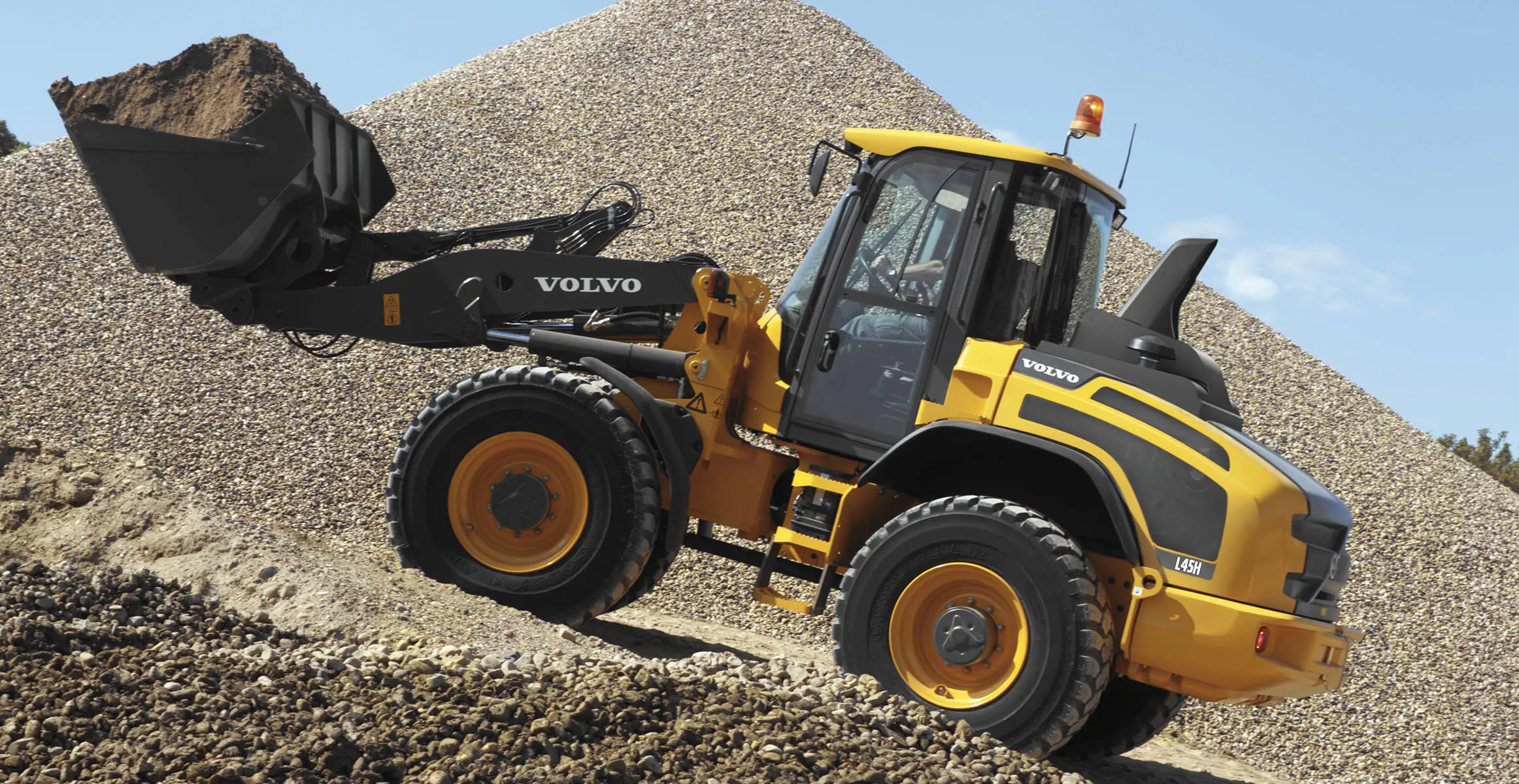

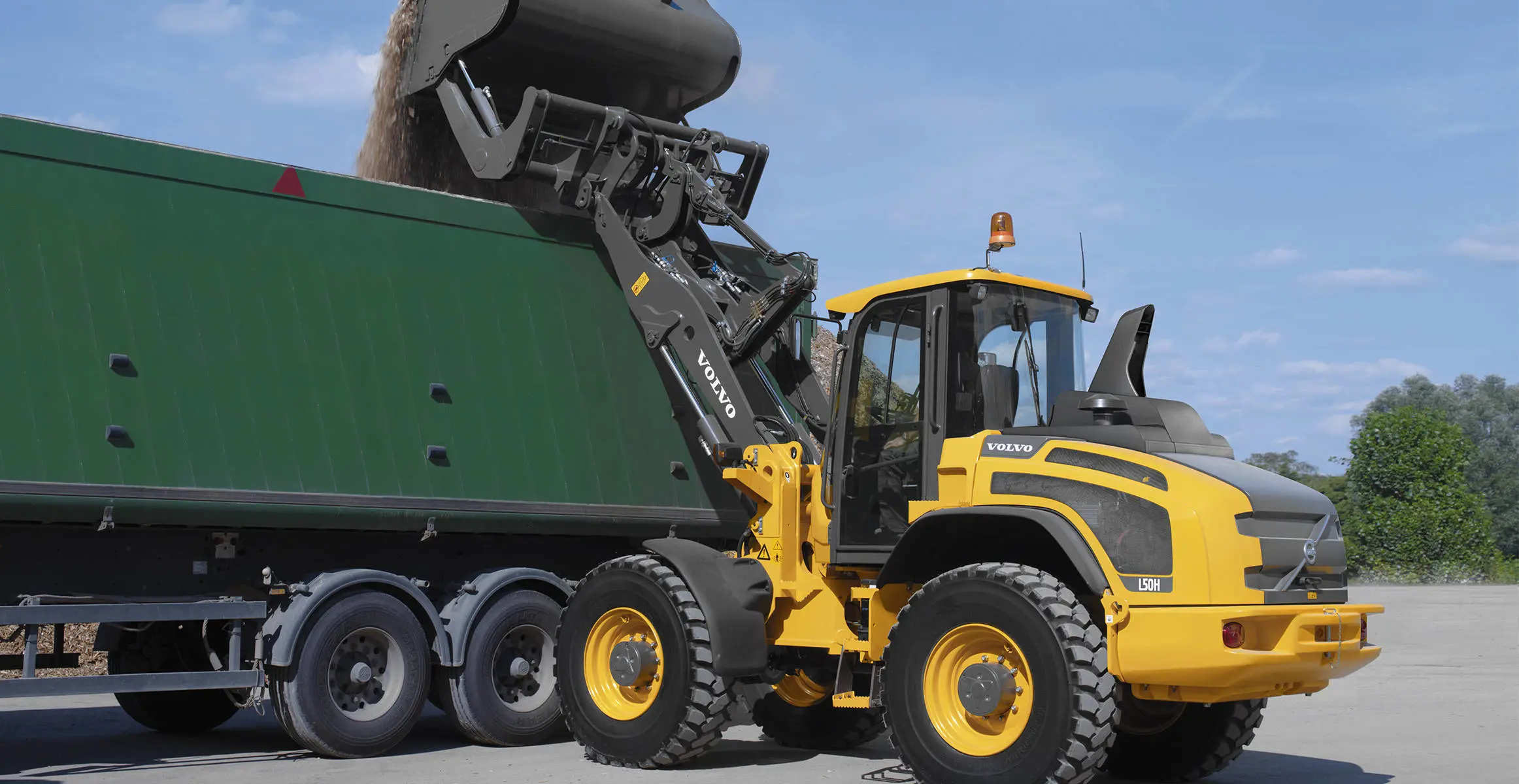

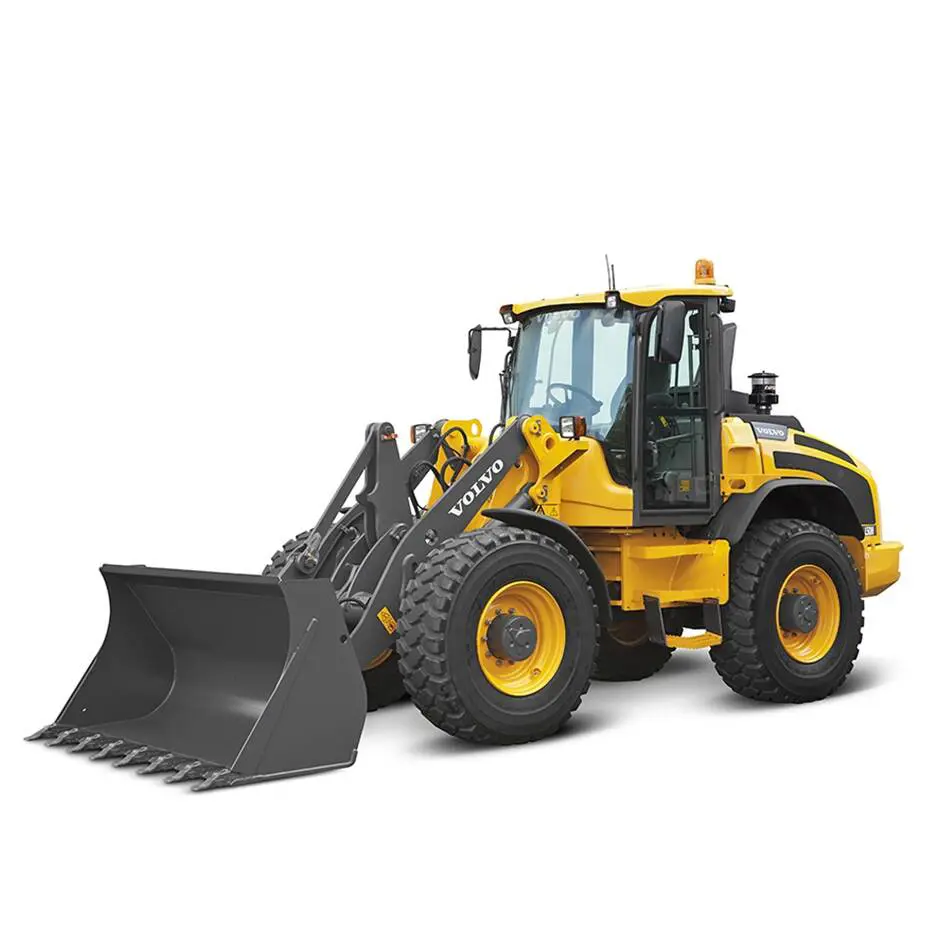

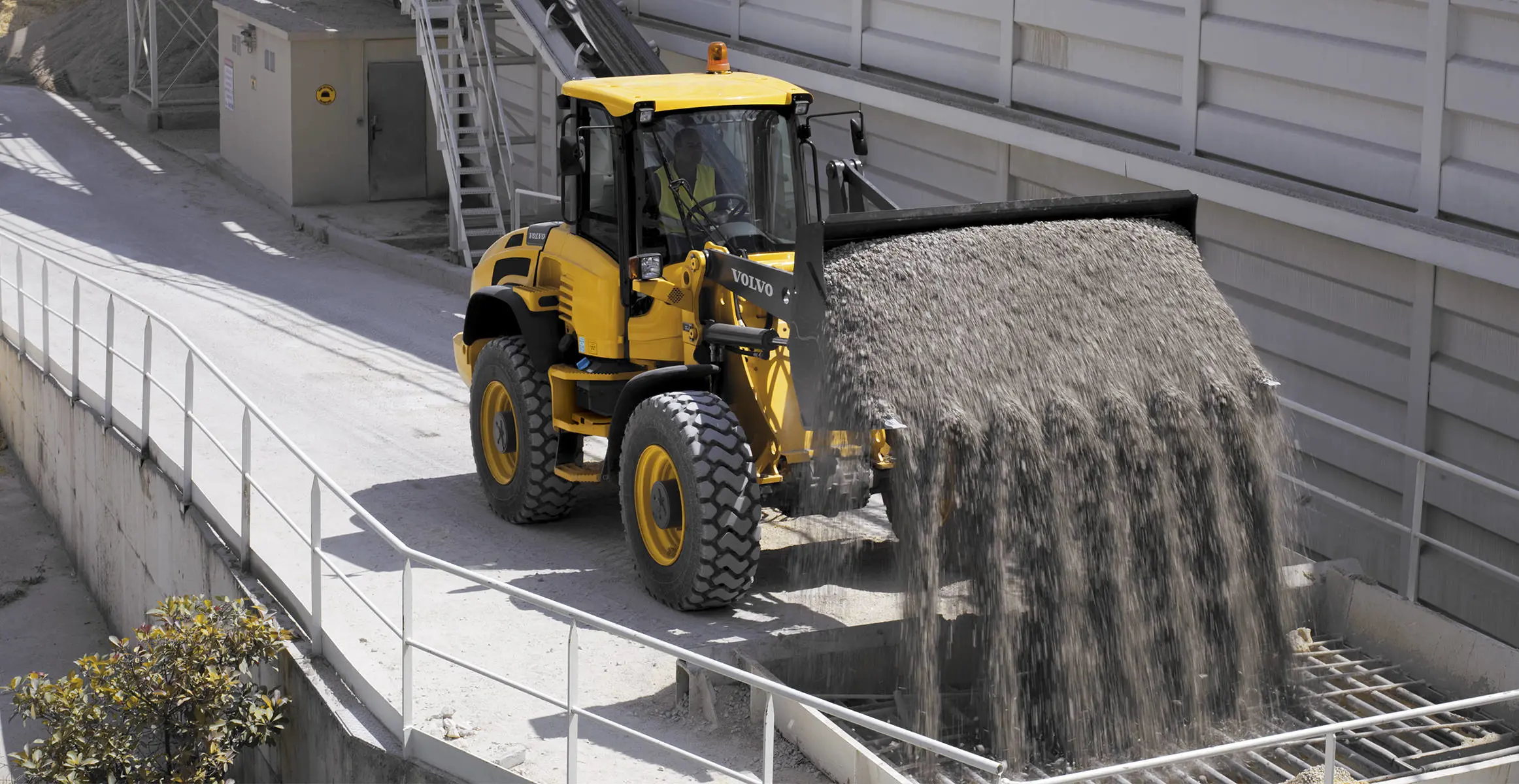

Whether working on rough terrain or smooth concrete, Volvo's L50H loaders give you top performance. Quality is built into every inch of the machines, from the differential lock that transfers 100% power to all wheels, to the hydrostatic transmission which offers smooth speed increase.
Features And Benefits

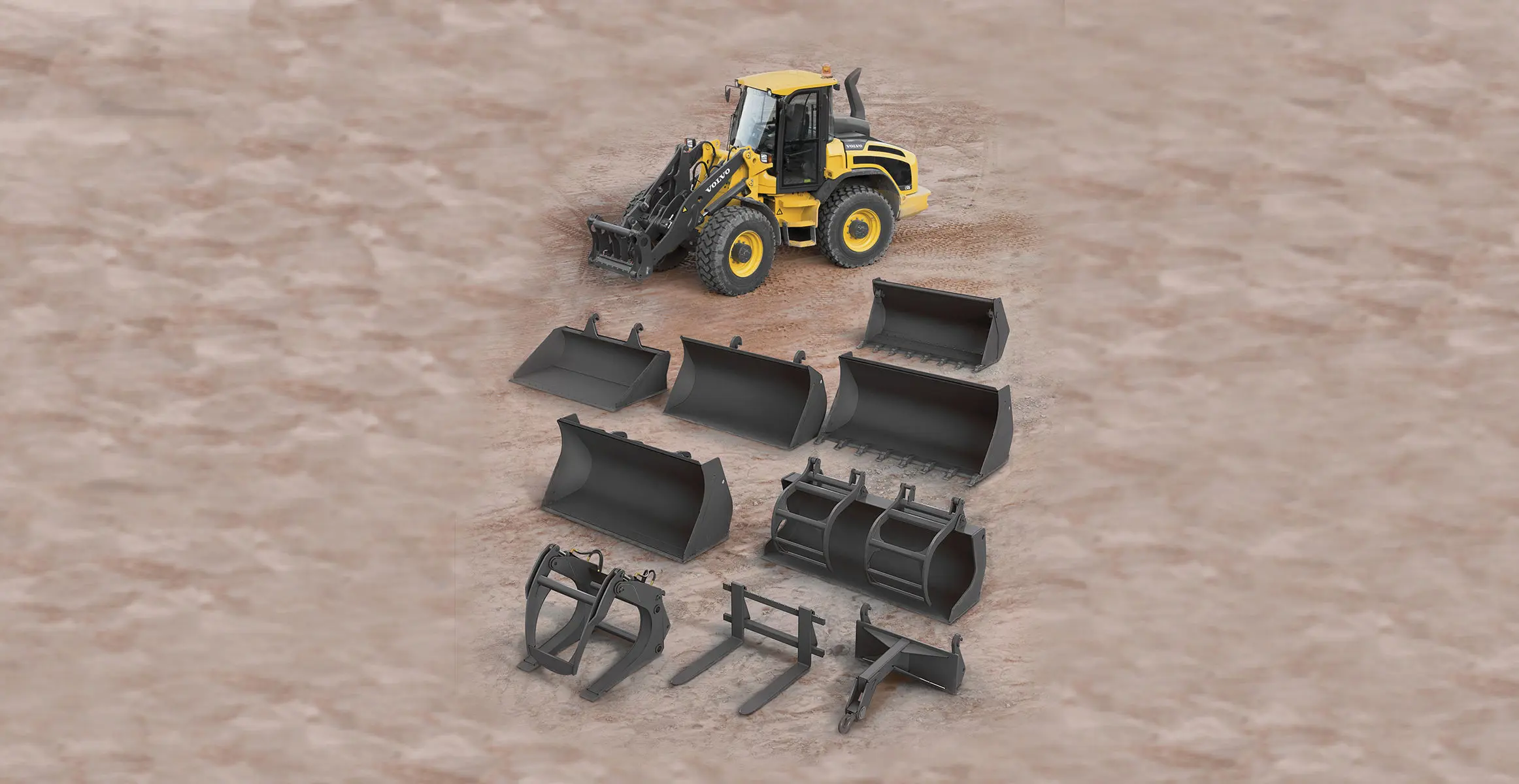

- Wide range of attachments
- Comfortable cab
- Excellent hydraulics
- Easy-to-use controls

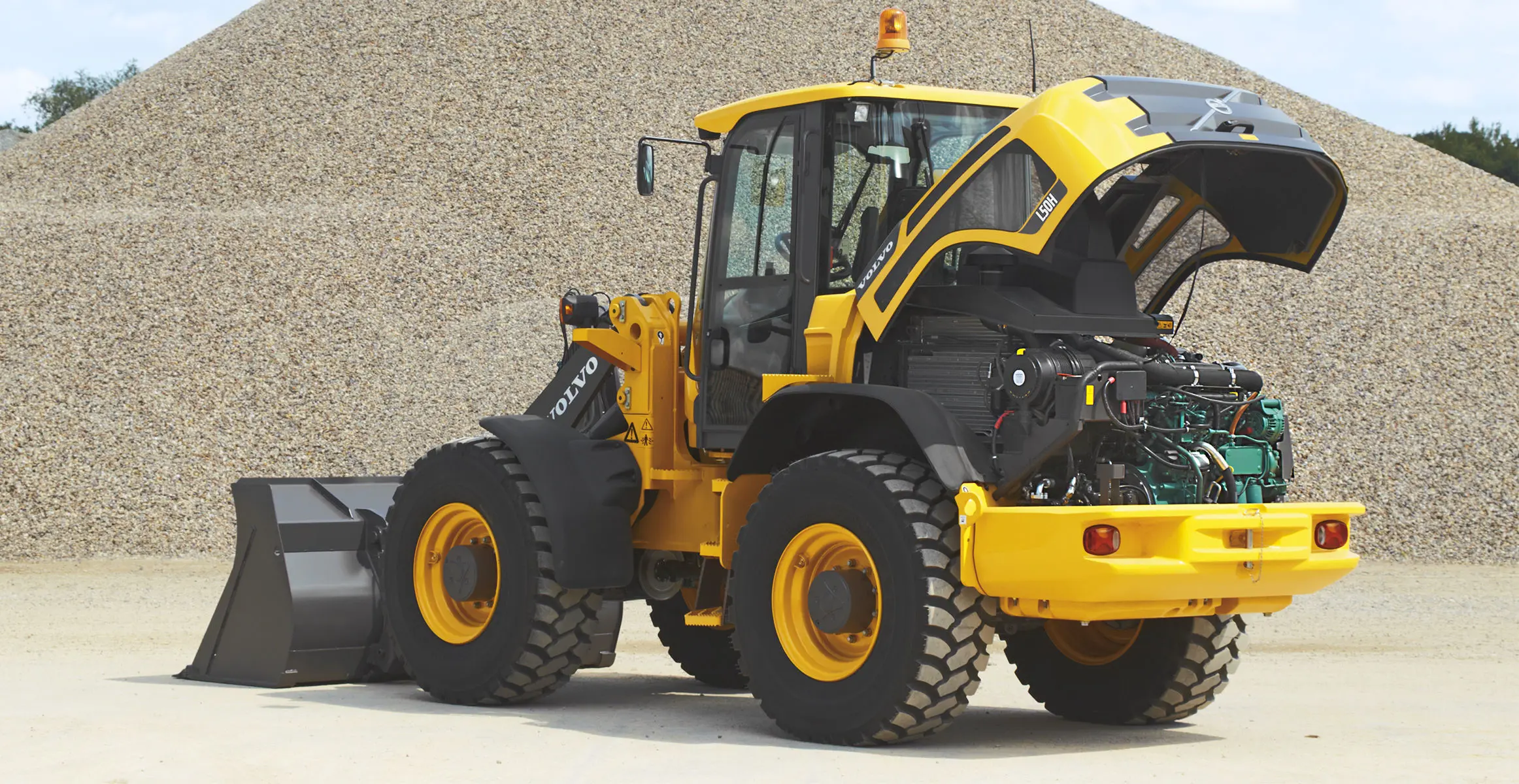

- Outstanding serviceability
- Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
Images
Video
Driveline
Engine Manufacturer Volvo
Engine Model D4J
Emissions Technology Cooled Exhaust Gas Recirculation
After Treatment System Diesel Particulate Filter
Aspiration Turbo
Displacement 244 Inches³ (4 ltr)
Rated Speed 2200 rpm
Engine Output - Gross 117 hp (87 kW)
Engine Output - Net 114 hp (85 kW)
Torque 350 lbf / ft (475 Nm)
Transmission Type Hydrostatic
Traction Control Yes
Tire Size - Standard 17.5 R25
Hydrostatic System Braking Yes
Service Brake - Type Wet Disc
Dimensions
Wheelbase 8 ft 7 in (2650 mm)
Length With Bucket On Ground 21 ft (6495 mm)
Height - Over Cab 9 ft 8 in (2980 mm)
Ground Clearance 17.1 inches (435 mm)
Width Over Tires - Std 7 ft 2.2 in (2190 mm)
Bucket Type GP w/Edge
Bucket Width 7 ft 4.6 in (2250 mm)
Full Lift Dump Height 9 ft 4 in (2845 mm)
Full Lift Reach 3 ft 3 in (1000 mm)
Loader - Geometry Torque Parallel
Dump Angle - At Dump 45 °
Dump Angle - Maximum 45 °
Height - Pivot Pin 12 ft 4.8 in (3780 mm)
Height - Maximum 19 ft 4.9 in (5915 mm)
Turn Radius Over Bucket - Std. 17 ft 0.4 in (5192.5 mm)
Capacities
Fuel Tank 42.3 gallons (US) (160 ltr)
Heaped Capactiy 2.1 yd³ (1.6 m³)
Bucket Capacity - Smallest 1.8 yd³ (1.4 m³)
Largest Bucket Capacity 3 yd³ (2.3 m³)
Performance
Straight Tipping Load 14352 lbs (6510 kg)
Full Turn Tipping Load 12676 lbs (5750 kg)
Breakout - Bucket 15511 lbf (7035.67 kgf)
Bucket Breakout 15511 lbf (69 kN)
Ride Control System Optional
Load Sensing Yes
Weights
Bucket Capacity 1.8-3 yd³ (1.4-2.3 m³)
Operating Weight 20944 lbs (9500 kg)
