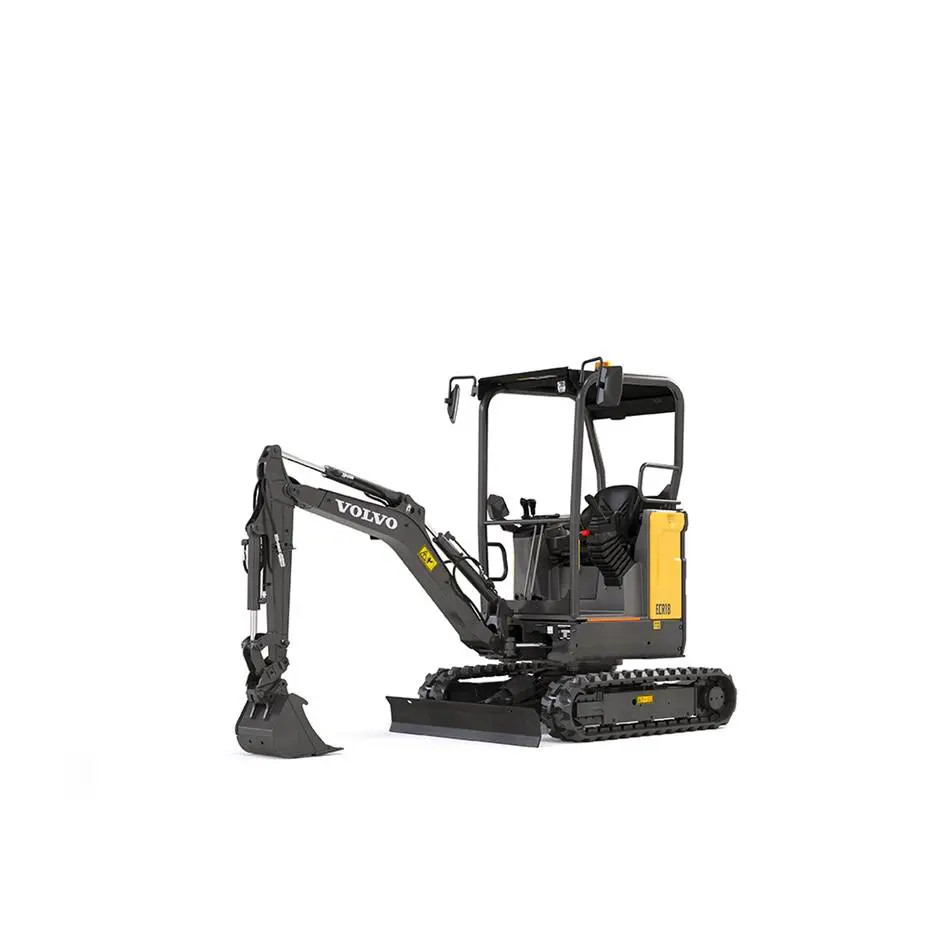

ECR18 Electric
65a12364-98f1-40e5-8af9-7394a298b36d
STILL AS COMPACT, FAR MORE DISCREET
Description
Introducing the ECR18 Electric, a new addition to the range of Volvo electric machines, helping you work in a more sustainable, efficient and peaceful way. Combining all the proven success of both the conventional ECR18 and ECR25 Electric, the 1.8t class excavator delivers the ultimate in robustness and ease of operation.
Features And Benefits
- Experience the same performance levels but with zero exhaust emissions, so you can meet emissions targets while opening up all-new applications.
- Reduce noise pollution and vibrations, which aren’t just disturbing but have an often- neglected effect on health.
- Get more work done at night, reducing daytime congestion.
- Realise energy efficiency way beyond its predecessor.
Images
Brochures
Video
Description
Standard Arm Length 3 ft 1 in (950 mm)
Driveline
Number Of Track Rollers - Each Side 3
Track Shoe Width 9 inches (230 mm)
Battery Capacity 16 kWh
Dimensions
Bucket Capacity 0.47 yd³ (0.36 m³)
Bucket Weight 72.8 lbs (33 kg)
Transport Length Mono Boom 11 ft 3 in (3431 mm)
Max Transport Height 7 ft 6 in (2298 mm)
Max Machine Width 4 ft 5 in (1352 mm)
Zero Tailswing No
Heaped Bucket Capacity 0.47 yd³ (0.36 m³)
Variable Undercarriage Availability Yes
Ground Level Reach 12 ft 10 in (3921 mm)
Dig Height 11 ft 4 in (3442 mm)
Dump Height - Mono Boom 8 ft (2444 mm)
Dig Depth 7 ft 4 in (2234 mm)
Performance
Ground Bearing Pressure 3.9 PSI (27 kPa)
Arm Tearout 1787 lbf (7.95 kN)
Bucket Breakout 2900 lbf (12.9 kN)
Main Pump - Flow 8.98 gallons (US) / min (34 lt/min)
Weights
Operating Weight 3957 lbs (1795 kg)
