Description

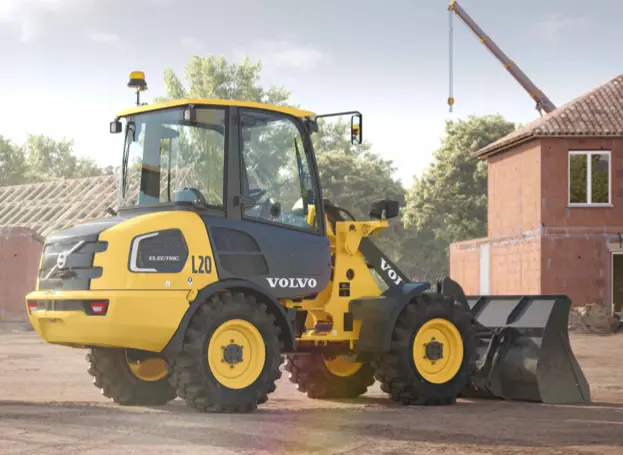

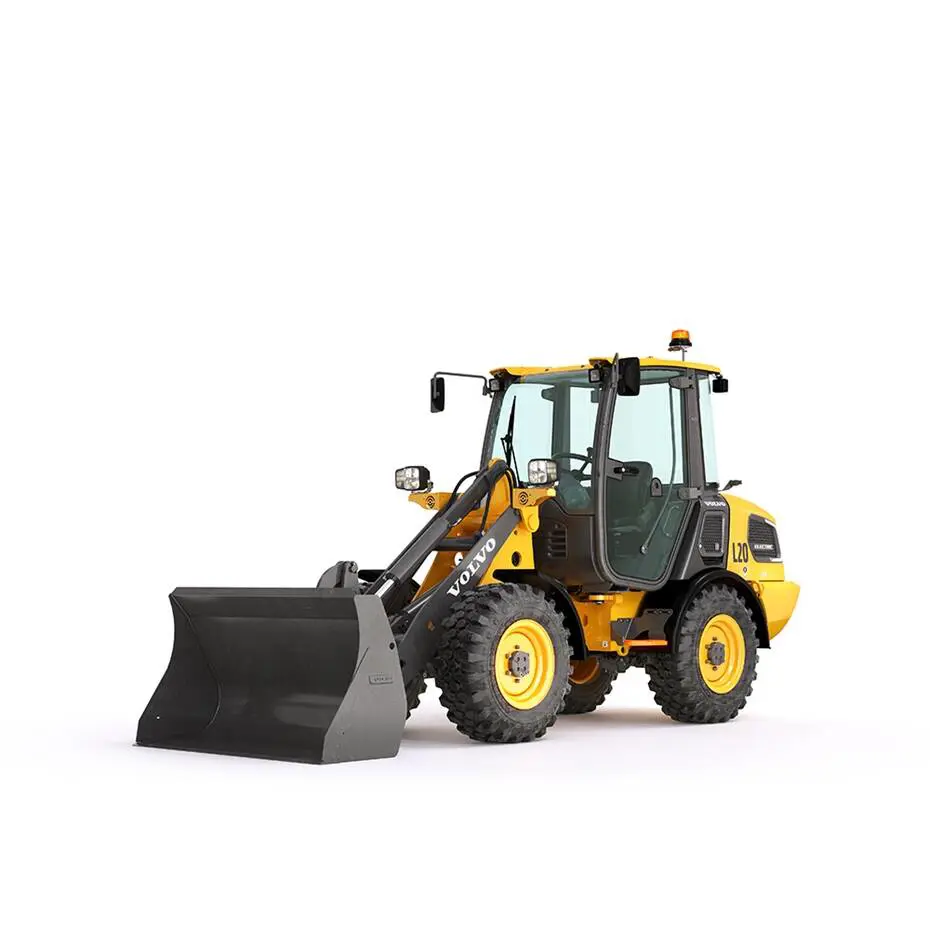

Not only benefiting communities as a whole, the L20 Electric and L25 Electric also create new opportunities for your business. The low noise level means the machines can operate anytime, anywhere – even at night in populated areas. Zero emissions mean that there is no need for costly fume extraction systems when working indoors.
Features And Benefits
- Experience the same performance levels but with zero exhaust emissions, so you can meet emissions targets while opening up all-new applications.
- Reduce noise pollution and vibrations, which aren’t just disturbing but have an often- neglected effect on health.
- Get more work done at night, reducing daytime congestion.
- Realize energy efficiency way beyond its predecessor.
Images
Brochures
Video
Driveline
Engine Manufacturer Volvo
Engine Model Electric Drive
Transmission Type Electronic - Direct
Tire Size - Standard 405 / 70 R18
Service Brake - Type Wet Disc
Battery Capacity 40 kWh
Rated Output 30 hp (22 kW)
Dimensions
Wheelbase 6 ft 9 in (2050 mm)
Length With Bucket On Ground 17 ft 11 in (5195 mm)
Height - Over Cab 8 ft 2 in (2499 mm)
Ground Clearance 12 inches (310 mm)
Width Over Tires - Std 5 ft 8 in (1725 mm)
Bucket Type GP w/Edge
Bucket Width 5 ft 11 in (1800 mm)
Full Lift Dump Height 8 ft (2430 mm)
Full Lift Reach 2 ft 6 in (750 mm)
Loader - Geometry Parallel
Dump Angle - At Dump 45 °
Dump Angle - Maximum 43 °
Height - Pivot Pin 10 ft 4 in (3160 mm)
Height - Maximum 13 ft 9 in (4193 mm)
Turn Radius Over Bucket - Std. 14 ft (4270 mm)
Capacities
Heaped Capactiy 1.05 yd³ (0.8 m³)
Bucket Capacity - Smallest 1.05 yd³ (0.8 m³)
Largest Bucket Capacity 1.24 yd³ (0.95 m³)
Performance
Straight Tipping Load 7496 lbs (3400 kg)
Full Turn Tipping Load 6724 lbs (3050 kg)
Breakout - Bucket 6969 lbf (3161 kgf)
Bucket Breakout 6969 lbf (31 kN)
Weights
Bucket Capacity 1.05-1.24 yd³ (0.8-0.95 m³)
Operating Weight 10251 lbs (4650 kg)
