Construction Division
ECR235E
69510fd0-693b-4f34-89d8-d632f8062494
Description
BIG ON PRODUCTIVITY, SMALL IN SIZE
The optimized compact design of the ECR235E Excavator offers a short swing radius for operating in confined spaces without compromising performance. The machine's Tier 4 Final/Stage IV engine and hydraulics system results in smoother operation and increased productivity.
Features And Benefits
- SHORT SWING RADIUS
- The short swing radius design allows safe and concise operation in confined spaces.
- COMFORT CAB
- The newly designed ROPS-certified cab has improved all-round visibility, more space and ergonomic controls.
- ENHANCED HYDRAULICS
- The hydraulics system, fully electronic control system and advanced ECO mode, result in better fuel efficiency and productivity.
- BUCKETS
- Volvo's buckets are the perfectly matched tool for digging and re-handling in all working conditions.
- CUSTOMER SUPPORT AGREEMENTS
- Customer Support Agreements offer preventive maintenance, total repairs and a number of uptime services

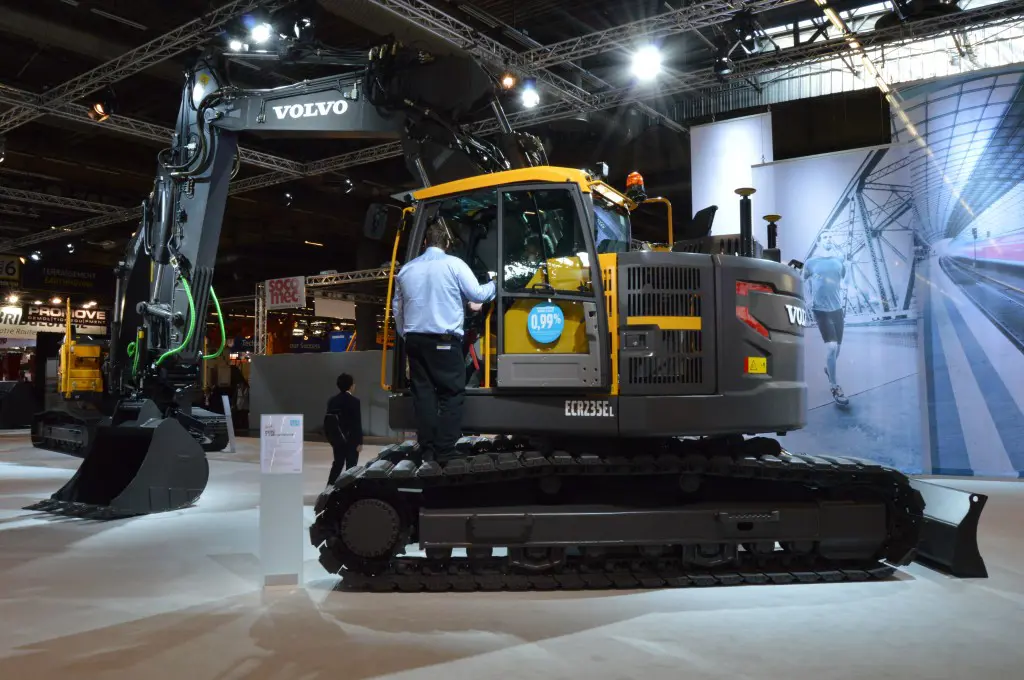

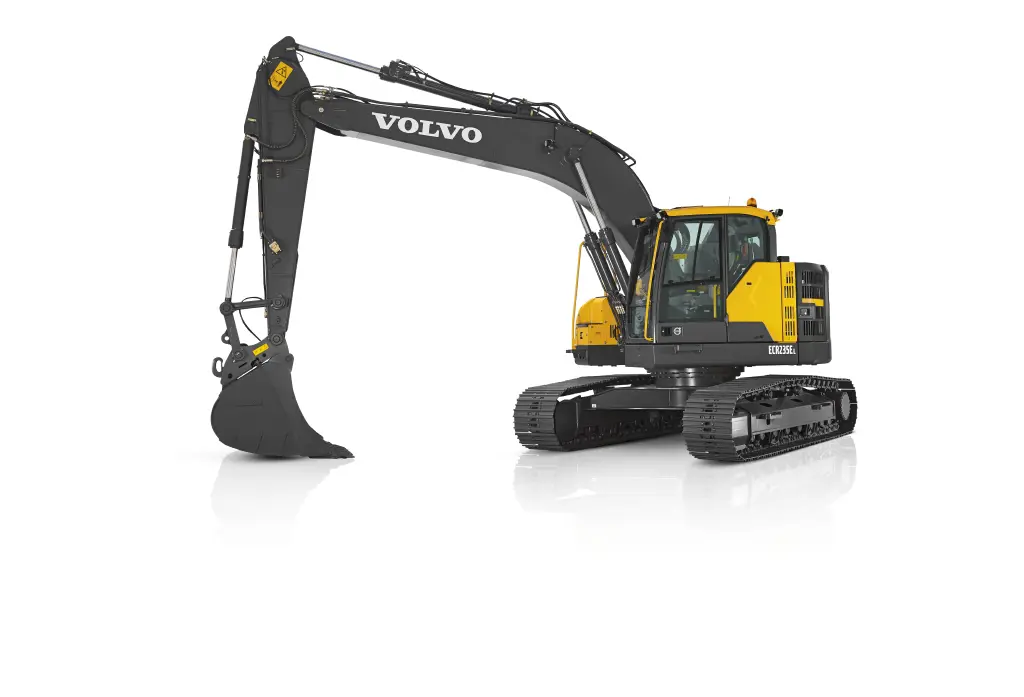

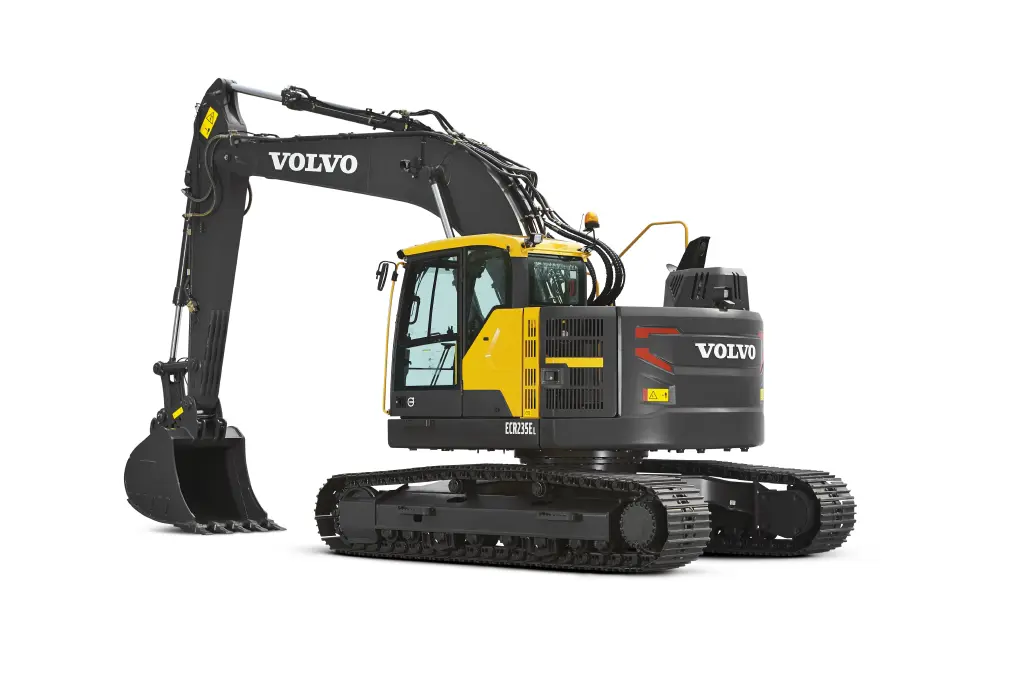

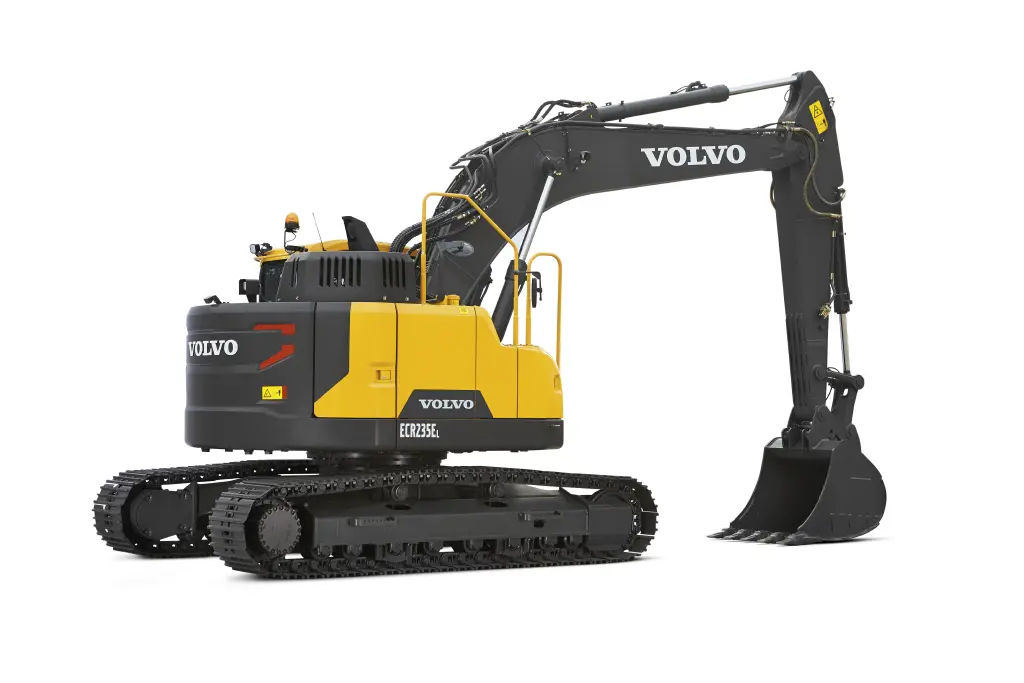

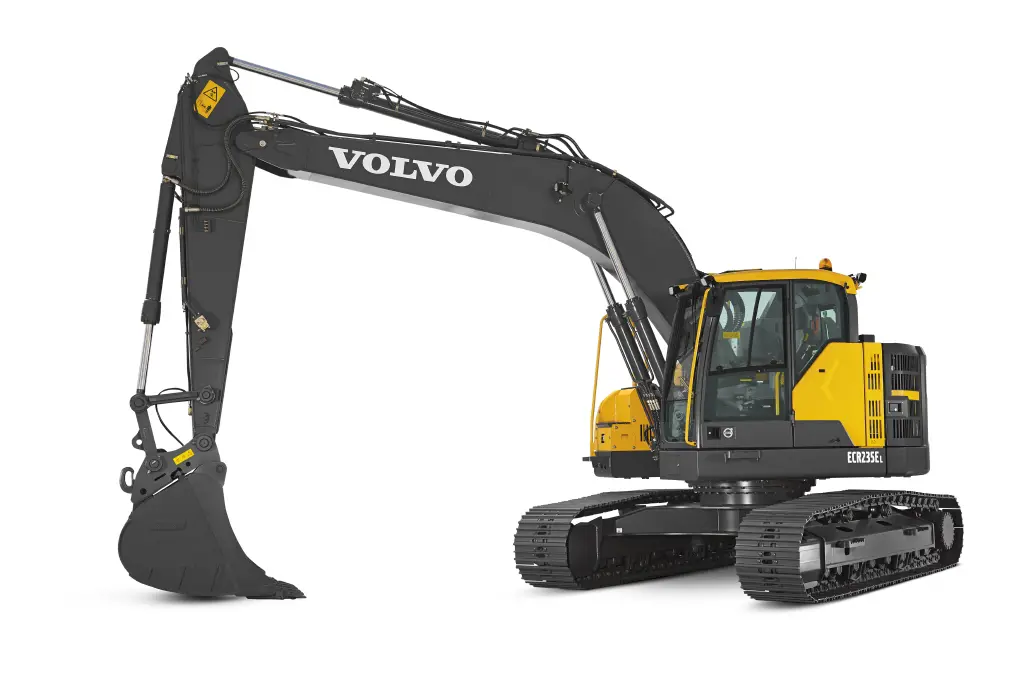

Images
Description
Standard Arm Length 9 ft 6 in (2900 mm)
Telematics
Telematics Available Yes
Driveline
Engine Manufacturer Volvo
Engine Model D6J
Displacement 348 Inches³ (5.7 ltr)
Rated Speed 1800 rpm
Engine Output - Net 172 hp (128 kW)
Engine Output - Gross 173 hp (129 kW)
Number Of Track Rollers - Each Side 8
Track Shoe Width 28 inches (700 mm)
Dimensions
Bucket Capacity 0.63-1.66 yd³ (0.48-1.27 m³)
Bucket Weight 1468-2289 lbs (666-1038 kg)
Transport Length Mono Boom 29 ft 7 in (9010 mm)
Max Transport Height 11 ft (3365 mm)
Max Machine Width 10 ft 2 in (3090 mm)
Track Length On Ground 12 ft (3660 mm)
Zero Tailswing No
Variable Undercarriage Availability No
Ground Level Reach 31 ft 11 in (9735 mm)
Dig Height 35 ft 10 in (10915 mm)
Dump Height - Mono Boom 25 ft 10 in (7870 mm)
Dig Depth 22 ft 2 in (6755 mm)
Capacities
Fuel Tank 76 gallons (US) (286 ltr)
Performance
Ground Bearing Pressure 6.4 PSI (44.1 kPa)
Arm Tearout 24700 lbf (109.9 kN)
Bucket Breakout 33590 lbf (149.4 kN)
Number Of Main Pumps 2
Main Pump - Flow 110 gallons (US) / min (414 lt/min)
Weights
Operating Weight 55210 lbs (25040 kg)
