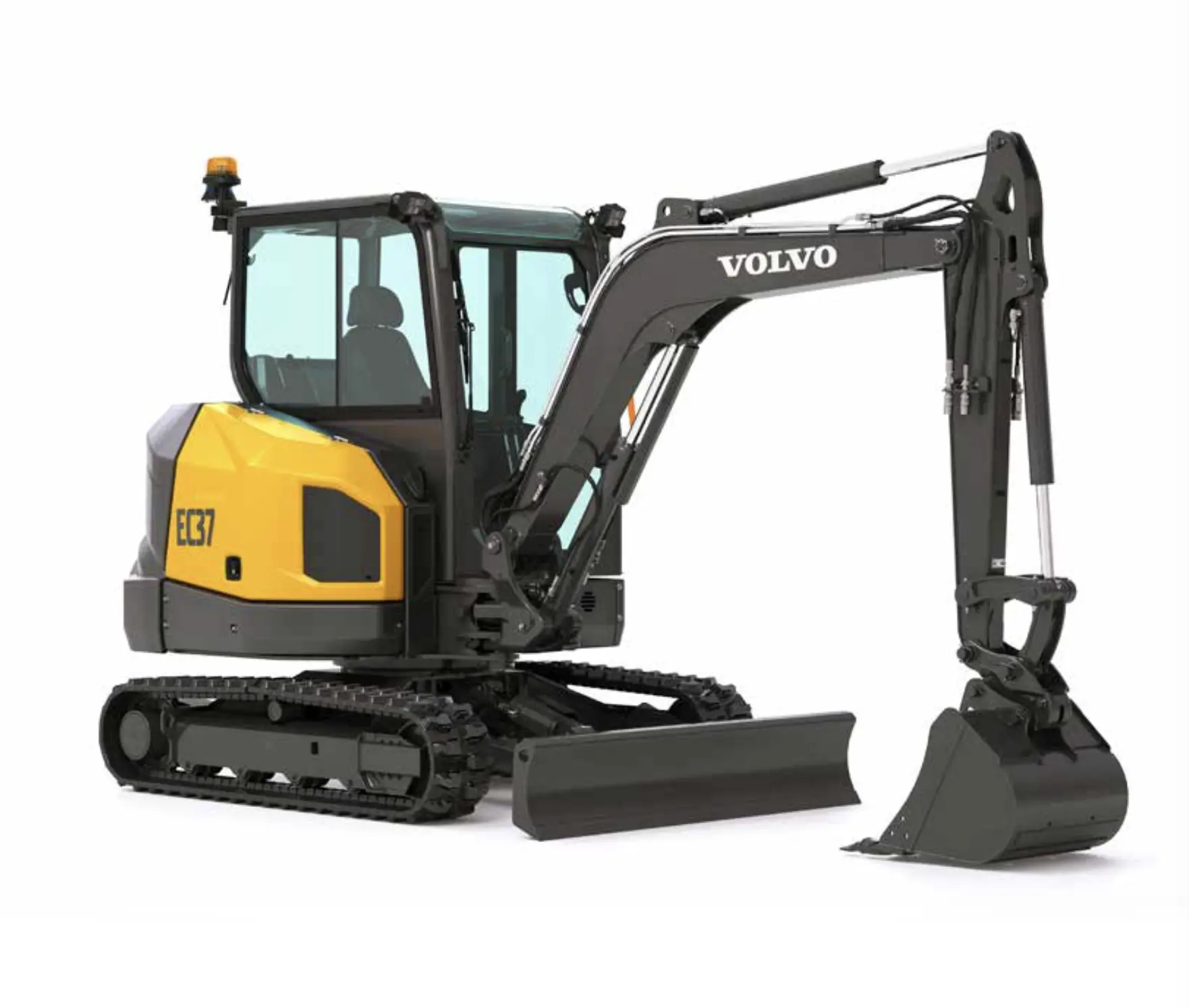

EC37
69603407-3639-4dc1-885e-1384251b482f
Description
Boasting smooth operation and easy servicing, as well as spaciousness and comfort thanks to a new modern cab, this compact excavator is set to deliver high breakout force and lifting capabilities across a multitude of tasks. With an intuitive navigation system and proportional fingertip controls, these compact machines are the perfect choice even for newly trained operators who can quickly get to work with a variety of attachments.
Features And Benefits
- ROPS cab
- Improved HVAC- reduces dust and heat
- Reduced noise levels
- Less time on maintenance
- 50-hour greasing interval
- Easily accessed service points
Images
Brochures
Video
Description
Standard Arm Length 4 ft 7 in (1400 mm)
Driveline
Engine Manufacturer Volvo
Engine Model D1.7A
Displacement 101 Inches³ (1.647 ltr)
Rated Speed 2200 rpm
Engine Output - Gross 24.8 hp (18.5 kW)
Number Of Track Rollers - Each Side 4
Track Shoe Width 12 inches (300 mm)
Dimensions
Bucket Capacity 0.07-0.2 yd³ (0.052-0.15 m³)
Transport Length Mono Boom 15 ft 1 in (4596 mm)
Max Transport Height 8 ft 1 in (2458 mm)
Max Machine Width 5 ft 10 in (1780 mm)
Track Length On Ground 5 ft 5 in (1654 mm)
Zero Tailswing No
Variable Undercarriage Availability No
Ground Level Reach 16 ft 3 in (4961 mm)
Dig Height 15 ft 4 in (4684 mm)
Dump Height - Mono Boom 11 ft 5 in (3468 mm)
Dig Depth 10 ft 11 in (3338 mm)
Capacities
Fuel Tank 18.5 gallons (US) (70 ltr)
Performance
Ground Bearing Pressure 4.97 PSI (34.3 kPa)
Arm Tearout 5078 lbf (22.59 kN)
Bucket Breakout 7987 lbf (35.53 kN)
Number Of Main Pumps 1
Main Pump - Flow 29.1 gallons (US) / min (110 lt/min)
Weights
Operating Weight 8345 lbs (3785 kg)
