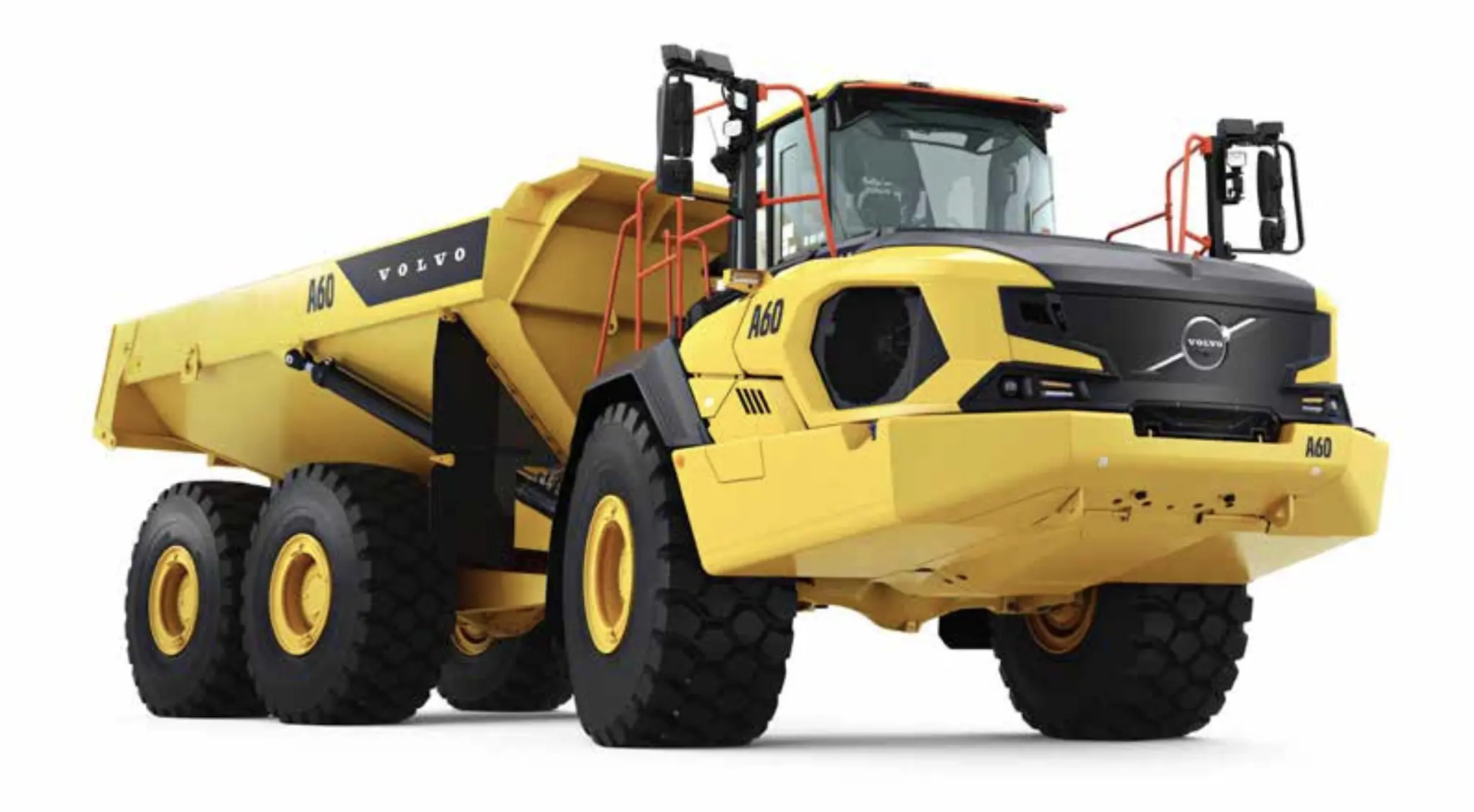

A60J
Description
The largest 6x6 articulated hauler in the industry, the Volvo A60 is a machine designed to deliver maximum productivity at the lowest cost per tonne. Featuring a new Volvo transmission, the A60 delivers up to 15% more fuel efficiency and 5% more productivity compared to the previous generation. Combine this with a host of features which deliver unrivalled off-road performance, exceptional operator comfort and maximum uptime, and the Volvo A60 Articulated Hauler is a machine ready to deliver outstanding results in quarry, mining and heavy infrastructure projects.
Features And Benefits
- Active hydraulic front suspension, enabling high hauling speeds in the toughest conditions
- All-terrain bogie and hydro-mechanical steering
- Reinforced axles
- Haul Assist with On-Board Weighing
Images
Brochures
Video
Driveline
Engine Manufacturer Volvo
Engine Model D16J
Number Of Cylinders 6
After Treatment System 3 Selective Catalytic Reduction
Displacement 982 Inches³ (16.1 ltr)
Rated Speed 1910 rpm
Engine Output - Gross 630 hp (470 kW)
Torque 2183 lbf / ft (2960 Nm)
Drive Configuration 6 x 6
Final Drive Planetary
Transmission Type Automatic
Traction Control Yes
Front Differential Locking
Second Axle Differential Locking
Third Axle Differential Locking
Tire Size - Standard 33.25 R29
Tire Type - Standard Radial
Front Suspension - Type Fully Hydraulic
Rear Suspension - Type Bogie Beam
Rear Suspension 3 Point
Service Brake - Type Wet Multi Disc
Dimensions
Length - Overall 40 ft 1 in (12224 mm)
Height - Over Cab 12 ft 8 in (3860 mm)
Height - Max 12 ft 8 in (3860 mm)
Ground Clearance 27 inches (686 mm)
Width Over Tires 12 ft 9 in (3874 mm)
Width - Transport 12 ft 9 in (3874 mm)
Width - Operating 14 ft 3 in (4348 mm)
Wheelbase 20 ft 1 in (6120 mm)
Length - Body 20 ft 8 in (6309 mm)
Loading Height 11 ft 6 in (3507 mm)
Full Dump Height 26 ft 1 in (7957 mm)
Hoist - Type Twin, 1-Stage
Dump Angle 70 °
Articulation Angle 45 ± °
Turning Radius - Outside 32 ft 10 in (10014 mm)
Turning Radius - Inside 15 ft 7 in (4761 mm)
Capacities
Fuel Tank 198.1 gallons (US) (750 ltr)
Heaped Capacity 43.9 yd³ (33.6 m³)
Performance
Cycle Time - Raise 13 s
Unladen Axle Load - Front 50270 lbs (22800 kg)
Unladen Axle Load - Rear 46300 lbs (21000 kg)
Laden Axle Load - Front 63710 lbs (28900 kg)
Laden Axle Load - Rear 153990 lbs (69850 kg)
Front - Unladen 18.1 PSI (125 kPa)
Rear - Unladen 8.4 PSI (58 kPa)
Front - Laden 23.2 PSI (160 kPa)
Rear - Laden 28 PSI (193 kPa)
Speed - Forward Maximum 35.4 mph (57 kph)
Speed - Reverse Maximum 10.7 mph (17 kph)
Weights
Net Weight 96570 lbs (43800 kg)
Payload 121250 lbs (55000 kg)
Gross Weight 217700 lbs (98750 kg)
