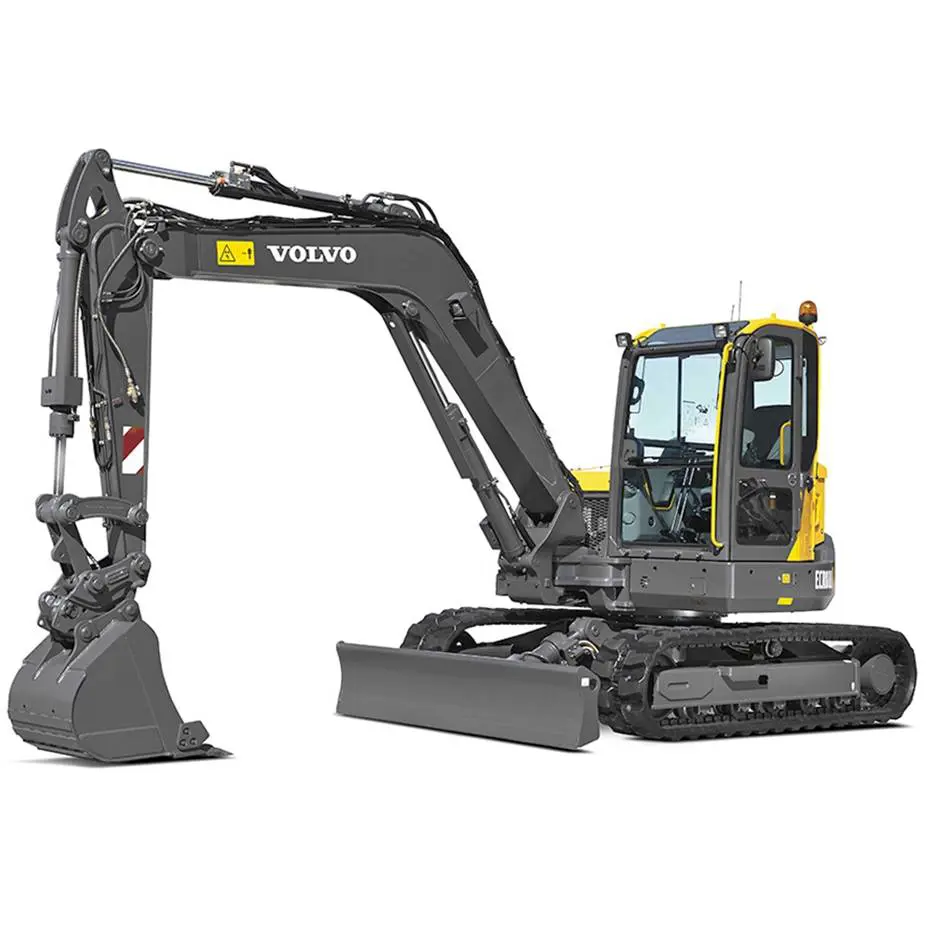

ECR88D

7017f77d-e95a-4a95-a029-ab3ae5a783d4
VISIBLY BETTER
Description

The ECR88D compact short swing radius excavator features a powerful Volvo engine and perfectly matched hydraulic system, delivering high performance, excellent control and low fuel consumption. Sustain optimum power and productivity with Volvo.

Features And Benefits
  • POWERED TO PERFORM
  • Volvo's state-of-the-art hydraulic system is perfectly matched to the Volvo engine and components – delivering high performance and improved fuel efficiency. The hydraulic system has been designed for fast response and smooth operation.
  • STABILITY YOU CAN COUNT ON
  • Design improvements including a counterweight have shifted the center of gravity towards the rear of the machine. Together with a strong undercarriage, this delivers superior stability while lifting bigger loads.
  • VISIBLY BETTER

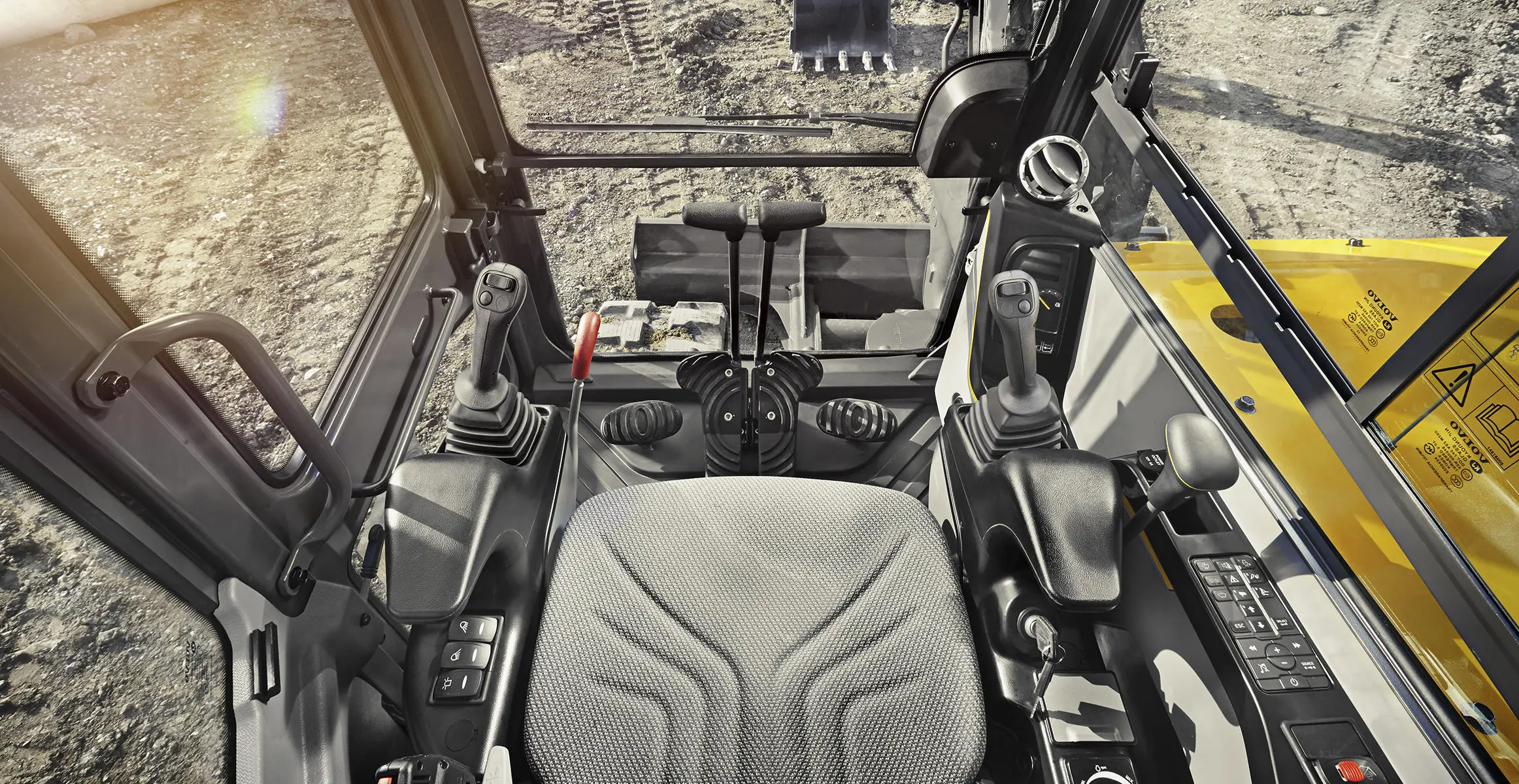

  • All-around visibility from slim cab pillars and large expanses of glass is at the center of Volvo's cab design. The ROPS certified cab features vibration and noise isolation, ergonomic controls and an adjustable seat for increased comfort, reduced fatigue and increased productivity.

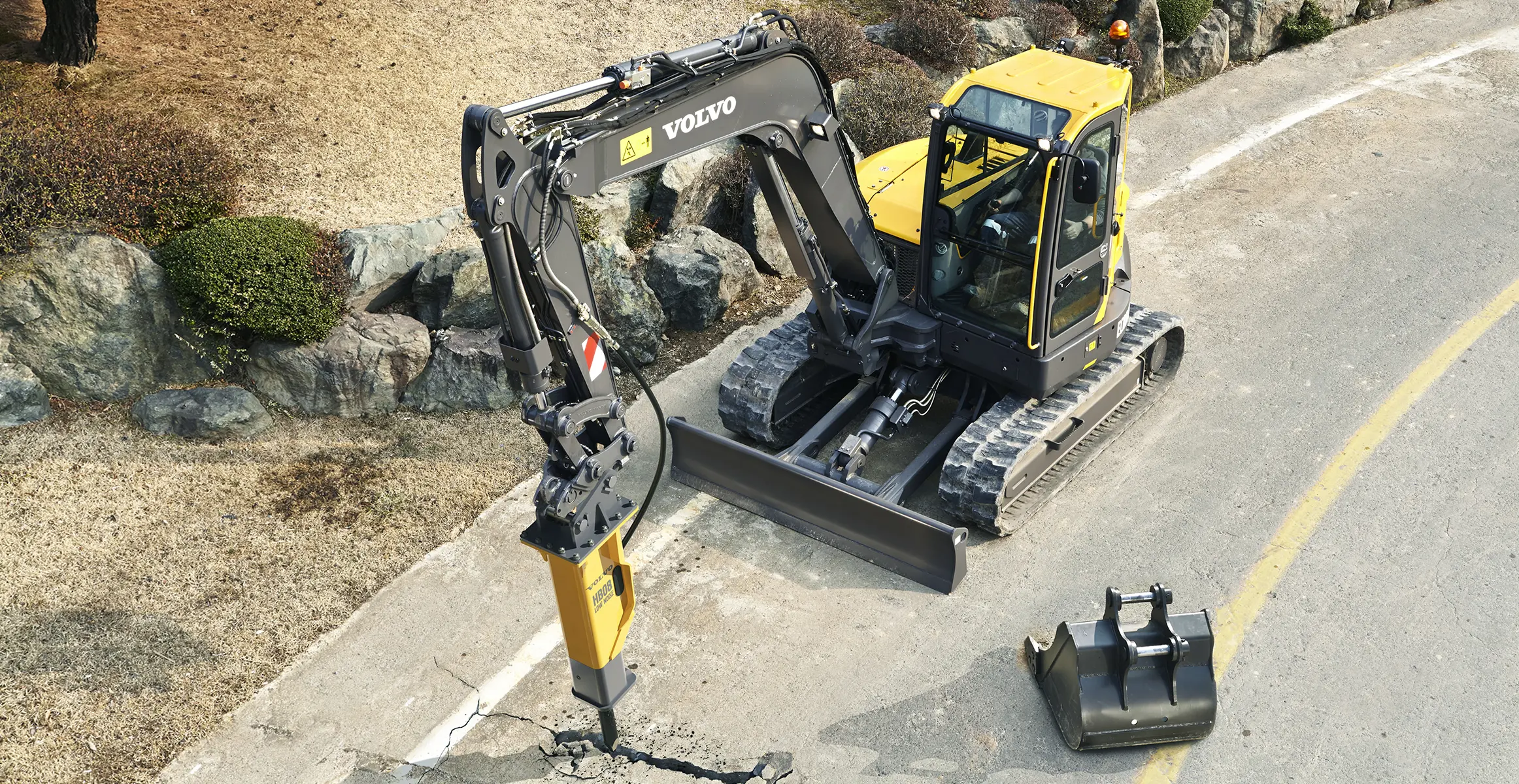

  • ONE MACHINE, MANY JOB SITES
  • The machine's attachment can be easily changed to save time and costs. Its design, hydraulics, piping and in-cab controls combined with Volvo's attachments range allows the ECR88D to take on a variety of tasks. Volvo attachments work in harmony with the machine to deliver maximum productivity.
  • ADDING VALUE TO YOUR BUSINESS
  • The range of Customer Support Agreements offer preventive maintenance, total repairs and a number of uptime services. Volvo uses the latest technology to monitor machine operation and status, giving you advice to increase your profitability. By having a Customer Support Agreement you are in control of your service costs.
Images
Description
Standard Arm Length 5 ft 7 in (1700 mm)
Telematics
Telematics Available Yes
Driveline
Engine Manufacturer Volvo
Engine Model D 2.6H
Displacement 160 Inches³ (2.62 ltr)
Rated Speed 2000 rpm
Engine Output - Net 55 hp (41 kW)
Engine Output - Gross 57 hp (42.4 kW)
Number Of Track Rollers - Each Side 5
Track Shoe Width 18 inches (450 mm)
Dimensions
Bucket Capacity 0.1-0.44 yd³ (0.079-0.333 m³)
Bucket Weight 250-450 lbs (111-205 kg)
Transport Length Mono Boom 20 ft 11 in (6370 mm)
Max Transport Height 8 ft 11 in (2715 mm)
Max Machine Width 8 ft (2450 mm)
Track Length On Ground 7 ft 3 in (2200 mm)
Zero Tailswing No
Heaped Bucket Capacity 0.35 yd³ (0.266 m³)
Variable Undercarriage Availability Yes
Ground Level Reach 22 ft 4 in (6800 mm)
Dig Height 22 ft 3 in (6790 mm)
Dump Height - Mono Boom 16 ft 3 in (4960 mm)
Dig Depth 13 ft 7 in (4130 mm)
Capacities
Fuel Tank 29 gallons (US) (110 ltr)
Performance
Ground Bearing Pressure 5.9 PSI (40.3 kPa)
Arm Tearout 8950 lbf (39.8 kN)
Bucket Breakout 12860 lbf (57.2 kN)
Number Of Main Pumps 2
Main Pump - Flow 50 gallons (US) / min (190 lt/min)
Weights
Operating Weight 19758 lbs (8962 kg)
