DD25B
74ea383c-af4c-4505-9f50-c2373a1fde99
MAINTAIN YOUR PRODUCTIVITY
Description

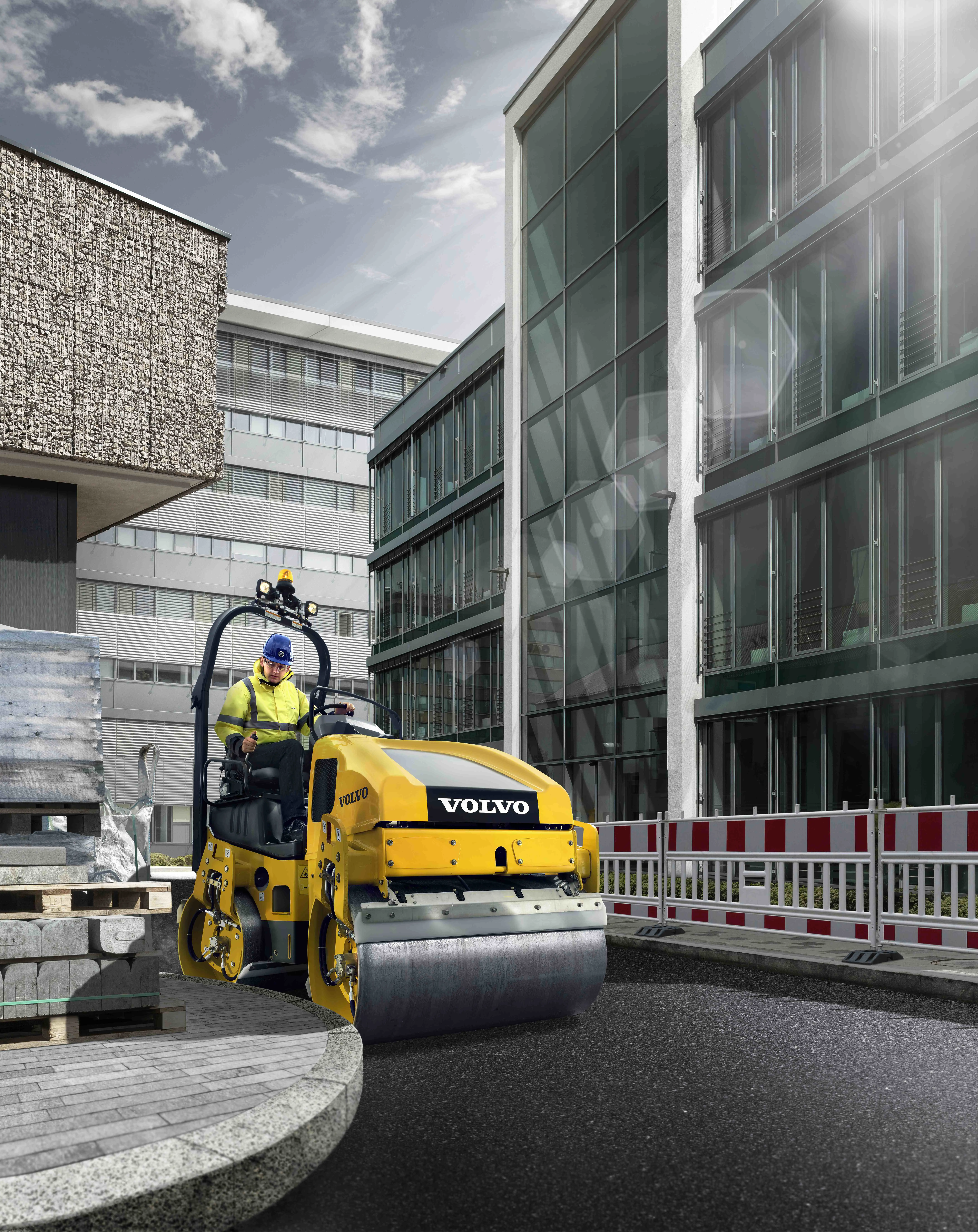

The Volvo DD25B asphalt roller is a highly efficient machine designed to deliver precise results. Featuring Volvo’s high frequency compaction, the DD25B compactor can travel faster while still maintaining the correct impact spacing necessary for high productivity and a smooth finish.
Features And Benefits

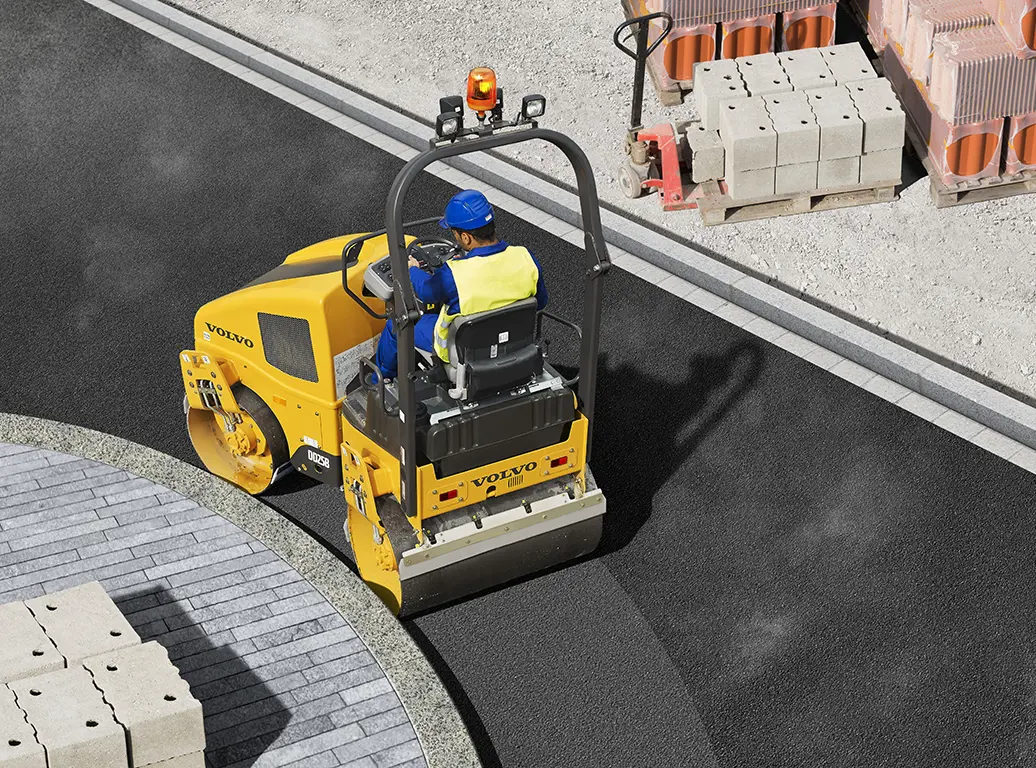

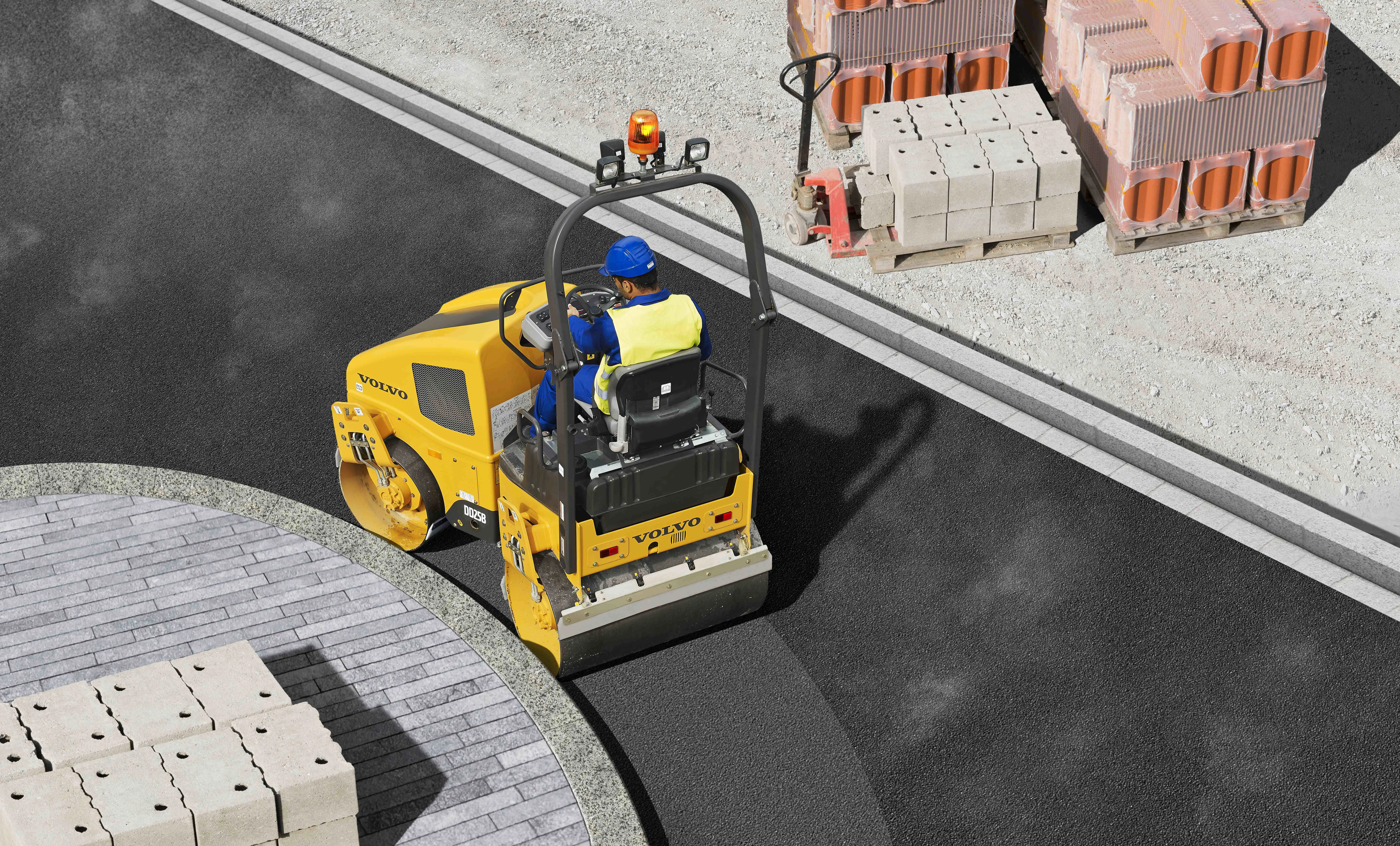

- 360° visibility

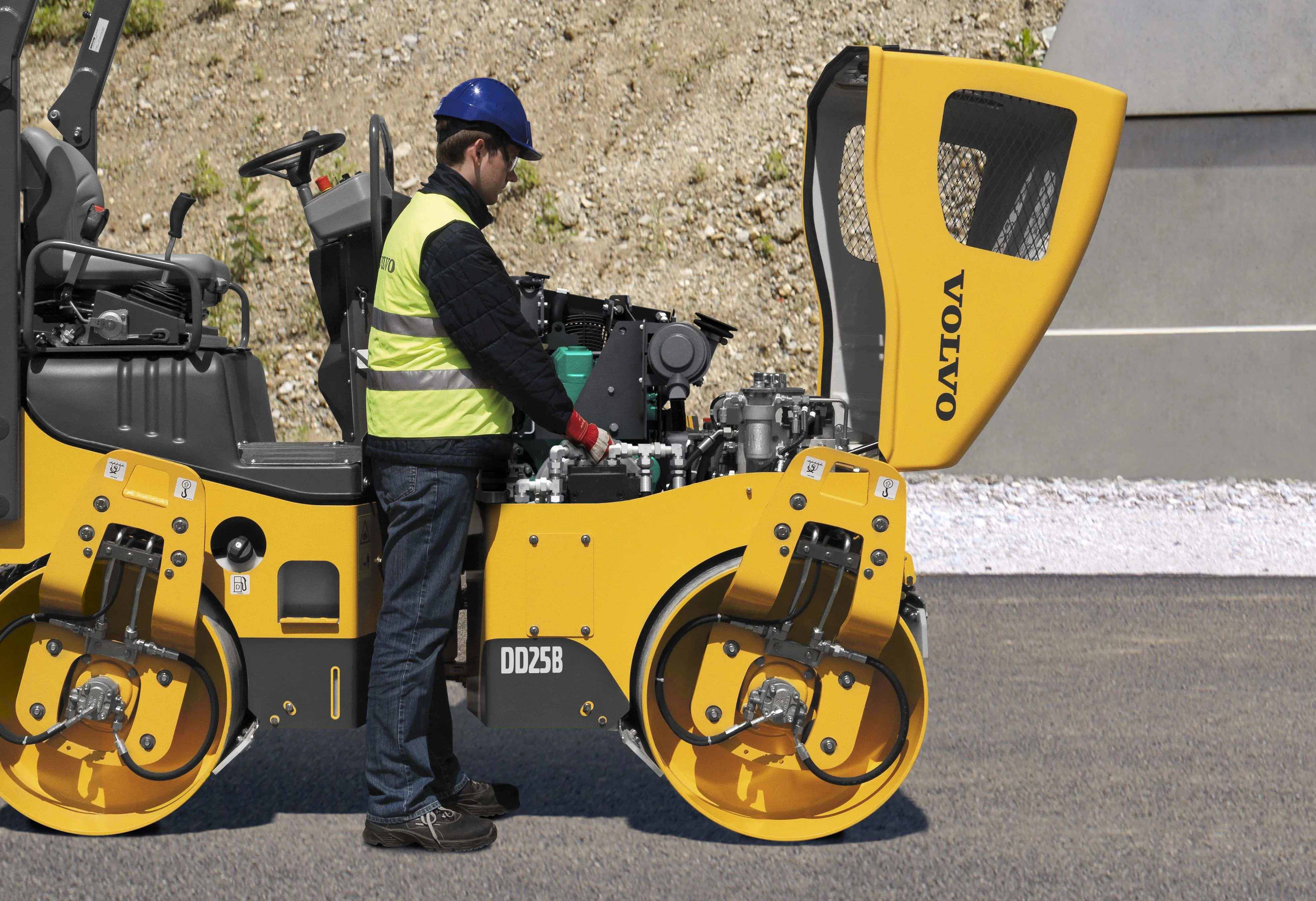

- Easy-access engine compartment

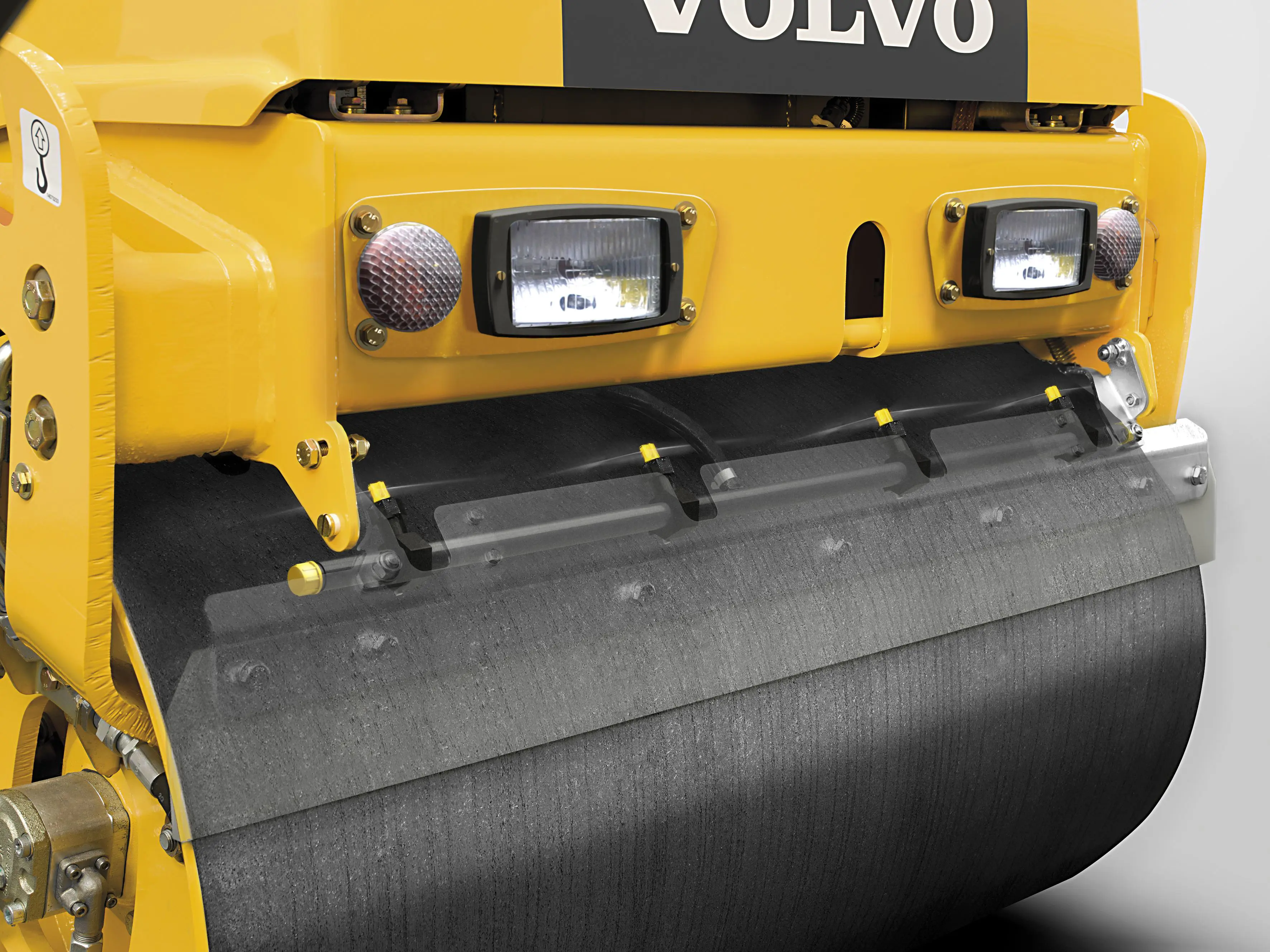

- Rust-proof, pressurized water system provides consistent flow to the drum surfaces

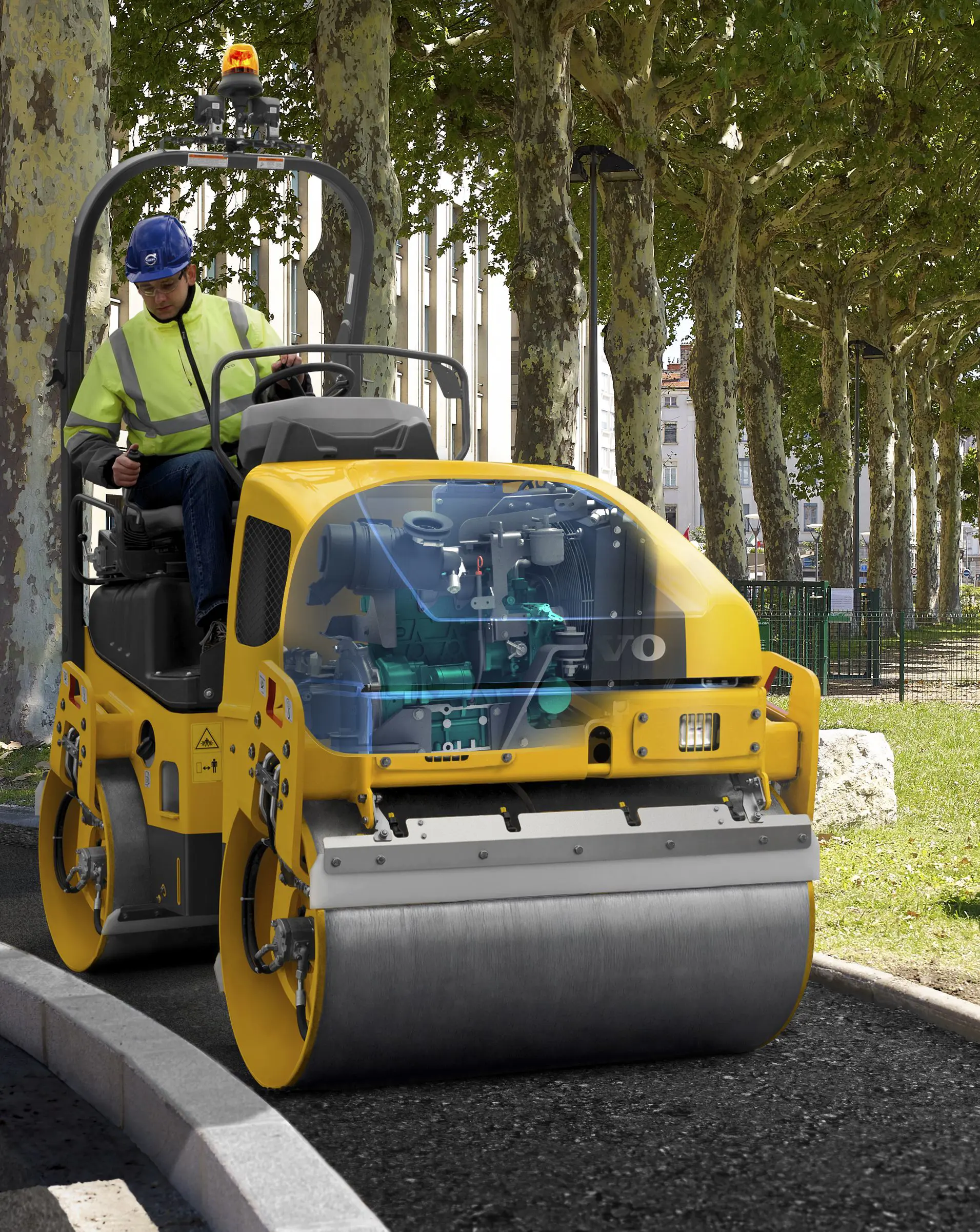

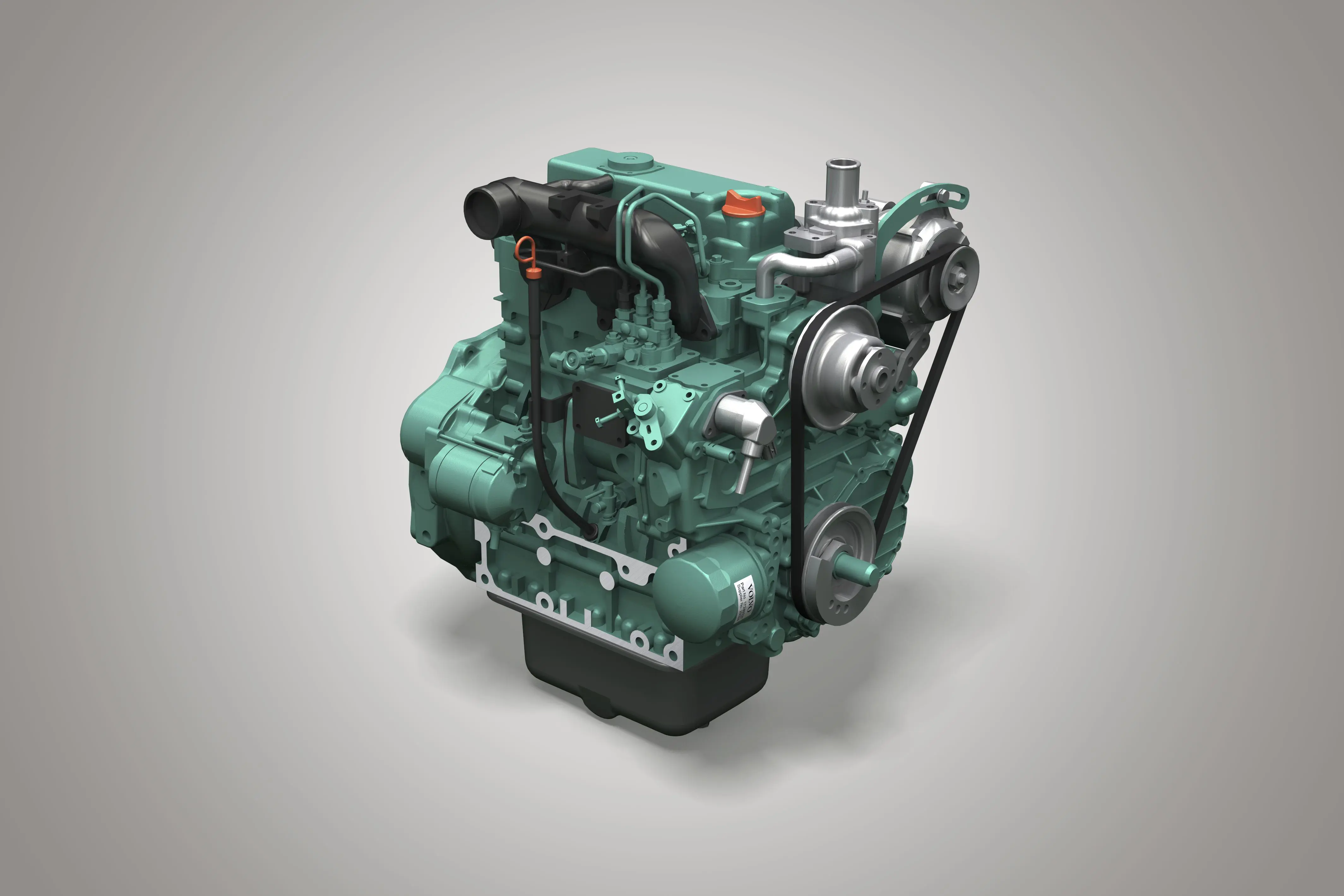

- Volvo D3 Tier 4 Final engine delivers high performance without an exhaust after-treatment system and a 7% reduction in fuel consumption.
Images
Brochures
Video
Driveline
Engine Manufacturer Volvo
Engine Model D 1.7 A
Rated Speed 2200 rpm
Engine Output 25 hp (18.2 kW)
Transmission Hydrostatic
Dimensions
Overall Length 95.3 inches (2420 mm)
Height - With ROPS 116.3 inches (2955 mm)
Height - Without ROPS 80 inches (2020 mm)
Overall Width 42.9 inches (1090 mm)
Wheelbase 67.7 inches (1720 mm)
Drum Width - Front 39.4 inches (1000 mm)
Drum Width - Rear 39.4 inches (1000 mm)
Rolling Width 39.4 inches (1000 mm)
Drum Diameter - Front 27.6 inches (700 mm)
Drum Diameter - Rear 27.6 inches (700 mm)
Drum Shell Thickness 0.5 inches (13 mm)
Turning Radius - Inside 110 inches (2800 mm)
Capacities
Fuel Tank 10.6 gallons (US) (40 ltr)
Tank Capacity For Drum 69 gallons (US) (260 ltr)
Performance
Drive To Drums Both
Travel Speed 1 6.4 mph (10.3 kph)
Max. Travel Speed 6.4 mph (10.3 kph)
Number Of Frequency/Amplitude Settings 2
Frequency - Stage 1 - Front 66.7 Hz
Frequency - Stage 2 - Front 55 Hz
Frequency - Stage 1 - Rear 66.7 Hz
Frequency - Stage 2 - Rear 55 Hz
Amplitude Stage 1 - Front 0.021 inches (0.54 mm)
Amplitude Stage 2 - Front 0.021 inches (0.54 mm)
Amplitude Stage 1 - Rear 0.021 inches (0.54 mm)
Amplitude Stage 2 - Rear 0.021 inches (0.54 mm)
Centrifugal Force 1 - Front 5732 lbf (25.5 kN)
Centrifugal Force 2 - Front 8430 lbf (37.5 kN)
Centrifugal Force 1 - Rear 5732 lbf (25.5 kN)
Centrifugal Force 2 - Rear 8430 lbf (37.5 kN)
Max Amplitude 0.021 inches (0.54 mm)
Min Amplitude 0.021 inches (0.54 mm)
Max Frequency 66.7 Hz
Min Frequency 55 Hz
Max Centrifugal Force 8430 lbf (37.5 kN)
Min Centrifugal Force 5732 lbf (25.5 kN)
Weights
Operating Weight 5545 lbs (2515 kg)
Weight - Front 2670 lbs (1211 kg)
Weight - Rear 2875 lbs (1304 kg)
