EC20E
75c8072f-d5a9-49d6-836a-b9e3c1913bac
COMPACT VERSATILITY
Description
The EC20E compact excavator packs lifting power and stability to handle jobs from backyard landscaping to small utility projects
Features And Benefits
- LIGHT WORK OF TOUGH JOBS
- Take performance to a new level, with a 13% increase in traction force and 6 878 lbs of combined digging forces. Add in the smooth combination of movements which make grading jobs easier, as well as the ability to work close to the blade, and completing tasks on site has never been quicker.
- THE ULTIMATE ALL-ROUNDER
- With a variable undercarriage that retracts to less than 39” and expands up to 53”, combined with a reduced machine height to less than 92”, you can count on the compact excavator to deliver superior performance when working in confined spaces. The machine design ensures that the right frame corner, swing post and cylinder stay within the tracks, resulting in maximum visibility and a reduced risk of machine damage when working alongside obstacles.

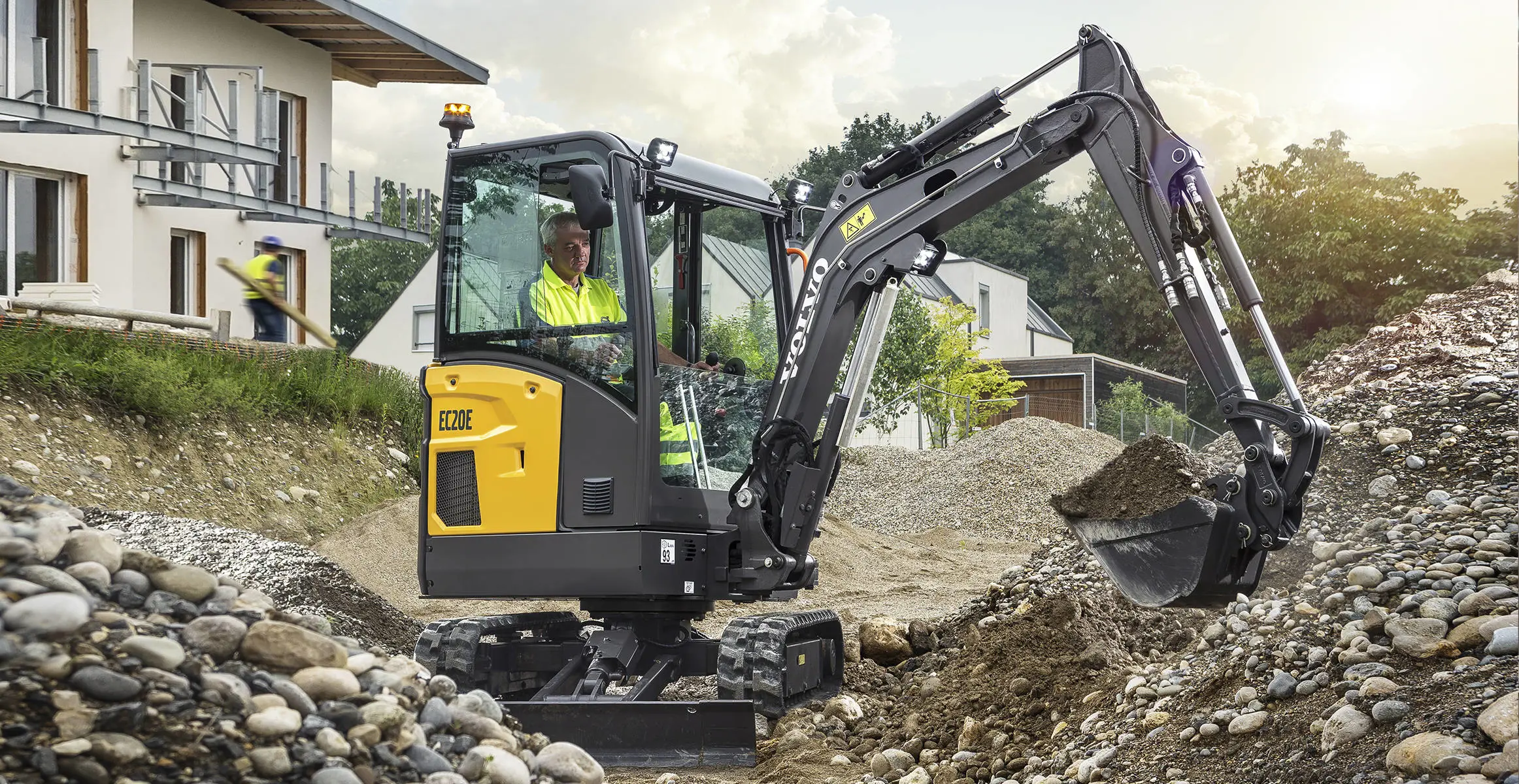

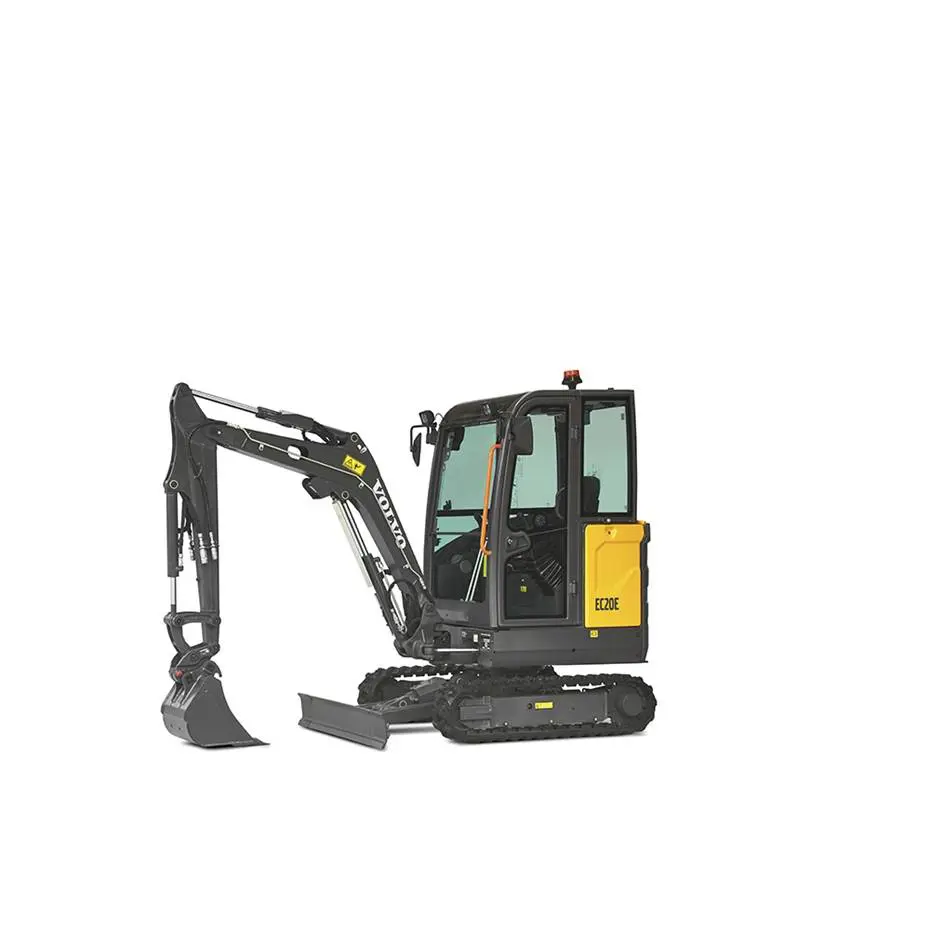

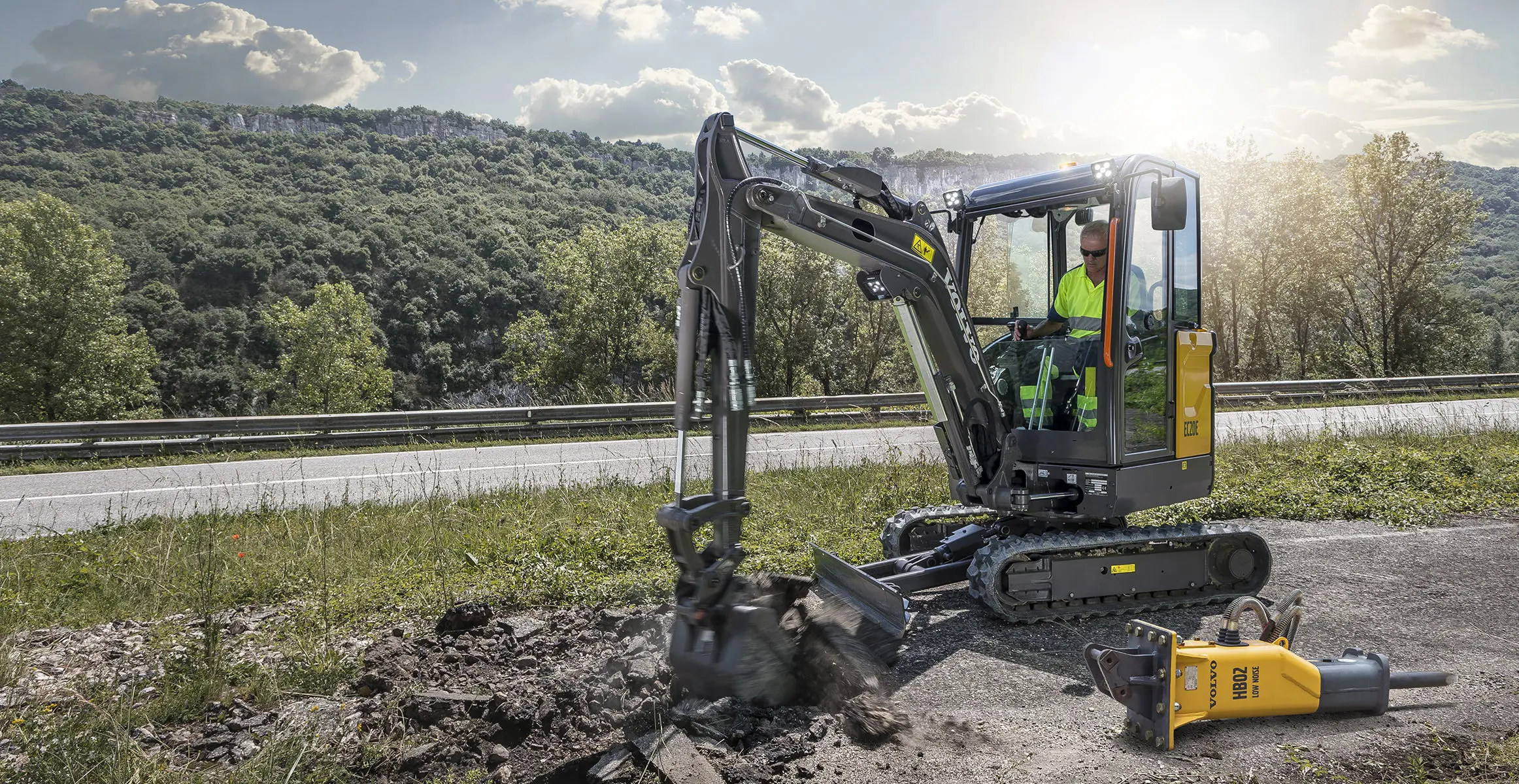

Images
Description
Standard Arm Length 3 ft 5 in (1050 mm)
Driveline
Engine Manufacturer Volvo
Engine Model D 0.9A
Displacement 54.8 Inches³ (0.898 ltr)
Rated Speed 2300 rpm
Engine Output - Net 16.1 hp (12 kW)
Engine Output - Gross 16 hp (12 kW)
Number Of Track Rollers - Each Side 3
Track Shoe Width 9 inches (230 mm)
Dimensions
Bucket Capacity 0.04-0.1 yd³ (0.028-0.078 m³)
Bucket Weight 106 lbs (48 kg)
Transport Length Mono Boom 13 ft 7 in (4145 mm)
Max Transport Height 7 ft 8 in (2334 mm)
Max Machine Width 4 ft 5 in (1352 mm)
Track Length On Ground 5 ft 4 in (1620 mm)
Zero Tailswing No
Heaped Bucket Capacity 0.08 yd³ (0.063 m³)
Bucket Width - Standard 20 inches (500 mm)
Variable Undercarriage Availability Yes
Ground Level Reach 13 ft 1 in (3976 mm)
Dig Height 12 ft 5 in (3793 mm)
Dump Height - Mono Boom 8 ft 7 in (2621 mm)
Dig Depth 7 ft 6 in (2279 mm)
Standard Arm 3 ft 5 in (1050 mm)
Longest Arm 4 ft 5 in (1350 mm)
Capacities
Fuel Tank 5.5 gallons (US) (21 ltr)
Performance
Ground Bearing Pressure 4.4 PSI (30.4 kPa)
Standard Shoe Width 9.1 inches (230 mm)
Arm Tearout 2763 lbf (12.29 kN)
Bucket Breakout 4107 lbf (18.27 kN)
Main Pump Variable axial piston
Number Of Main Pumps 1
Main Pump - Flow 13 gallons (US) / min (48 lt/min)
Weights
Operating Weight 4332 lbs (1965 kg)
