Construction Division
ECR25 Electric
79b9067f-b919-4fa1-a3f8-e8b2f4a2f7c7
A True Game Changer
Description

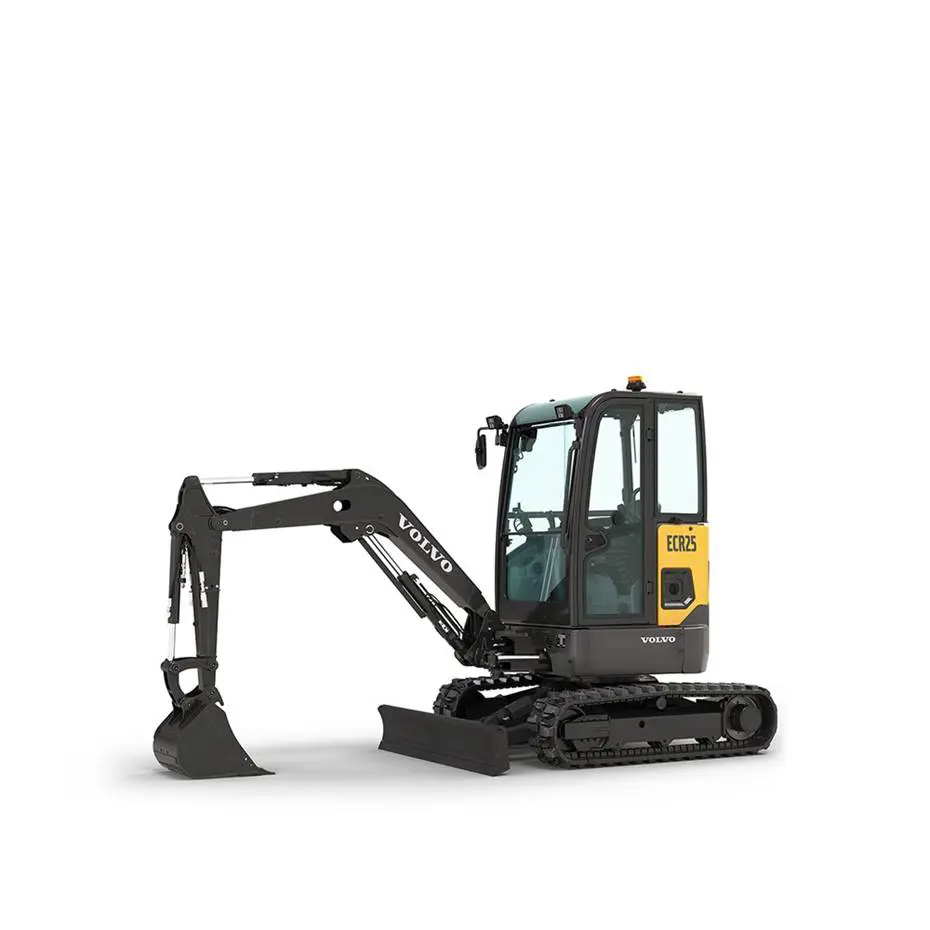

THE HIGH PERFORMING NEW ECR25 ELECTRIC COMPACT EXCAVATOR
The Volvo ECR25 Electric excavator is a true game changer. The first in a new range of electric compact excavators, it takes a proven concept – and then adds battery electric power, so you’ll have all the performance you need, in the compact package you demand. Volvo CE is moving towards a brighter, more sustainable future, and now you can too.
Features And Benefits
- ADD SILENCE
- Silence. Just the word envelops you in a sense of serenity. And now you and those around you can experience what happens when you start to add silence to a compact excavator. The new Volvo ECR25 Electric, helping build the world we all want to live in.
- ADD CLEAN
- You can find a compact excavator on every street corner. Literally. And whilst this demonstrates what a useful tool they are, it also puts them in close proximity with those around. With the Volvo ECR25 Electric you combine the all-round abilities of a compact excavator with the benefits of zero emission electric power. The world will thank you for it.
Images
Video
Description
Standard Arm Length 4 ft 5 in (1350 mm)
Driveline
Number Of Track Rollers - Each Side 3
Track Shoe Width 12 inches (300 mm)
Battery Capacity 20 kWh
Dimensions
Bucket Capacity 0.97 yd³ (0.74 m³)
Bucket Weight 130 lbs (59 kg)
Transport Length Mono Boom 14 ft 10 in (4525 mm)
Max Transport Height 8 ft 4 in (2535 mm)
Max Machine Width 5 ft 1 in (1550 mm)
Track Length On Ground 4 ft 9 in (1440 mm)
Zero Tailswing Yes
Heaped Bucket Capacity 0.97 yd³ (0.74 m³)
Variable Undercarriage Availability No
Ground Level Reach 15 ft 1 in (4602 mm)
Dig Height 13 ft 9 in (4183 mm)
Dump Height - Mono Boom 9 ft 8 in (2957 mm)
Dig Depth 9 ft 9 in (2965 mm)
Performance
Ground Bearing Pressure 4.12 PSI (28.4 kPa)
Arm Tearout 3365 lbf (14.97 kN)
Bucket Breakout 5020 lbf (22.33 kN)
Number Of Main Pumps 1
Main Pump - Flow 15.3 gallons (US) / min (58 lt/min)
Weights
Operating Weight 6018 lbs (2730 kg)
