Description
Dipper Length - Longest Articulated 9 ft 6 in (2900 mm)
Telematics
Telematics Available Yes
Platform Care Track
Driveline
Engine Manufacturer Volvo
Engine Model D6J
Displacement 348 Inches³ (5.7 ltr)
Auto Idle Yes
Engine Auto Shut Off Yes
Rated Speed 1800 rpm
Engine Output - Net 171 hp (126 kW)
Engine Output - Gross 175 hp (129 kW)
Standard Number Of Tires 8
Tire Size - Standard 10.00-20
Service Brake Type Dual Circuit
Service Brake Actuation Hydraulic Power Brakes
Dimensions
Max Transport Length 31 ft 2 in (9500 mm)
Transport Height Over Boom 10 ft 2 in (3090 mm)
Overall Width 8 ft 4 in (2540 mm)
Overall Width Stabilizers Down 13 ft 2 in (4020 mm)
Wheelbase 9 ft (2750 mm)
Standard Dipper Length 8 ft 6 in (2600 mm)
Longest Dipper Length 9 ft 6 in (2900 mm)

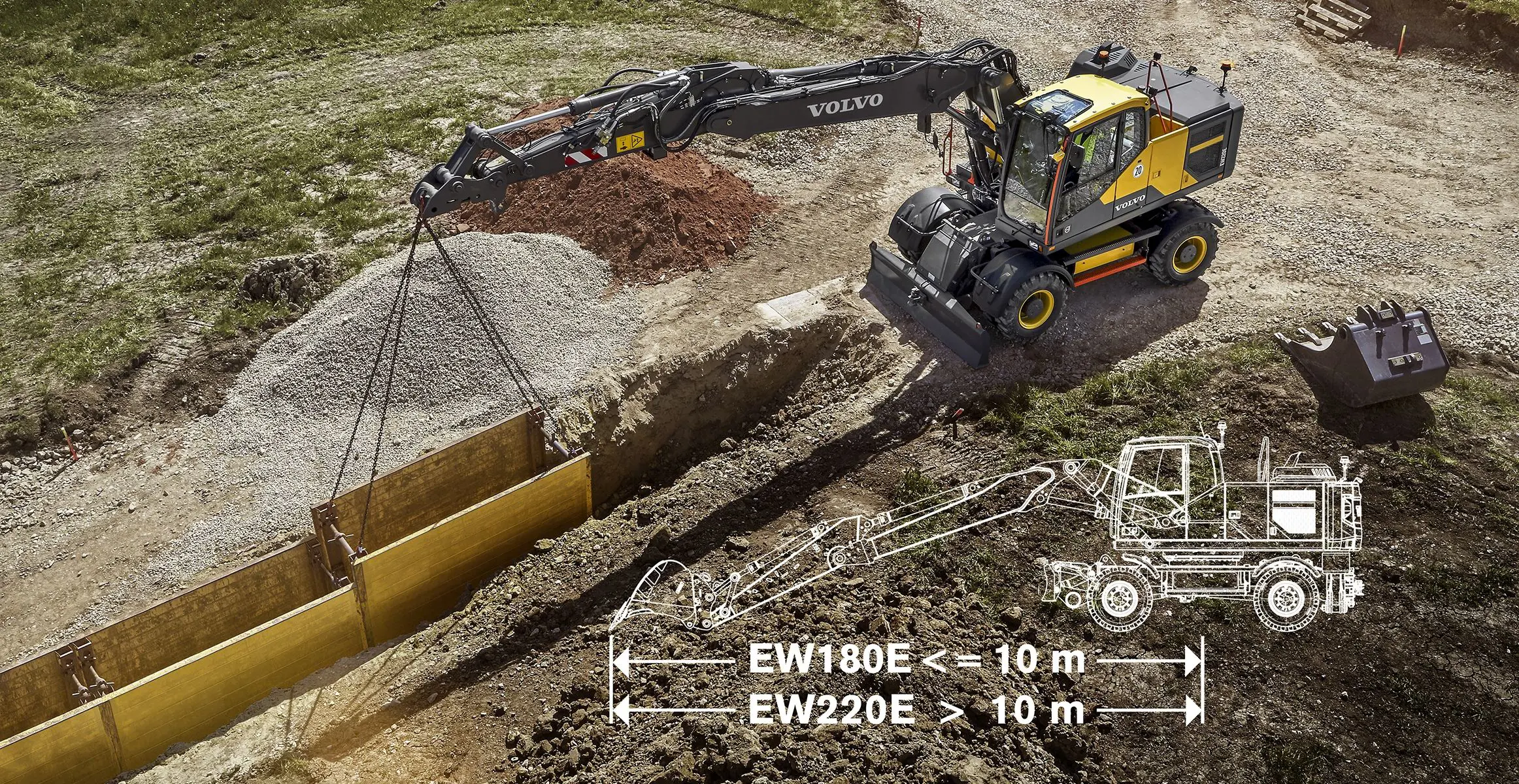

Ground Level Reach 32 ft 6 in (9900 mm)
Maximum Dig Height - Mono Boom 33 ft 7 in (10240 mm)
Dump Clearance Height - Mono Boom 22 ft 10 in (6950 mm)
Dig Depth - Mono Boom 19 ft 9 in (6010 mm)
Ground Level Reach 32 ft 9 in (9980 mm)
Max Dig Height 36 ft 3 in (11050 mm)
Dump Clearance Height 25 ft 4 in (7720 mm)
Dig Depth 20 ft 8 in (6310 mm)
Capacities
Fuel Tank 76.6 gallons (US) (290 ltr)
Reference Capacity 1.6 yd³ (1.22 m³)
Performance
Swing Speed 9 rpm
Sound Level Standard ISO 6396 / 6395
Sound Level Internal 70 dB(A)
Sound Level External 101 dB(A)
Bucket Breakout - Mono Boom 29675 lbf (132 kN)
Bucket Breakout - Articulated Boom 29675 lbf (132 kN)
Dipper Tearout - Boost, Mono Boom 27427 lbf (122 kN)
Dipper Tearout - Boost, Articulated Boom 27427 lbf (122 kN)
Dipper Longest, Boost Tearout Artic 24279 lbf (108 kN)
Total Flow - Main Pumps 99 gallons (US) / min (375 lt/min)
Weights
Operating Weight 48943 lbs (22200 kg)
