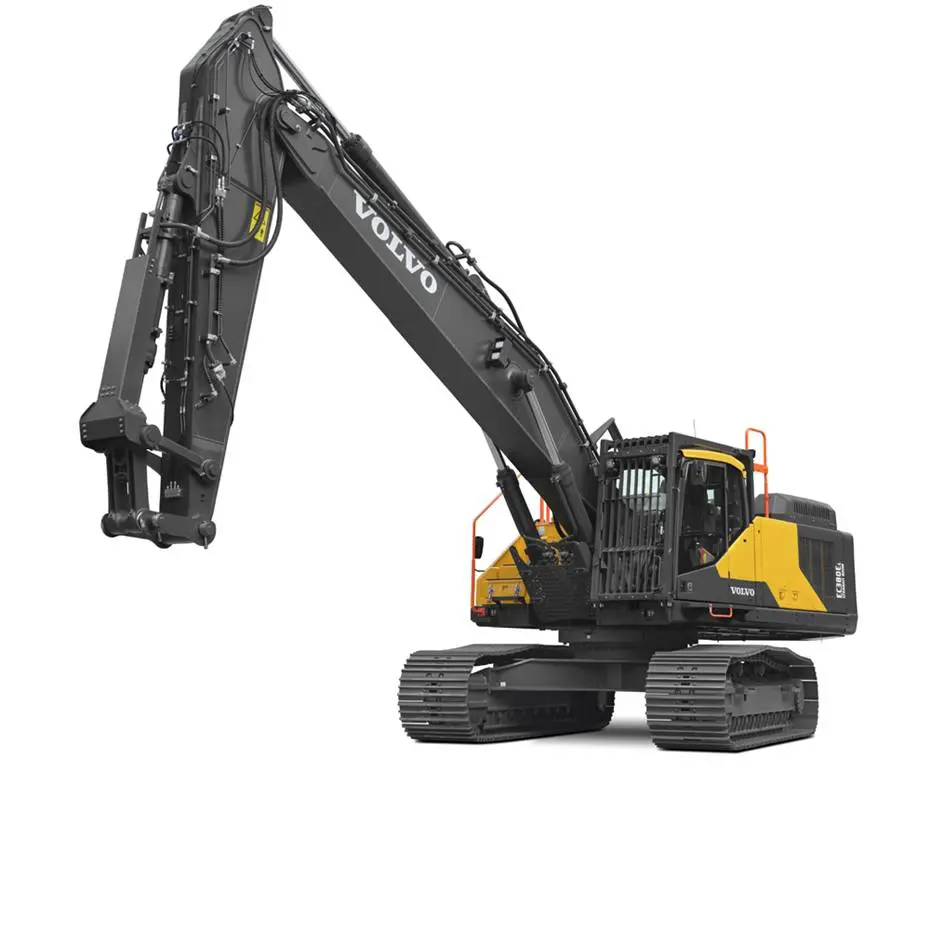

EC380E Straight Boom

7f574be0-1e2b-4d03-b931-64265f8d34a9
Description

A STRONG PERFORMANCE

Volvo is dedicated to producing the ultimate in heavy-duty demolition machinery. Purpose-built to suit the needs of this demanding task, the EC380EHR high reach demolition equipment from Volvo is equipped with robust components and a powerful engine to ensure you can keep working shift after shift. Ensuring a strong performance in even the toughest of demolition projects, this machine is the ideal partner.

Features And Benefits
  • FALLING OBJECT GUARD (FOG)
  • Volvo high reach excavators are built to ensure maximum safety in all demolition applications. A sturdy frame and cab offer ultimate protection against the falling debris that is common in demolition projects, and a wide, clear view of the jobsite provides excellent visibility for enhanced safety.
  • TOOL WEIGHT AND PIN HEIGHT
  • The EC380EHR and EC480EHR are equipped with the latest innovations to increase your productivity. These machines are designed to make your working day worth more, and a robust structure, heavy tool weight and outstanding hydraulics ensure a strong performance in even the toughest of demolition projects.
  • PURPOSE BUILT FOR DEMOLITION
  • Volvo CE is dedicated to producing the ultimate in heavy-duty demolition machinery. Purpose-built to suit the needs of this demanding task, these high reach excavators are equipped with robust components and a powerful engine to ensure you can keep working shift after shift.
  • HIGH VISIBILITY CAB
  • These high reach excavators are equipped with a Volvo cab that has been designed to offer industryleading levels of comfort. A high visibility cab and carefully placed cameras ensure operators have a clear view of the jobsite at all times, for the ultimate safe, productive working environment.
  • VOLVO PATENTED MODULAR BOOM SYSTEM
  • These Volvo high reach excavators are a versatile addition to your demolition fleet. Compatible with a wide range of Volvo attachments and built to work both a variety of boom types, these machines are the ideal partner for all demolition projects.
Images
Description
Telematics Available Yes
Driveline
Engine Manufacturer Volvo
Engine Model D13J
Displacement 781.1 Inches³ (12.8 ltr)
Engine Output - Net 307 hp (229 kW)
Variable Undercarriage Availability No
Track Shoe Width 2 ft (600 mm)
Dimensions
Transport Length - Straight Boom 39 ft (11895 mm)
Transport Height - Over Straight Boom 10 ft 10 in (3300 mm)
Overall Width 11 ft 3 in (3437 mm)
Max Machine Width 11 ft 3 in (3437 mm)
Tailswing Radius 12 ft 4 in (3760 mm)
Max Reach 41 ft 3 in (12565 mm)
Max Height 45 ft 6 in (13860 mm)
Capacities
Fuel Tank 163.8 gallons (US) (620 ltr)
Performance
Slew Speed 10.2 rpm
Number Of Main Pumps 2
Main Pumps - Maximum Flow 158.6 gallons (US) / min (600 lt/min)
Weights
Operating Weight 99640 lbs (45195 kg)
Standard Attachment Type Bucket
