EC160E
82c0ea52-a953-43cd-928e-aed9d411b05f
Making hard work easy
Description
MAKING HARD WORK EASY

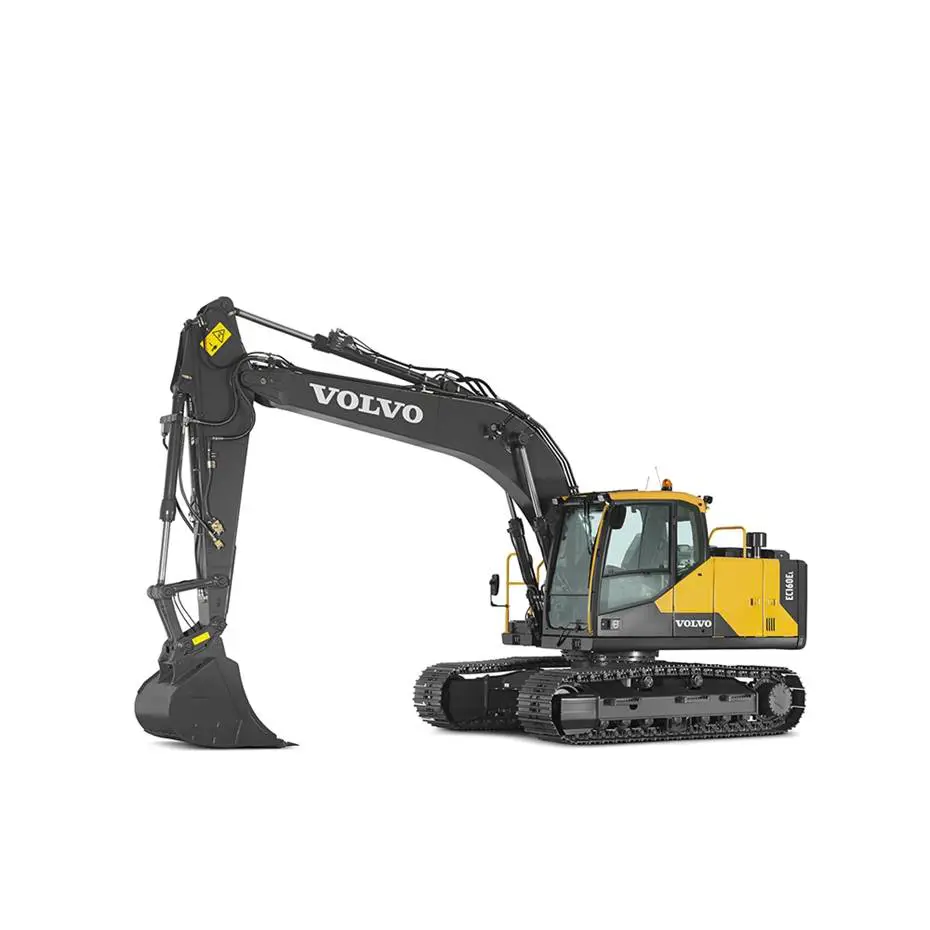

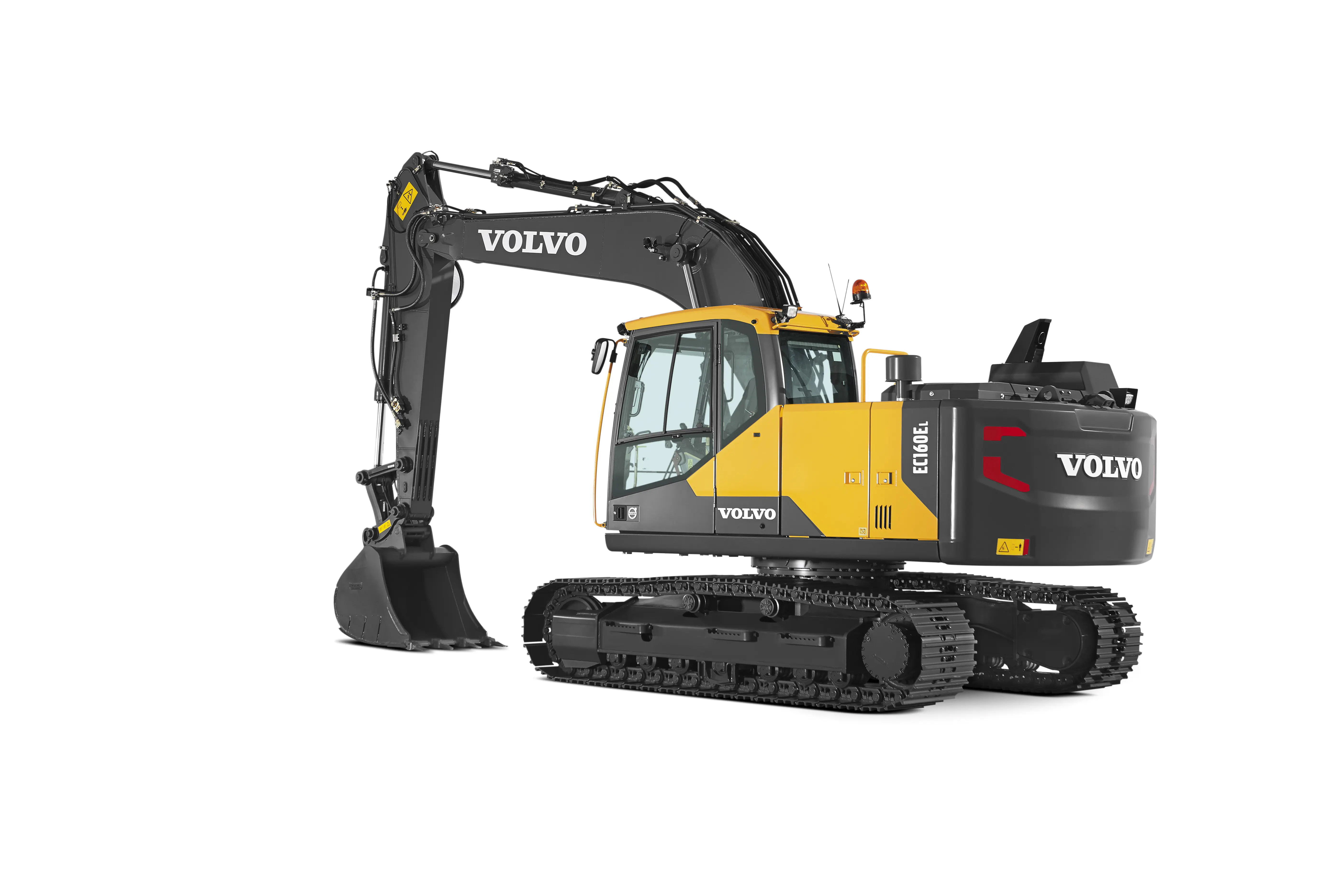

The Volvo EC160E Excavator provides a range of new features to ensure efficiency is a key priority when delivering functions. By carefully considering every duty and component, this machine has been produced to maximize uptime and reduce fuel consumption and cycle times – all while delivering elite performance.
Features And Benefits

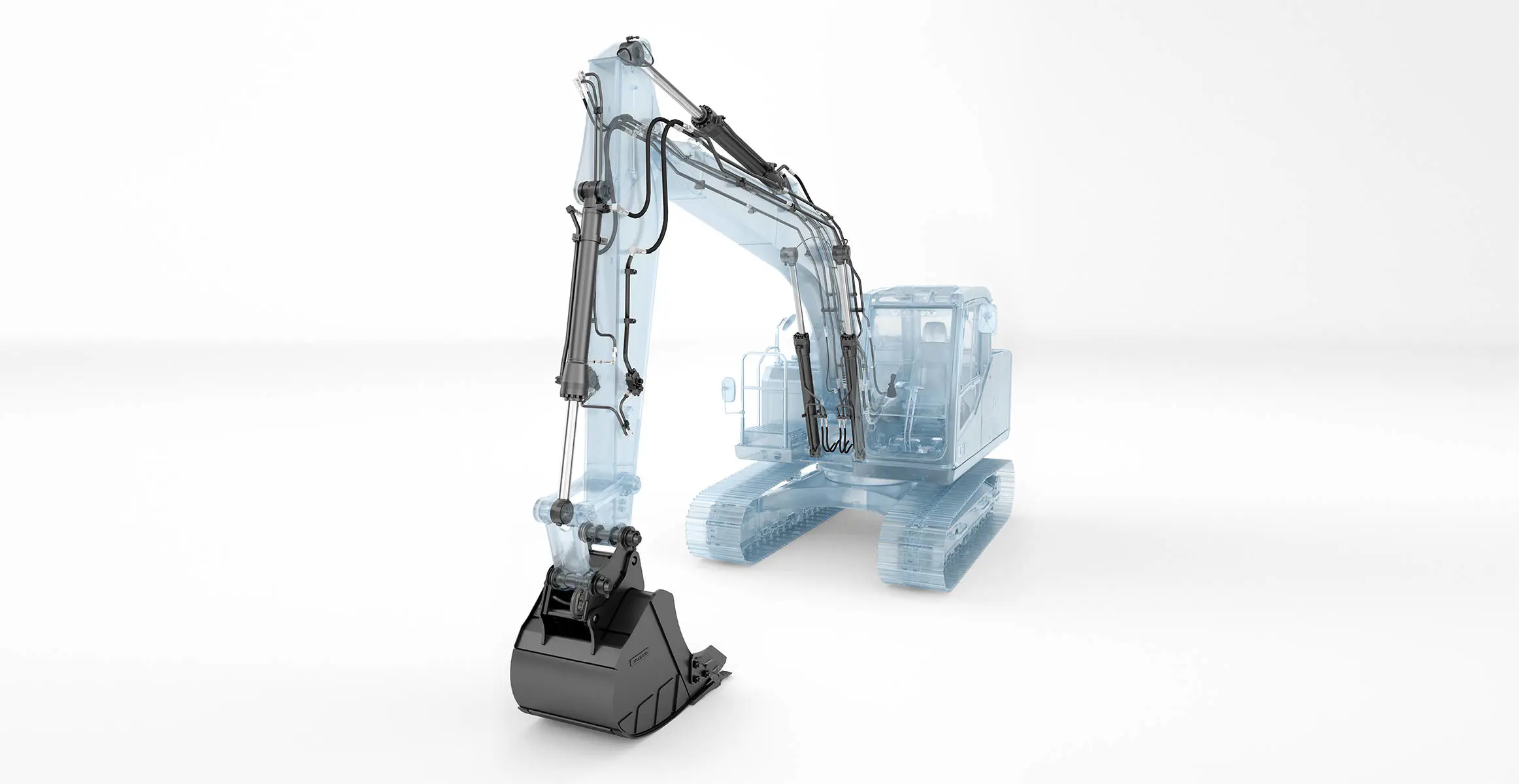

- OPTIMIZED HYDRAULICS
- Designed to perfectly match the engine power, reduce power loss, and improve controllability and response time.

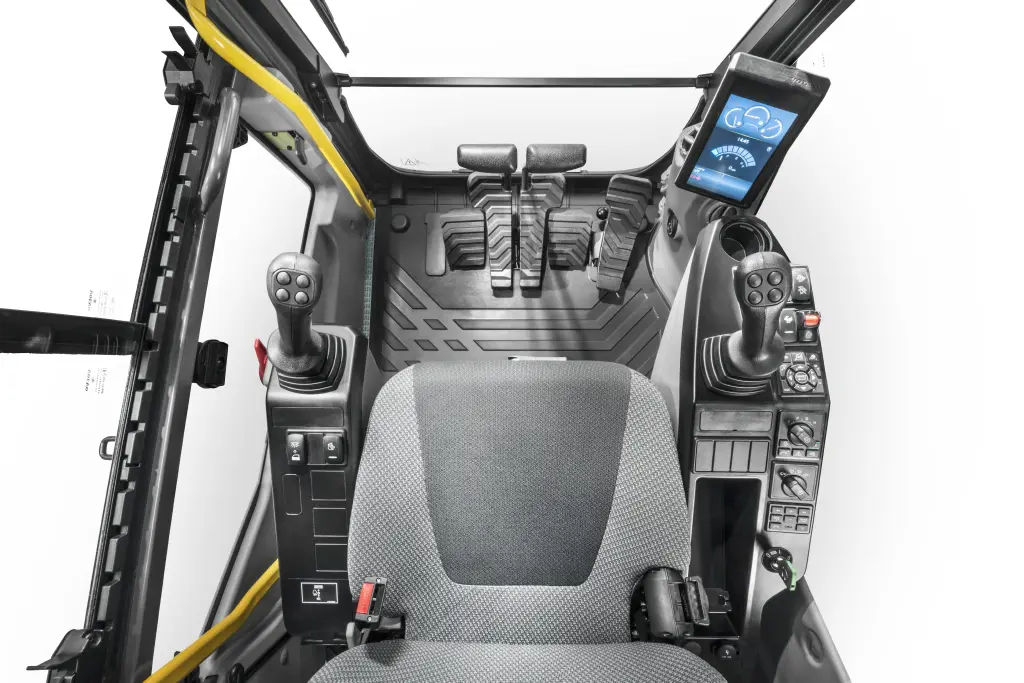

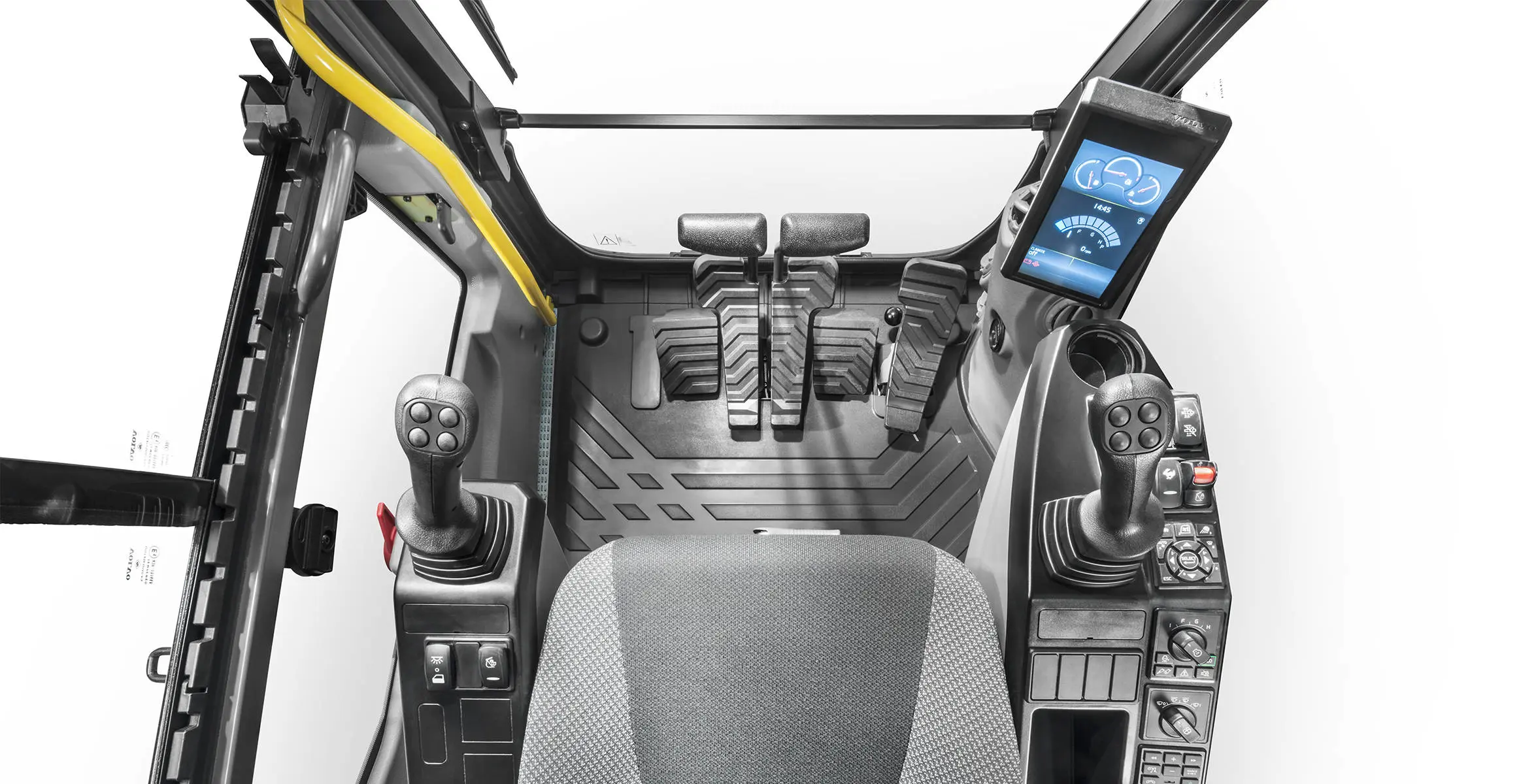

- NEW HUMAN MACHINE INTERFACE (HMI)
- All machine interfaces are ergonomically positioned and designed for optimum control and efficiency.
- BUILT TO LAST
- All detail – no matter how small - is overlooked. Silicone caulking is used to prevent rust, waterproof harnesses and connections have been installed - as well as heavy-duty door hinges and bolted-on protection for the framework lights.
- ULTIMATE TOOL CARRIER
- Designed to not only be compatible with a range of attachments, but also to enhance their performance by easily and quickly switching to accommodate any needs.

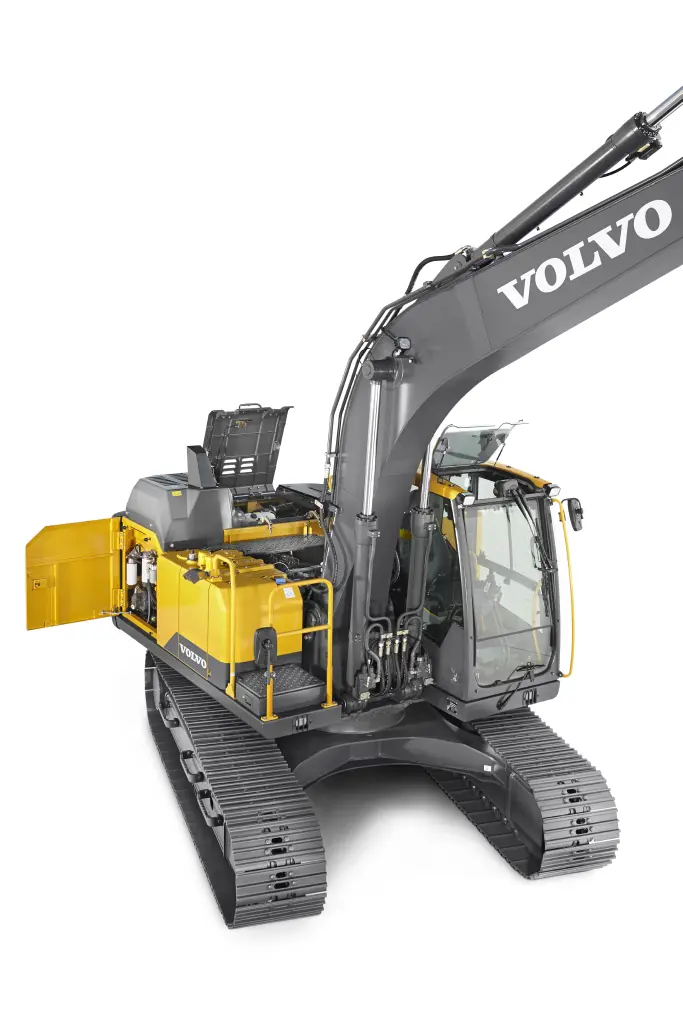

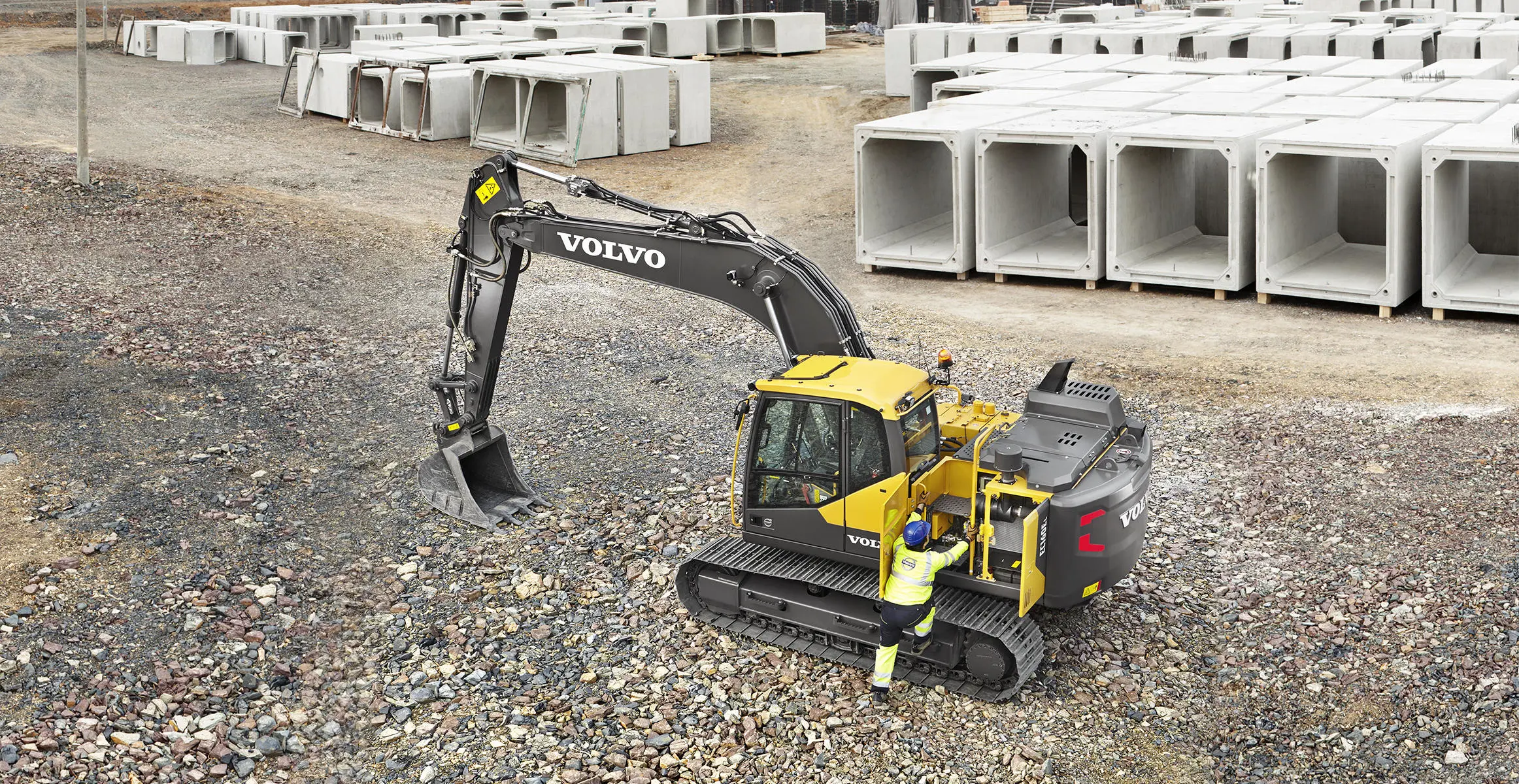

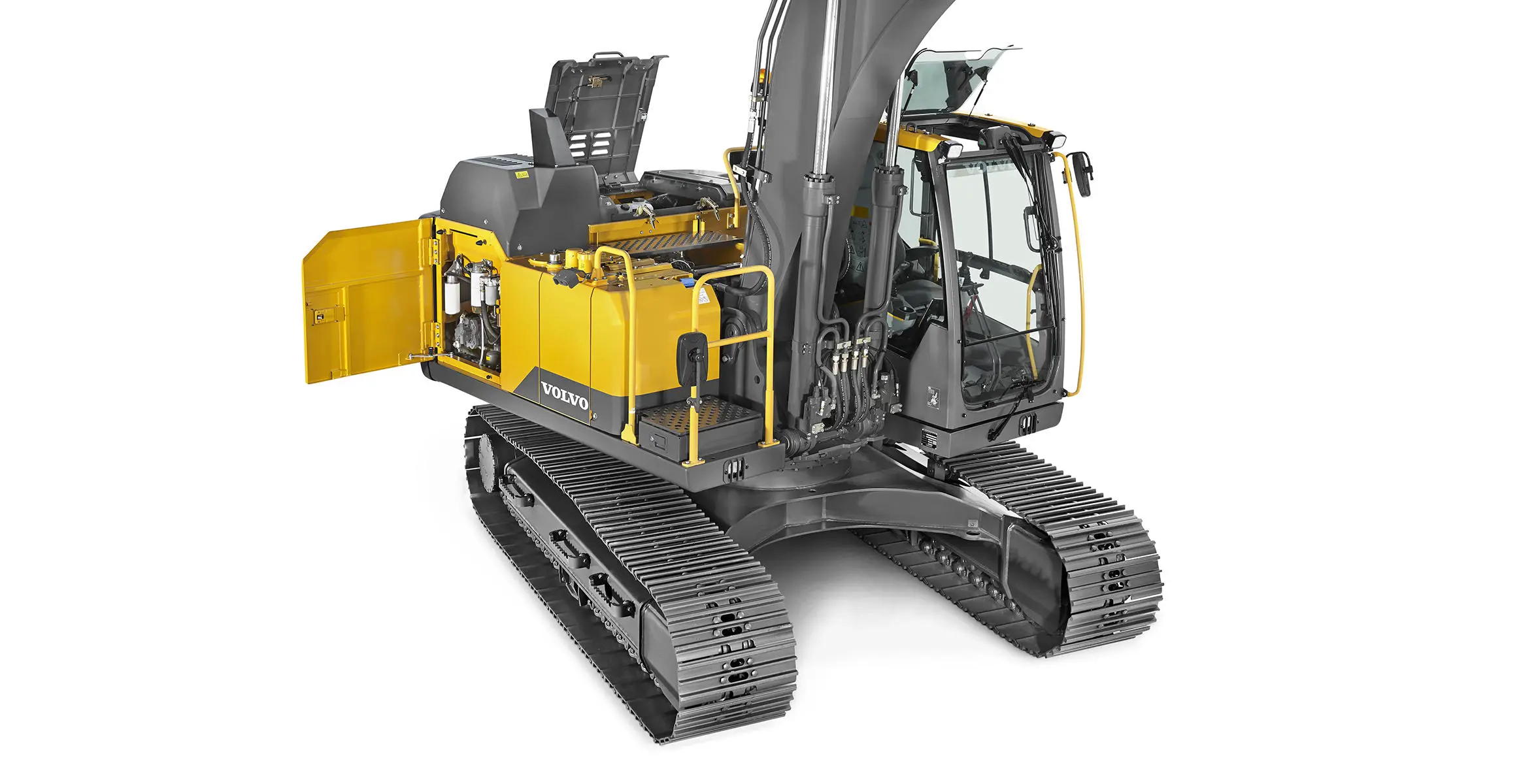

- SERVICE ACCESS
- The E-series features a new convenient and safe access - such as guardrails - to check the hydraulic tank, fuel tank and DEF. This is in addition to the easily accessible side entry, through a wide compartment door.
Images
Description
Standard Arm Length 9 ft 10 in (3000 mm)
Telematics
Telematics Available Yes
Driveline
Engine Manufacturer Volvo
Engine Model D4J
Displacement 247 Inches³ (4.04 ltr)
Rated Speed 2000 rpm
Engine Output - Net 146 hp (109 kW)
Engine Output - Gross 148 hp (110 kW)
Number Of Track Rollers - Each Side 7
Track Shoe Width 24 inches (600 mm)
Dimensions
Bucket Capacity 0.39-1.1 yd³ (0.3-0.84 m³)
Bucket Weight 861-1362 lbs (390-618 kg)
Transport Length Mono Boom 28 ft 11 in (8810 mm)
Max Transport Height 9 ft 11 in (3020 mm)
Max Machine Width 9 ft 10 in (2990 mm)
Track Length On Ground 10 ft 5 in (3180 mm)
Zero Tailswing No
Heaped Bucket Capacity 0.92 yd³ (0.7 m³)
Bucket Width - Standard 41.3 inches (1050 mm)
Track Gauge - Standard 6 ft 6 in (1990 mm)
Variable Undercarriage Availability No
Ground Level Reach 30 ft 2 in (9200 mm)
Dig Height 29 ft 8 in (9030 mm)
Dump Height - Mono Boom 21 ft 4 in (6510 mm)
Dig Depth 21 ft 3 in (6470 mm)
Mono Boom - Size 17 ft 1 in (5.2 m)
Standard Arm 9 ft 10 in (3000 mm)
Longest Arm 9 ft 10 in (3000 mm)
Capacities
Fuel Tank 66 gallons (US) (250 ltr)
Performance
Ground Bearing Pressure 6.1 PSI (42.2 kPa)
Standard Shoe Width 24 inches (600 mm)
Arm Tearout 17550 lbf (78.1 kN)
Bucket Breakout 27410 lbf (121.9 kN)
Main Pump Variable axial piston
Number Of Main Pumps 2
Main Pump - Flow 80 gallons (US) / min (304 lt/min)
Weights
Operating Weight 39530 lbs (17870 kg)
