A PROVEN PAST, AN ELECTRIC FUTURE
Description
The EC18 Electric and ECR18 Electric boast both low noise and zero-tailpipe emissions, creating new opportunities for your business. Operate in noise sensitive areas and out of standard hours, as well as on low-carbon projects and indoors, without the need for costly fume extraction systems or being restricted by operator time limits.
Features And Benefits
- Experience the same performance levels but with zero exhaust emissions, so you can meet emissions targets while opening up all-new applications.
- Reduce noise pollution and vibrations, which aren’t just disturbing but have an often- neglected effect on health.
- Get more work done at night, reducing daytime congestion.
- Realise energy efficiency way beyond its predecessor.
Images
Brochures
Video
Description
Standard Arm Length 3 ft 1 in (950 mm)
Driveline
Number Of Track Rollers - Each Side 3
Track Shoe Width 9 inches (230 mm)

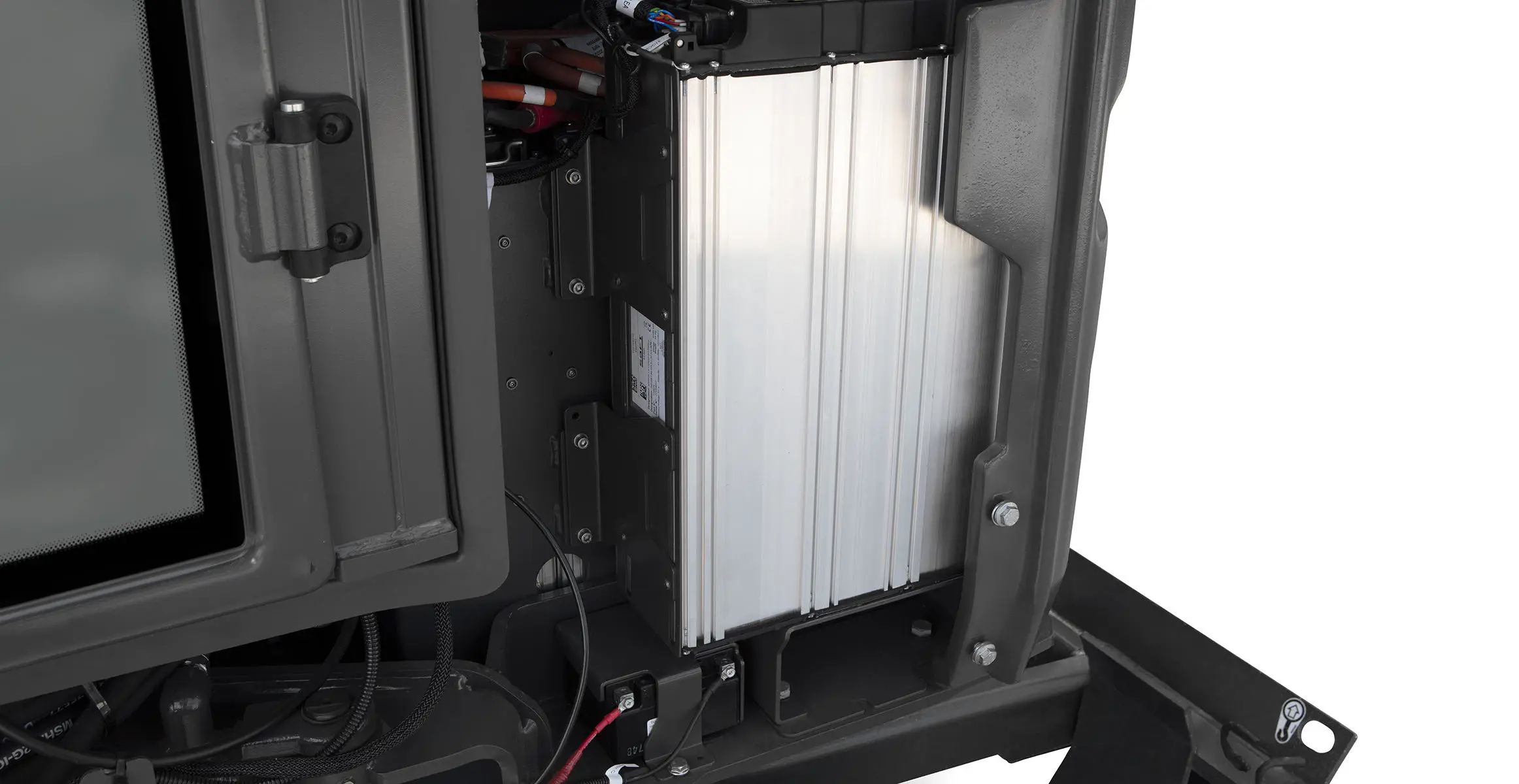

Battery Capacity 20 kWh
Dimensions
Bucket Capacity 0.47 yd³ (0.36 m³)
Bucket Weight 72.8 lbs (33 kg)
Transport Length Mono Boom 12 ft 6 in (3810 mm)
Max Transport Height 7 ft 8 in (2334 mm)
Max Machine Width 4 ft 5 in (1352 mm)
Zero Tailswing No
Heaped Bucket Capacity 0.47 yd³ (0.36 m³)
Variable Undercarriage Availability Yes
Ground Level Reach 12 ft 6 in (3800 mm)
Dig Height 11 ft 3 in (3439 mm)
Dump Height - Mono Boom 8 ft (2444 mm)
Dig Depth 8 ft 2 in (2500 mm)
Performance
Ground Bearing Pressure 4.2 PSI (28.9 kPa)
Arm Tearout 1787 lbf (7.95 kN)
Bucket Breakout 2900 lbf (12.9 kN)
Weights
Operating Weight 4310 lbs (1955 kg)
