A25J
Description

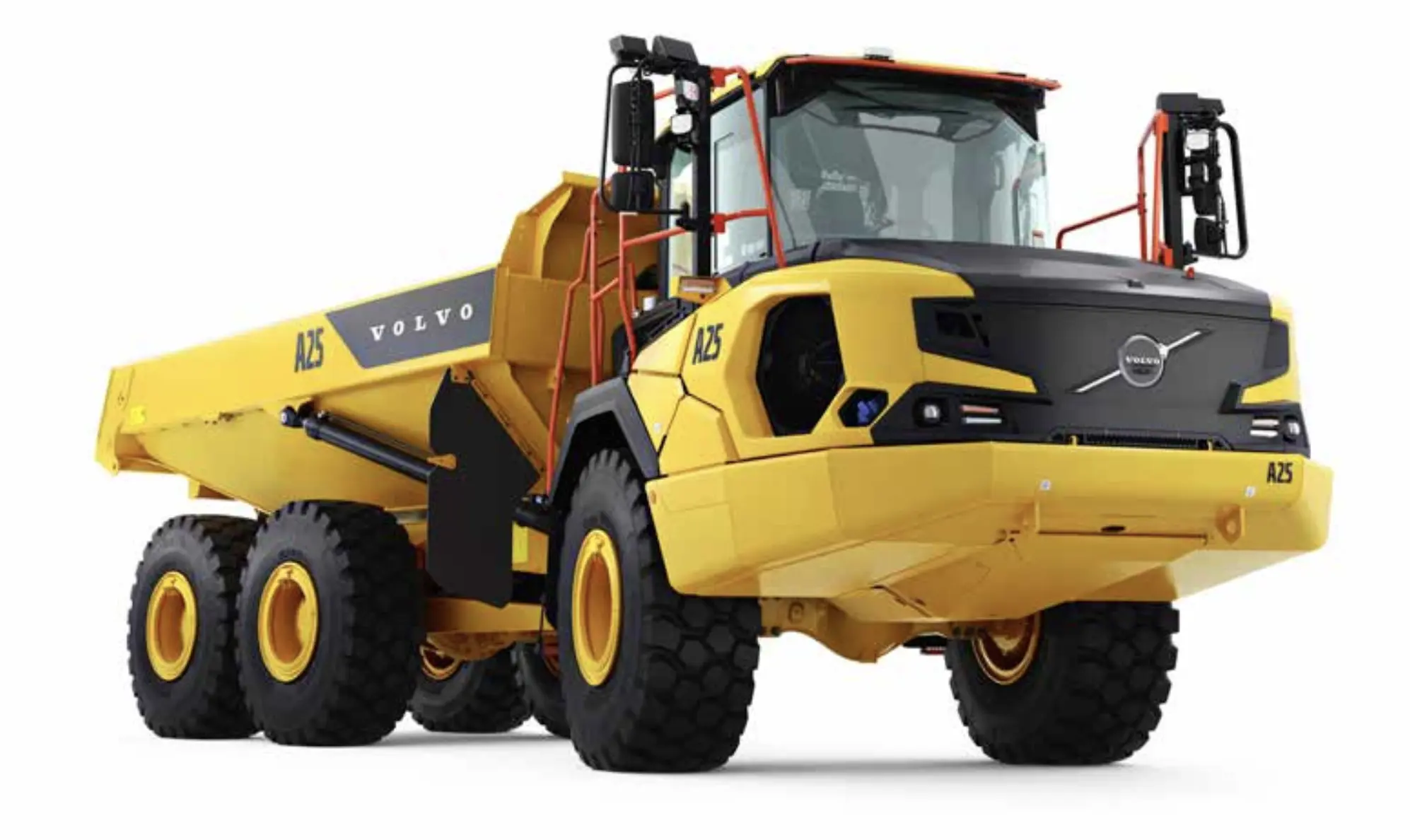

A leader in its class, the Volvo A25 Articulated Hauler is built to deliver exceptional off-road performance, outstanding levels of operator comfort and maximum uptime. With key features including Volvo drivetrain with Terrain Memory, an intuitive operator interface, visibility which exceeds industry standards, superior durability and lower maintenance costs, get ready to take on the most challenging projects across general construction, heavy infrastructure, quarrying and more.
Features And Benefits
- Proven Volvo drivetrain
- 1,000-hour engine service intervals
- Hill assist
- Durable gas-hydraulic suspension on the front axle
Images
Brochures
Video
Driveline
Engine Manufacturer Volvo
Engine Model D11M
Number Of Cylinders 6
After Treatment System 3 Selective Catalytic Reduction
Displacement 659 Inches³ (10.8 ltr)
Rated Speed 2100 rpm
Engine Output - Gross 315 hp (235 kW)
Torque 1505 lbf / ft (2040 Nm)
Drive Configuration 6 x 6
Final Drive Planetary
Transmission Type PowerTronic
Traction Control Yes
Front Differential Limited Slip
Second Axle Differential Limited Slip
Third Axle Differential Limited Slip
Tire Size - Standard 23.5 R25
Tire Type - Standard Radial
Front Suspension - Type 3 Point
Front Suspension Gas-Hydraulic Strut
Rear Suspension Hydraulic Cylinders
Service Brake - Type Wet Multi Disc
Dimensions
Length - Overall 33 ft 11 in (10344 mm)
Height - Over Cab 11 ft 2 in (3404 mm)
Height - Max 11 ft 2 in (3404 mm)
Ground Clearance 21 inches (529 mm)
Width Over Tires 9 ft 5 in (2871 mm)
Width - Transport 9 ft 5 in (2871 mm)
Width - Operating 11 ft 4 in (3457 mm)
Wheelbase 16 ft 9 in (5109 mm)
Length - Body 17 ft 7 in (5362 mm)
Loading Height 9 ft (2748 mm)
Full Dump Height 21 ft 5 in (6518 mm)
Hoist - Type Twin, 1-Stage
Dump Angle 72 °
Articulation Angle 45 ± °
Turning Radius - Outside 26 ft 10 in (8175 mm)
Turning Radius - Inside 13 ft 9 in (4190 mm)
Capacities
Fuel Tank 100.4 gallons (US) (380 ltr)
Heaped Capacity 20 yd³ (15.3 m³)
Performance
Cycle Time - Raise 12 s
Unladen Axle Load - Front 28220 lbs (12800 kg)
Unladen Axle Load - Rear 22490 lbs (10200 kg)
Laden Axle Load - Front 32630 lbs (14800 kg)
Laden Axle Load - Rear 73190 lbs (33200 kg)
Front - Unladen 18.9 PSI (130 kPa)
Rear - Unladen 7.3 PSI (50 kPa)
Front - Laden 22.1 PSI (152 kPa)
Rear - Laden 24.2 PSI (167 kPa)
Speed - Forward Maximum 32.7 mph (53 kph)
Speed - Reverse Maximum 8.5 mph (14 kph)
Weights
Net Weight 50710 lbs (23000 kg)
Payload 55120 lbs (25000 kg)
Gross Weight 105820 lbs (48000 kg)
