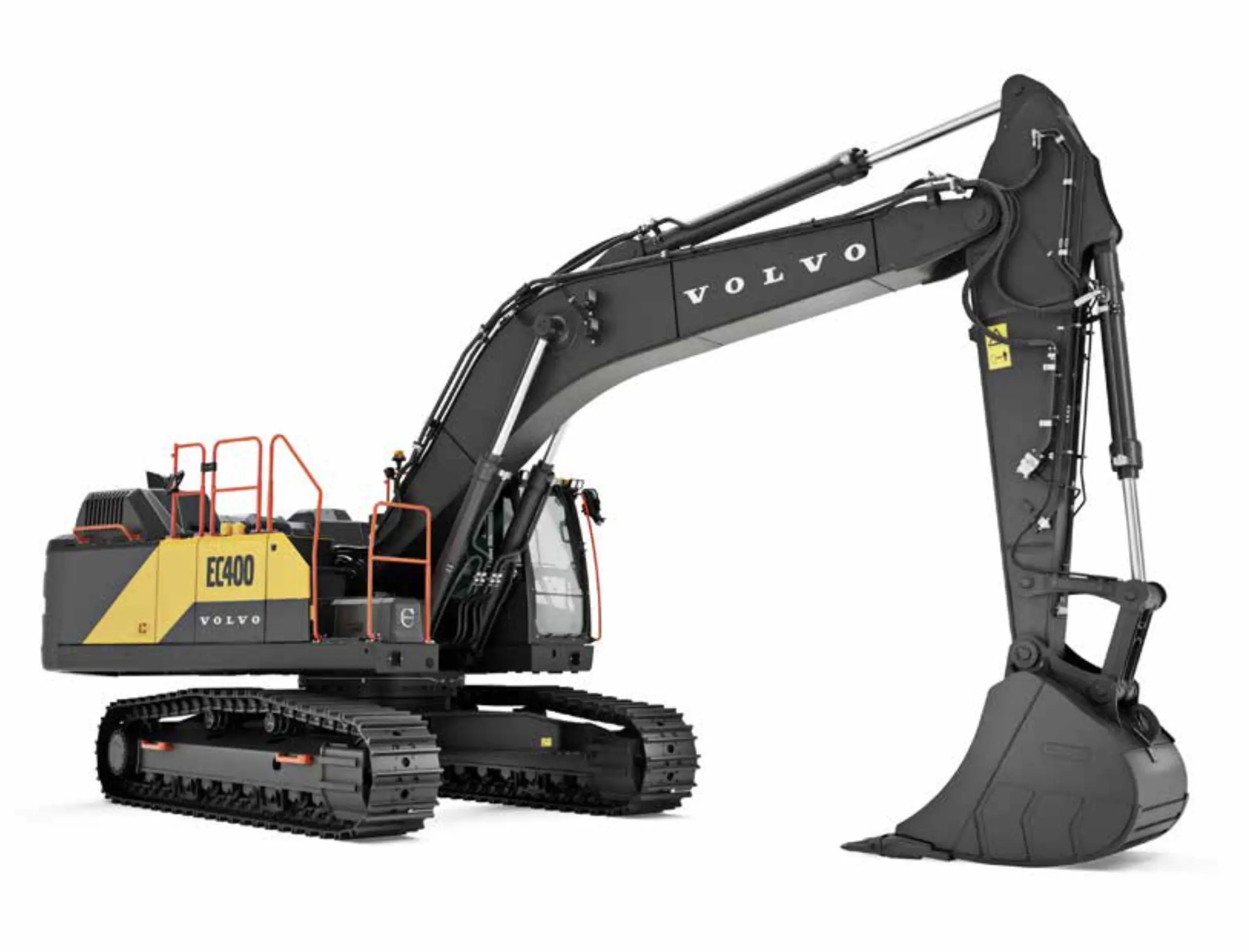

EC400
8b5364d4-47c6-4c49-b00e-770b4243eea1
Description
With a strong and robust undercarriage, the EC400 is a perfect partner in quarries and
on construction sites across the globe. Thanks to its solid structure it can handle tough conditions like those in a quarry but still enjoys improved fuel efficiency compared to previous models. Now even easier to service and with a comfortable modern cab, it is a machine that meets the requirements of anyone from owner to operator.
Features And Benefits
- ROPS cab as standard
- Human identifying alarm separate from other obstacles
- Ground level access for service
- Electro-hydraulic system
- Dig Assist with On-Board Weighing
Images
Brochures
Video
Description
Standard Arm Length 10 ft 6 in (3200 mm)
Telematics
Telematics Available Yes
Driveline
Engine Manufacturer Volvo
Engine Model D13J
Displacement 781 Inches³ (12.8 ltr)
Rated Speed 1600 rpm
Engine Output - Net 338 hp (252 kW)
Engine Output - Gross 339 hp (253 kW)
Number Of Track Rollers - Each Side 9
Track Shoe Width 32 inches (800 mm)
Dimensions
Bucket Capacity 1.86-3.05 yd³ (1.42-2.33 m³)
Bucket Weight 3549-4410 lbs (1610-2000 kg)
Transport Length Mono Boom 36 ft 11 in (11260 mm)
Max Transport Height 12 ft 2 in (3720 mm)
Max Machine Width 11 ft 11 in (3640 mm)
Track Length On Ground 13 ft 11 in (4240 mm)
Zero Tailswing No
Variable Undercarriage Availability No
Ground Level Reach 36 ft 1 in (11010 mm)
Dig Height 34 ft (10370 mm)
Dump Height - Mono Boom 23 ft 5 in (7140 mm)
Dig Depth 24 ft 11 in (7590 mm)
Capacities
Fuel Tank 159 gallons (US) (600 ltr)
Performance
Ground Bearing Pressure 7.9 PSI (54.8 kPa)
Arm Tearout 40720 lbf (181 kN)
Bucket Breakout 54470 lbf (242 kN)
Number Of Main Pumps 2
Total Flow 152 gallons (US) / min (576 lt/min)
Weights
Operating Weight 90120 lbs (40870 kg)
