CR35B
8b597b01-1a28-4464-9726-4638c9a0253b
MAINTAIN YOUR PRODUCTIVITY
Description

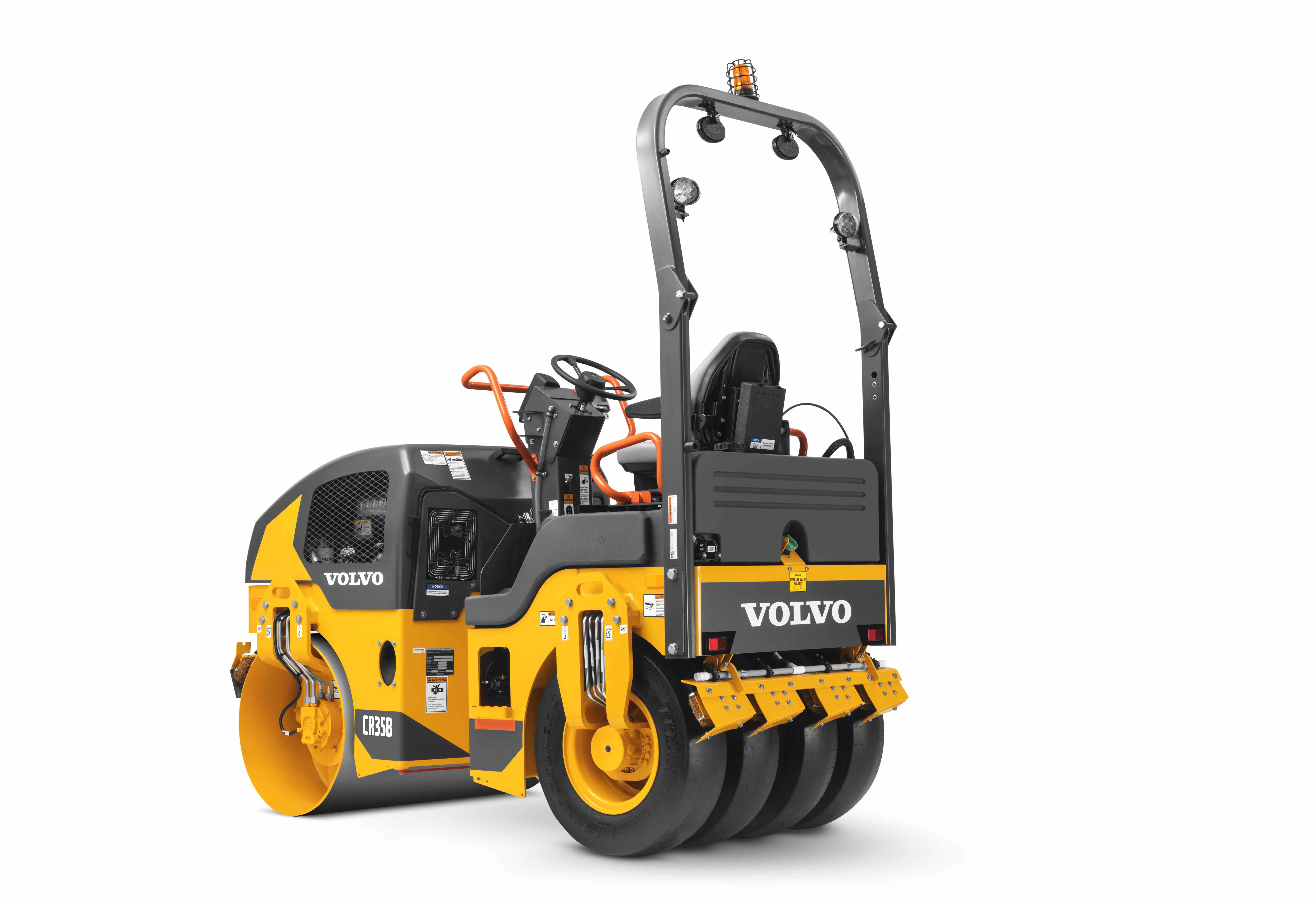

The CR35B Combination roller from Volvo, a highly efficient machine designed to increase performance and reduce fuel consumption on small scale compaction projects. Featuring the new engine, this machine meets the Tier 4 Final emissions regulations. Experience high performance machine and enhanced productivity with Volvo.
Features And Benefits
- High Productivity
- Lifetime Frame & Structure Guarantee (Frame, Articulation Joint)
Images
Brochures
Video
Driveline
Engine Manufacturer Kubota
Engine Model D 1803 - CR-TE4B
Diesel Oxidation Catalyst Yes
Selective Catalytic Reduction No
Displacement 111.43 Inches³ (1.826 ltr)
Rated Speed 2700 rpm
Engine Rated Power 49.6 hp (37 kW)
Steering Type Articulated
Tire Size 7.5 - 15
Number Of Tires 4
Dimensions
Overall Length 102.9 inches (2614 mm)
Height Over ROPS 107.3 inches (2725 mm)
Overall Width 56.5 inches (1435 mm)
Wheelbase 68.6 inches (1742 mm)
Ground Clearance 7.3 inches (185 mm)
Drum Width - Front 52 inches (1320 mm)
Width Over Tyres 4 ft 3.2 in (1300 mm)
Rolling Width 52 inches (1320 mm)
Drum Shell Thickness 0.55 inches (14 mm)
Turn Radius - Inside 101.9 inches (2587 mm)
Capacities
Fuel Tank 17.4 gallons (US) (66 ltr)
Performance
Travel Speed 1 7.3 mph (11.8 kph)
Frequency - Stage 1 - Front 69 Hz
Amplitude Stage 1 - Front 0.015 inches (0.37 mm)
Centrifugal Force 1 - Front 8050 lbf (35.8 kN)
Weights
Operating Weight 6515 lbs (2961 kg)
Weight On Front 3340 lbs (1518 kg)
Weight On Rear 3175 lbs (1443 kg)
