ECR145
a1b2290f-1a25-4b0a-b652-a954107d6c12
Description

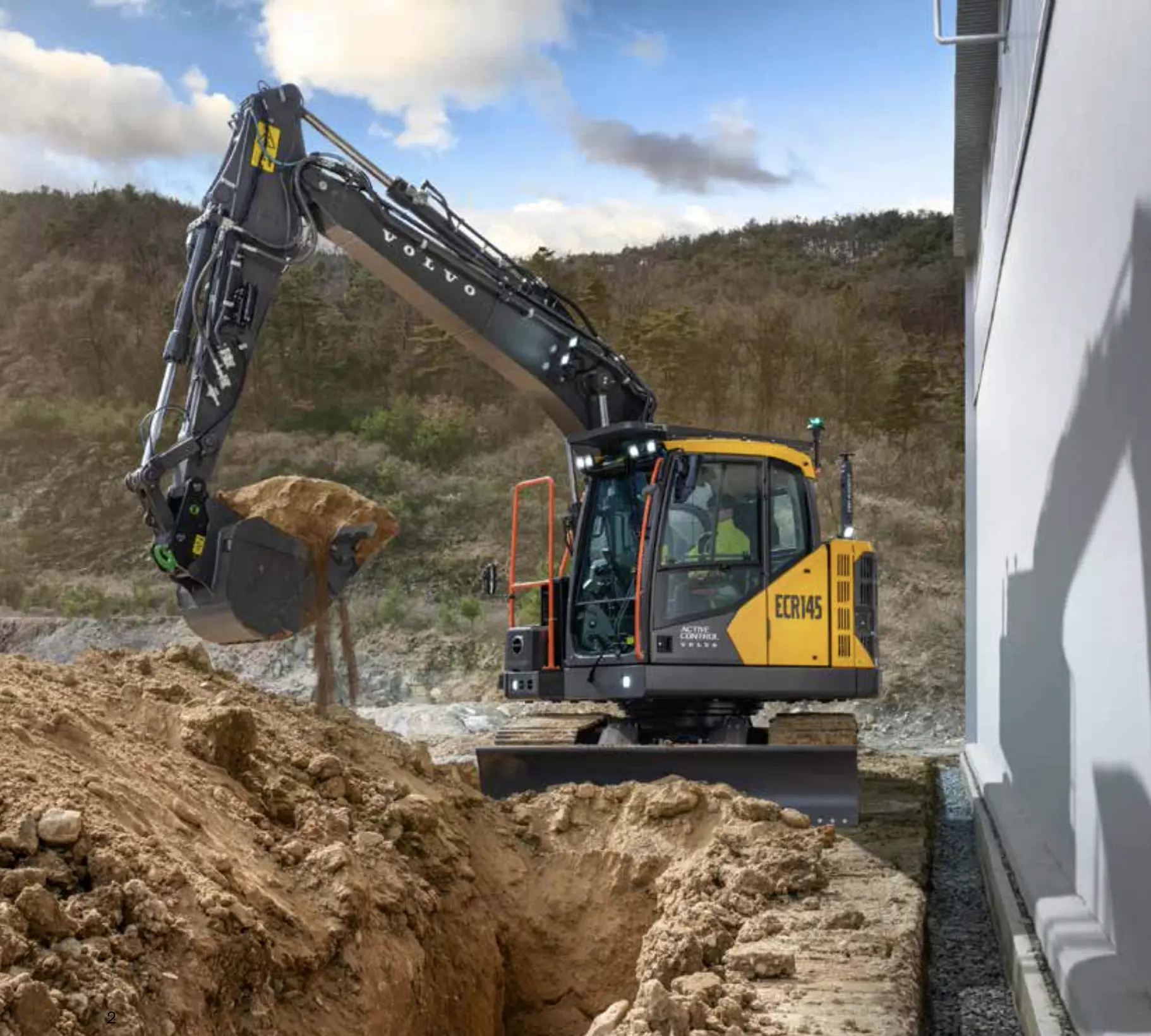

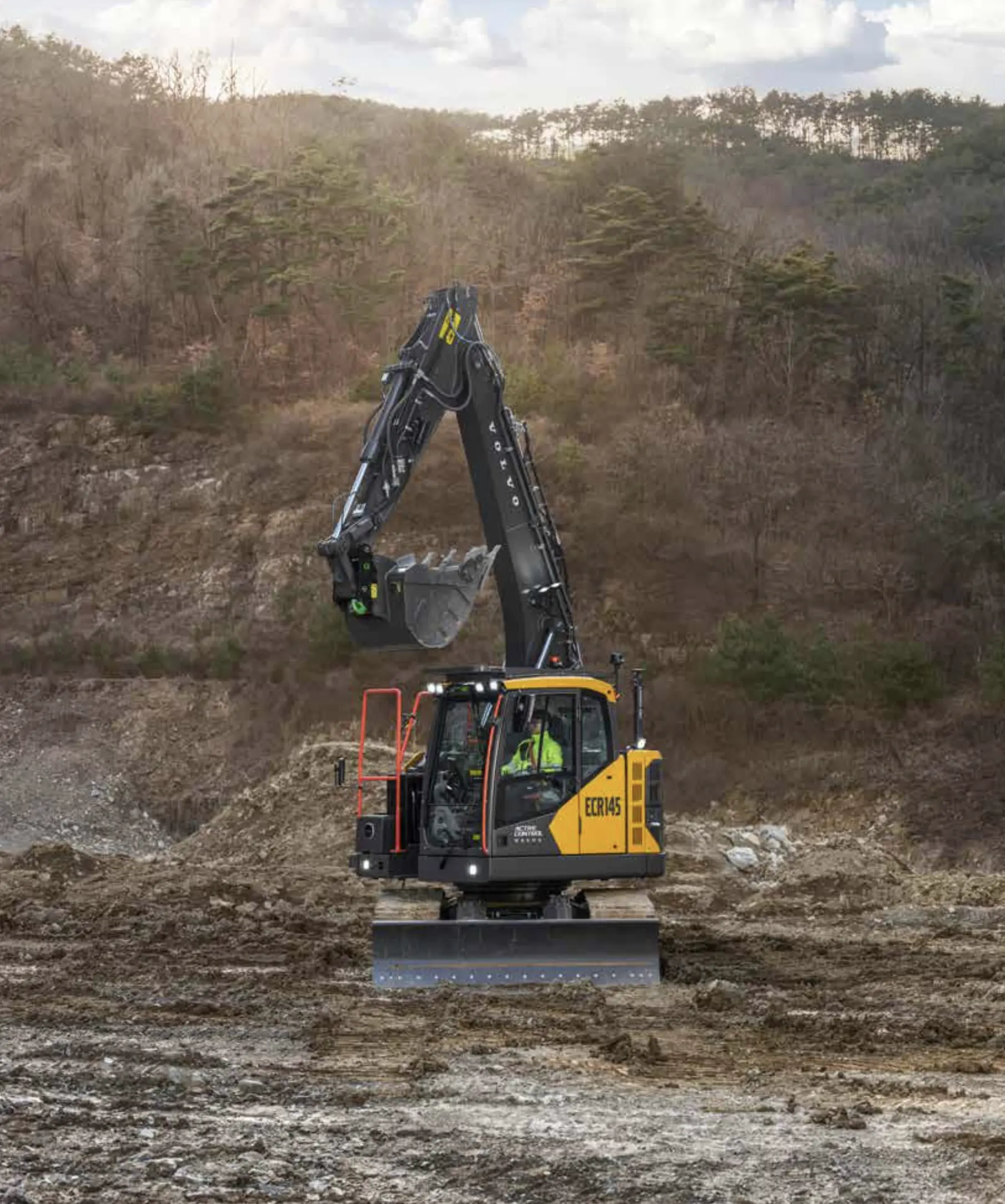

The ECR145 redefines what is possible from a short swing radius machine, with more comfort, more performance and more efficiency. With a bigger cab, increased fuel efficiency and improved lifting capacity, count on the ECR145 to deliver optimum results in short swing applications.
Features And Benefits
- Human identifying alarm separate from other obstacles
- Radar warns for items outside the screen
- Conventional type cab on a short swing radius machine
- New right hand service access to upper platform
- Personalised settings for greater comfort
Images
Brochures
Video
Description
Standard Arm Length 8 ft 2 in (2500 mm)
Telematics
Telematics Available Yes
Driveline
Engine Manufacturer Volvo
Engine Model D4J
Displacement 246 Inches³ (4 ltr)
Rated Speed 2000 rpm
Engine Output - Net 119 hp (89 kW)
Engine Output - Gross 121 hp (90 kW)
Number Of Track Rollers - Each Side 7
Track Shoe Width 24 inches (600 mm)
Dimensions
Bucket Capacity 0.33-1.01 yd³ (0.25-0.77 m³)
Bucket Weight 647-1112 lbs (293-504 kg)
Transport Length Mono Boom 24 ft 6 in (7476 mm)
Max Transport Height 9 ft 6 in (2900 mm)
Max Machine Width 8 ft 6 in (2590 mm)
Track Length On Ground 10 ft (3040 mm)
Zero Tailswing No
Heaped Bucket Capacity 0.86 yd³ (0.66 m³)
Variable Undercarriage Availability No
Ground Level Reach 26 ft 11 in (8215 mm)
Dig Height 30 ft 11 in (9415 mm)
Dump Height - Mono Boom 22 ft 7 in (6875 mm)
Dig Depth 18 ft 2 in (5530 mm)
Capacities
Fuel Tank 53 gallons (US) (200 ltr)
Performance
Ground Bearing Pressure 5.4 PSI (37.3 kPa)
Arm Tearout 15130 lbf (67.3 kN)
Bucket Breakout 21720 lbf (96.6 kN)
Number Of Main Pumps 2
Main Pump - Flow 68.6 gallons (US) / min (260 lt/min)
Weights
Operating Weight 32850 lbs (14897 kg)
