Construction Division

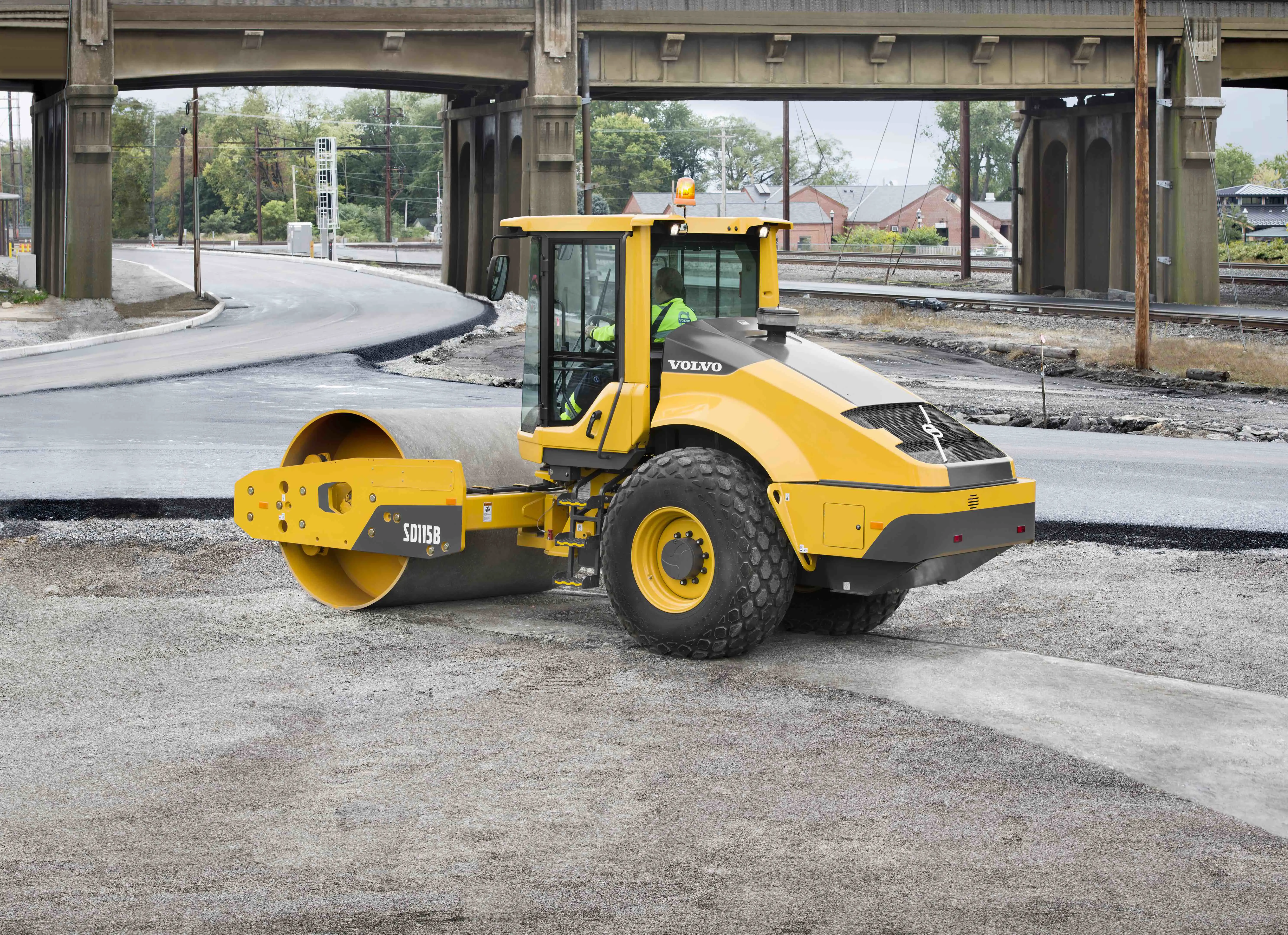

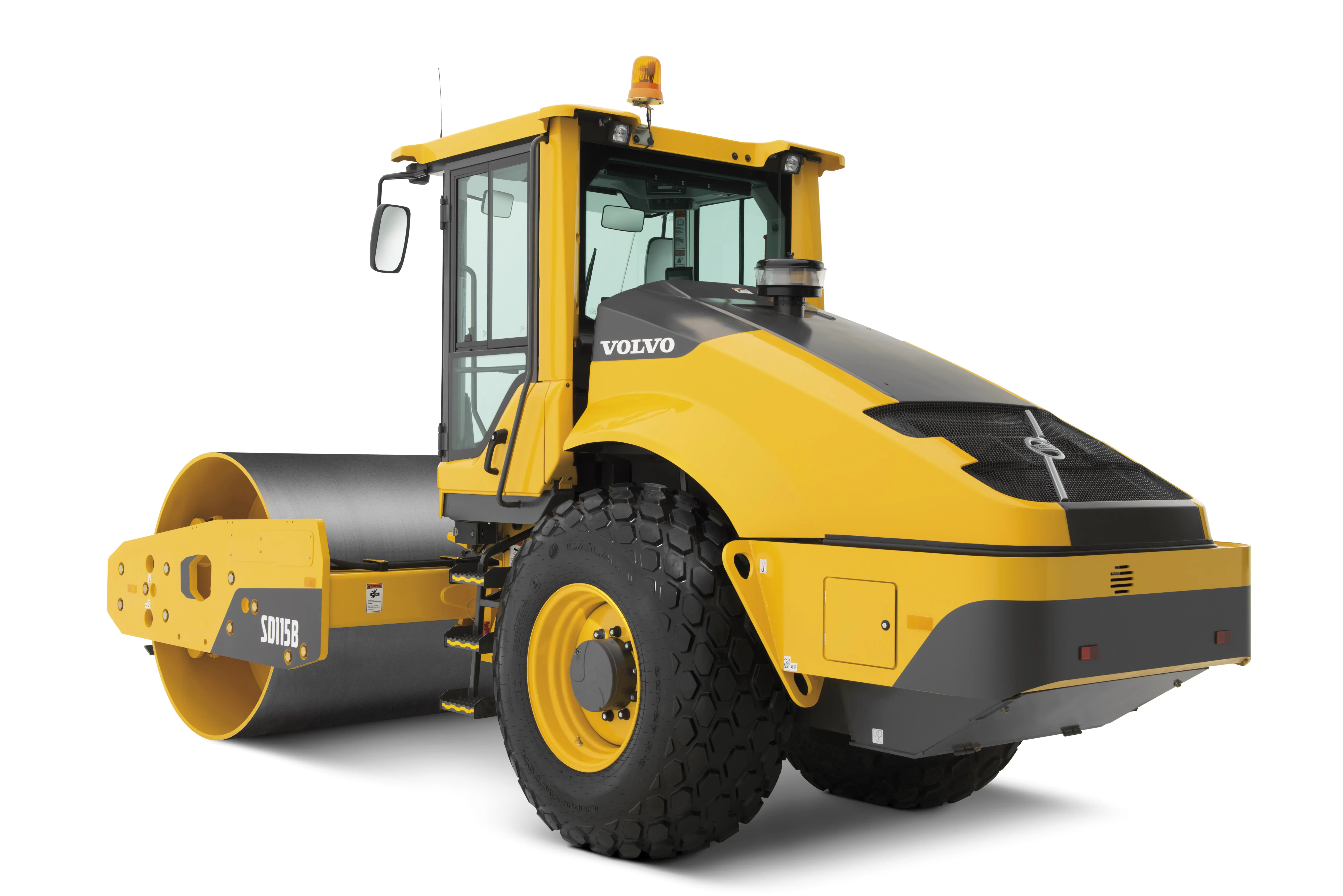

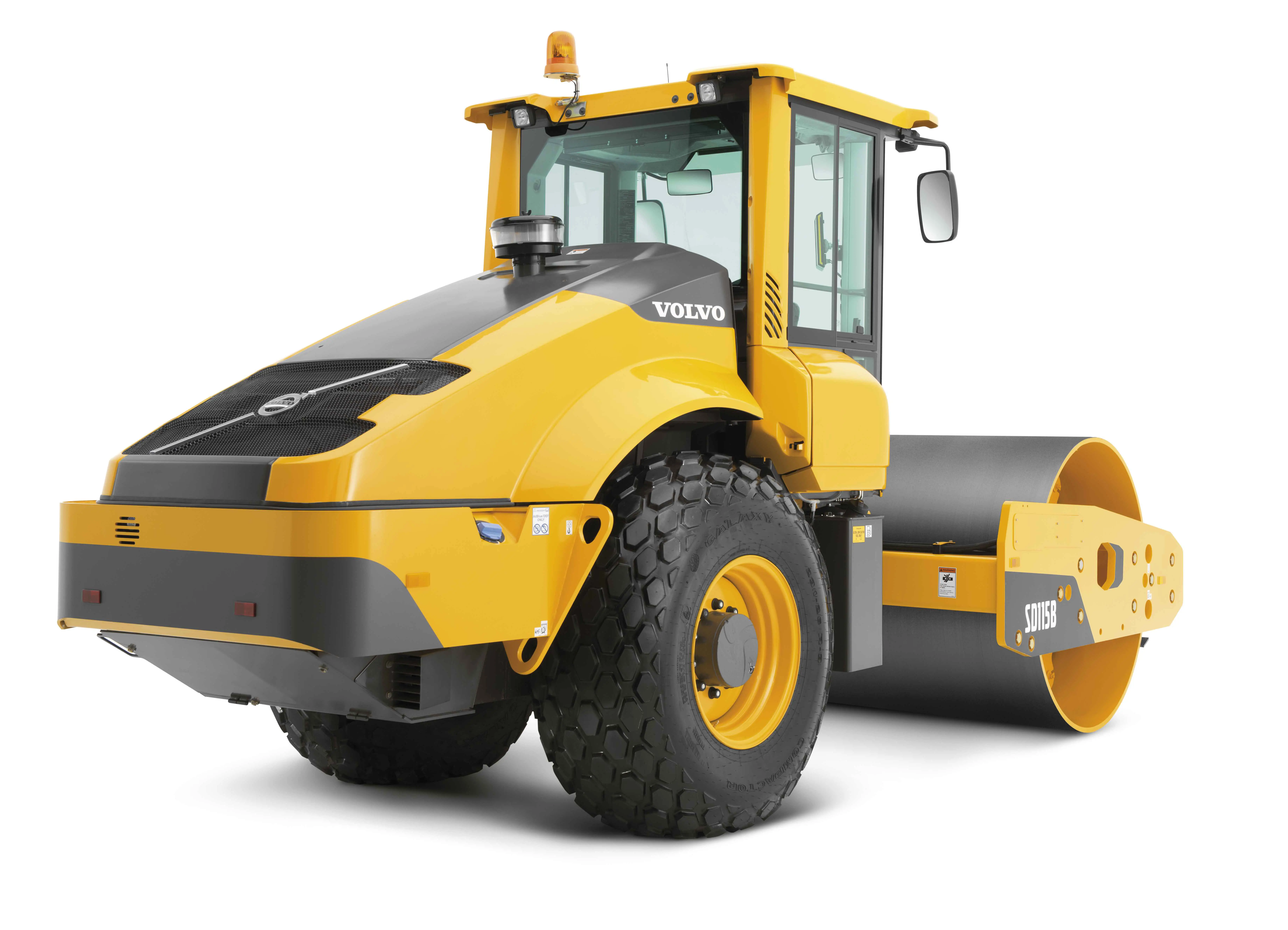

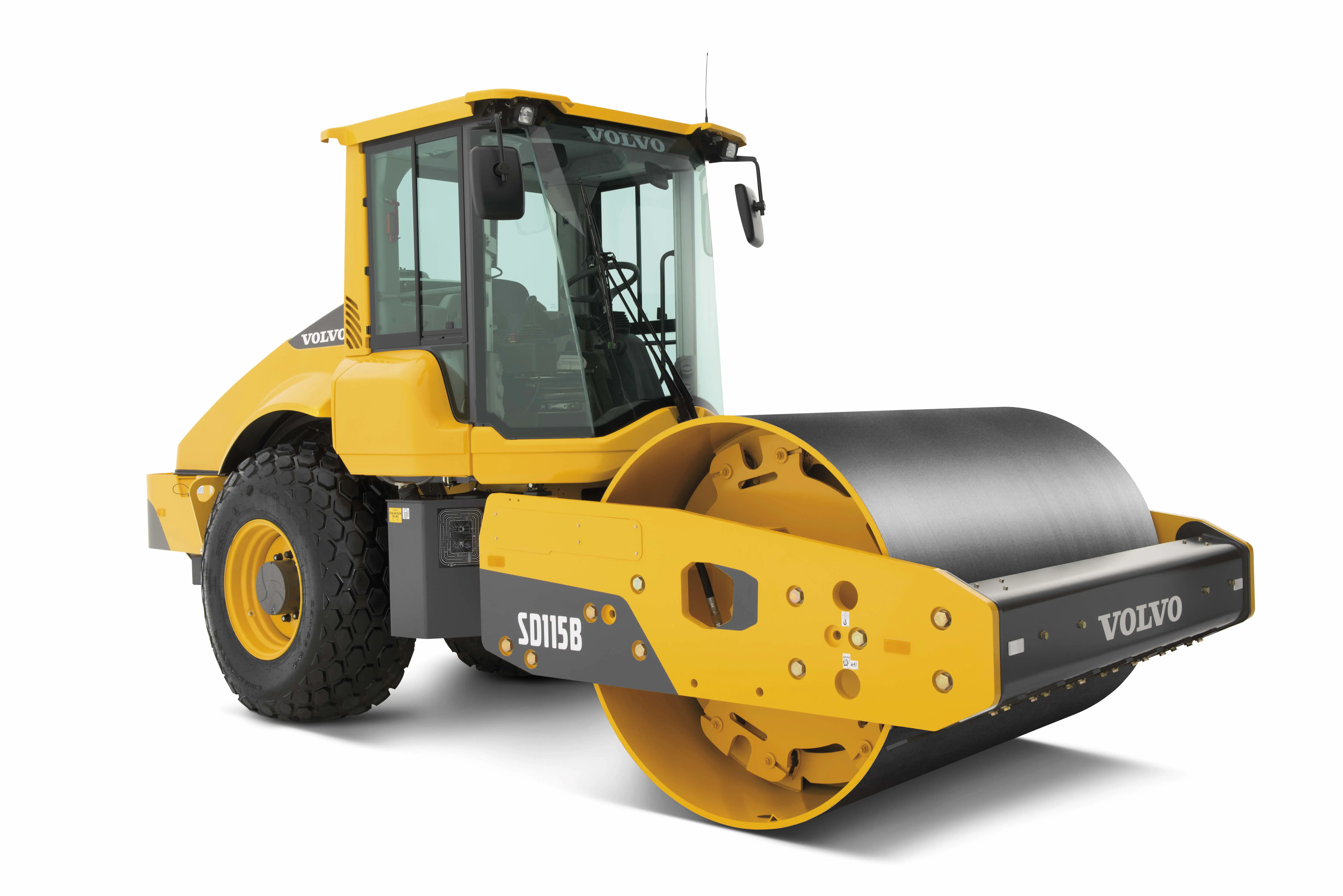

SD115B
a2e9439e-6b72-48b3-baaf-cc44250f1e12
PACKED WITH TECHNOLOGY
Description

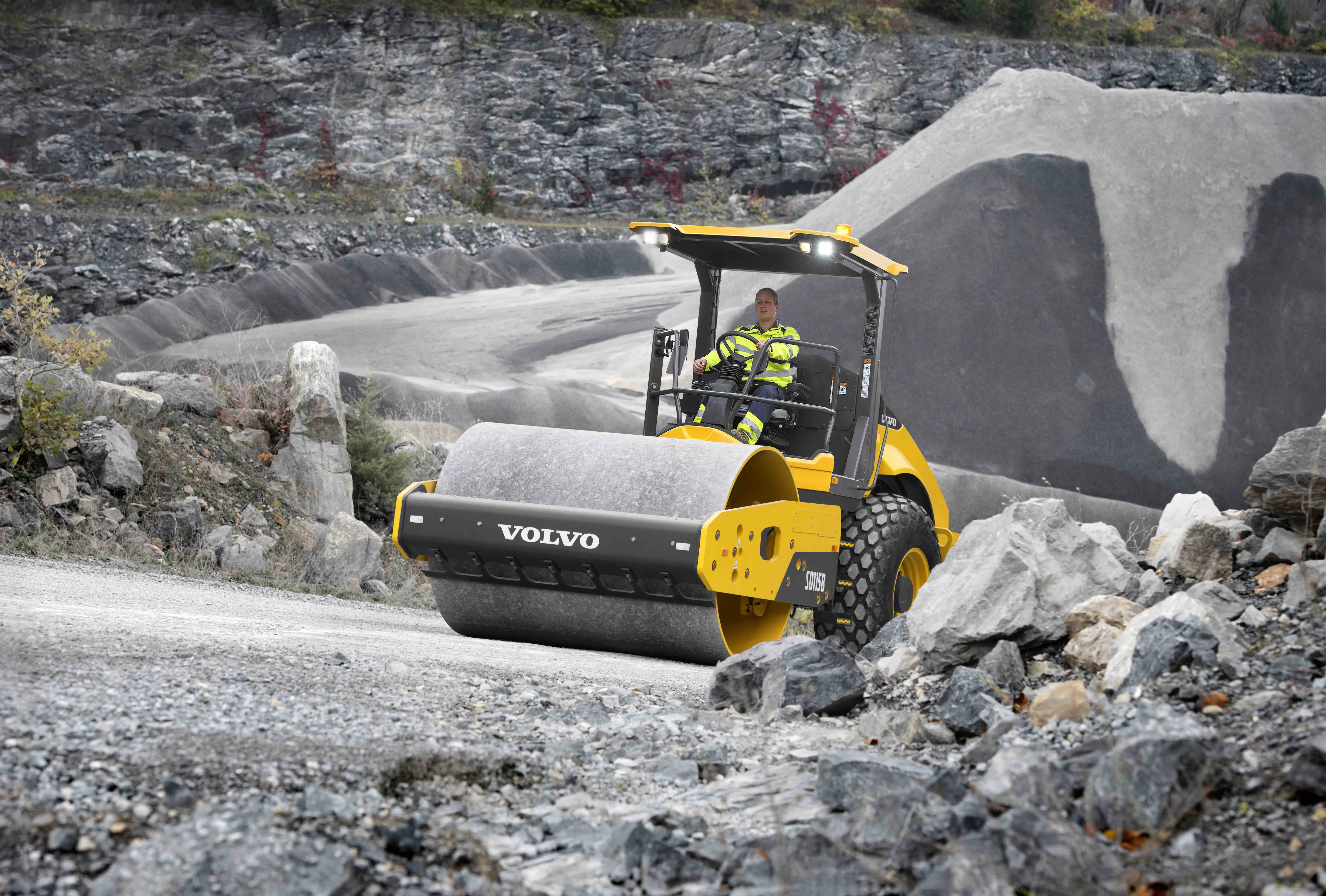

The new Volvo SD75B and SD115B soil compactors are packed with advanced technology. The drum is configured with ease while the engine controls itself. The compactors adapt to your application and jobsite to provide maximum versatility and performance.
Features And Benefits
- Advanced drum control system delivers multiple frequencies, dual amplitude, and optimized centrifugal force.
- Volvo Tier 4 Final engine
- ROPS/FOPS certified cab
- Lifetime warranty on frame and articulation joint
Images
Brochures
Video
Telematics
Telematics Available Yes
Platform CareTrack
Driveline
Engine Manufacturer Volvo
Engine Model D4
Aspiration Turbocharged
Selective Catalytic Reduction Yes
Rated Speed 2200 rpm
Engine Rated Output 147 hp (110 kW)
Transmission Hydrostatic
Tire Size 23.1 - 26
Dimensions
Overall Length 239.8 inches (6091 mm)
Height - With ROPS 118.1 inches (3000 mm)
Overall Width 90 inches (2286 mm)
Wheelbase 121.9 inches (3095 mm)
Ground Clearance 16 inches (406 mm)
Drum Width 84 inches (2134 mm)
Rolling Width 84 inches (2134 mm)
Drum Diameter 59 inches (1500 mm)
Drum Shell Thickness 1 inches (25 mm)
Steering Angle 35 ± °
Turning Radius - Inside 149.6 inches (3800 mm)
Capacities
Fuel Tank 43.5 gallons (US) (165 ltr)
DEF Tank 5 gallons (US) (20 ltr)
Hydraulic Tank 20 gallons (US) (75 ltr)
Performance
Drive To Drum / Wheel Yes / Yes
Travel Speed 1 2.8 mph (4.5 kph)
Travel Speed 2 6.2 mph (10 kph)
Frequency - Stage 2 33.8 Hz
Amplitude - Stage 1 0.08 inches (1.92 mm)
Amplitude - Stage 2 0.06 inches (1.5 mm)
Centrifugal Force - 1 56900 lbf (253 kN)
Centrifugal Force - 2 48100 lbf (214 kN)
Max. Travel Speed 6.2 mph (10 kph)
System Voltage 24 V
Number Of Batteries 2
Battery Voltage 12 V
Battery Capacity 1000 cca
Alternator Output 80 A
Weights
Operating Weight 25615 lbs (11643 kg)
Weight - Front 13735 lbs (6243 kg)
Weight - Rear 11880 lbs (5400 kg)
