Construction Division
L110H
a3523b1b-c5e7-41ae-8b45-64315894c163
Description

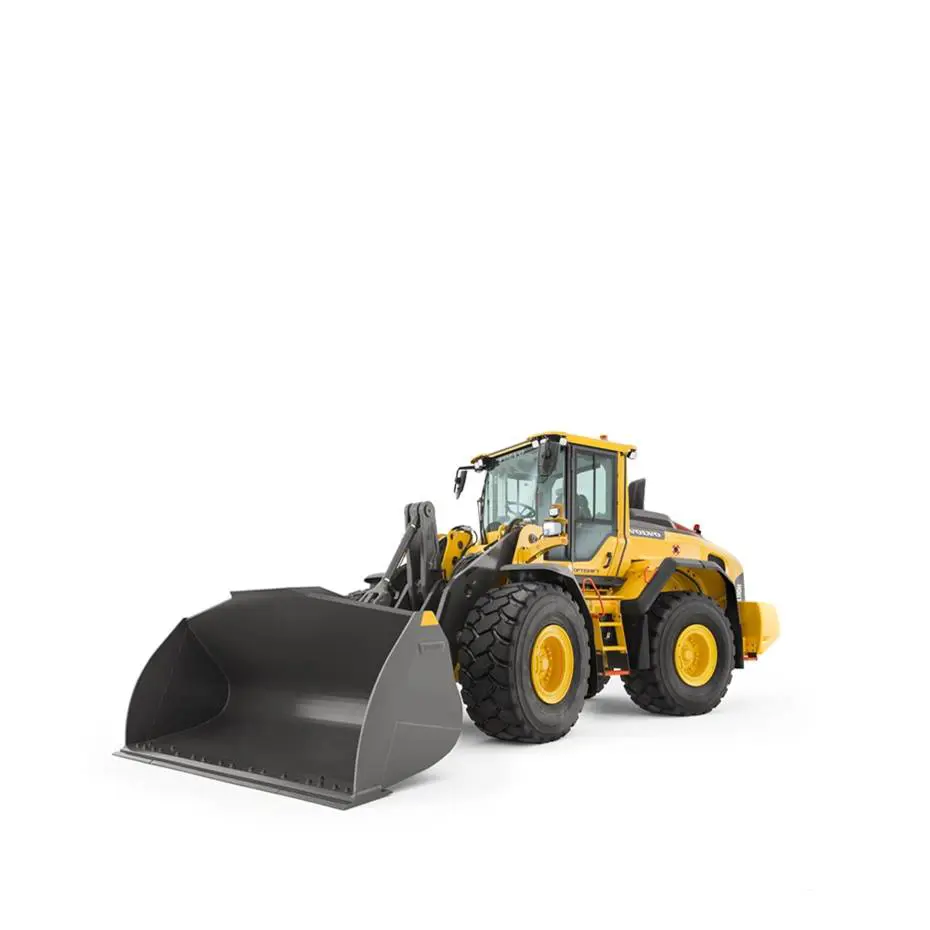

The Volvo L110H loader boasts state-of-the-art technology to increase your productivity and profitability. The ideally-matched, all-Volvo powertrain has been built to work together in perfect harmony – delivering the power, performance and reliability you expect from Volvo.
Features And Benefits
- Wide range of attachments
- Comfortable cab
- Excellent hydraulics
- Easy-to-use controls
- Outstanding serviceability
- Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
Images
Driveline
Engine Manufacturer Volvo
Engine Model D8J
Emissions Technology Cooled Exhaust Gas Recirculation
After Treatment System Diesel Particulate Filter
Aspiration Turbo - Charge Air Cooled
Displacement 473 Inches³ (7.8 ltr)
Rated Speed 1800 rpm
Engine Output - Gross 256 hp (191 kW)
Engine Output - Net 256 hp (191 kW)
Torque 926 lbf / ft (1255 Nm)
Transmission Type Powershift
Traction Control Yes
Tire - Manufacturer Michelin
Tire Size - Standard 23.5 R25
Tyre - Model XHA 2
Service Brake - Type Wet Disc
Dimensions
Wheelbase 10 ft 6 in (3200 mm)
Length With Bucket On Ground 27 ft (8220 mm)
Height - Over Cab 11 ft 1 in (3380 mm)
Ground Clearance 17 inches (430 mm)
Width Over Tires - Std 8 ft 9 in (2670 mm)
Bucket Type GP w/Edge
Bucket Width 9 ft 5 in (2880 mm)
Full Lift Dump Height 8 ft 9 in (2660 mm)
Full Lift Reach 4 ft 5 in (1350 mm)
Loader - Geometry Torque Parallel
Dump Angle - At Dump 45 °
Dump Angle - Maximum 50 °
Height - Pivot Pin 13 ft 3 in (4030 mm)
Height - Maximum 18 ft 5 in (5610 mm)
Turn Radius Over Bucket - Std. 20 ft 11.5 in (6385 mm)
Capacities
Fuel Tank 71.3 gallons (US) (270 ltr)
Heaped Capactiy 3.9 yd³ (3 m³)
Bucket Capacity - Smallest 3.9 yd³ (3 m³)
Largest Bucket Capacity 12.4 yd³ (9.5 m³)
Performance
Straight Tipping Load 28890 lbs (13100 kg)
Full Turn Tipping Load 24720 lbs (11210 kg)
Breakout - Bucket 36210 lbf (16425 kgf)
Bucket Breakout 36210 lbf (161 kN)
Ride Control System Yes
Oscillation - Rear Axle 26 °
Load Sensing Yes
Weights
Bucket Capacity 3.9-12.4 yd³ (3-9.5 m³)
Operating Weight 40930 lbs (18560 kg)
