DD35B
a6a085a7-60e1-4674-9d5e-91bf3f1a9172
MAINTAIN YOUR PRODUCTIVITY
Description

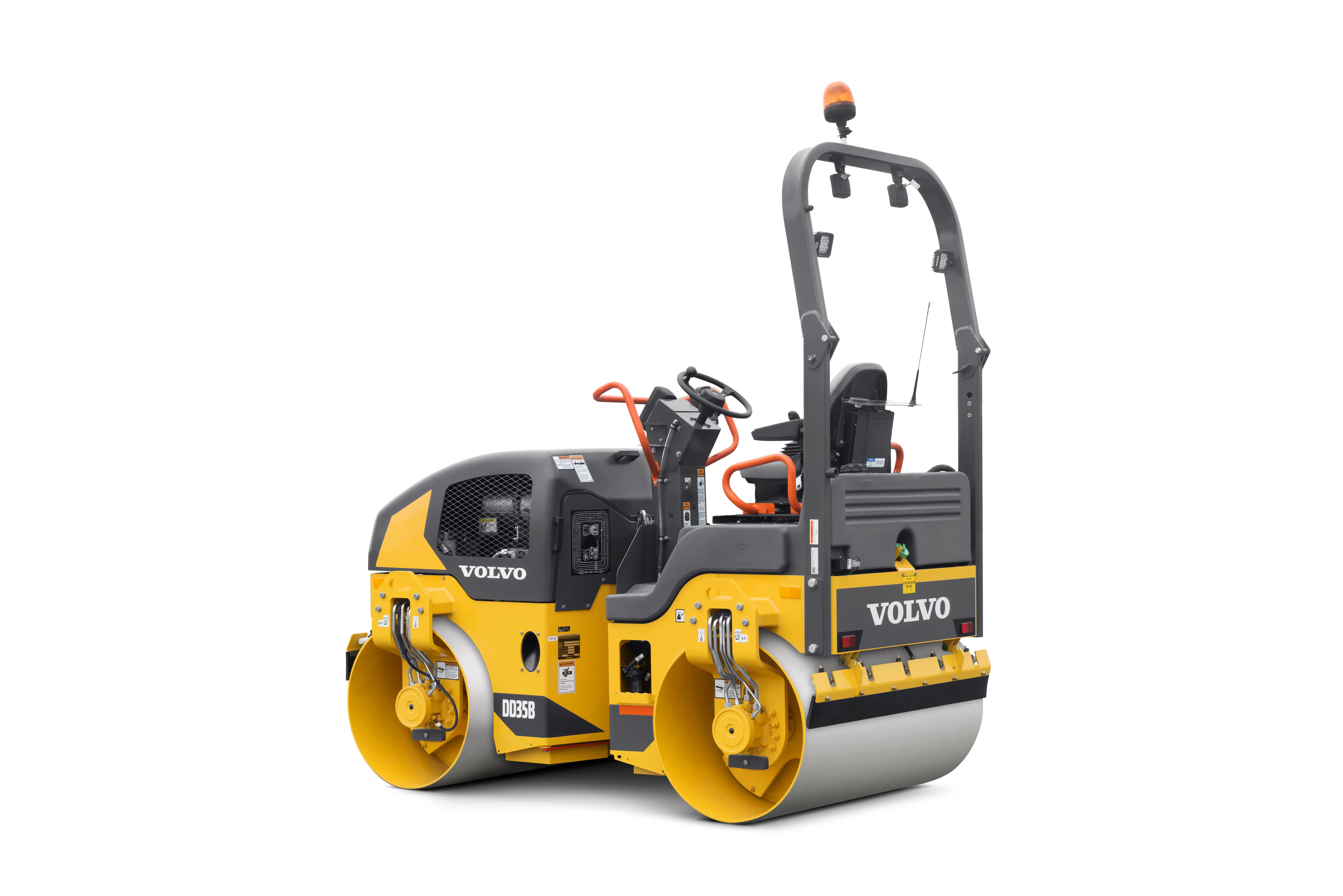

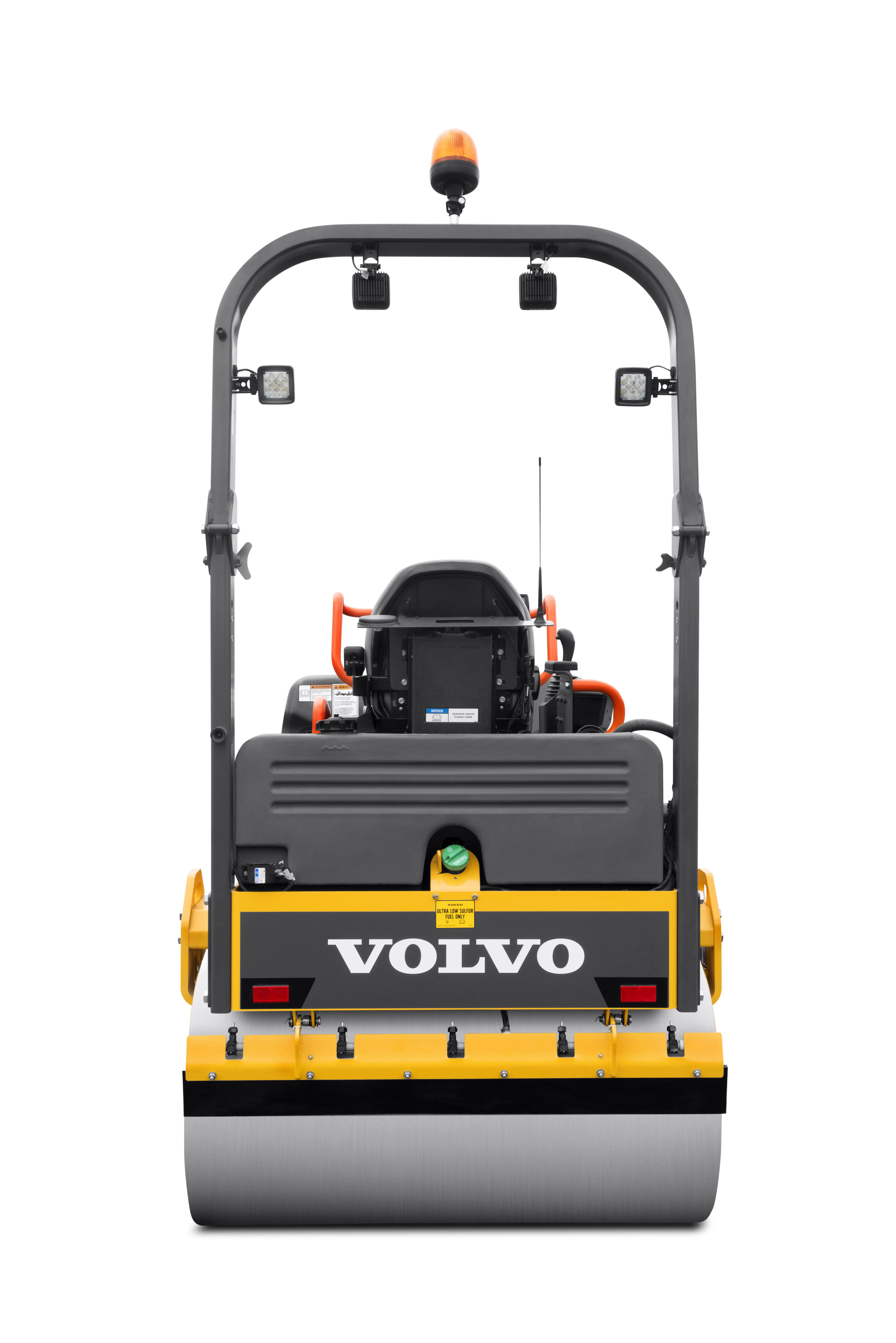

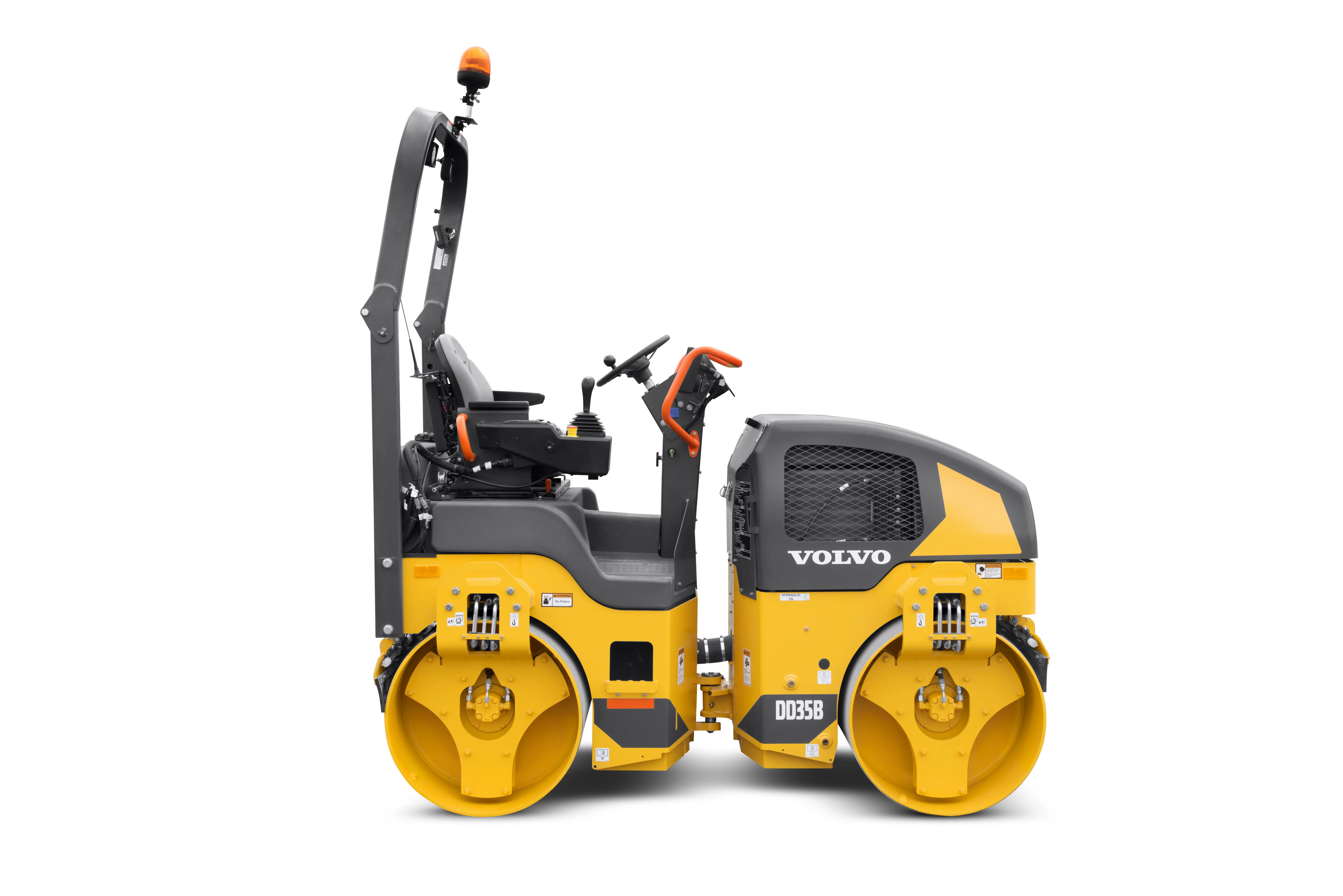

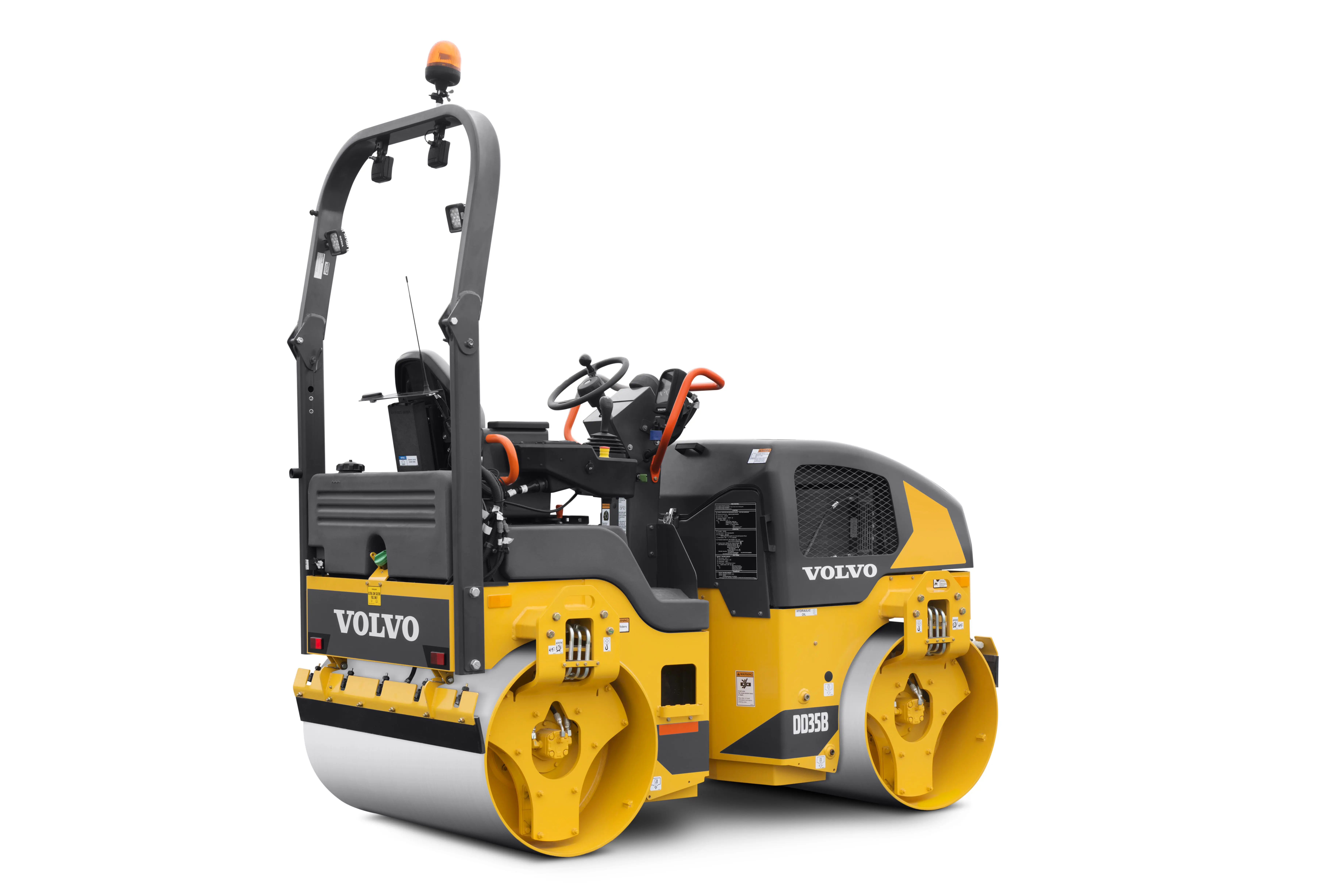

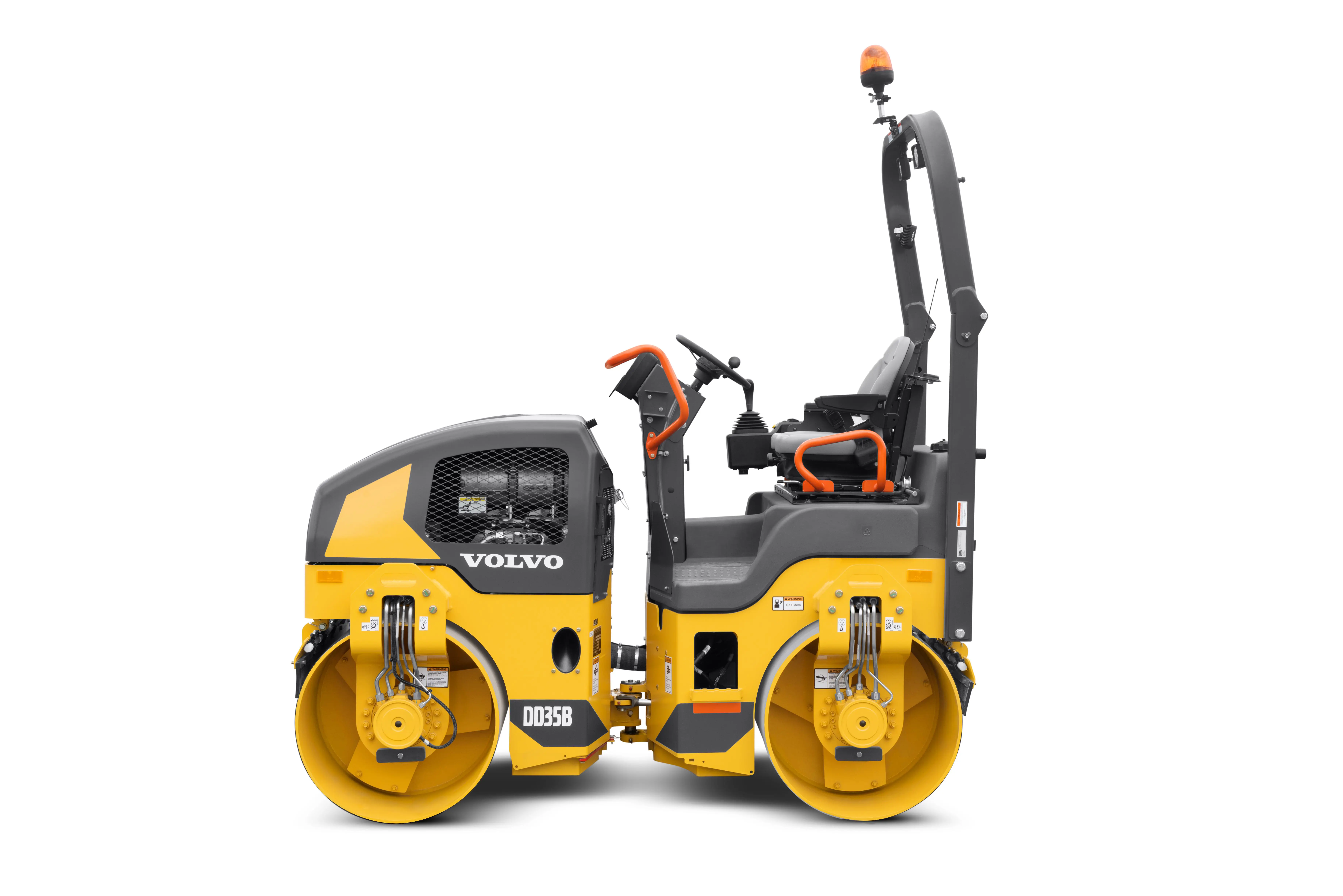

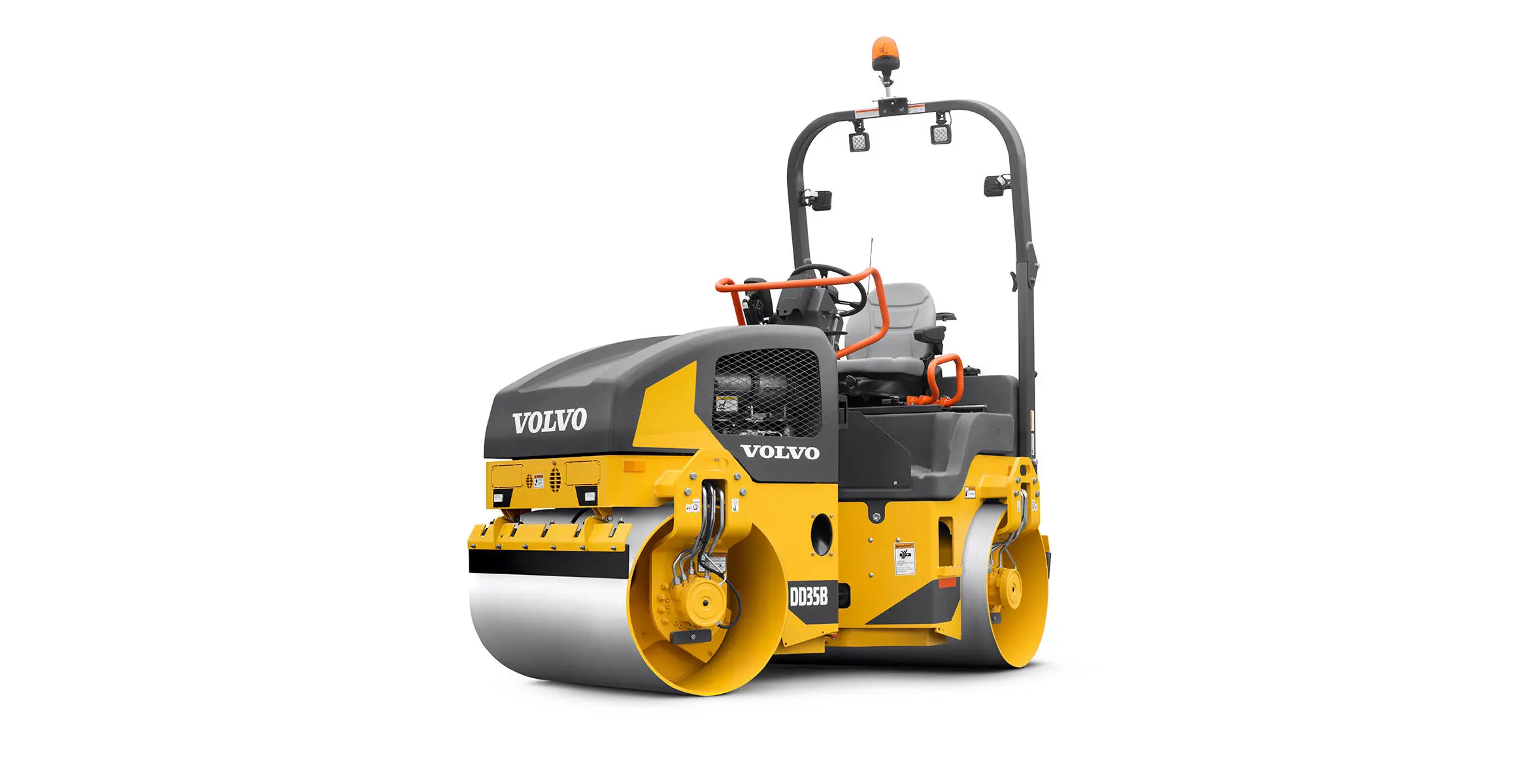

The DD35B asphalt roller from Volvo, a highly efficient machine designed to increase performance and reduce fuel consumption on small scale compaction projects. Featuring the new engine, this machine meets the Tier 4 Final emissions regulations. Experience high performance machine and enhanced productivity with Volvo.
Features And Benefits
- High Productivity
- Lifetime Frame & Structure Guarantee (Frame, Articulation Joint)
Images
Brochures
Video
DRIVELINE
Engine Manufacturer Kubota
Engine Model D 1803 - CR-TE4B
Rated Speed 2700 rpm
Engine Output 49.6 hp (37 kW)
Transmission Hydrostatic
DIMENSIONS
Overall Length 101 inches (2566 mm)
Height - With ROPS 105.6 inches (2681 mm)
Height - Without ROPS 77.8 inches (1977 mm)
Overall Width 58.5 inches (1485 mm)
Wheelbase 67.9 inches (1725 mm)
Drum Width - Front 54.1 inches (1375 mm)
Drum Width - Rear 54.1 inches (1375 mm)
Rolling Width 54.1 inches (1375 mm)
Drum Diameter - Front 29.1 inches (740 mm)
Drum Diameter - Rear 29.1 inches (740 mm)
Drum Shell Thickness 0.63 inches (16 mm)
Turning Radius - Inside 99.7 inches (2532 mm)
Capacities
Fuel Tank 17.4 gallons (US) (66 ltr)
Tank Capacity For Drum 79 gallons (US) (299 ltr)
Performance
Drive To Drums Both
Travel Speed 1 6.4 mph (10.2 kph)
Max. Travel Speed 6.4 mph (10.2 kph)
Number Of Frequency/Amplitude Settings 1
Frequency - Stage 1 - Front 66.7 Hz
Frequency - Stage 1 - Rear 66.7 Hz
Amplitude Stage 1 - Front 0.013 inches (0.33 mm)
Amplitude Stage 1 - Rear 0.013 inches (0.33 mm)
Centrifugal Force 1 - Front 7500 lbf (33 kN)
Centrifugal Force 1 - Rear 7500 lbf (33 kN)
Max Amplitude 0.013 inches (0.33 mm)
Min Amplitude 0.013 inches (0.33 mm)
Max Frequency 66.7 Hz
Min Frequency 66.7 Hz
Max Centrifugal Force 7500 lbf (33 kN)
Min Centrifugal Force 7500 lbf (33 kN)
Weights
Operating Weight 8185 lbs (3713 kg)
Weight - Front 3930 lbs (1783 kg)
Weight - Rear 4255 lbs (1930 kg)
