SWING INTO ACTION
Description
SWING INTO ACTION

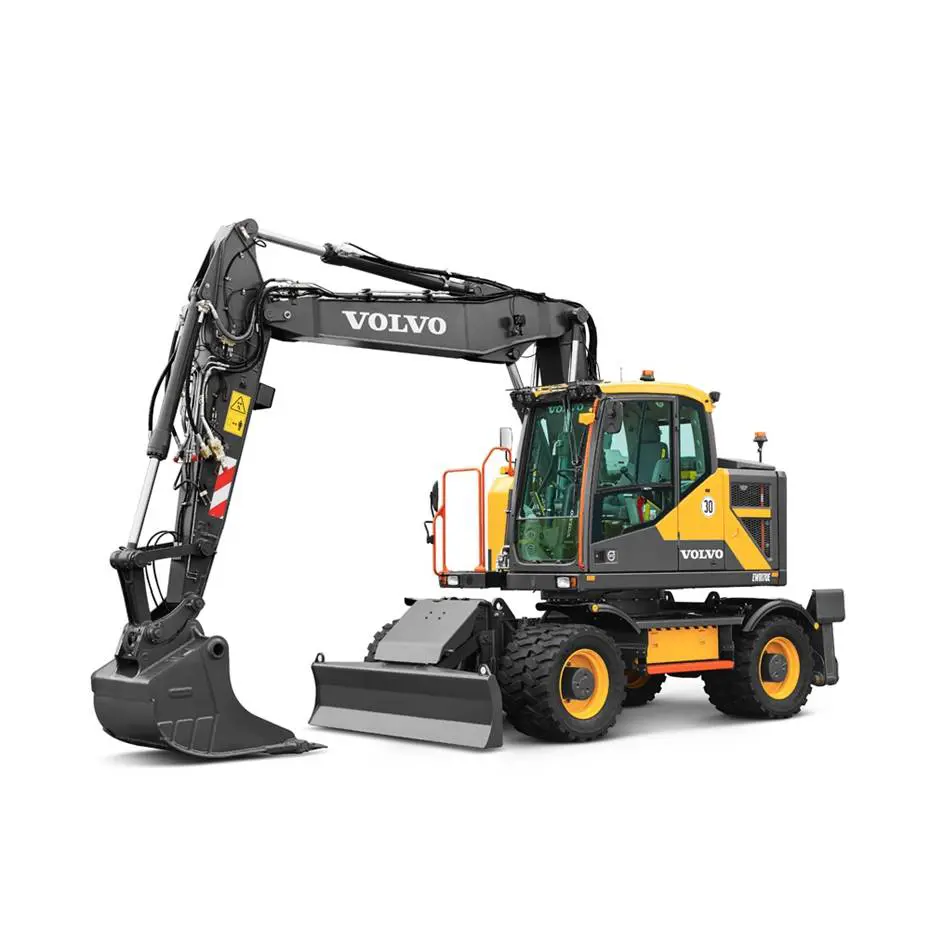

Built with our customers for our customers, the new Volvo EWR170E features one of the shortest tail swings on the market. Equipped with the latest features, powerful engine and intelligent technology, the EWR170E operates with efficiency and control, for ultimate productivity.
Features And Benefits
- SHORT SWING PERFORMANCE
- The short tail swing of the EWR170E – at 5′ 10.5″ ft in – makes for efficient and safe work in confined spaces.
- BUILT IN PARTNERSHIP
- Volvo has involved the customer at every stage of the machine's design, through on-site visits and test drives.
- SEE MORE, DO MORE
- The combination of the space on the front right of the machine and the positioning of the engine, allow for a clear and unobstructed view.
- COMFORT AT SPEED
- Experience smoother and faster travel when driving over rough terrain, thanks to the optional Boom Suspension System.
- STEELWRIST® TILTROTATOR
- Boost productivity and reduce fuel consumption with the factory-fitted Steelwrist® tiltrotator, which works collectively with the two joysticks and machine display for ultimate control.
Images
Telematics
Telematics Available Yes
Driveline
Engine Manufacturer Volvo
Engine Model D4J
Displacement 246.5 Inches³ (4.04 ltr)
Rated Speed 2000 rpm
Engine Output - Net 150 hp (112 kW)
Engine Output - Gross 154 hp (115 kW)
Standard Number Of Tires 8
Tire Size - Standard 10.00-20
Dimensions
Overall Width 8 ft 4 in (2540 mm)
Overall Width Stabilizers Down 13 ft 1 in (3990 mm)
Wheelbase 8 ft 6 in (2600 mm)
Ground Level Reach 29 ft 6 in (9030 mm)
Max Dig Height 32 ft 10 in (10010 mm)
Dump Clearance Height 22 ft 9 in (6930 mm)
Dig Depth 18 ft 6 in (5640 mm)
Capacities
Fuel Tank 52.8 gallons (US) (200 ltr)
Reference Capacity 0.92 yd³ (0.7 m³)
Performance
Swing Speed 9 rpm
Bucket Breakout - Articulated Boom 24392 lbf (108.5 kN)
Dipper Tearout - Boost, Articulated Boom 14275 lbf (63.5 kN)
Total Flow - Main Pumps 73 gallons (US) / min (275 lt/min)
Weights
Operating Weight 42329 lbs (19200 kg)
