Construction Division
EC500
a9b3dbb9-0a02-433a-b4ff-bcdd479cce78
Description

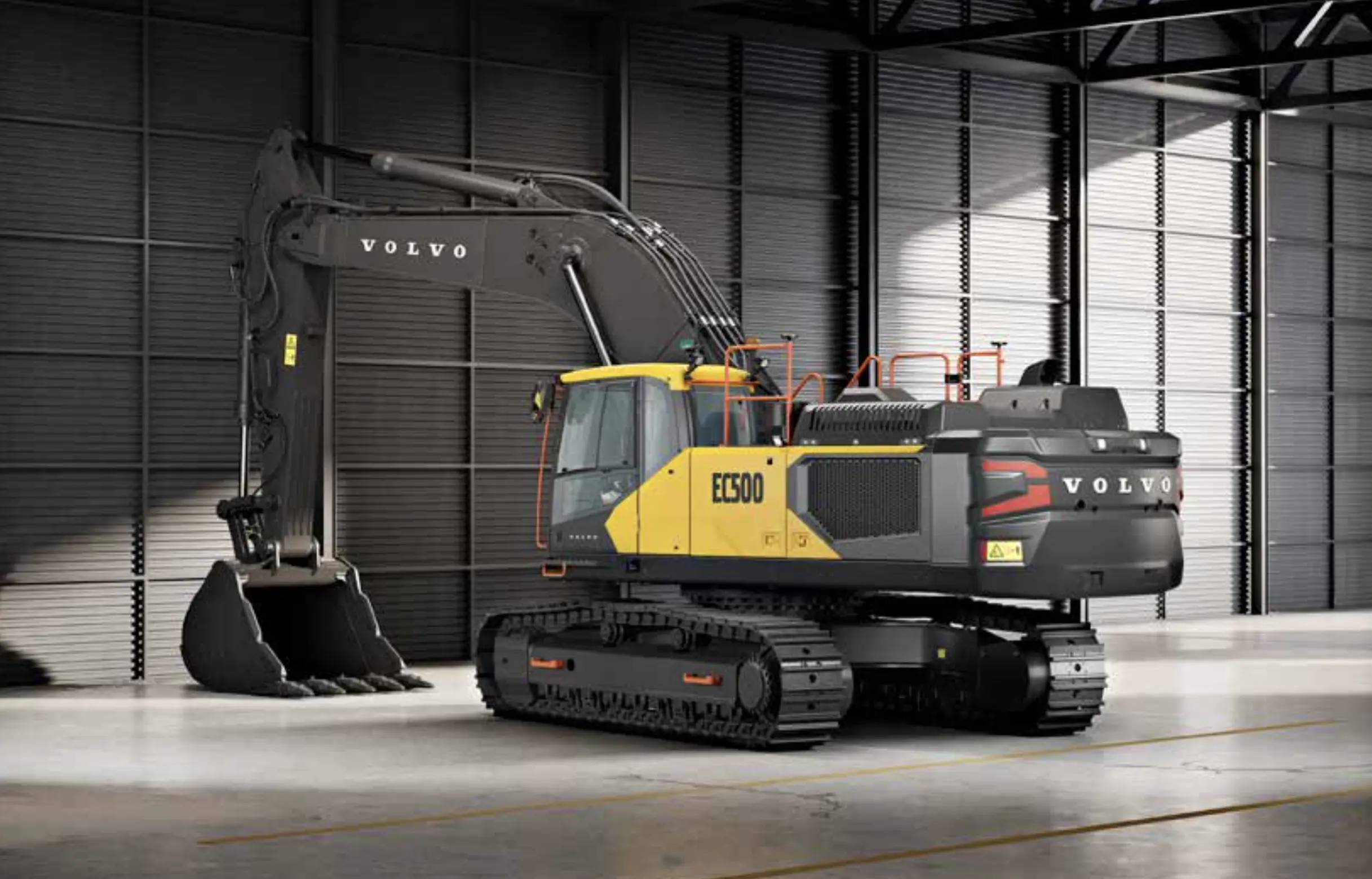

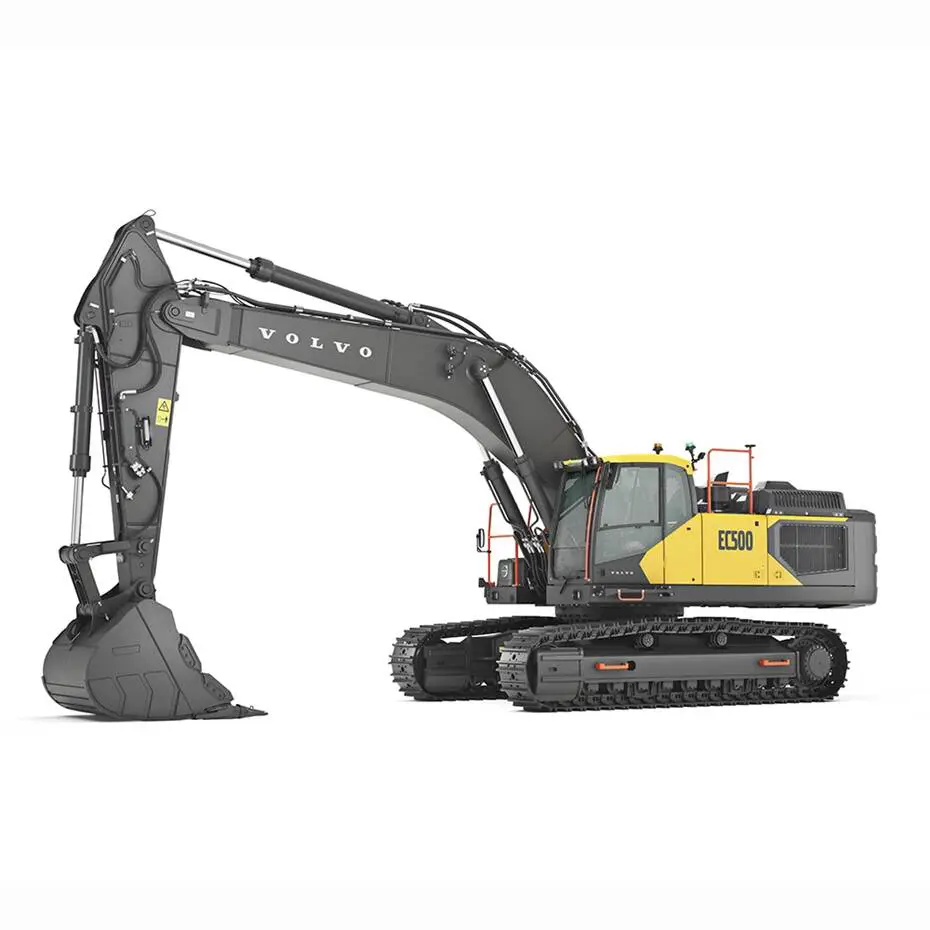

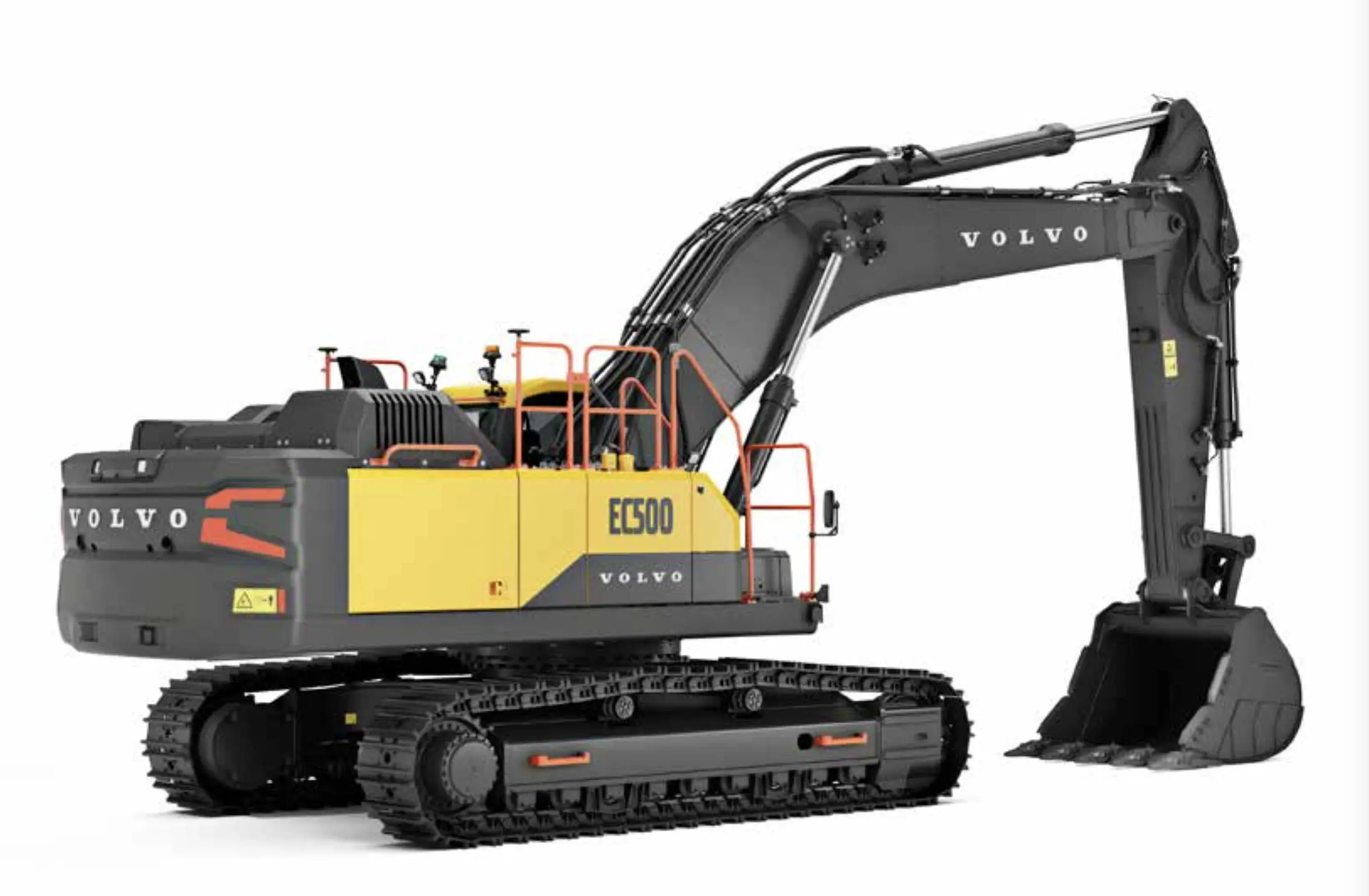

Used on utility sites, in quarries and on heavy construction sites across the globe, EC500 is one of Volvo’s most popular machines made bigger. The powerful and efficient EC500 boasts up to 15% in improved fuel efficiency and a lower Total Cost of Ownership. Now even easier to service and with a comfortable modern cab, it is a machine that meets the requirements of everyone from owner to operator.
Features And Benefits
- ROPS cab as standard
- Smart hydraulic control
- Engine pump optimisation with engine speeds as low as 1600pm
- Dig Assist with On-Board Weighing
- Auto power boost
- Human identifying alarm separate from other obstacles
Images
Brochures
Video
Description
Standard Arm Length 11 ft (3350 mm)
Telematics
Telematics Available Yes
Driveline
Engine Manufacturer Volvo
Engine Model D13J
Displacement 781 Inches³ (12.8 ltr)
Rated Speed 1600 rpm
Engine Output - Net 417 hp (311 kW)
Engine Output - Gross 418 hp (312 kW)
Number Of Track Rollers - Each Side 9
Track Shoe Width 32 inches (800 mm)
Dimensions
Bucket Capacity 2.03-4.33 yd³ (1.55-3.31 m³)
Bucket Weight 4120-6060 lbs (1870-2750 kg)
Transport Length Mono Boom 40 ft 1 in (12220 mm)
Max Transport Height 12 ft 7 in (3830 mm)
Max Machine Width 11 ft 11 in (3640 mm)
Track Length On Ground 14 ft 4 in (4380 mm)
Zero Tailswing No
Heaped Bucket Capacity 3.71 yd³ (2.84 m³)
Variable Undercarriage Availability Option
Ground Level Reach 39 ft 1 in (11925 mm)
Dig Height 36 ft 4 in (11065 mm)
Dump Height - Mono Boom 24 ft 8 in (7525 mm)
Dig Depth 25 ft 8 in (7830 mm)
Capacities
Fuel Tank 169 gallons (US) (640 ltr)
Performance
Ground Bearing Pressure 9.6 PSI (66 kPa)
Arm Tearout 49180 lbf (219 kN)
Bucket Breakout 64080 lbf (285 kN)
Number Of Main Pumps 2
Main Pump - Flow 198 gallons (US) / min (752 lt/min)
Weights
Operating Weight 112080 lbs (50830 kg)
