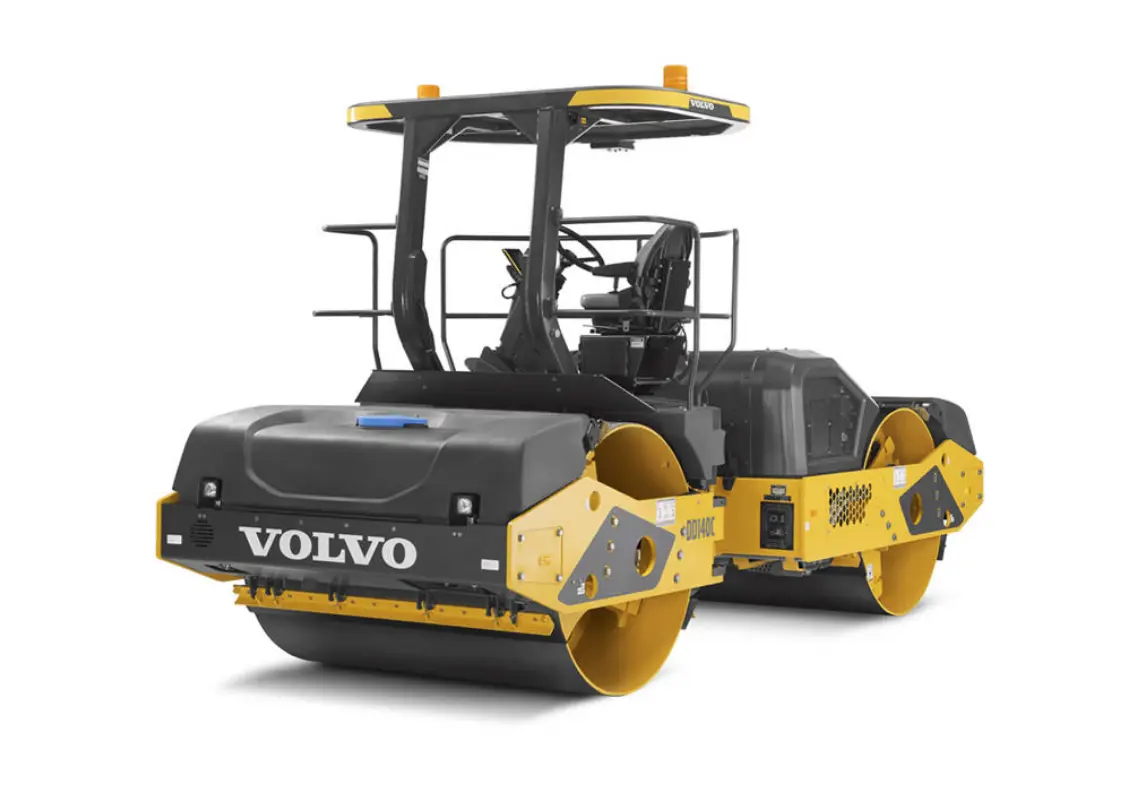

DD140C
b3299398-813a-4c58-b746-a4e6ca241570
THE ULTIMATE COMPACTION MACHINE
Description
The Volvo DD140C asphalt roller delivers maximum efficiency and a powerful performance. With an industry-leading water system, the asphalt roller delivers straightforward operation and compaction at its best. Benefit from optimum power and high density levels with Volvo compaction equipment.
Features And Benefits
- High Productivity
- Lifetime Frame & Structure Guarantee (Frame, Articulation Joint)
- Intelligent Compaction
Images
Brochures
Video
Driveline
Engine Manufacturer Volvo
Engine Model D4
Rated Speed 2200 rpm
Engine Output 148 hp (110 kW)
Transmission Hydrostatic
Dimensions
Overall Length 235.2 inches (5973 mm)
Height - With ROPS 125.1 inches (3177 mm)
Overall Width 92.5 inches (2350 mm)
Wheelbase 140 inches (3550 mm)
Drum Width - Front 84 inches (2135 mm)
Drum Width - Rear 84 inches (2135 mm)
Rolling Width 84 inches (2135 mm)
Drum Diameter - Front 55 inches (1400 mm)
Drum Diameter - Rear 55 inches (1400 mm)
Drum Shell Thickness 0.79 inches (20 mm)
Turning Radius - Inside 180 inches (4562 mm)
Capacities
Fuel Tank 58.1 gallons (US) (219.9 ltr)
DEF Tank 5.28 gallons (US) (20 ltr)
Tank Capacity For Drum 338 gallons (US) (1280 ltr)
Performance
Drive To Drums Both
Travel Speed 1 4.8 mph (7.8 kph)
Travel Speed 2 7.6 mph (12.2 kph)
Max. Travel Speed 7.6 mph (12.2 kph)
Number Of Frequency/Amplitude Settings 2
Frequency - Stage 1 - Front 45 Hz
Frequency - Stage 2 - Front 66.7 Hz
Frequency - Stage 1 - Rear 45 Hz
Frequency - Stage 2 - Rear 66.7 Hz
Amplitude Stage 1 - Front 0.03 inches (0.88 mm)
Amplitude Stage 2 - Front 0.01 inches (0.35 mm)
Amplitude Stage 1 - Rear 0.03 inches (0.88 mm)
Amplitude Stage 2 - Rear 0.01 inches (0.35 mm)
Centrifugal Force 1 - Front 41720 lbf (186 kN)
Centrifugal Force 2 - Front 36680 lbf (163 kN)
Centrifugal Force 1 - Rear 41720 lbf (186 kN)
Centrifugal Force 2 - Rear 36680 lbf (163 kN)
Max Amplitude 0.03 inches (0.88 mm)
Min Amplitude 0.01 inches (0.35 mm)
Max Frequency 66.7 Hz
Min Frequency 45 Hz
Max Centrifugal Force 41720 lbf (186 kN)
Min Centrifugal Force 36680 lbf (163 kN)
Weights
Operating Weight 30486 lbs (13828 kg)
Weight - Front 16156 lbs (7328 kg)
Weight - Rear 14330 lbs (6500 kg)
