Construction Division

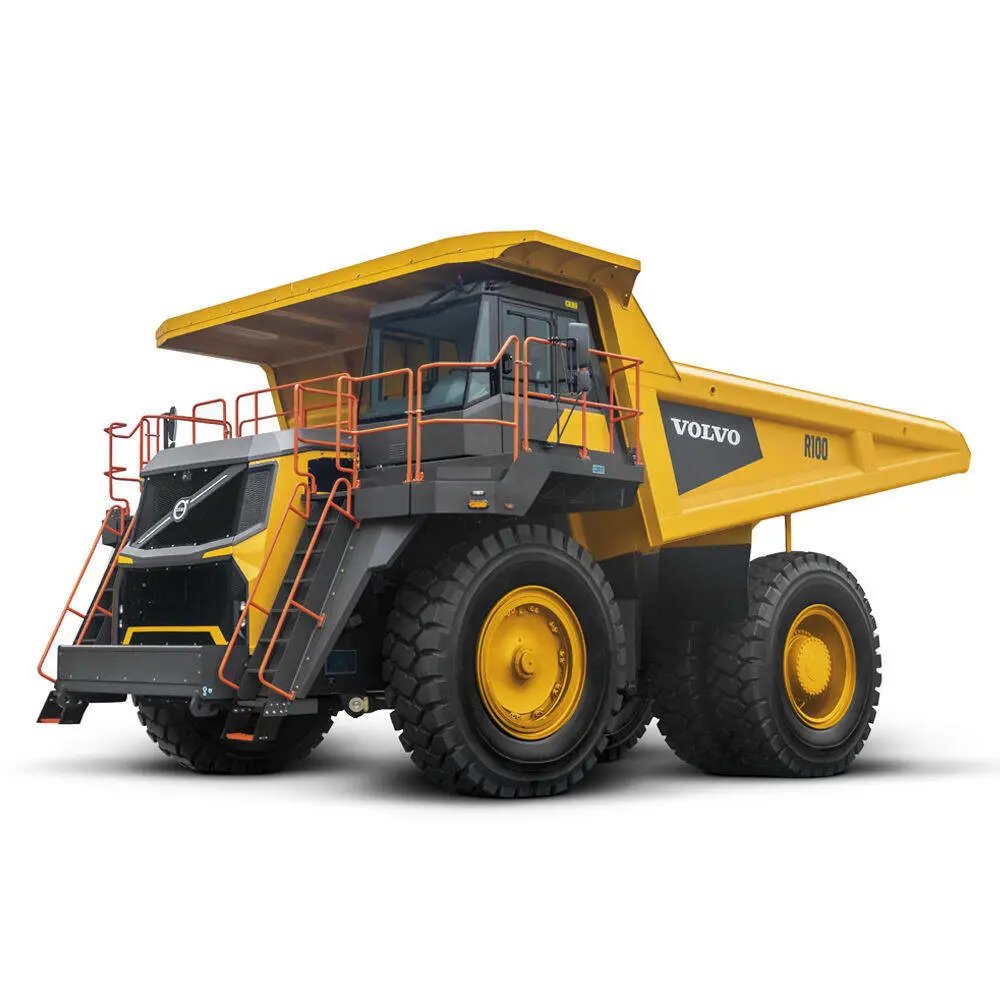

R 100
b34f054b-91fa-4e76-892e-a6e649299ad5
Description
Features And Benefits
Images
Brochures
Video
Description
Passenger Seat Yes
Air Conditioning Yes
Descent Control No
Camera Platform Yes
Camera Platform - System Volvo Smart View
Telematics Available Yes
Platform CareTrack
Driveline
Engine Manufacturer Cummins
Engine Model QST 30
Aspiration Turbo - Charge Air Cooled
Cooling Water
Displacement 1861 Inches³ (30.5 ltr)
Engine Output - Net 974 hp (726 kW)
Engine Output - Gross 1050 hp (783 kW)
Drive Configuration 4 x 2
Transmission Type Automatic
Final Drive Planetary
Speeds - Forward 6
Speeds - Reverse 1
Tire Size - Standard 27.00 - 49
Retarder - Type Transmission - Hydraulic
Retarder - Type 2 Service Brakes - Rear
Dimensions
Length - Overall 430 inches (10922 mm)
Height - Max 200 inches (5070 mm)
Height - Over Canopy / Rock Guard Rail 200 inches (5070 mm)
Ground Clearance 32 inches (806 mm)
Width Over Tires 199 inches (5042 mm)
Width - Transport 275 inches (6986 mm)
Width - Operating 275 inches (6986 mm)
Wheelbase 191 inches (4850 mm)
Loading Height 172 inches (4380 mm)
Full Dump Height 377 inches (9576 mm)
Width - Over Body 225 inches (5706 mm)
Hoist - Angle 47 °
Capacities
Fuel Tank 311 gallons (US) (1180 ltr)
Engine Oil 34.9 gallons (US) (132 ltr)
Transmission - System 24 gallons (US) (91 ltr)
Cooling System 90.8 gallons (US) (344 ltr)
Body Type Double V-Type
Struck Capacity 54 yd³ (41.1 m³)
Heaped Capacity 79 yd³ (60.4 m³)
Performance
Gears - Forward / Reverse 6F - 1R
Speed - Forward Maximum 31.1 mph (50 kph)
Weights
Chassis With Hoist 121430 lbs (55080 kg)
Body Weight 35715 lbs (16200 kg)
Net Weight 157145 lbs (71280 kg)
Payload 209439 lbs (95000 kg)
Gross Weight 366584 lbs (166280 kg)
