Telematics
Telematics Available Yes
Platform Care Track
Driveline
Engine Manufacturer Volvo
Engine Model D6J
Displacement 348 Inches³ (5.7 ltr)
Rated Speed 1800 rpm
Engine Output - Net 169 hp (126 kW)
Engine Output - Gross 173 hp (129 kW)
Standard Number Of Tires 8
Tire Size - Standard 315/70 R22.5
Dimensions
Transport Height Over Boom 10 ft 7 in (3220 mm)
Overall Width 8 ft 4 in (2540 mm)
Overall Width Stabilizers Down 13 ft 1 in (4000 mm)
Wheelbase 8 ft 8 in (2650 mm)

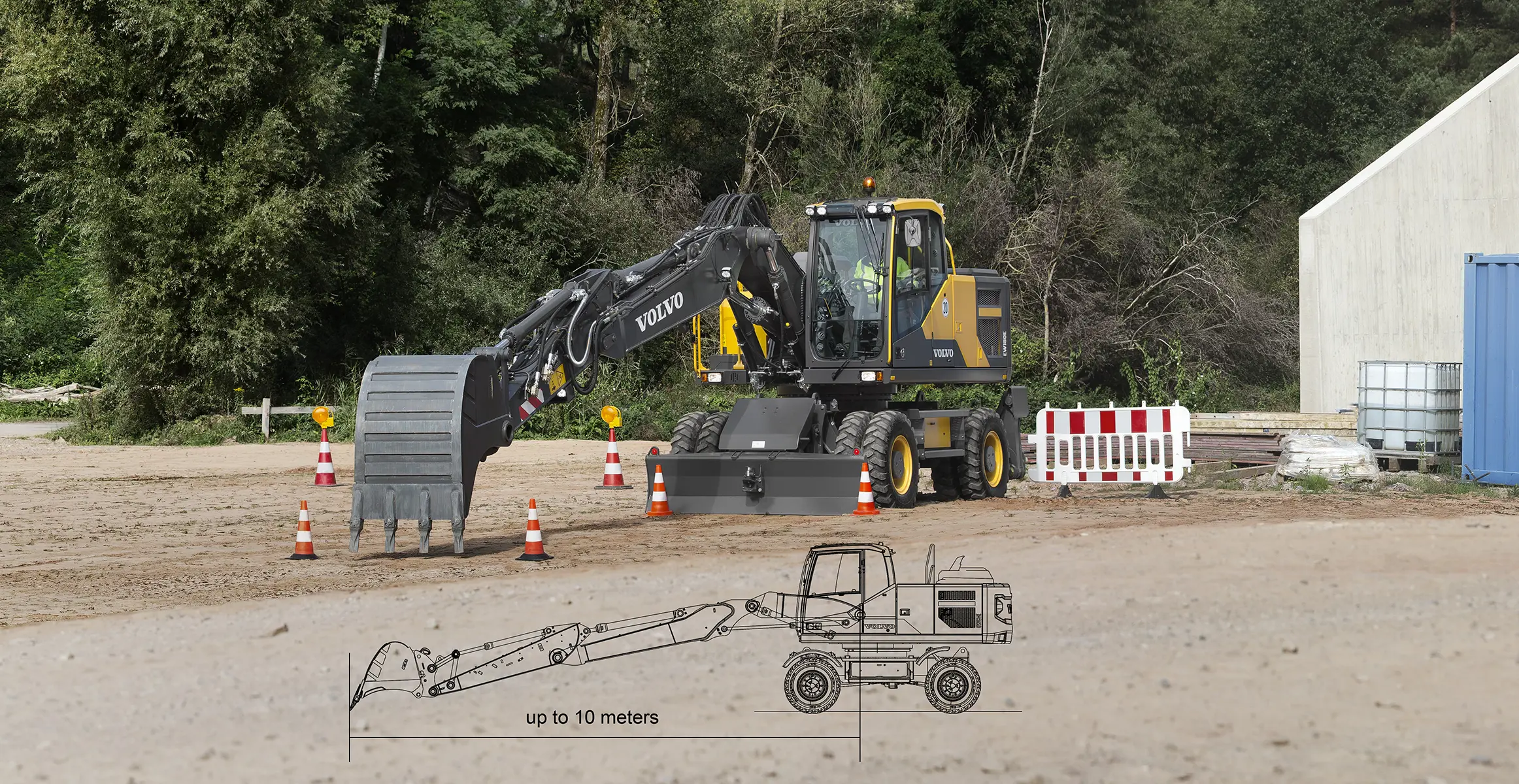

Ground Level Reach 30 ft 2 in (9200 mm)
Maximum Dig Height - Mono Boom 31 ft 10 in (9720 mm)
Dump Clearance Height - Mono Boom 21 ft 5 in (6530 mm)
Dig Depth - Mono Boom 18 ft 2 in (5540 mm)
Capacities
Fuel Tank 76.6 gallons (US) (290 ltr)
Reference Capacity 1.3 yd³ (1 m³)
Performance
Swing Speed 9 rpm
Bucket Breakout - Mono Boom 29675 lbf (132 kN)
Dipper Tearout - Boost, Mono Boom 23830 lbf (106 kN)
Total Flow - Main Pumps 99 gallons (US) / min (375 lt/min)
Weights
Operating Weight 43872 lbs (19900 kg)
