EC400F SB
Description

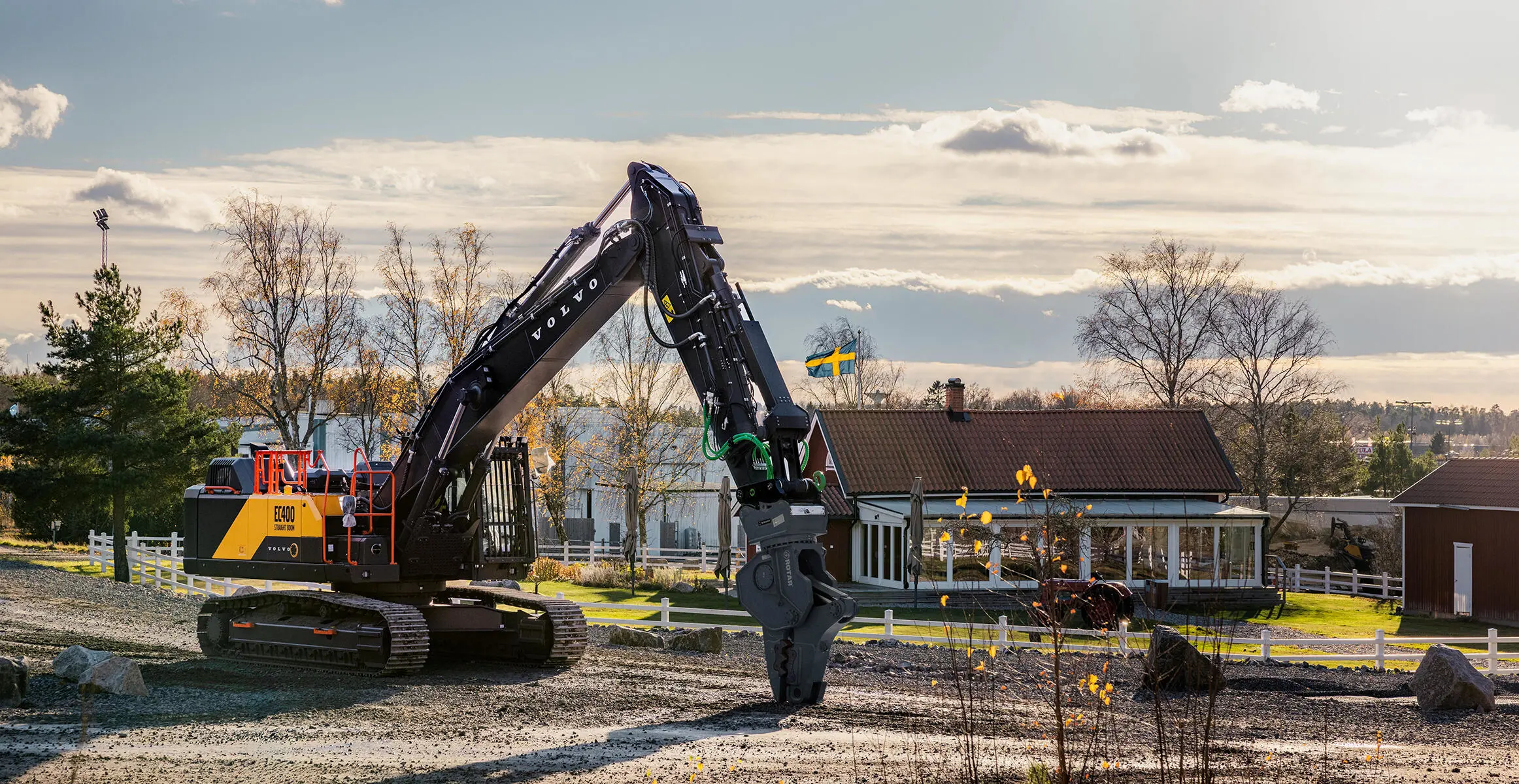

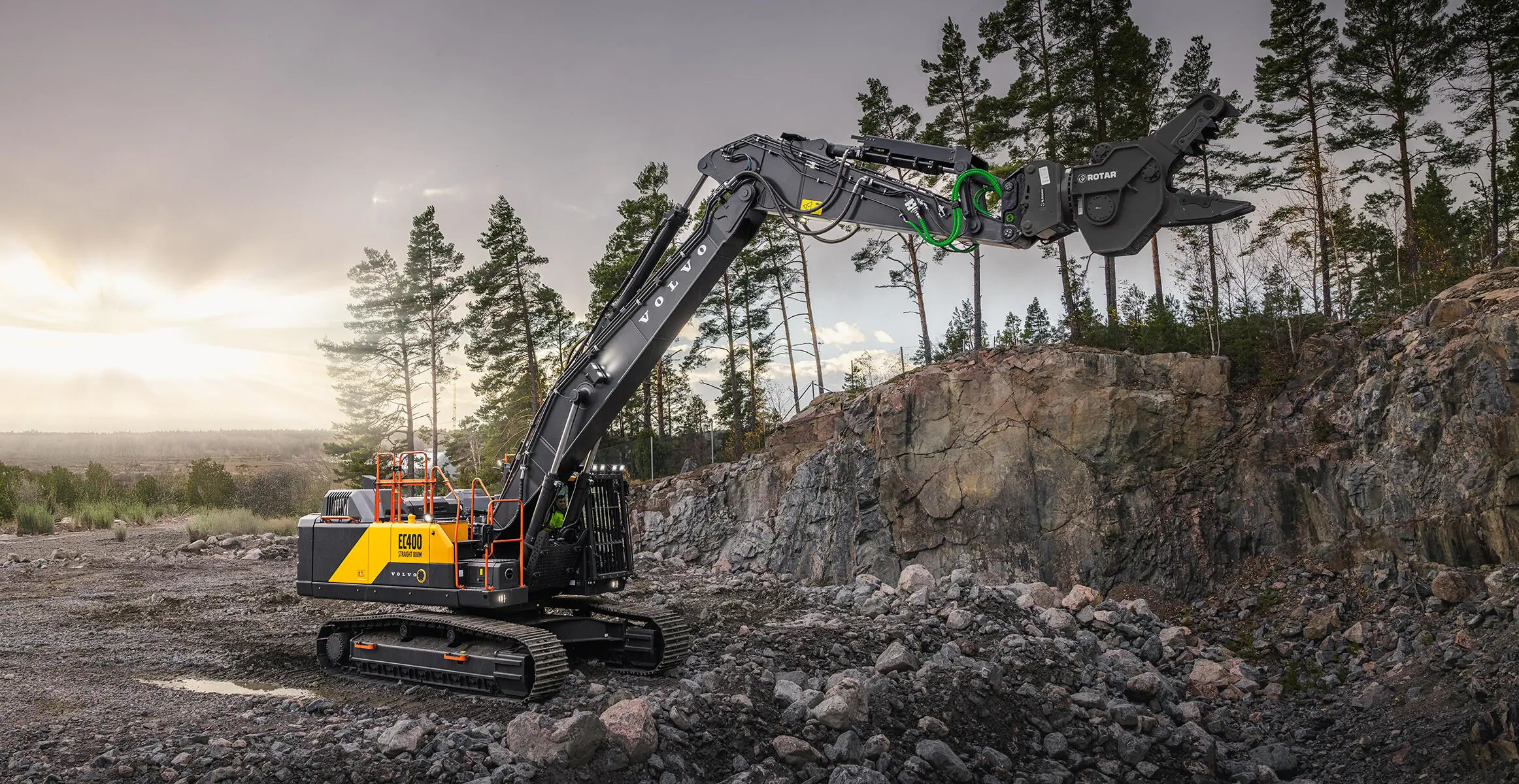

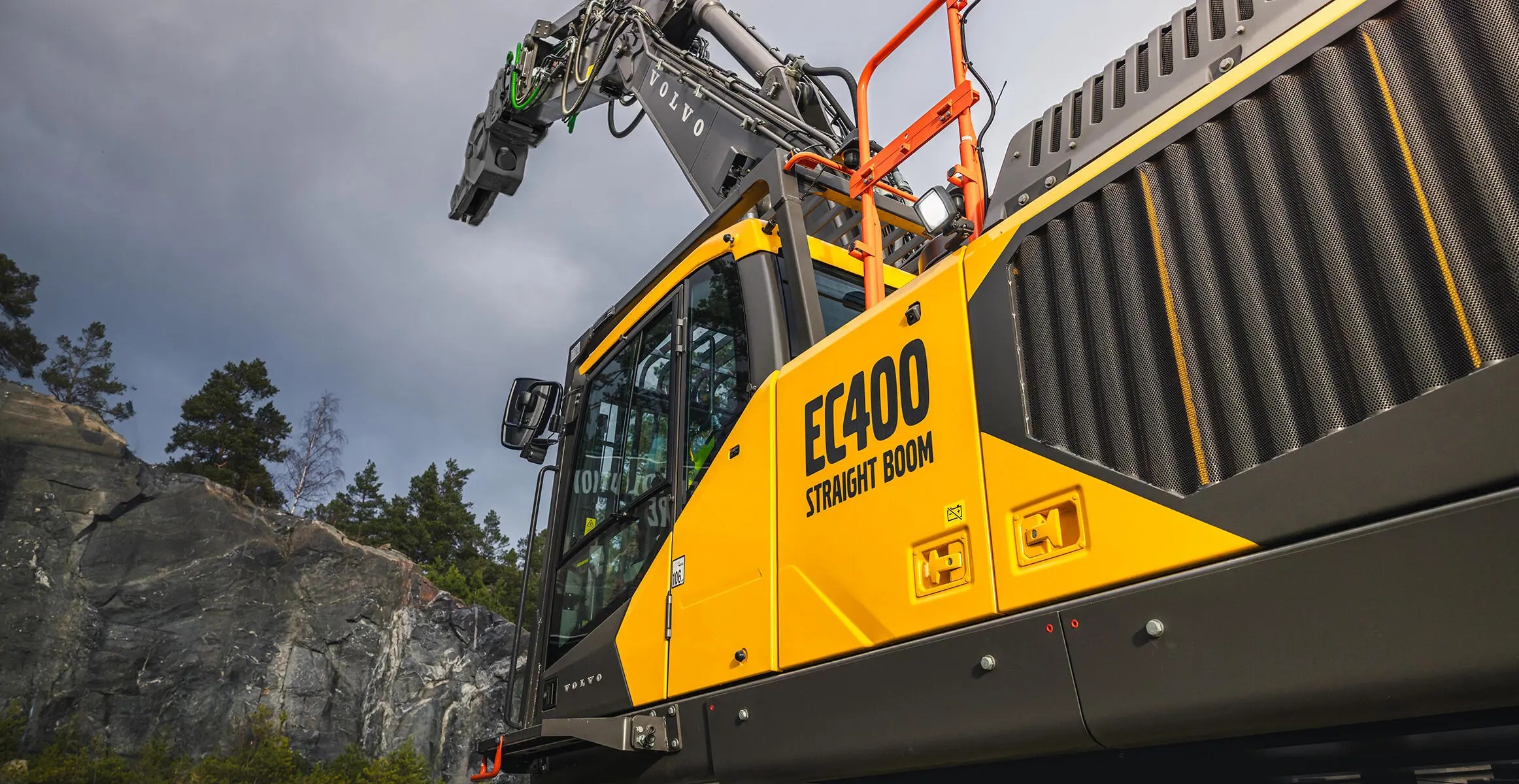

The EC400 Straight Boom is specially configured to deliver superior performance and safety in demolition projects, while retaining the comfort and quality from its standard counterpart. With a 30% better reach, the straight boom excavator offers a clear view of the jobsite, outstanding stability and lifting capabilities, and ultimate protection against falling debris. Discover what makes this excavator especially suited for demolition and what’s new compared to its predecessor, the EC380E Straight Boom.
Features And Benefits
Images
Brochures
Video
Description
Telematics Available Yes
Driveline
Engine Manufacturer Volvo
Engine Model D13J
Displacement 781 Inches³ (12.8 ltr)
Engine Output - Net 338 hp (252 kW)
Variable Undercarriage Availability No
Track Shoe Width 1 ft 11.6 in (600 mm)
Dimensions
Transport Length - Straight Boom 38 ft 9 in (11800 mm)
Transport Height - Over Straight Boom 12 ft 8 in (3870 mm)
Overall Width 11 ft 2 in (3400 mm)
Max Machine Width 11 ft 2 in (3400 mm)
Tailswing Radius 11 ft 10 in (3600 mm)
Max Reach 41 ft 6 in (12652 mm)
Max Height 45 ft 9 in (13956 mm)
Capacities
Fuel Tank 159 gallons (US) (600 ltr)
Performance
Slew Speed 9.8 rpm
Number Of Main Pumps 2
Main Pumps - Maximum Flow 152.2 gallons (US) / min (576 lt/min)
Weights
Operating Weight 93549 lbs (42433 kg)
Standard Attachment Type Bucket
