L150
Description

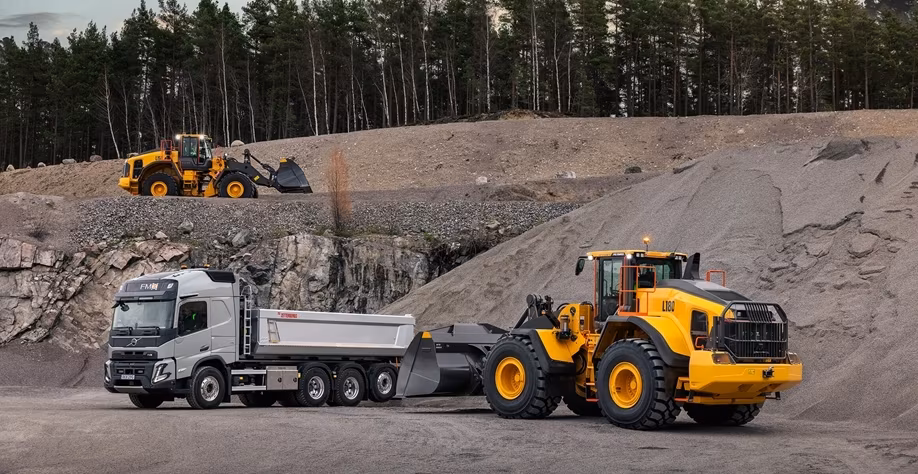

Whether working in rehandling, material handling or earthmoving applications, the Volvo L150 Wheel Loader is your hardworking productivity partner, designed to help you achieve optimum results. Designed to deliver faster cycle times, unrivalled operator comfort and outstanding reliability – count on Volvo quality to run throughout every element of this machine. Take your profitability further with a range of smart solutions including Load Assist, On-Board Weighing and Load Ticket.
Features And Benefits
- An increased hydraulic pump capacity and flow is designed to enhance the responsiveness of the hydraulic system and improve the lifting and lowering speed of the boom

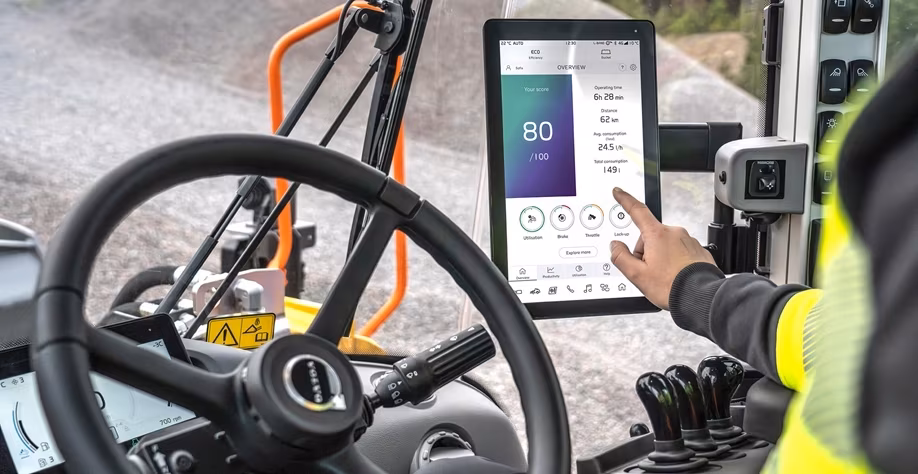

- Operators can stay in-the-know and focused on the task at hand thanks to all essential in-cab information conveniently displayed on just two screens.
- Excellent in-cab visibility and field of vision is complemented by a host of safety-enhancing features including high definition rear view camera integrated in the Volvo Co-Pilot display, Collision Mitigation System and radar detect system that provides visual and audible alerts when encountering unseen objects.
Images
Brochures
Video
Driveline
Engine Manufacturer Volvo
Engine Model D13J
After Treatment System Diesel Oxidation Catalyst
Aspiration Turbo Charger and Intercooled
Displacement 781 Inches³ (12.8 ltr)
Rated Speed 1300 rpm
Engine Output - Net 300 hp (224 kW)
Torque 1472 lbf / ft (1996 Nm)
Transmission Type Automatic Power Shift
Traction Control No
Tire Size 26.5 R25
Service Brake - Type Wet Disc
Dimensions
Wheelbase 11 ft 8 in (3550 mm)
Length With Bucket On Ground 28 ft 2 in (8580 mm)
Height - Over Cab 11 ft 9 in (3580 mm)
Ground Clearance 19 inches (480 mm)
Width Over Tires - Std 9 ft 9 in (2960 mm)
Bucket Type GP w/Bolt-on Edge
Bucket Width 10 ft 5 in (3200 mm)
Full Lift Dump Height 10 ft 4 in (3140 mm)
Full Lift Reach 3 ft 7 in (1100 mm)
Loader - Geometry Torque Parallel
Dump Angle - At Dump 45 °
Dump Angle - Maximum 46 °
Height - Pivot Pin 14 ft 7 in (4460 mm)
Height - Maximum 19 ft 8 in (6010 mm)
Turn Radius Over Bucket - Std. 24 ft 4.5 in (7430 mm)
Capacities
Fuel Tank 96.7 gallons (US) (366 ltr)
Heaped Capactiy 5.2 yd³ (4 m³)
Smallest Bucket Capacity 4.5 yd³ (3.5 m³)
Largest Bucket Capacity 8.9 yd³ (6.8 m³)
Performance
Straight Tipping Load 40380 lbs (18310 kg)
Full Turn Tipping Load 35580 lbs (16140 kg)
Bucket Breakout 45220 lbf (201 kN)
Ride Control System No
Oscillation - Rear Axle 30 °
Load Sensing Yes
Weights
Bucket Capacity 4.5-8.9 yd³ (3.5-6.8 m³)
Operating Weight 53190 lbs (24120 kg)
