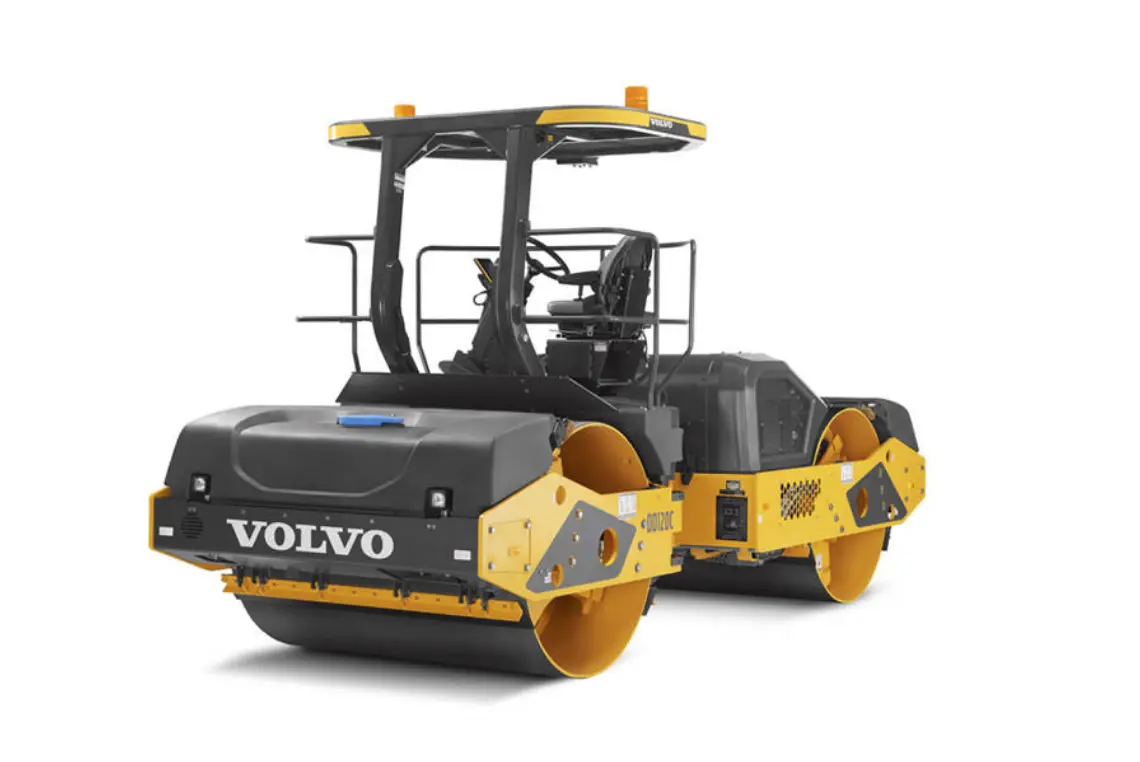

DD120C
b77ba239-714b-4407-a606-5b85bf407c37
ULTIMATE COMPACTION POWER
Description
The DD120C is designed to offer maximum efficiency and simple operation, alongside powerful performance and high density levels.
Features And Benefits
- High Productivity
- Lifetime Frame & Structure Guarantee (Frame, Articulation Joint)

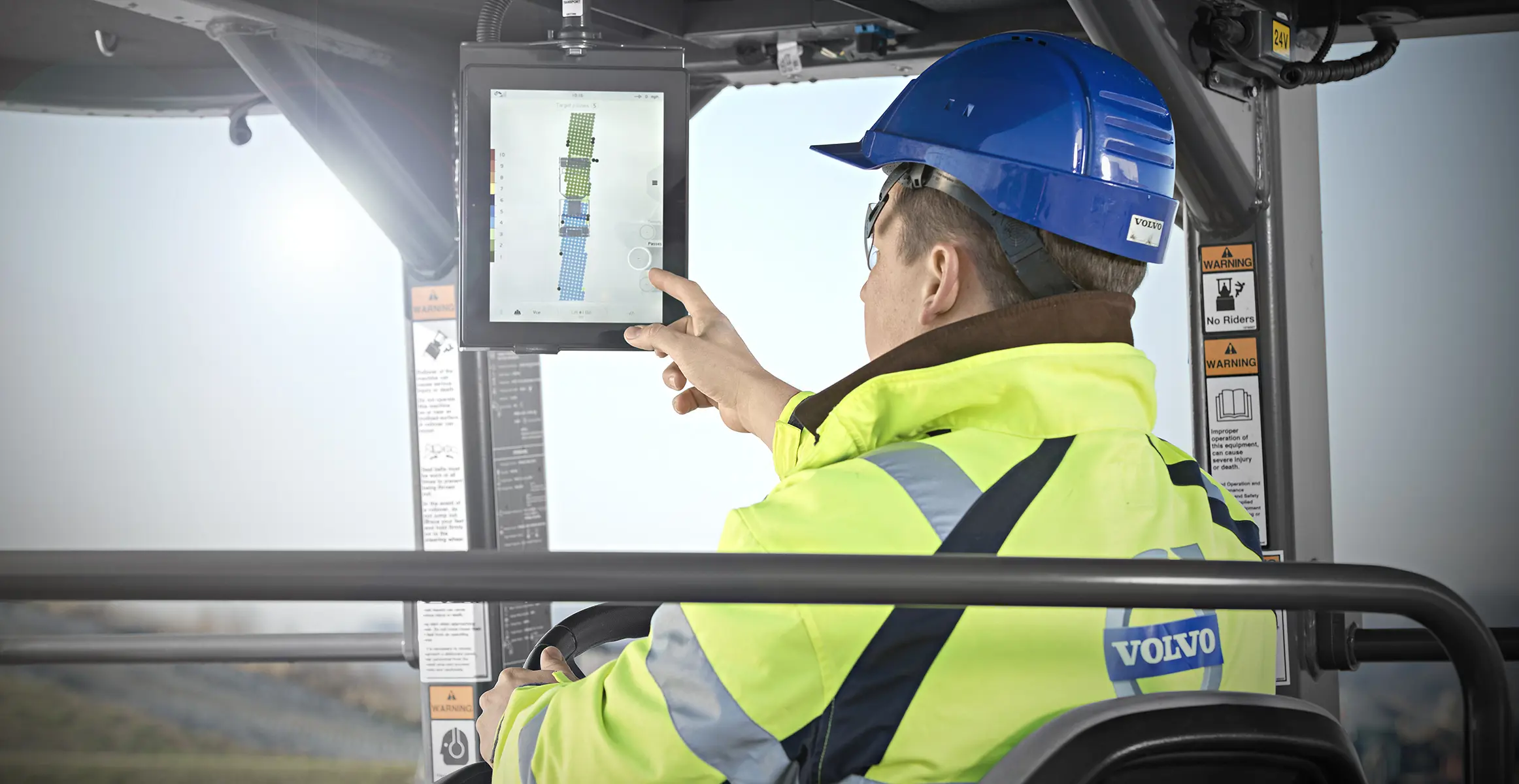

- Intelligent Compaction
Images
Brochures
Video
DRIVELINE
Engine Manufacturer Volvo
Engine Model D4
Rated Speed 2200 rpm
Engine Output 148 hp (110 kW)
Transmission Hydrostatic
DIMENSIONS
Overall Length 235.2 inches (5973 mm)
Height - With ROPS 125.1 inches (3177 mm)
Overall Width 87.3 inches (2218 mm)
Wheelbase 140 inches (3550 mm)
Drum Width - Front 79 inches (2000 mm)
Drum Width - Rear 79 inches (2000 mm)
Rolling Width 79 inches (2000 mm)
Drum Diameter - Front 55 inches (1400 mm)
Drum Diameter - Rear 55 inches (1400 mm)
Drum Shell Thickness 0.79 inches (20 mm)
Turning Radius - Inside 149 inches (3772 mm)
Capacities
Fuel Tank 52.8 gallons (US) (199.8 ltr)
DEF Tank 5.28 gallons (US) (20 ltr)
Tank Capacity For Drum 338 gallons (US) (1280 ltr)
Performance
Drive To Drums Both
Travel Speed 1 4.8 mph (7.8 kph)
Travel Speed 2 7.6 mph (12.2 kph)
Max. Travel Speed 7.6 mph (12.2 kph)
Number Of Frequency/Amplitude Settings 2
Frequency - Stage 1 - Front 50 Hz
Frequency - Stage 2 - Front 66.7 Hz
Frequency - Stage 1 - Rear 50 Hz
Frequency - Stage 2 - Rear 66.7 Hz
Amplitude Stage 1 - Front 0.04 inches (0.89 mm)
Amplitude Stage 2 - Front 0.01 inches (0.36 mm)
Amplitude Stage 1 - Rear 0.04 inches (0.89 mm)
Amplitude Stage 2 - Rear 0.01 inches (0.36 mm)
Centrifugal Force 1 - Front 42070 lbf (187 kN)
Centrifugal Force 2 - Front 30020 lbf (134 kN)
Centrifugal Force 1 - Rear 42070 lbf (187 kN)
Centrifugal Force 2 - Rear 30020 lbf (134 kN)
Max Amplitude 0.04 inches (0.89 mm)
Min Amplitude 0.01 inches (0.36 mm)
Max Frequency 66.7 Hz
Min Frequency 50 Hz
Max Centrifugal Force 42070 lbf (187 kN)
Min Centrifugal Force 30020 lbf (134 kN)
Weights
Operating Weight 27700 lbs (12565 kg)
Weight - Front 14735 lbs (6684 kg)
Weight - Rear 12965 lbs (5881 kg)
