EC950F

bc3a1908-fa44-4111-bd4d-11f230eae449
Description

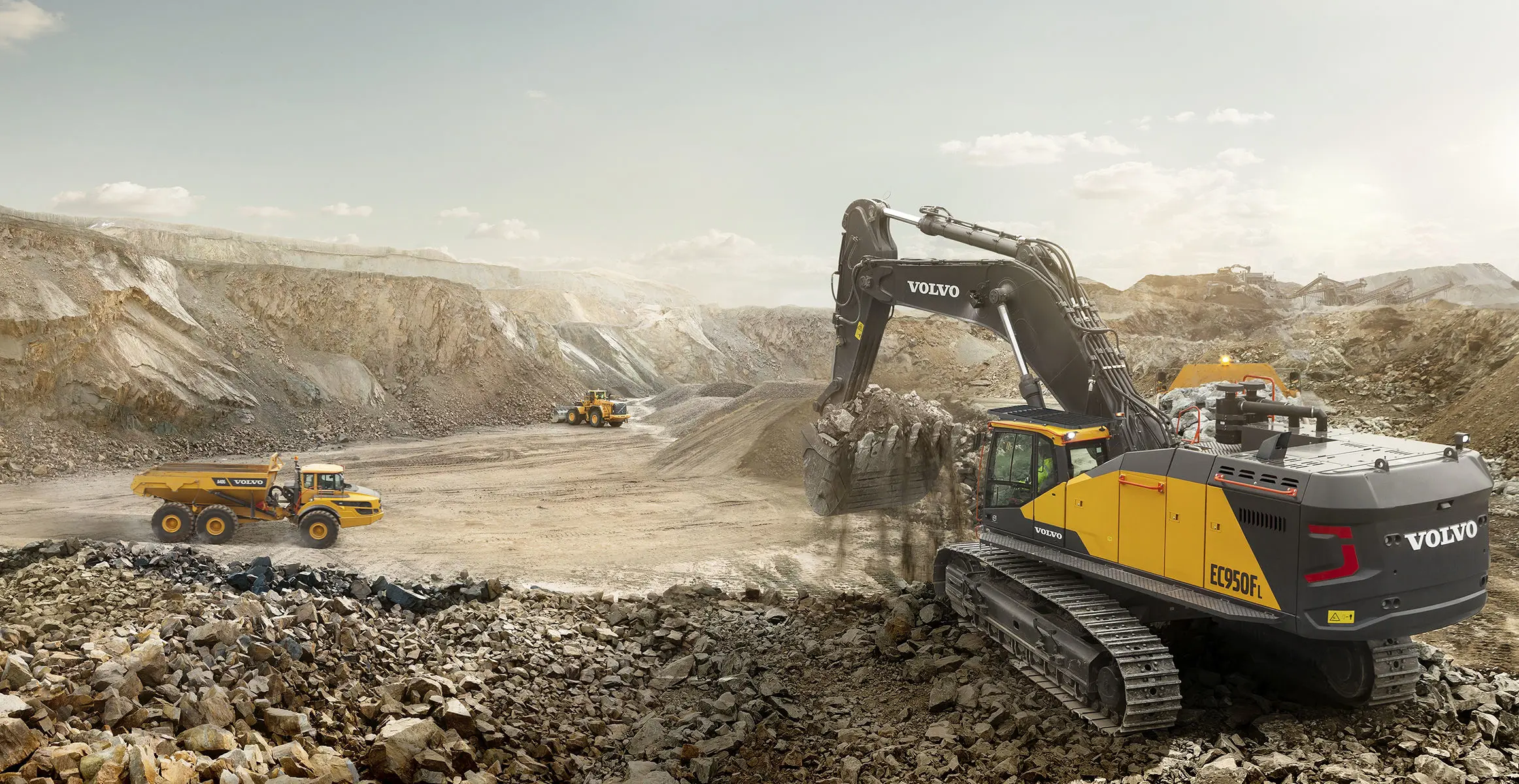

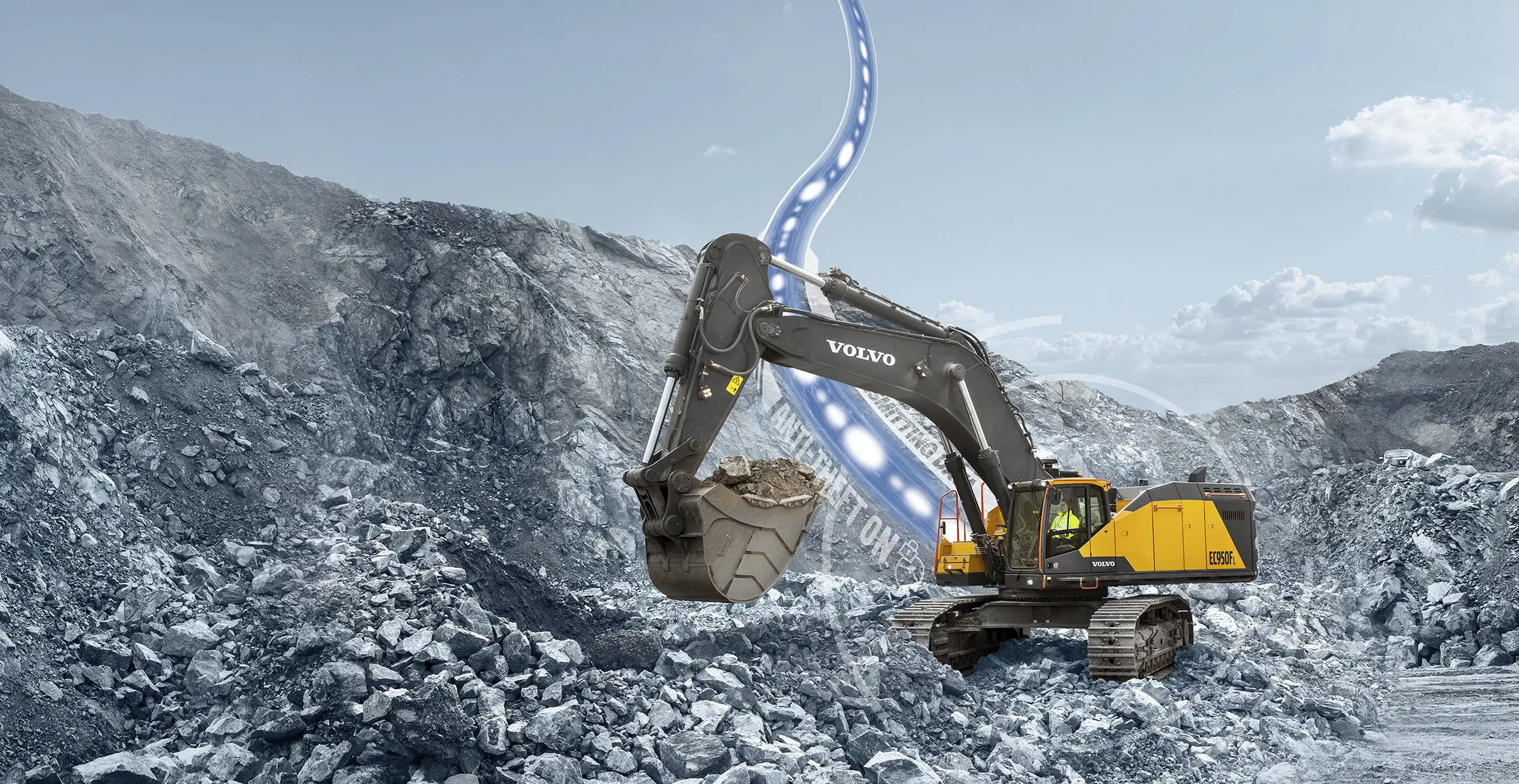

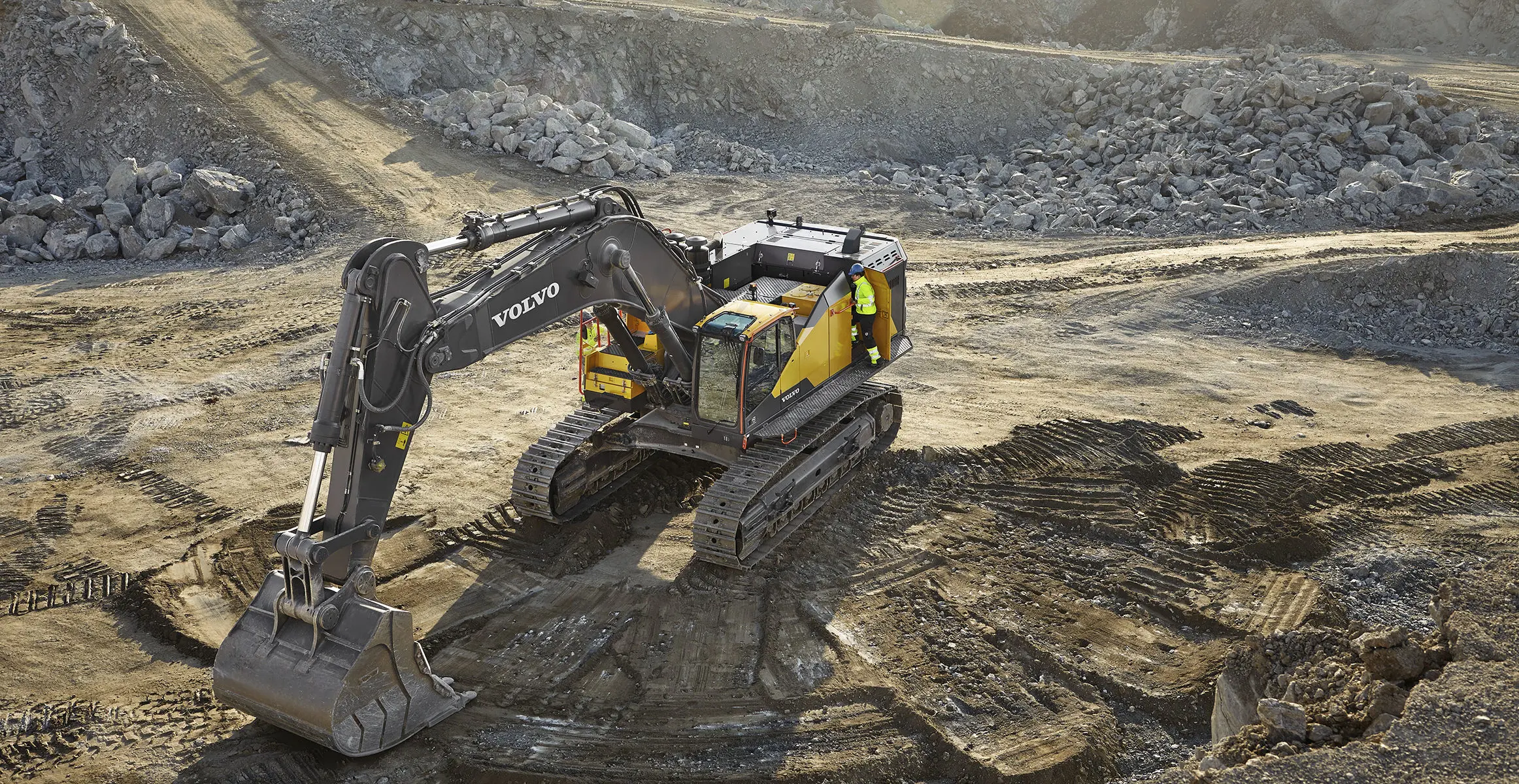

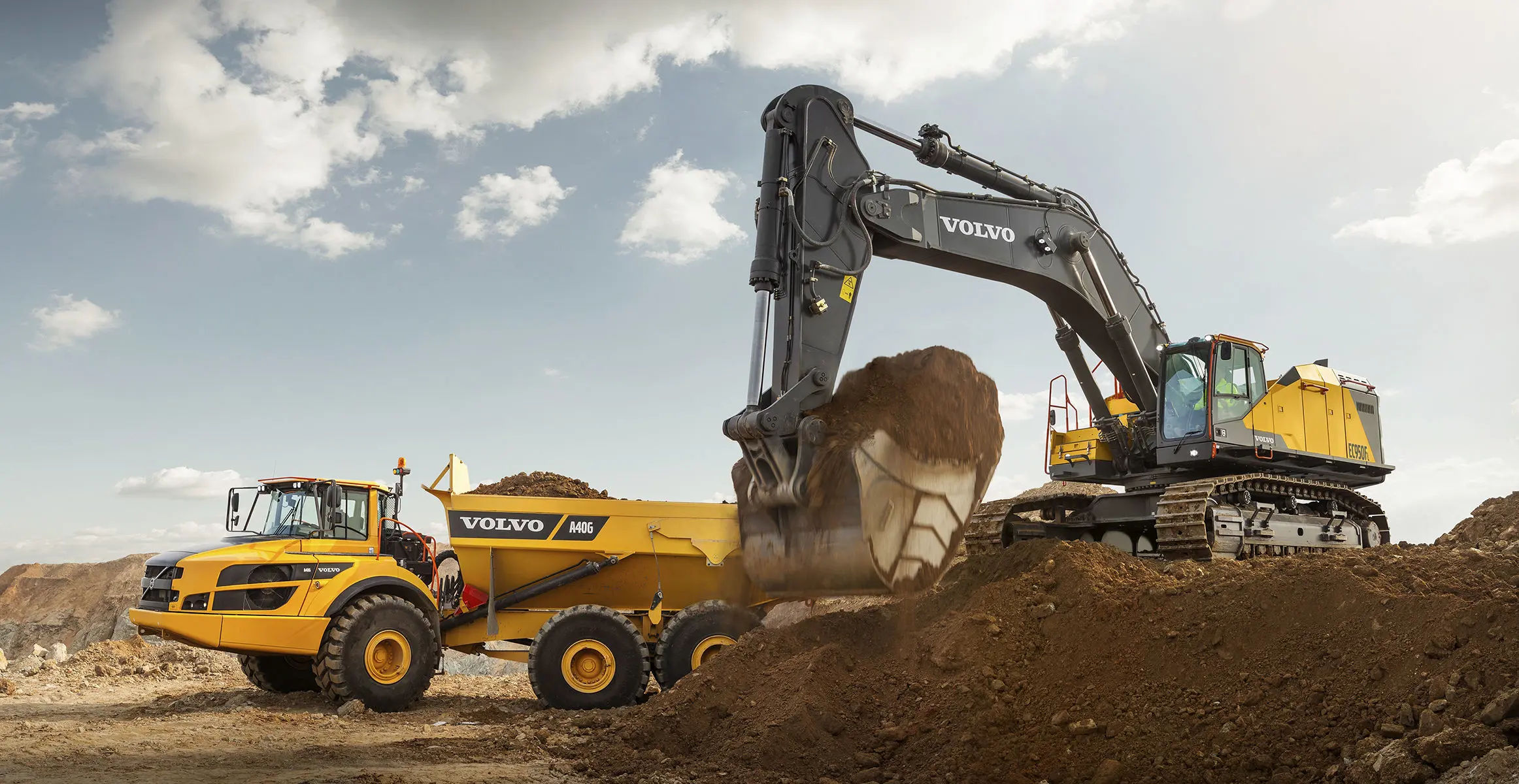

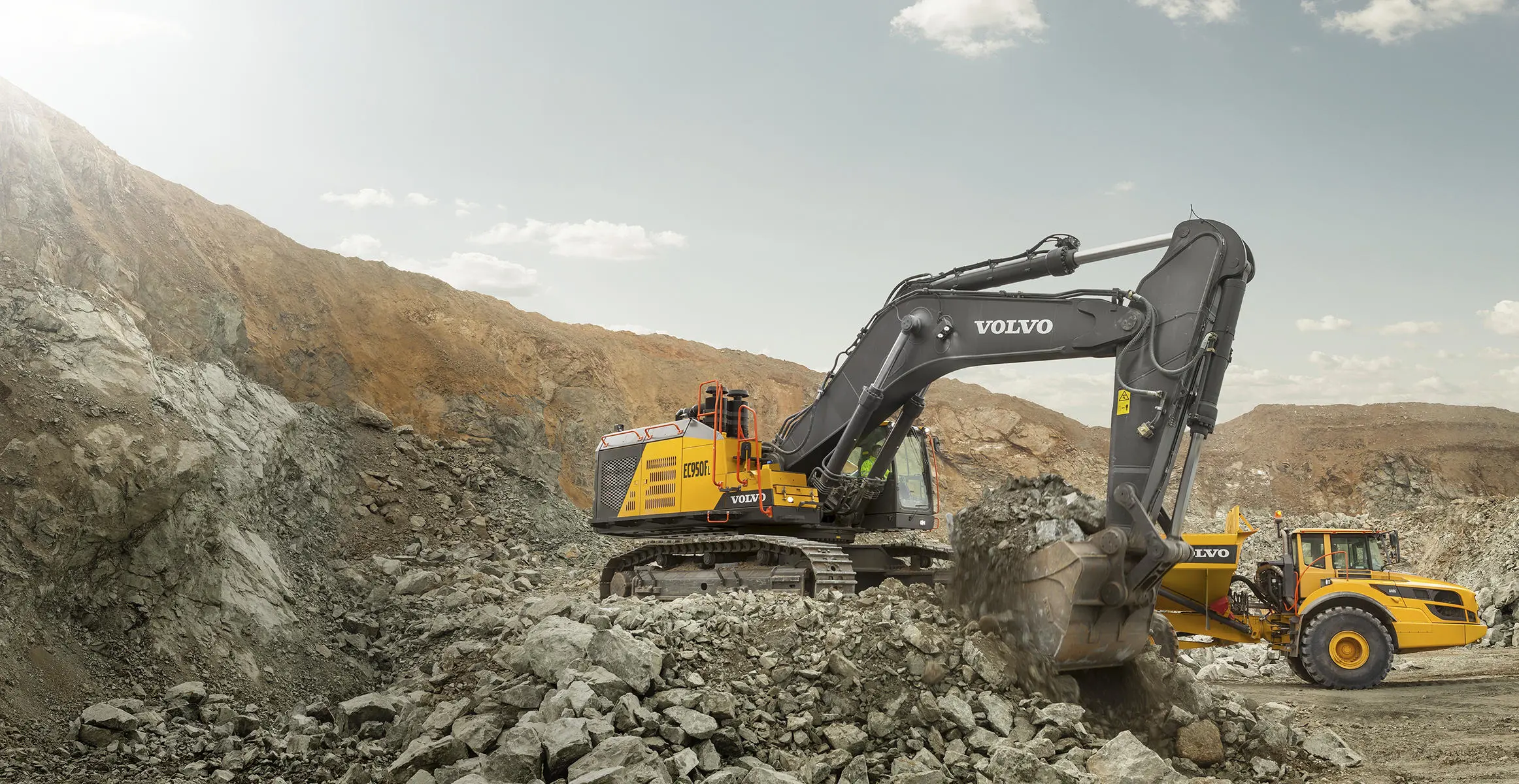

Perform a variety of tasks with greater speed in the heavy-duty EC950F from Volvo, utilizing advanced technology to increase productivity and efficiency. Whether you’re working on a quarry, in mass excavation or any other application, the big and powerful EC950F excavator will maximize your profitability

Features And Benefits
  • BIGGER MACHINE, BIGGER RESULTS
  • Gain more profitability in the EC950F, Volvo’s largest crawler excavator. The 90 tonne excavator delivers a high bucket capacity for more tons per hour, achieving a fast and efficient on-site production.
  • SUPERIOR DIGGING FORCE
  • Even in the harshest applications, the EC950F is up to the challenge. Experience superior digging force, particularly when working with hard and heavy materials, thanks to constant high hydraulic pressure delivering power to the machine when you need it.
  • EASY SERVICE ACCESS
  • Maximize uptime with quick and safe servicing. Essential maintenance points are easily accessed via the wide-opening and conveniently located compartment doors using central and surrounding walkways.
  • EASY MACHINE MONITORING
  • Maximize machine uptime and reduce repair costs with Volvo ActiveCare Direct. Utilizing CareTrack data, the intelligent service provides round the clock machine monitoring and tailored customer reports, helping you to keep track of your fleet and take preventive maintenance actions.
Images
Description
Standard Arm Length 12 ft 1.7 in (3700 mm)
Telematics
Telematics Available Yes
Driveline
Engine Manufacturer Volvo
Engine Model D16J
Displacement 982 Inches³ (16.1 ltr)
Rated Speed 1650 rpm
Engine Output - Net 602 hp (449 kW)
Engine Output - Gross 603 hp (450 kW)
Number Of Track Rollers - Each Side 9
Track Shoe Width 36 inches (900 mm)
Dimensions
Bucket Capacity 5.1-9.16 yd³ (3.9-7 m³)
Bucket Weight 9526-12308 lbs (4321-5583 kg)
Transport Length Mono Boom 47 ft 11 in (14600 mm)
Max Transport Height 16 ft 3 in (4960 mm)
Max Machine Width 14 ft 10 in (4520 mm)
Track Length On Ground 16 ft 10 in (5120 mm)
Zero Tailswing No
Heaped Bucket Capacity 5.1 yd³ (3.9 m³)
Variable Undercarriage Availability Yes
Ground Level Reach 45 ft 1 in (13750 mm)
Dig Height 43 ft 7 in (13280 mm)
Dump Height - Mono Boom 30 ft 2 in (9200 mm)
Dig Depth 29 ft 4 in (8950 mm)
Capacities
Fuel Tank 334 gallons (US) (1265 ltr)
Performance
Ground Bearing Pressure 13.5 PSI (92.9 kPa)
Arm Tearout 80706 lbf (359 kN)
Bucket Breakout 87226 lbf (388 kN)
Number Of Main Pumps 3
Main Pump - Flow 311 gallons (US) / min (1177 lt/min)
Weights
Operating Weight 209020 lbs (94810 kg)
